DC24V Smart Windows Sofa Bed Plate Mechanism Support Frame Electric Lifting Rod Upturn Pneumatic Support Rod Adjustable Bedstock

----- Product Description

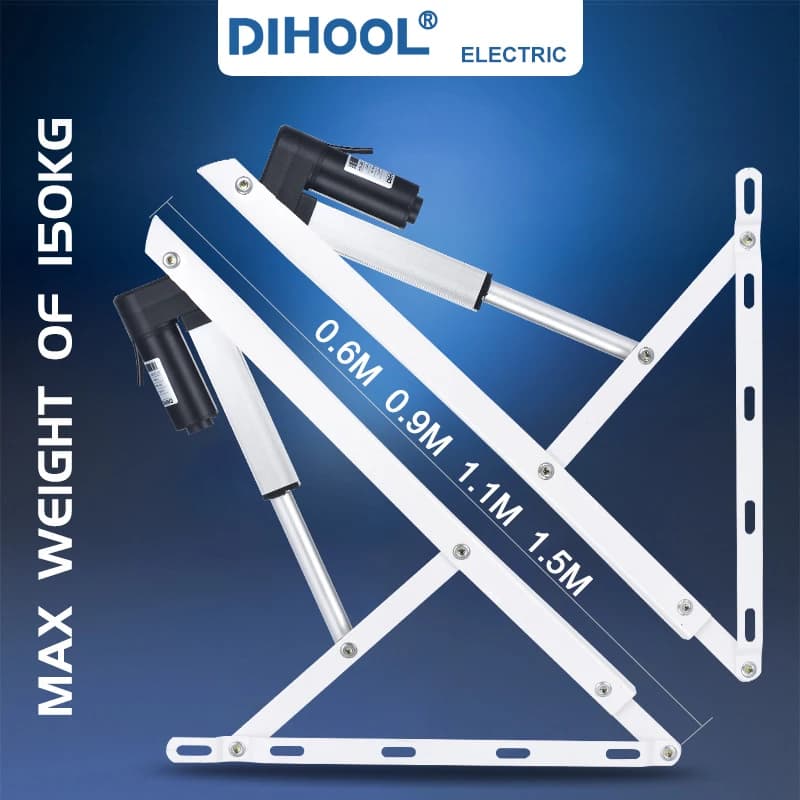

The DHLC1500 electric lifting bracket is mainly used in tatami storage beds, heavy cabinet doors, and hidden cabinet doors. The electric linear actuator is matched with the lifting bracket to realize the raising and lowering of the panel. According to the length of the bracket, it is divided into four specifications: 61/90/110/150CM, the thickness of the bracket is 5MM, and the opening and closing angle is 0-45°. This bedbox electric lift is controlled by 24V or 12V power supply, and the load capacity is 80-150kg.

When using two tatami electric lifts at the same time, please pay attention to test first, avoid one to rise and the other to not move, which will damage the board

----- Technical Parameters

Input Voltage: 24VDC(Default) / 12V DC

Maximum Load: 500N 50KG ~1500N 150KG

Maximum Current: DC24V 3A / DC12V 6A

Maximum Speed: 5MM/S or 0.9°/s

Protection Level: IP43

Working environment temperature: -10℃ to 60℃

Color: White Black

Limit Switch: Built-in;

Screw Type: T Type

Work Cycle: 10% Work System, Maximum 1 Hour Continue Working

Product Certification: CE

Mechanical Life: More than 50,000 times
