RF Phase Shifter, Digital RF Phase Shifter, C-band Microwave Phase Shifter, 5.8G Digital Phase Shifter

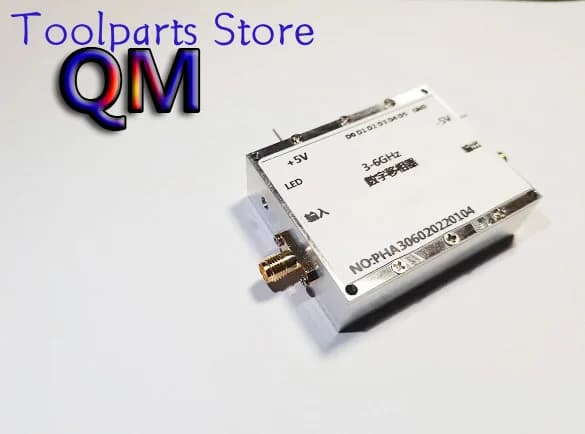

Phase shifter is a device that controls the phase change of signals and is widely used in radar systems, microwave communication systems, and measurement systems. This module uses digital programming technology to achieve phase change of input signals and adopts a 6-bit parallel control method to meet high-precision requirements; At the same time, it is equipped with an adjustable gain module, which effectively compensates for the signal attenuation caused by module insertion loss; This module comes with a CNC casing and excellent electromagnetic shielding performance. It has installation and fixing holes and can be used in conjunction with equipment;
Module parameters:
1. Operating frequency: 3-6GHz (with built-in preamplifier);
2: Power supply: ± 5V power supply;
3: Phase control: 5.625 ° -354.375 °;
4. Phase accuracy: 5.625 ° high precision;
5. Control mode: Parallel control;
6. Control interface: 2.54 spacing connectors;
7. Control bit number: 6 bits;
8. Transmission gain: 0 to+5dB (adjustable);
9. Interface: SMA-K (customizable);
10. Module size: 58 * 46 * 17mm (without connectors)
Insertion loss test (preamplifier with gain output):
During testing, a 20dB attenuator was connected in series to the input end

Phase test:
Position 00000:

Position 100000:

Position 010000:

Position 001000:

Position 000100:

Position 000010:

Position 00000 1:

Position 111111:
