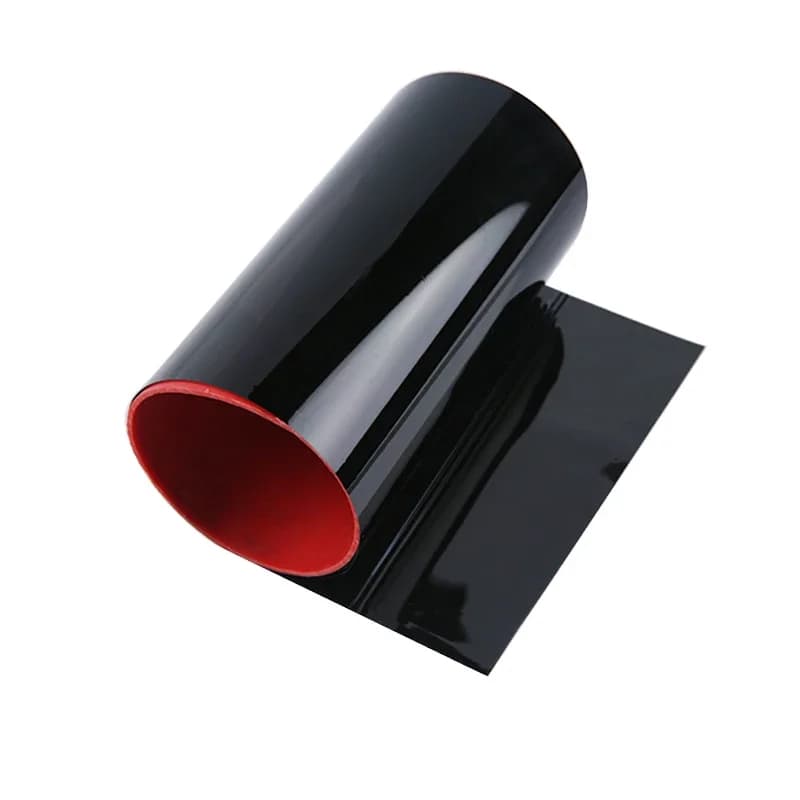

Ultra-thin Optical Plastic Film Filter Film Blocks Visible Light Infrared Transmission Infrared Light Transmission

Type1: IR680 50*65*0.05mm with adhesive,
Type2: IR700 50*65*0.2mm without adhesive,
Type3: IR700 240*150*0.2mm without adhesive,
Type4: IR680 240*150*0.05mm with adhesive,
Type5: IR680 150*100*0.05mm with adhesive,
Type6: IR680 120*200*0.05mm with adhesive,
Type7: IR680 120*250*0.05mm with adhesive,
Type8: IR700 70*200*0.2mm without adhesive,
Type9: IR700 70*10*0.2mm without adhesive,
Type10: IR700 70*20*0.2mm without adhesive,
Type11: IR700 70*70*0.2mm without adhesive,
Type12: IR700 70*100*0.2mm without adhesive,
Type13: IR700 70*150*0.2mm without adhesive,
Type14: IR700 70*300*0.2mm without adhesive,
Type15: IR700 250*50*0.2mm without adhesive,
Type16: IR700250*100*0.2mm without adhesive,
Type17: IR700 250*120*0.2mm without adhesive,
Type18: IR700 250*150*0.2mm without adhesive,
Type19: IR700 250*200*0.2mm without adhesive,
Type20: IR700 250*250*0.2mm without adhesive,
Type21: IR700 70*100*0.2mm without adhesive,
Product Index
Model
Infrared Film
Characteristics
Through the infrared band680-1100nm/700-1100nm
Size
50*65*0.05mm(Strap glue)
50*60*0.3mm(Back without glue)A variety of sizes to choose from
Thickness
0.05mm,0.3mm
Dimensional tolerance
Plus or Minus0.1mm
Thickness tolerance
Plus or Minus0.05mm
IR680Series infrared filter film,Its characteristics are black and infrared,IE
Infrared ray
(800-1600nm)High Penetration(90%Transmittance),
Most visible light
(400-
680nm)Low Pass
(10%The following transmittance),
Near infrared transition region visible to naked eye
(680-800nm)Partially through(About40%Transmittance).
For
Infrared communication,Monitoring,Security Protection,Interactive Projection,Infrared inductionRobots and other fields shade visible light,Through infrared rays
.
Receive attention to tear off the surface protective film!
The spectrogram of thin film IR680 is as follows: thickness 0.05mm

The spectrogram of thin film IR700 is as follows: thickness 0.2mm

The spectrogram of thin film IR700 is as follows: the thickness of 0.3mm

If you buy optical products made of glass materials such as filters/attenuators/mirrors/splitters, please pay special attention to:
1. Avoid storing the filter in a humid and high temperature environment.
2. Avoid hard objects scratching the surface of the filter and crushing by heavy objects.
3. Take the lens with finger cover or rubber gloves, if not, wash and dry your hands before taking it, put the lens gently on the lens paper, do not put it on the surface of rough or hard things, so as to avoid damage, when getting dust or fingerprints, use a cotton swab or cotton ball dipped in a small amount of industrial alcohol or ethanol and other solvents, gently wipe, do not force, Slowly wipe the entire lens in one direction at a time, avoid rubbing back and forth, and wait for the solvent to cool and dry before placing it in the corresponding position.
4, the use of colored optical filter temperature should not exceed 80 degrees, need to be used under high temperature conditions, to explain to the seller, only after tempering can be used at high temperatures, but it is best not to exceed 250 degrees, so as not to damage the filter.
5. During the use of the filter, the temperature should be avoided. If the temperature difference is too large, it will cause the filter to break. Perform this operation with caution.
6. The combination of the filter and the instrument or device: if the instrument or device is threaded, the filter can be installed on the corresponding ring and then screwed on the device; If there are no threads and only structural parts, you can use AB glue or UV glue to glue the filter to the top. If not, you can communicate with customer service and provide relevant guidance.
