Tesla Coil DRSSTC SKP Jump Pulse Driver Arc Extinguishing Controller

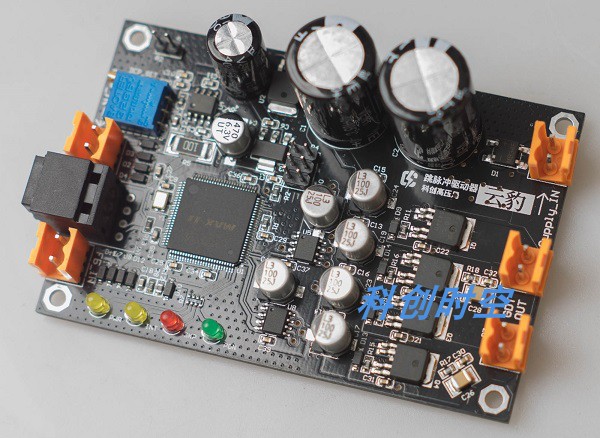

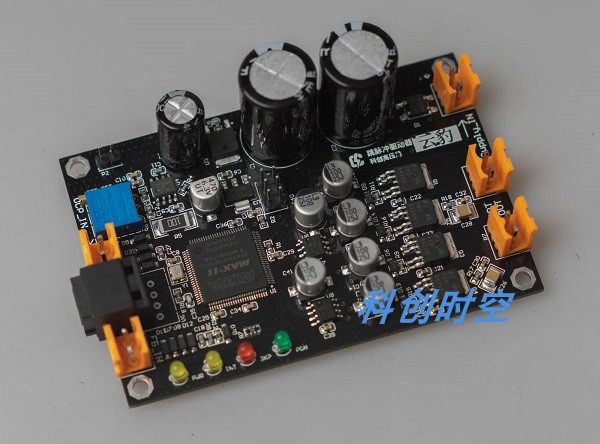

Dual GDT output, supports driving IGBT modulesCurrent feedback threshold setting, supporting DRSSTC and SKP modes

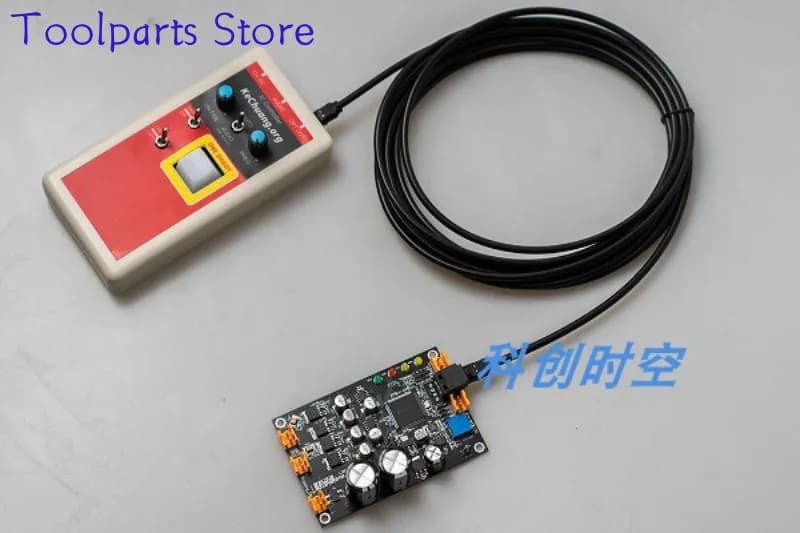

New DRSSTC/SKP dual-mode Tesla coil arc extinguishing controllerSwitchable SKP/DR pulse control mode, with a maximum On Time of 10ms in SKP modeSupport One Shot - single button trigger functionSupport audio/external trigger inputSupports 2 * 5 batteries and external 12V DC power supply

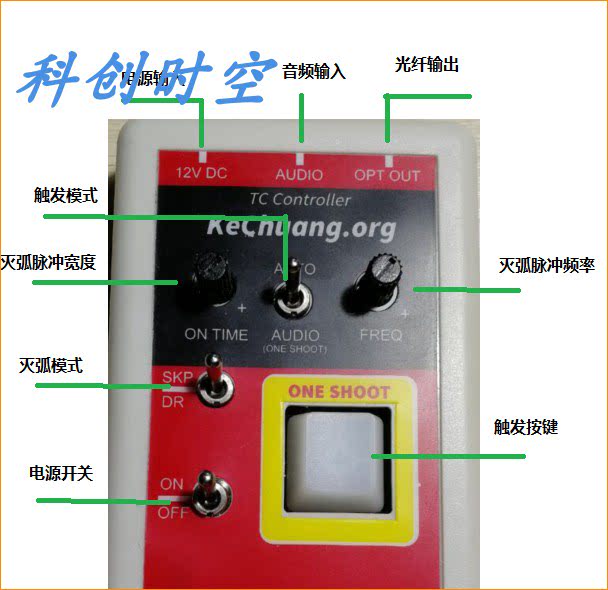

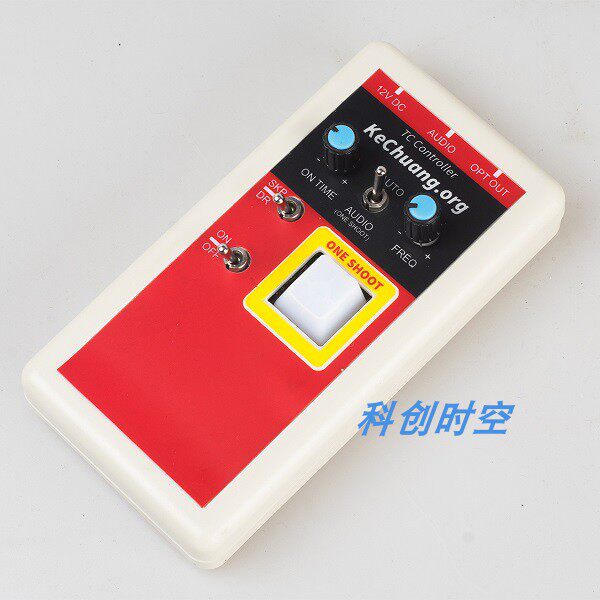

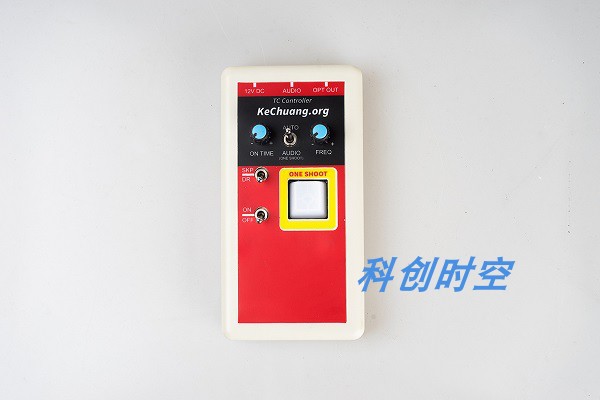

Explanation of Arc Extinguisher Panel1. The power input is 12V (positive inside and negative outside), and the internal battery is an AA (size 5) battery.2. Audio input is only allowed to be used in DR mode.3. The fiber specification is SPDIF fiber.4. Trigger mode switch: AUTO mode automatically sends continuous trigger pulses, while AUDIO mode is triggered through audio or once when the trigger button is pressed.5. Trigger button: In Audio mode, pressing the trigger button triggers an arc extinguishing pulse.6. Arc extinguishing pulse width knob: adjust the pulse width of the Ontime signal emitted.7. Frequency knob: In Auto mode, the arc extinguishing pulse frequency knob is used to adjust the Ontime pulse frequency.8. Arc extinguishing mode switch: The pulse width of SKP output is wider than that of DR mode, and the output frequency under AUTO trigger is lower than that of DR mode.9. Power switch: Turn the arc extinguisher to ON to start, and turn it to OFF to stop working. (The arc extinguisher does not have an automatic shutdown function)
