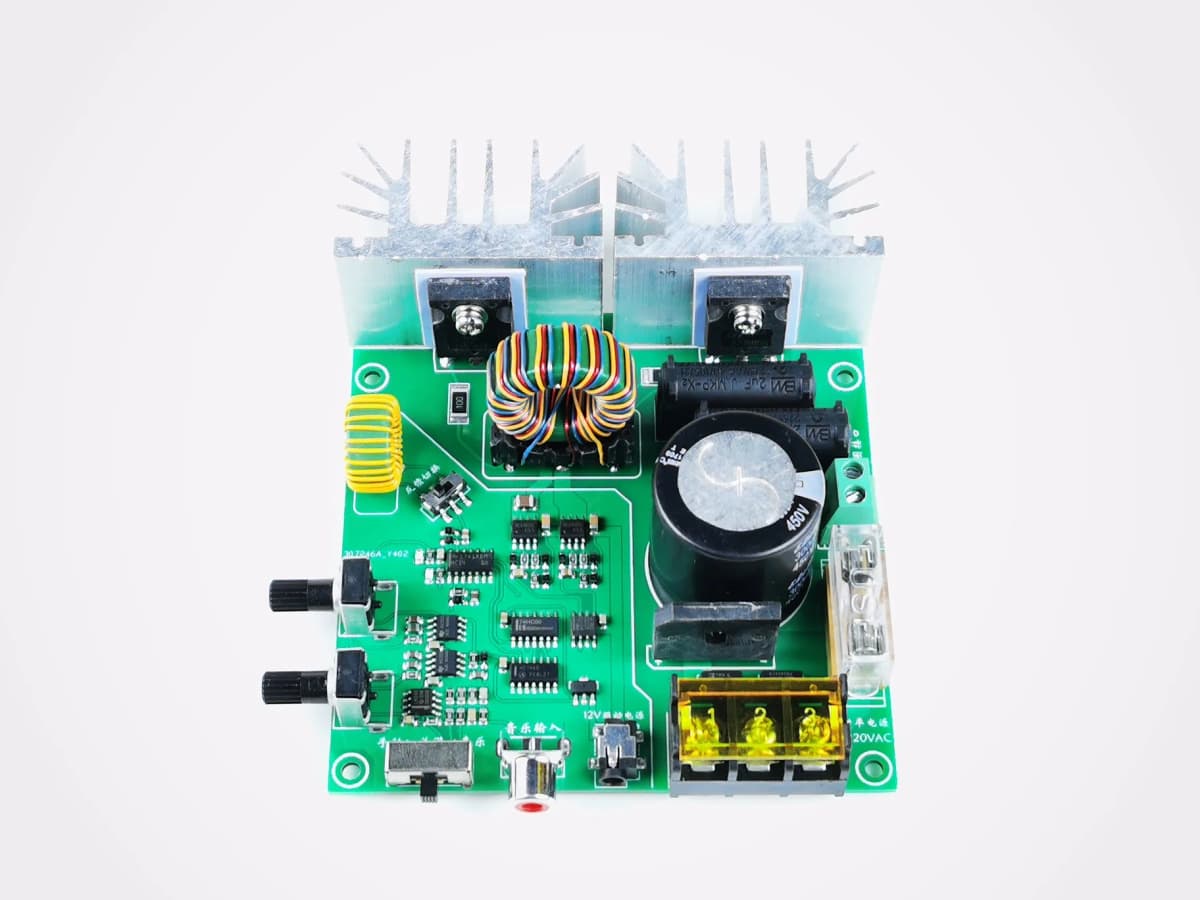

SSTC Solid-state Tesla Coil Half-bridge Integrated Finished Drive Plate

This driver board requires very professional circuit knowledge to be used!
We do not provide additional technical support, only interface definitions!
Upgrade the circuit edge to synchronously turn off the soft switch, and add a new mos totem totem to be more powerful!
Integrated design integrates half-bridge + arc extinguishing + drive, easy wiring!
This drive board can produce an arc of about 10CM!
The driver power supply uses DC12V power adapter, standard DC3.5*1.3 power interface, independent pulse width frequency [only pulse width can be adjusted in music mode, frequency is controlled by music frequency], and supports square wave music playback! Use lotus holder to input audio signal! Mode switching uses toggle switch! There are two on-board indicators, indicating the power supply and arc extinguishing signals respectively! Magnetic ring feedback secondary coil ground wire, automatic frequency chasing! It is recommended to use secondary frequency between 200k-800k! It is recommended that the primary coil inductance be at least about 7uh! The power half-bridge supports up to 240vac input! Comes with full bridge rectifier and fuse!
