Autel MK808S Pro OBD2 Scanner Bi-directional Diagnostic Tools All System Code Reader PK MK808BT MX808S

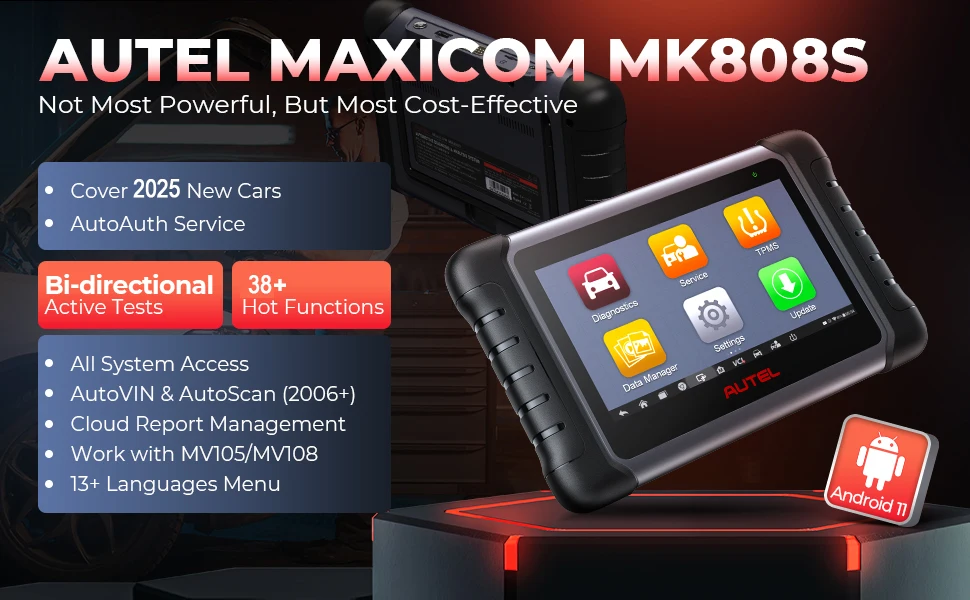

Autel MaxiCOM MK808S Diagnostic Tools Professional OBD2 Scanner OE-level Automotive Bi-Directional Scanner Upgraded of MK808

Advanced Hardware

Except its widely-used software, the advanced hardware also brings glory to its smooth and fast operation.

Android 11 -based tablet diagnostic tool greatly improves the working efficiency with performance and power optimized multi-core processor.

7 inch touchable LCD screen does a great job in the better user experience; you can directly get what you need with intuitive navigation.

4G RAM 64G ROM memory is not only an extended storage space but a way to reduce the possible condition of slow response.

Bi-Directional Control (Active Test)

You can figure out whether a specific subsystem or component in your car functions well or not by using this tool to make the tester outputs function instead of checking in ignition status.

More Language optional

English, German, Spanish,Japanese,Portuguese, Dutch, French, Italian.Korean, Russian ,Polish,Swedish,Persian,Turkish,Thai,Vietnamese,Hebrew,Arabic,Indonesian

After you get the product, please tell us your SN of machine to activate the language you need .
The SN can be located on the back of the device’s body or in the following menu path “Maxisys-> Settings -> About Us”

38 Kinds of Special Reset Service Functions

Oil Reset Service

Performs reset for the Engine Oil Life system, which calculates an optimal oil life change interval depending on the vehicle driving conditions and climate, and turns off the warning light;

Electronic Parking Brake (EPB) Service

Maintains the electronic braking system safely and effectively through deactivating and activating the brake control system, assisting with brake fluid control, opening and closing brake pads, and setting brakes after disc or pad replacement, etc.

Steering Angle Sensor (SAS) Service

Performs calibration for the Steering Angle Sensor (SAS), which permanently stores the current steering wheel position as the straight-ahead position in the steering angle sensor EEPROM. On successful completion of the calibration, the steering angle sensor fault memory is automatically cleared.

Tire Pressure Monitor System (TPMS) Service

The TPMS service function include displaying sensor IDs from the vehicle’s ECU, inputting TPMS sensor replacement IDs and testing sensors

DPF Service

carry out numerous functions to the Diesel Particulate Filter system. The tool will manage DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.

BMS Reset

Re-match the control module and motoring sensor for battery detecting more accurately, clear original low battery information and prevent the related control module from detecting false information.

ABS Bleeding

ABS brake bleeding to get a firm brake pad after air exhaustion.

Throttle Matching

to initialize the throttle actuators to the default state for regulating throttle (or idle engine) operations accurately

Injector Coding

to make the cylinder better identify injector after ECU or injector is replaced.

Suspension

Seats

Lang Change

Trans adaption

TEC learn

Headlamp

CHG Tire Size

WIN DR ROOF

All Systems Diagnoses

The Diagnostics application enables a data link to the electronic control system of the test vehicle for vehicle diagnosis. The application performs functional tests, retrieves vehicle diagnostic information such as trouble and event codes and live data for various vehicle control systems, such as ABS, SRS, Engine, Transmission, Brake System, Emission System, Fuel system, Light system, Wiper System etc.

2 options available when accessing the Diagnosis section

1. Auto Scan –The Auto Scan function performs a comprehensive scanning of the ECUs in the vehicle’s system to locate and retrieve DTCs.

2. Control Units – displays a selection menu of all available control units of the test vehicle.

FCA Auto Auth

With the newest update on Autel scan tool MK808S, you now have access to the security gateway module on 2017 and newer Fiat Chrysler vehicles, so that the diagnostic tool can clear codes, run bi-directional active tests, actuations, relearns or even IMMO key programming (pulls PIN & write), ADAS calibration assistance etc.

Support MV105/MV108 Inspection Camera

Autel 105 108 MaxiVideo Inspection Video Scope is compatible with MK808S, maximizing the potential of MK808S to examine and clean difficult-to-reach car areas, such as spark plug holes, engine cylinders, and other small parts, quickly and safely.

Note:MV105/MV108 need to buy separately.

4 methods for Vehicle Identification

1.Auto VIN Scan

The MaxiCOM diagnostic system features the latest VIN-Based Auto VIN Scan function to identify vehicles and scan all the diagnosable ECUs and run diagnostics on the selected system. This function is compatible with 2006 and newer vehicles.

2.Manual VIN Input

For vehicles not supporting the Auto VIN Scan function, you may manually enter the vehicle VIN.

3.Automatic Selection

The Auto VIN Scan can be selected after selecting the test vehicle manufacturer.

4.Manual Selection

When the vehicle's VIN is not automatically retrievable through the vehicle's ECU, or the specific VIN is unknown, the vehicle can be manually selected.

ECU Information

ECU Information – retrieves and displays the specific information for the tested control unit, including unit type, version numbers and other specifications.

Read Codes

Read Codes – displays detailed information of DTC records retrieved from the test vehicle’s ECU. On some vehicles, freeze frame data can also be retrieved for viewing.

Erase Codes

Erase Codes – erases DTC records and other data from the test vehicle’s ECU.

Live Data

Live Data – retrieves and displays live data and parameters from the test vehicle’s ECU.Display live data in text, graph & analog for easy data review.

Complete OBD2 functions

Reading Codes: Show the detailed description of the Diagnostic Trouble Code (DTCs)
Erasing Codes & Reset: Turns off Check Engine Light (MIL), clears codes and resets monitors.
Data Stream: Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.
I/M Readiness Status: Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.
Read Live Data Stream: Show the information of continuous data stream from a vehicle in live graphic (waveform) display.
View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.
O2 Sensor Test: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.
On-Board Monitor Test: Retrieves and displays test results for emission-related powertrain components and systems.
Read Vehicle Information: Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.
Component Test: Certain vehicle components can be actuated by commands sent from the scanner to test their operability.

MK808S Widely Coverage

For most vehicles manufactured after 1996, the scanner delivers all the basic OBD2 functions advertised, and clears tricky manufacturer trouble codes. Also, you can use the scan tool on 56 brands of US, EU and Asian-made car models with OBD2 systems, to run advanced professional functions:

- Europe:

Benz, Sprinter, BMW, Fiat, LandRover, Maserati, Opel, Peugeot, Porsche, Lancia, LT3, Maybach, Mini, Seat, Skoda, Vauxhall, Volkswagen CV, Renault, Saab, Smart, Volvo, Volkswagen, Abarth, Alfa, Audi, Bentley, Bugatti, Citroen, Dacia, Ford, Jaguar, Lambor Ghini

- Asia:

Acura, Daewoo, Daihatsu, Honda, Hyundai, Infiniti, Isuzu, Kia, Lexus, Maruti Suzuki, Mazda, Mitsubishi, Nissan, SsangYong, Subaru, Suzuki, Toyota, GTR, Scion

- America:

Chrysler, Ford, GM, Dodge, Jeep

Note:

These software need to pay extra money to buy：
​Brazil car/Latin America car/South American car：Fiat Brazil，GM Brazil

Specifications

CPU: Rockchip RK3566
RAM:4G
ROM:64G
Battery Capacity:5000mAh
Android Version:Android 11
Screen Size:7inch
Wifi:2.4 & 5 GHz
VCI:main cable

■ Warranty & Update

*One Year Warranty for Any Quality Problems
*Lifetime Free Tech Support *One Year Free Update.The update fee is usd125 per year.
*Lifetime free use.

■ Package List

1.MK808S unit
2. USB External Power Adapter
3. Main cable
4. Quick Reference Guide
5. Carry case
6. Mini USB Cable
