Linear Actuator with Reverse Polarity Protection, Low Noise (Less than 50dB), 450mm DC12V Actuator Motor + Controller, Remote

Description
Exploring the fusion of power and precision, our linear actuator, paired with a powerful remote control, unlocks a new realm of intelligent control. This exquisitely designed, highly efficient tool is an indispensable asset in diverse applications, proving its superior ability to facilitate precise and powerful mechanical movements.
Details

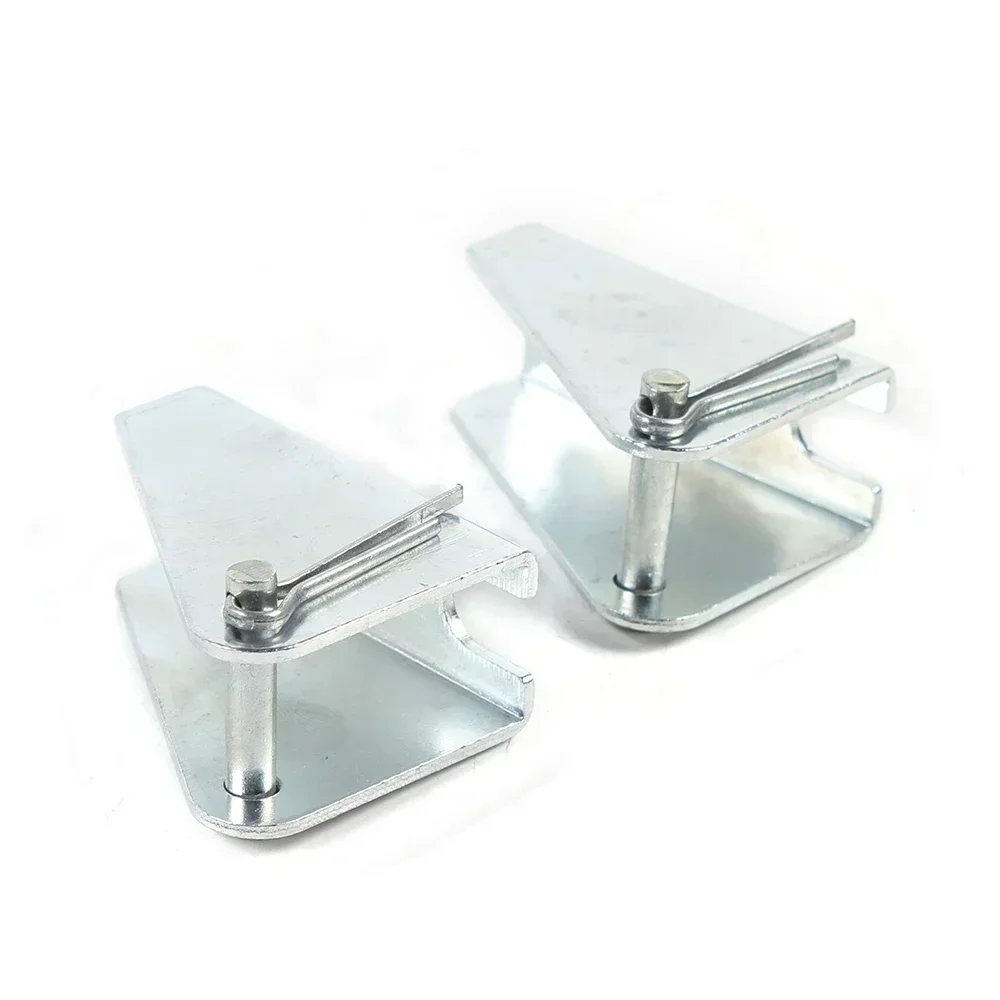

Mount Brackets: They allow for easy and firm installation for stable operation.
Smooth Edges: The smooth edges without burrs are not only comfortable to touch but also enhance the safety of use.
Specification
Material: Aluminum Alloy
Process: Metallurgical Process
Color: Silver
Style: Modern
Control Mode: Jog Control
Motor Type: Pure Copper Motor
Motor Voltage: DC12V
Controller Voltage: DC8-12V
Fuse: 10A/12V
Max. Load Current: ＜ 6A
No-load Current: About 1.0A
Duty Cycle: 25%
Working Temperature: -26~65℃/-14.8~149℉
Protection Level: IP54
Noise: ＜50dB
Remote Control Range: Within 100m/328.08ft (Without Obstruction)
Stroke: 450mm/17.72in
Speed: 10mm/0.39in/s
Max. Pushing Load: 900N
Min. Installation Size: 55.5cm/21.85in
Overall Installation Size: 100.5cm/39.57in
Product Size: 53*10*6cm/20.87*3.94*2.36in
Package Size: 55*12*8cm/21.65*4.72*3.15in
Gross Weight: 2.1kg/4.63lbs
Net Weight: 2kg/4.41lbs
Package Included

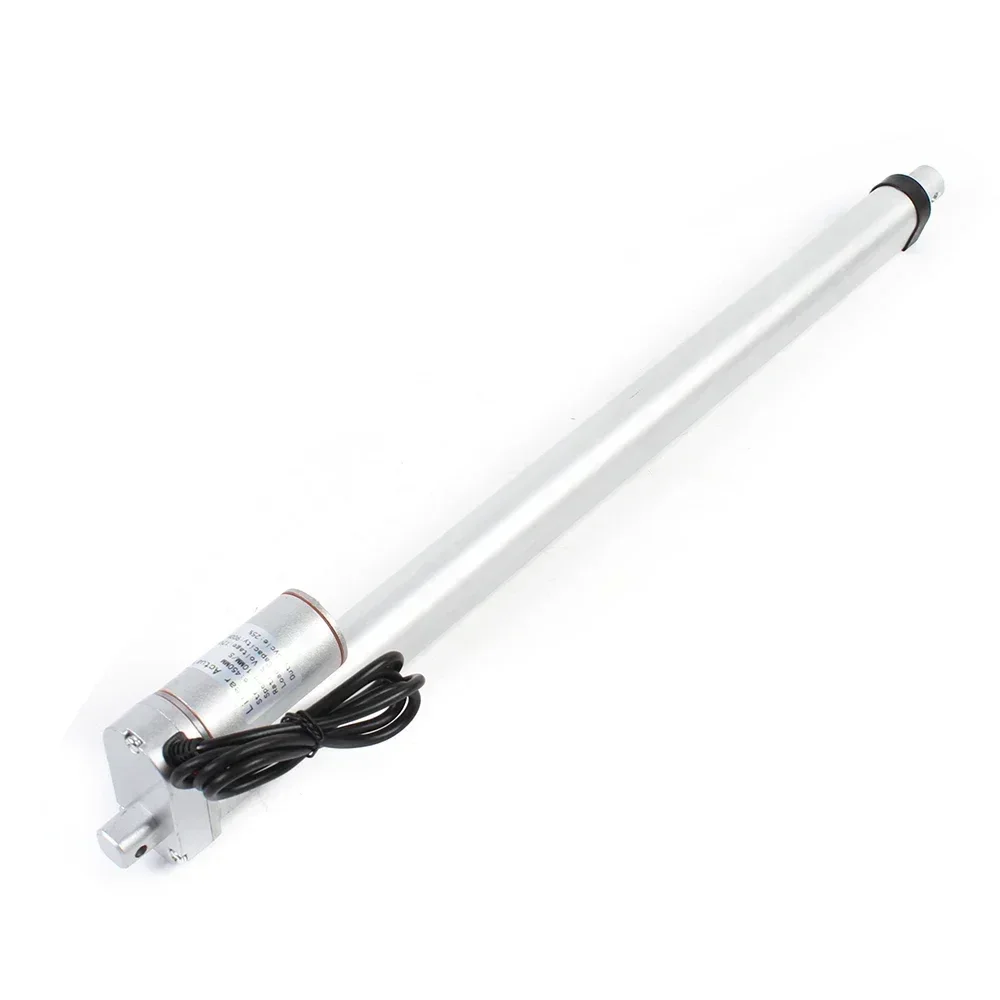

1 * Linear Actuator

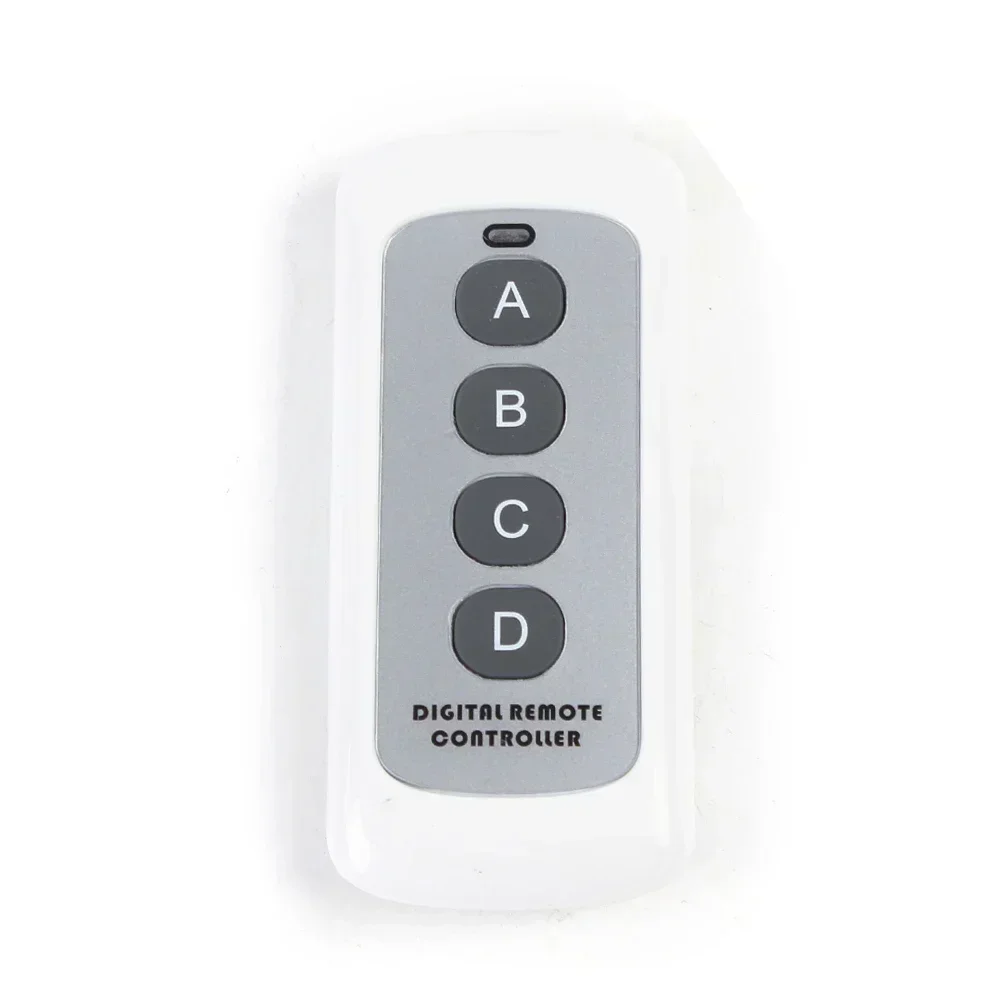

1 * Remote Controller

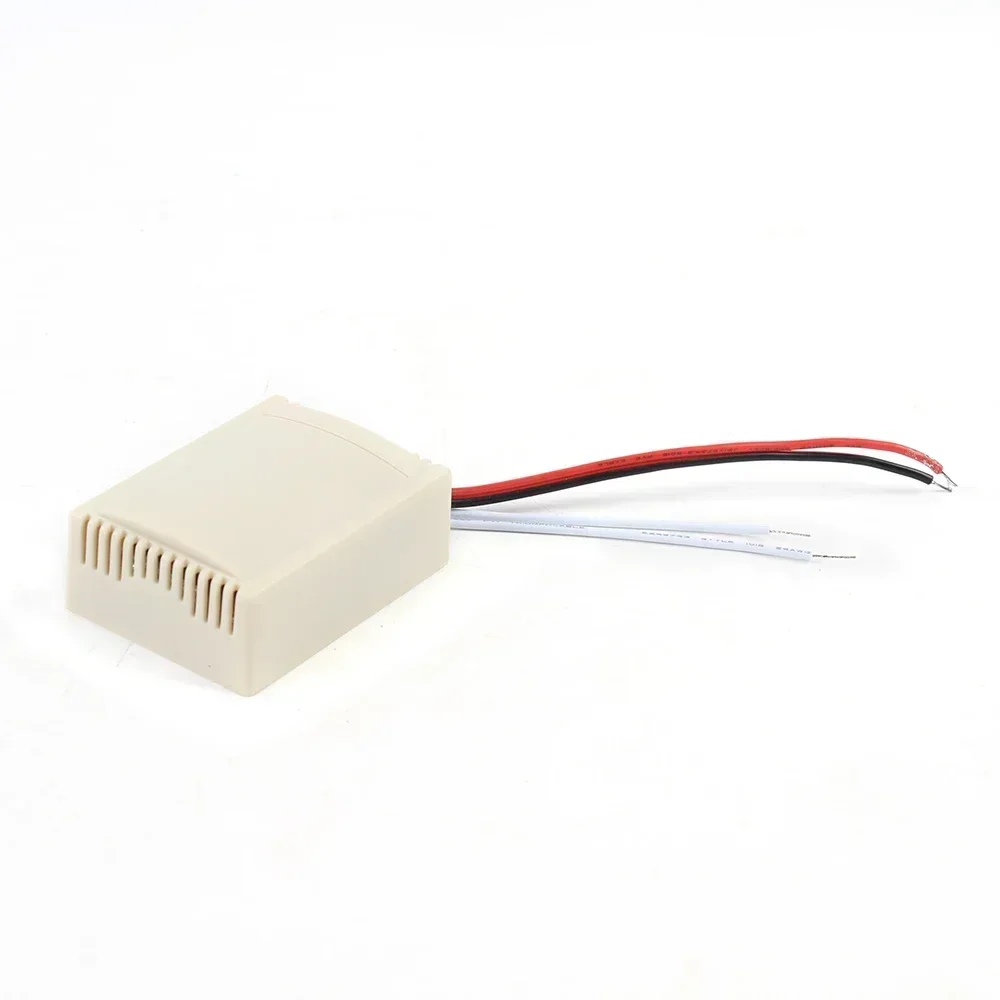

1 * Control Box
1Set * Installation Accessories

Notes
The use of metal gears in the product produces a metallic sound during operation, which is a normal phenomenon.
Please do not exceed the rated load for use.
The product has a duty cycle of 25%, which means that the actuator will rest for 5 minutes every 15 minutes of operation. If it works for a long time, the motor is easily burned out.
The product is not completely waterproof, so please install it away from water.
The red line is the positive electrode, and the black line is the negative electrode.
Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
Build to Last: High-quality aluminum alloy and metallurgical process make this product less prone to wear and deform, ensuring an extended service life.
Safe Use: The product has reverse connection protection, switch voltage stability function, timeout protection, overload protection, over-discharge protection, short circuit protection, and IP54 protection level, enhancing the use safety.
High Reliability: The remote control has a learning function, is easy to encode, and has millions of groups of independent address coding, which can work more reliably and intelligently.
Powerful Function: It supports positive& inversion rotation or bidirectional DC loads and has a pushing load of 900N, which can meet the needs of diverse jobs.
Thoughtful Design: With limit switches at both ends, the telescopic rod will automatically stop when it reaches the top or bottom, ensuring that the motor will not dry burn and extending the product's service life.
