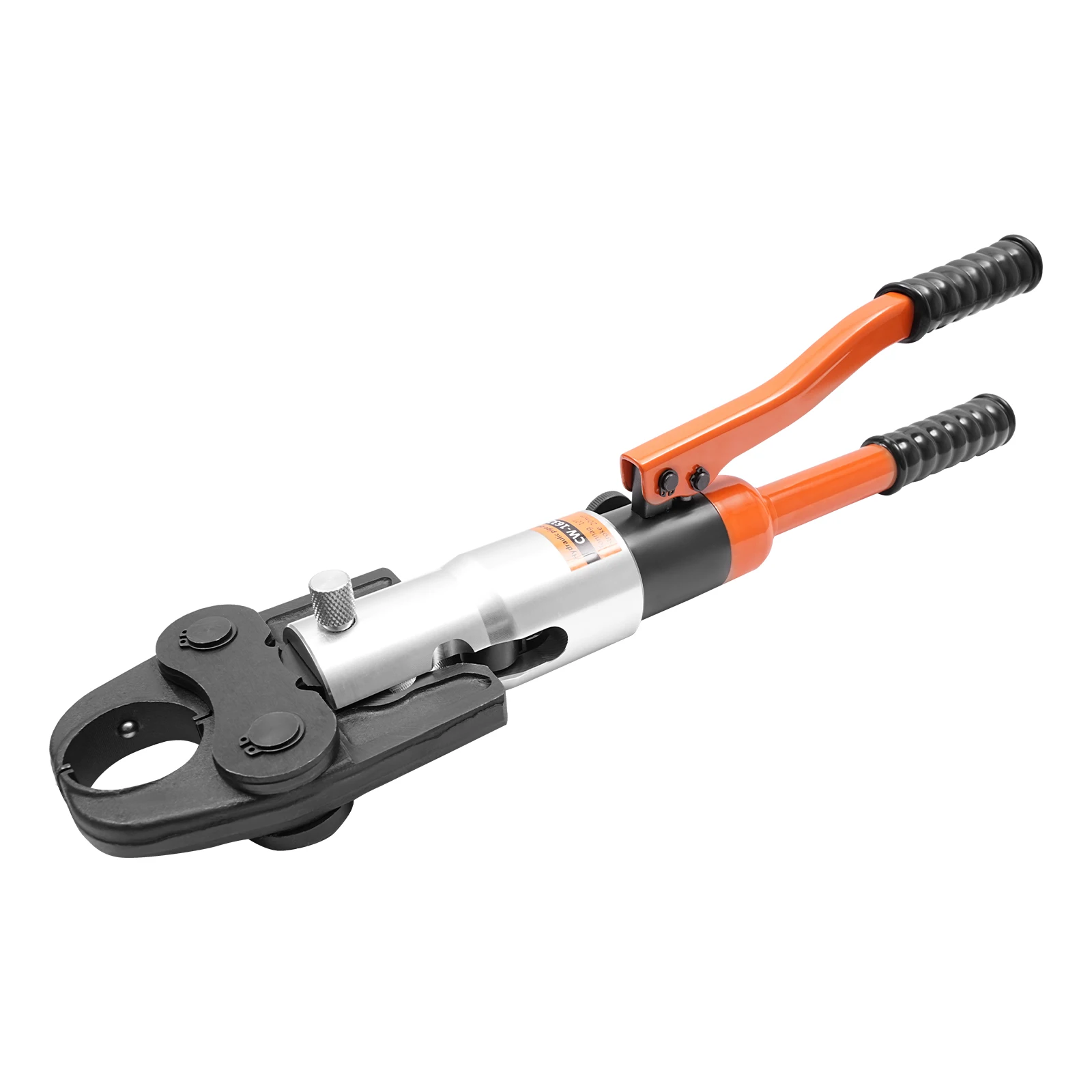

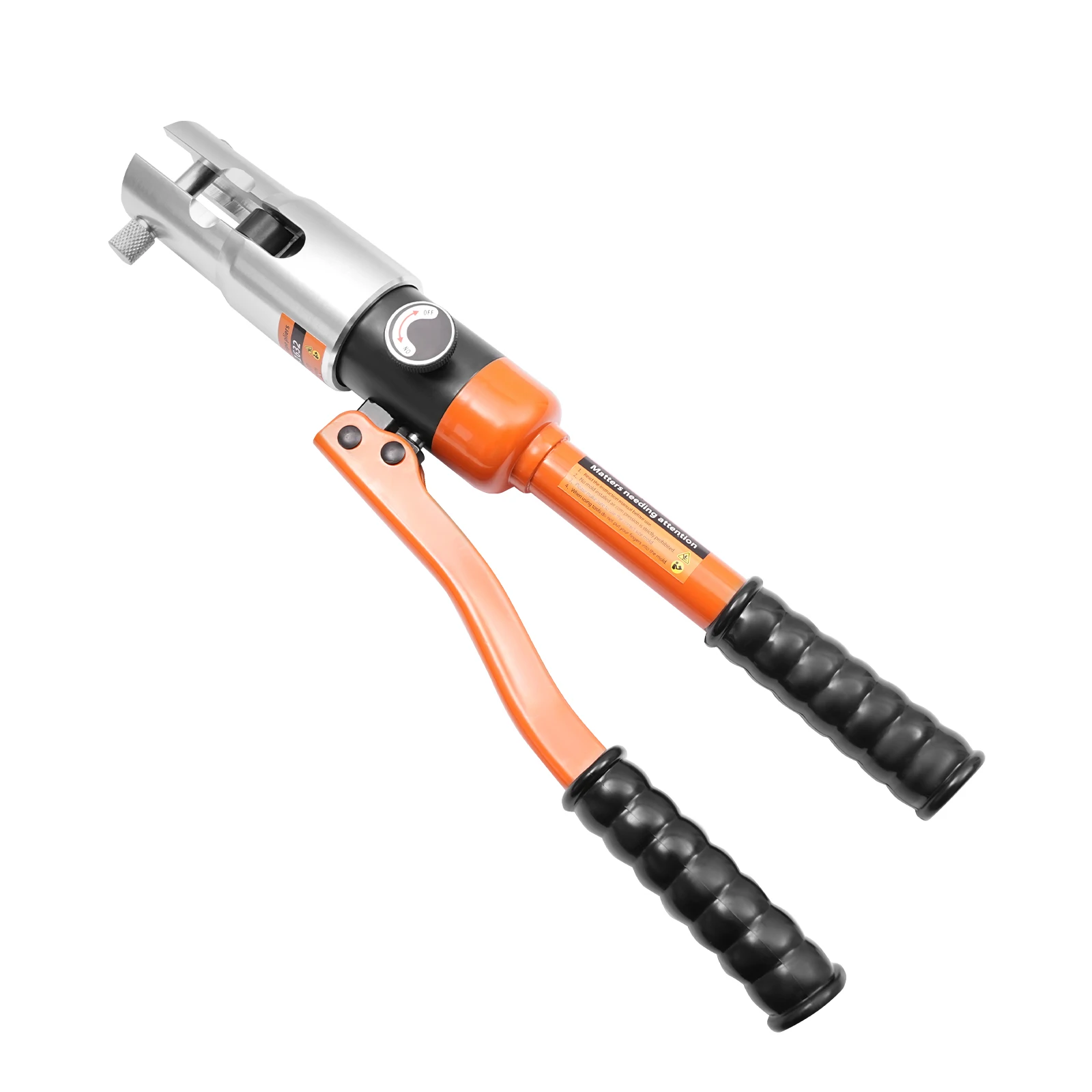

10T Hydraulic Crimping Tool 5 Interchangeable Dies M12/M15/M18/M22/M28 360° Rotatable Head for Copper Pipe Terminal Cable Wire Crimper

10T Hydraulic Crimping Tool Set | 360° Rotatable Head with 5 Interchangeable Molds (M12-M28) | Ergonomic Handle & Pressure Relief Switch for Copper Pipe | 11 lbs Portable Toolbox for Electrical & Plumbing

Specification

Color: Orange
Grip Type: Ergonomic
Model: CW-1632
Stroke: 20mm/0.79in
Material: Aluminum, Cr40 Steel, 42Crmo
Process: Oxidized, Quenched, and Blackened Treatment
Maximum Crimping Force: 10T/100KN

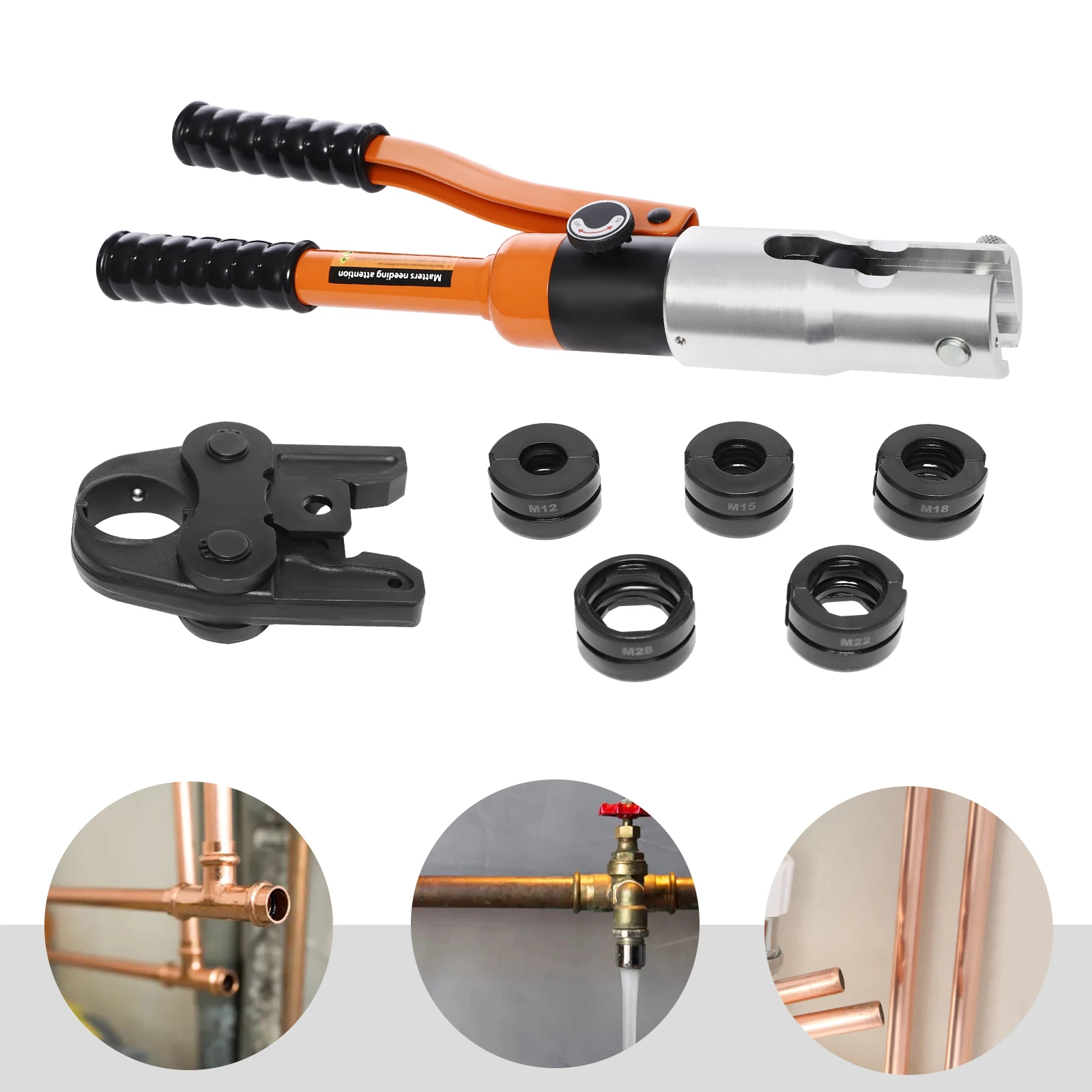

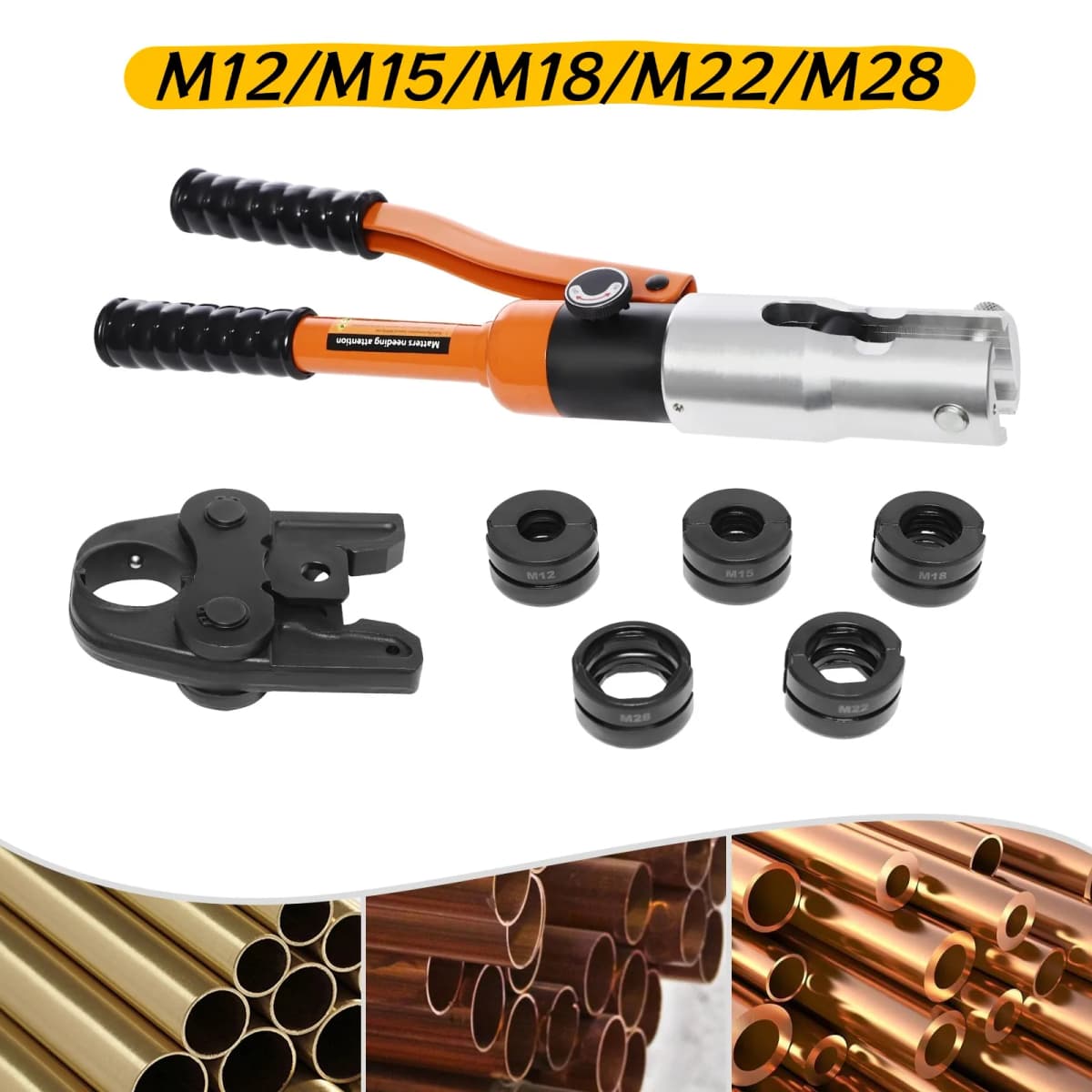

M Molds Specifications: M12, M15, M18, M22, M28
Hole Diameter: 12mm/0.47in

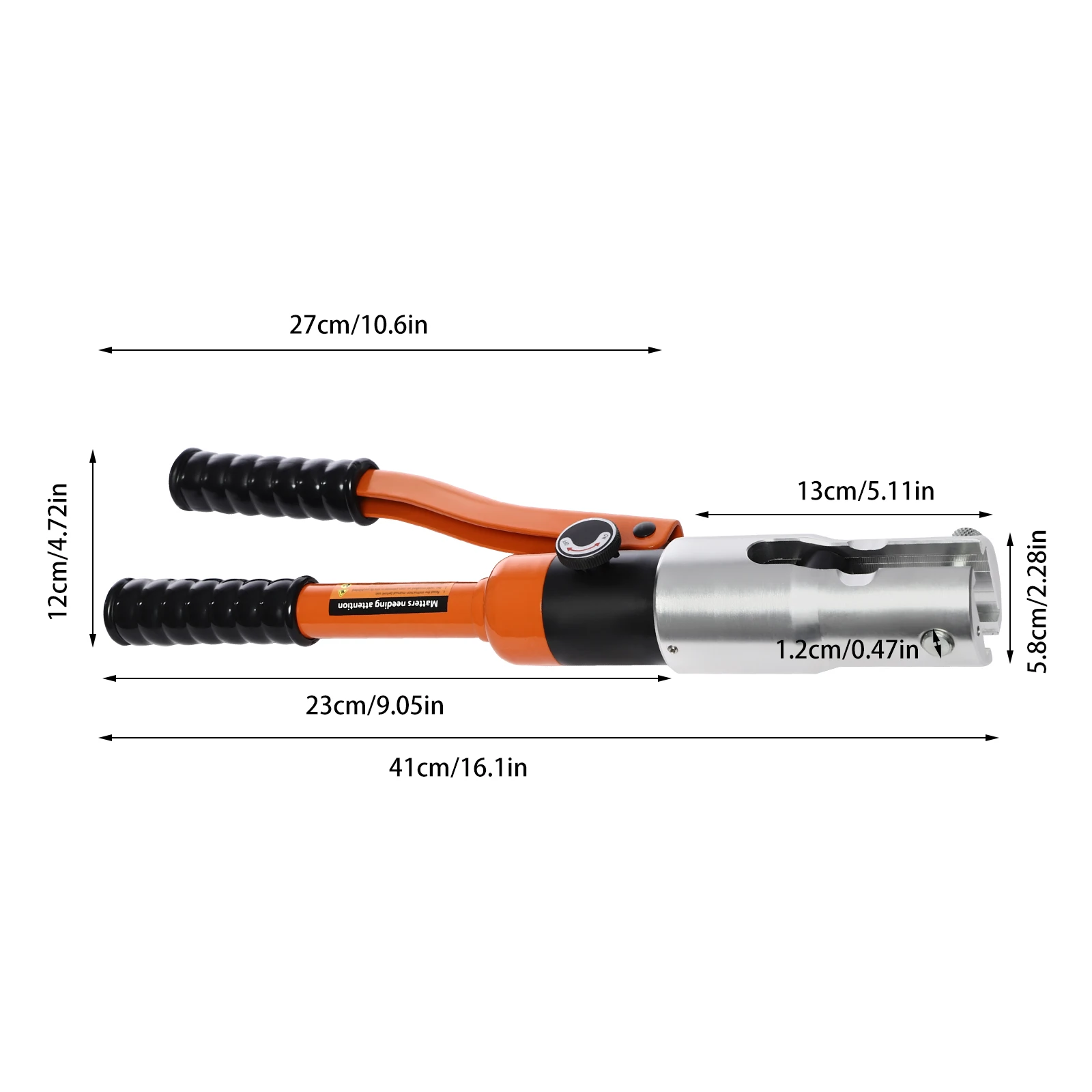

Tong Head Max. Width: 58mm/2.28in
Tong Head Length: 13cm/5.12 in
Handle Closed Opening: 12cm/4.72in
Handle Length: 23cm/9.06in, 27cm/10.63in
Overall Length: 41cm/16.14in
Package Size: 45*22*11cm/17.72*8.66*4.33in
Gross Weight: 5.5kg/12.13 lbs
Net Weight: 5kg/11.02 lbs

Application

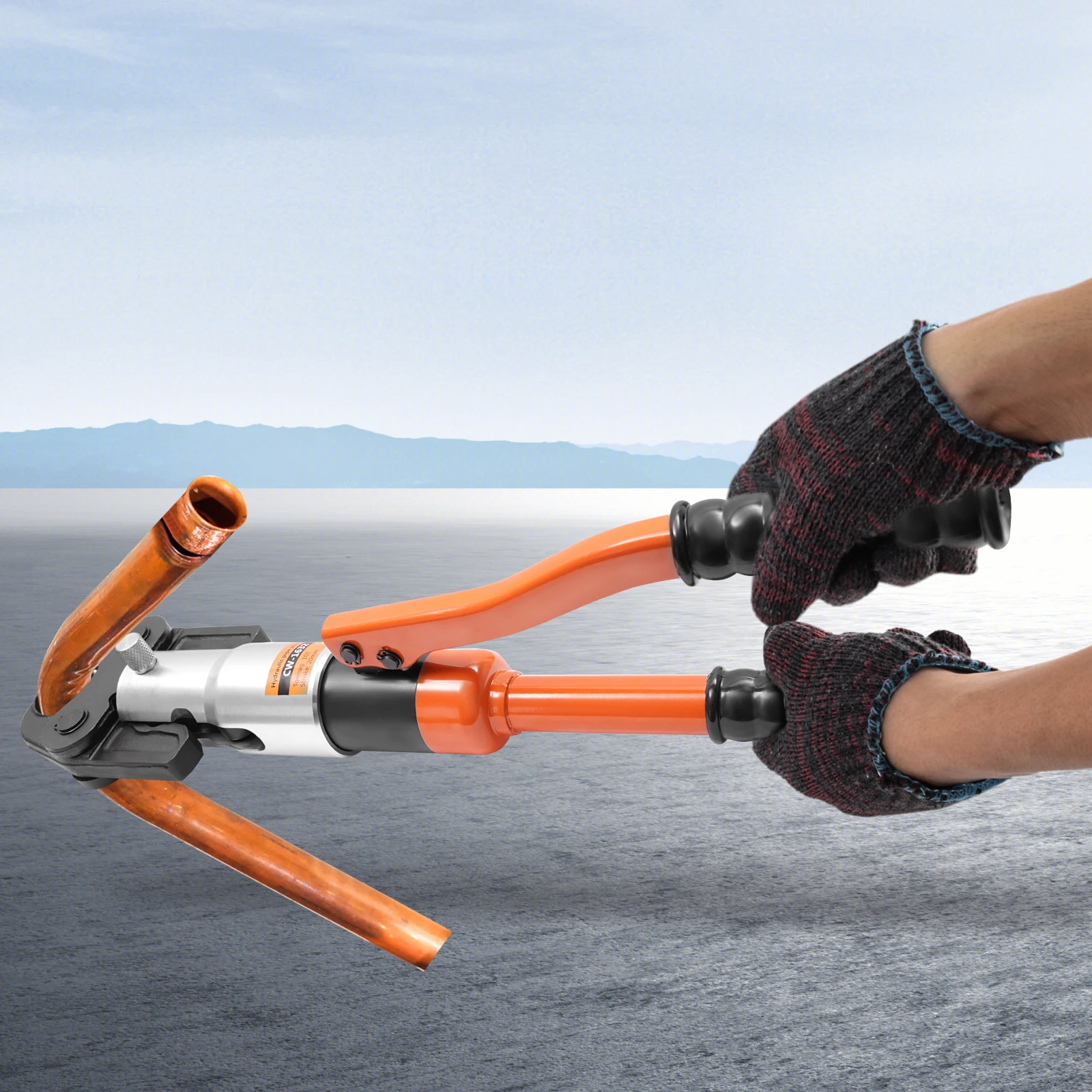

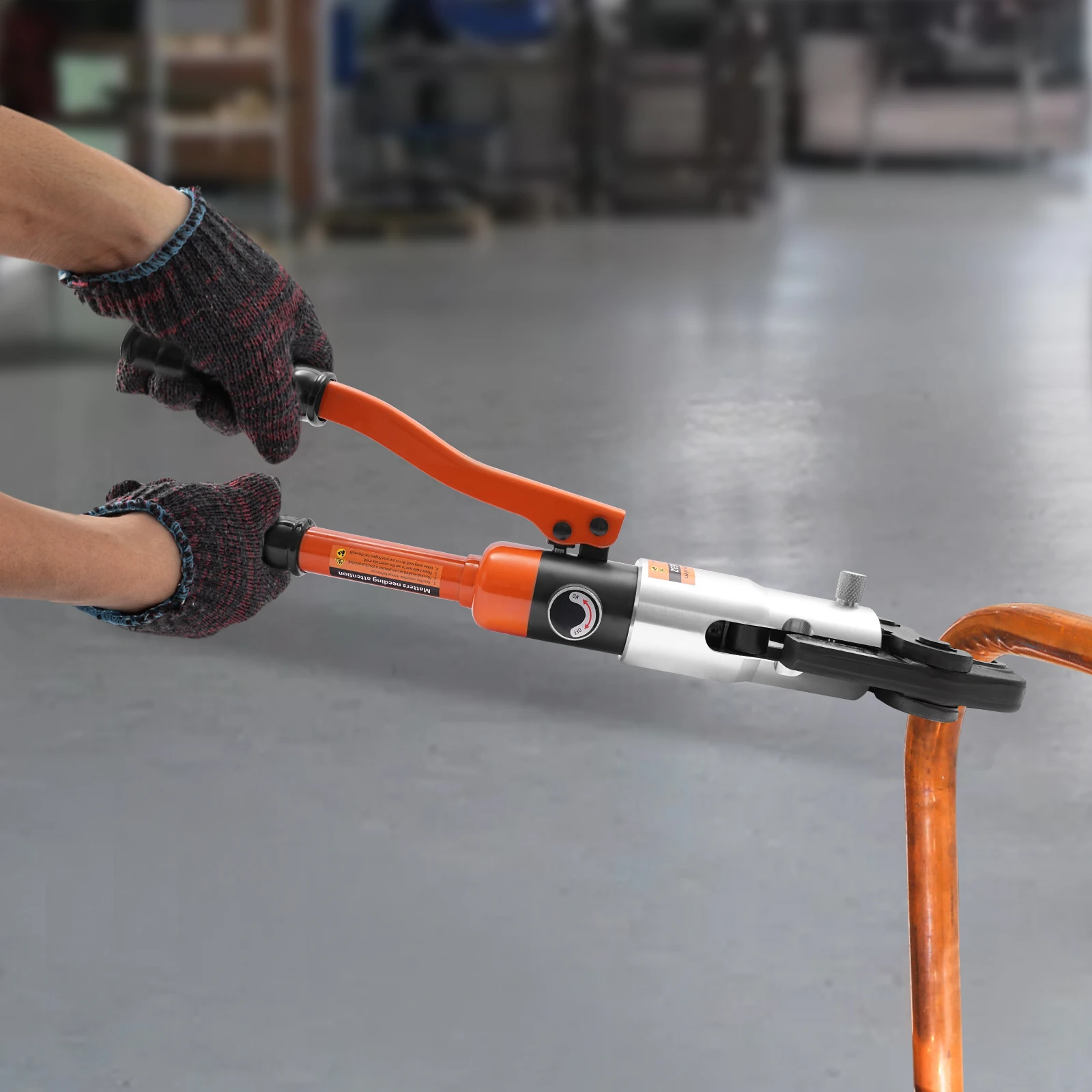

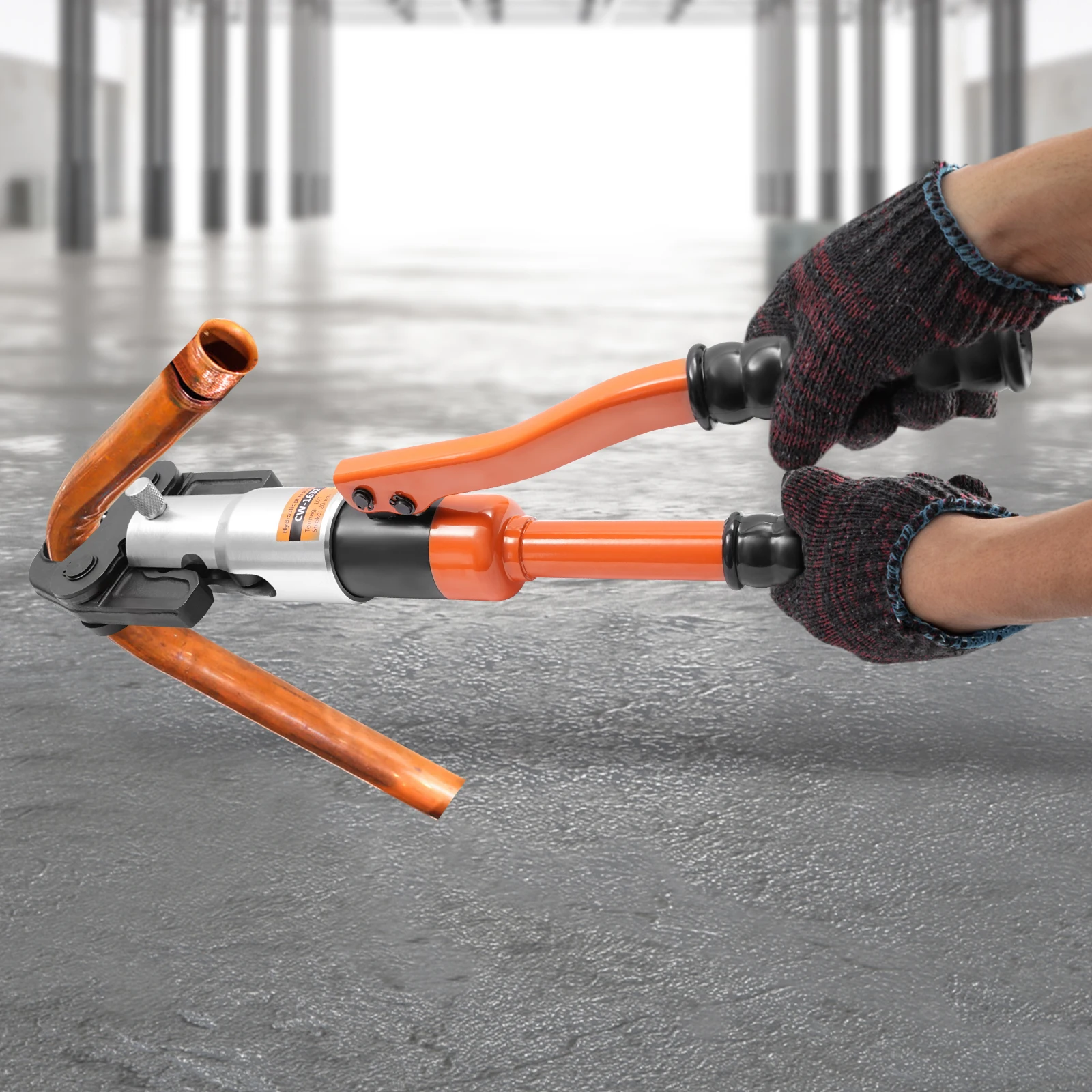

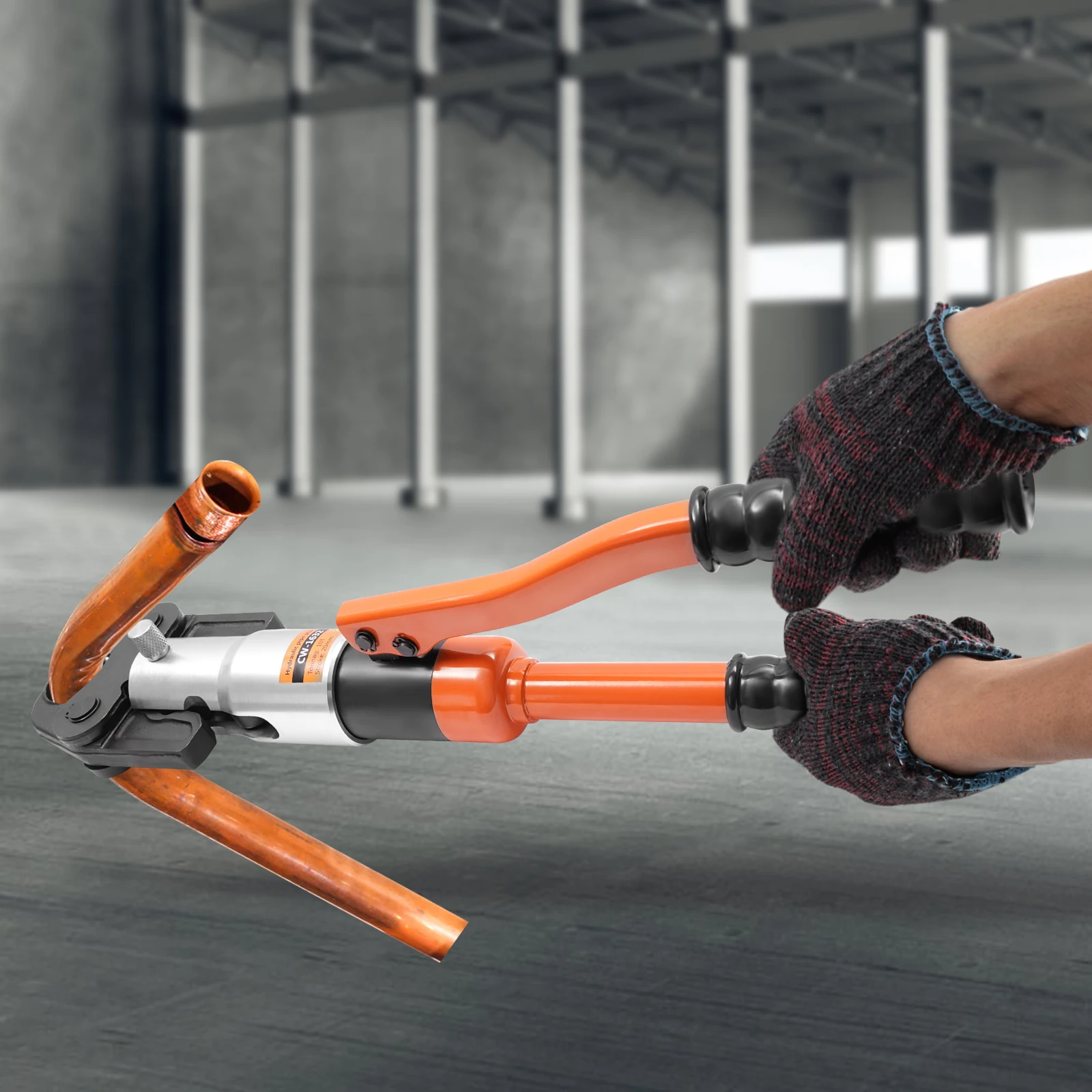

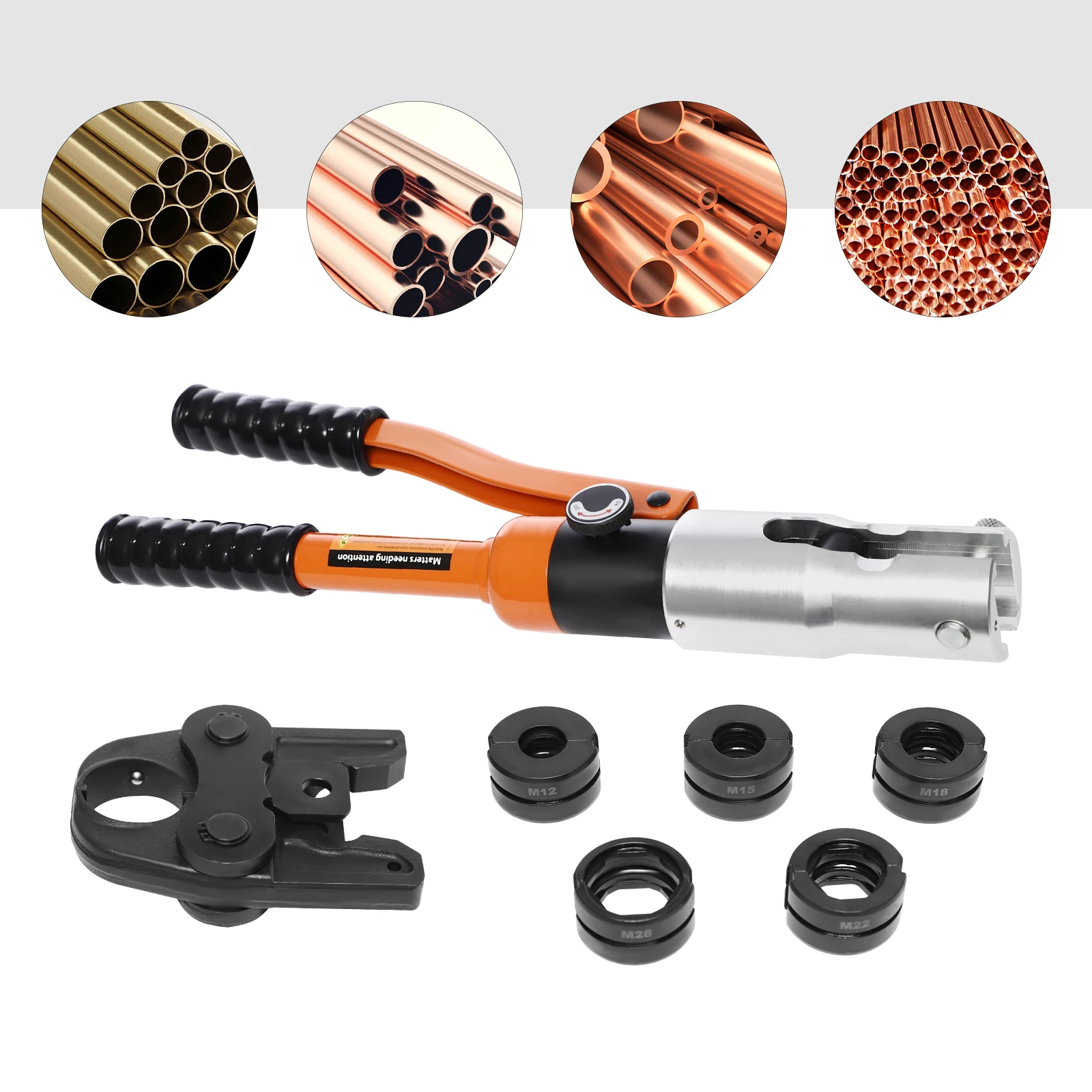

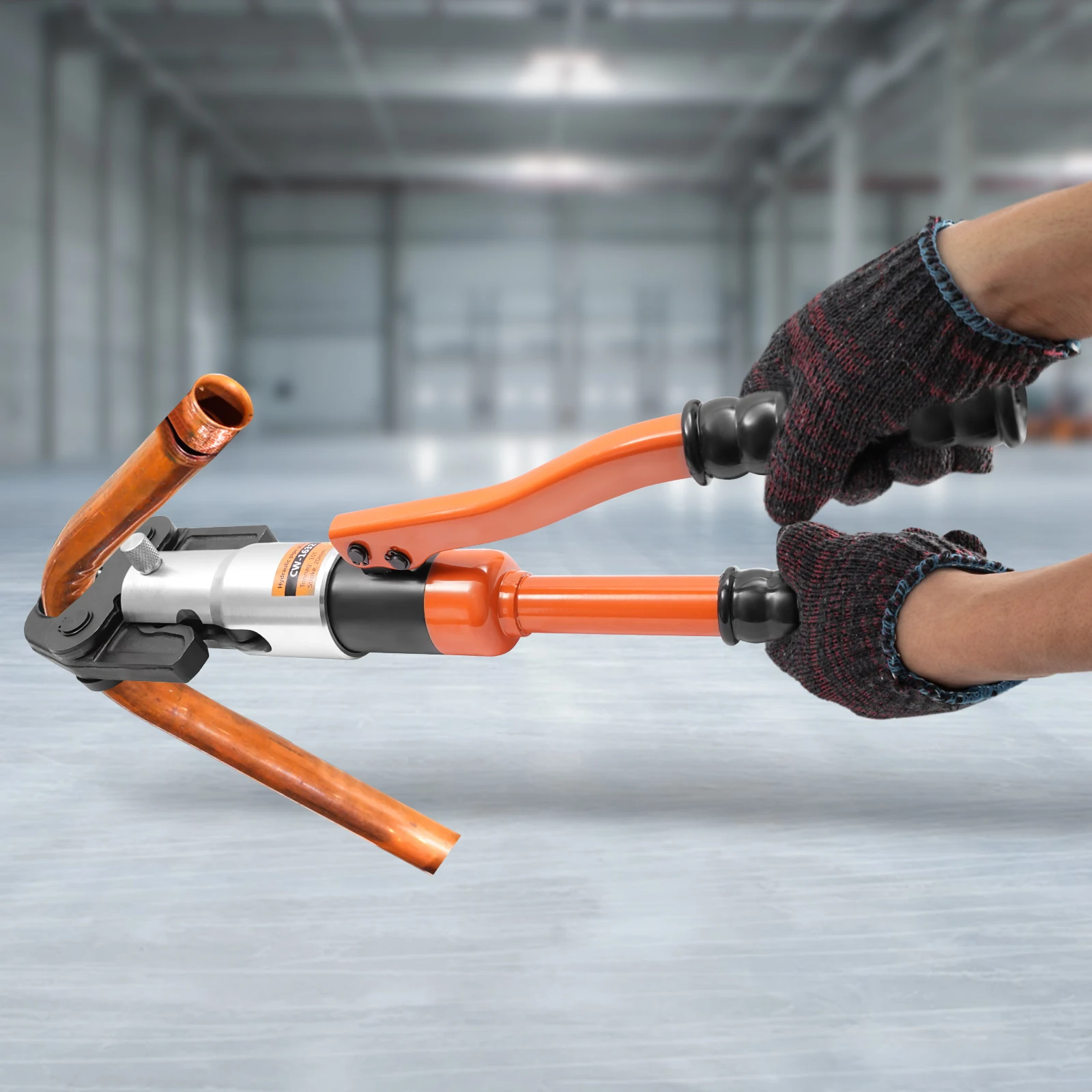

It can be used to crimp copper pipes. It is widely used in the fields of electric power, communication, transportation, petroleum, chemical industry, mining, metallurgy, shipbuilding, and so on.

Details

Comfortable Handle: The ergonomic insulated handle with a wave-shaped design is comfortable to hold without slipping and reduces hand fatigue.

Pressure Relief Switch: It facilitates you to be safe and reliable when releasing pressure after crimping.

Locating Pin: It can be easily removed for mold replacement. Moreover, it prevents the loaded molds from falling off.

Key Features

🔴Made to Last: The high-quality Cr40 steel cylinder, aluminum plier head, and 42Crmo molds, with oxidizing, quenching, and blackening processes, can resist abrasion and rust and maintain excellent performance for long-term use.
🔴Practical and Powerful: This product adopts a hydraulic design, with a maximum crimping force of 10T, which can help you complete crimping with less effort. The M12, M15, M18, M22, M28 molds can meet your different usage requirements.

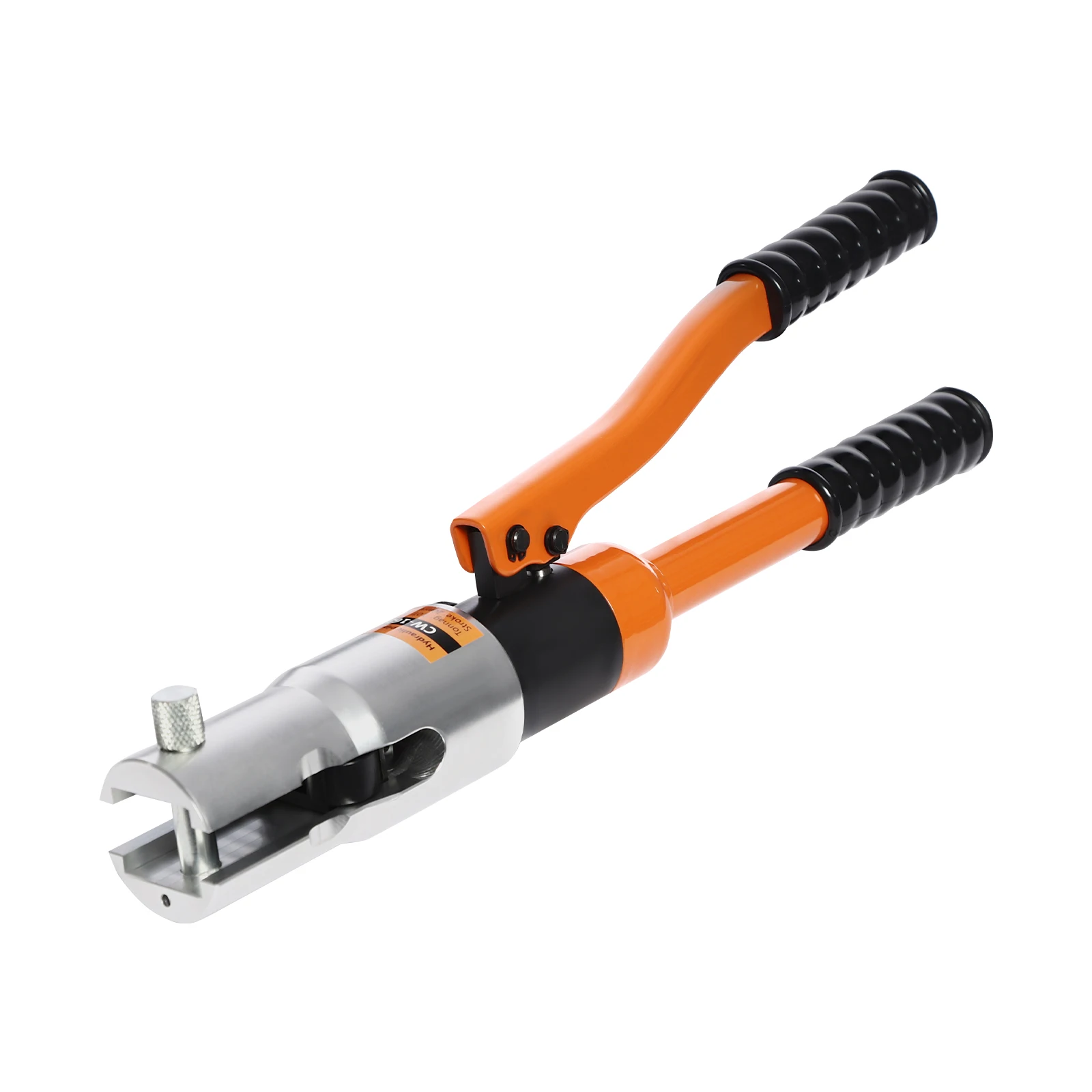

🔴Thoughtfully Engineered: Featuring a head secured with a small screw, the pliers offer 360° rotational flexibility for adaptable positioning. During use, the pliers securely grip and crimp items with reliable stability.

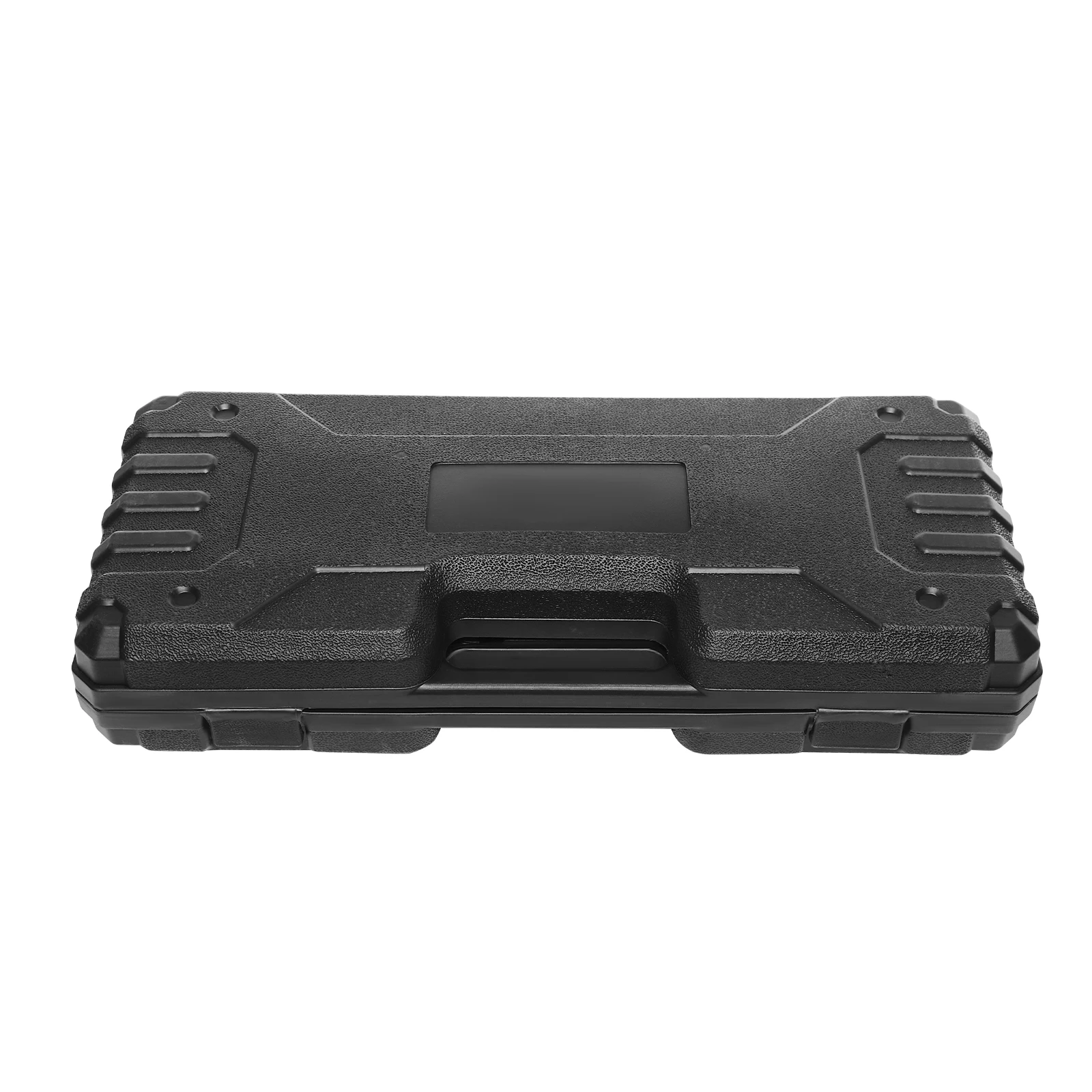

🔴High Portability: The toolbox features a built-in handle and a compact, lightweight design (11.02 lbs), offering easy storage and portability to the job sites while keeping tools organized and protected.
🔴Simple Maintenance: It has a smooth surface and simple structure, so you can wipe the surface clean of stains with a damp rag.

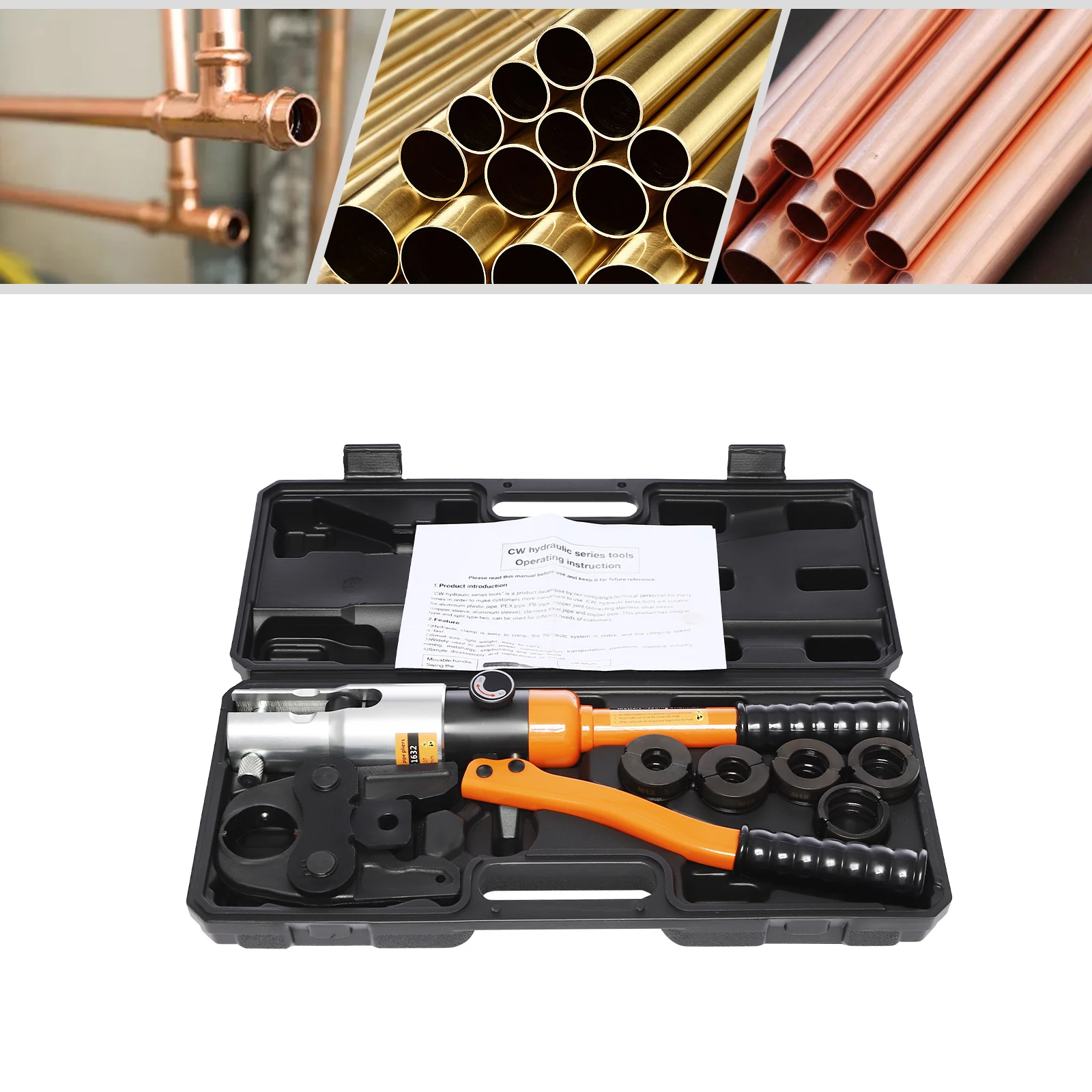

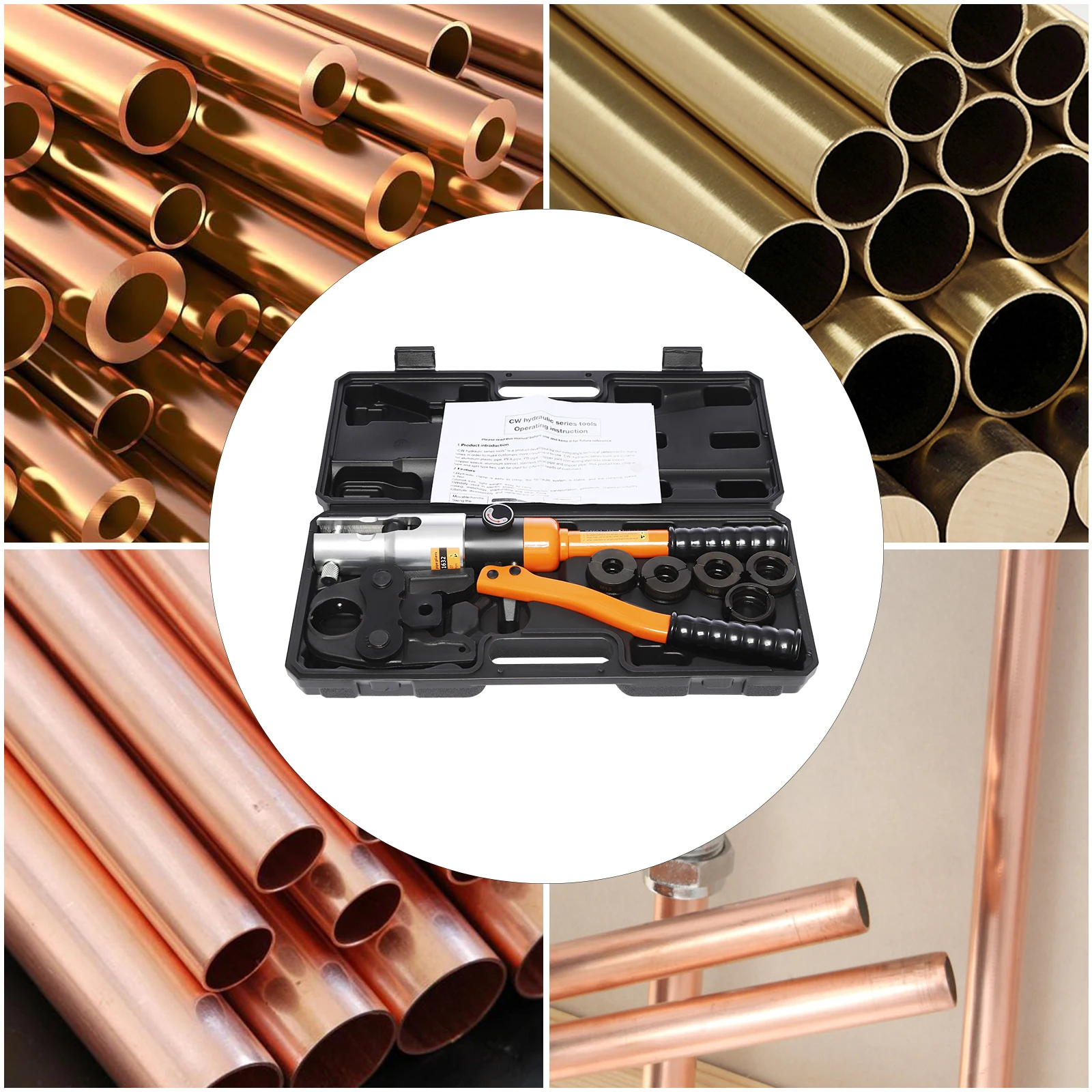

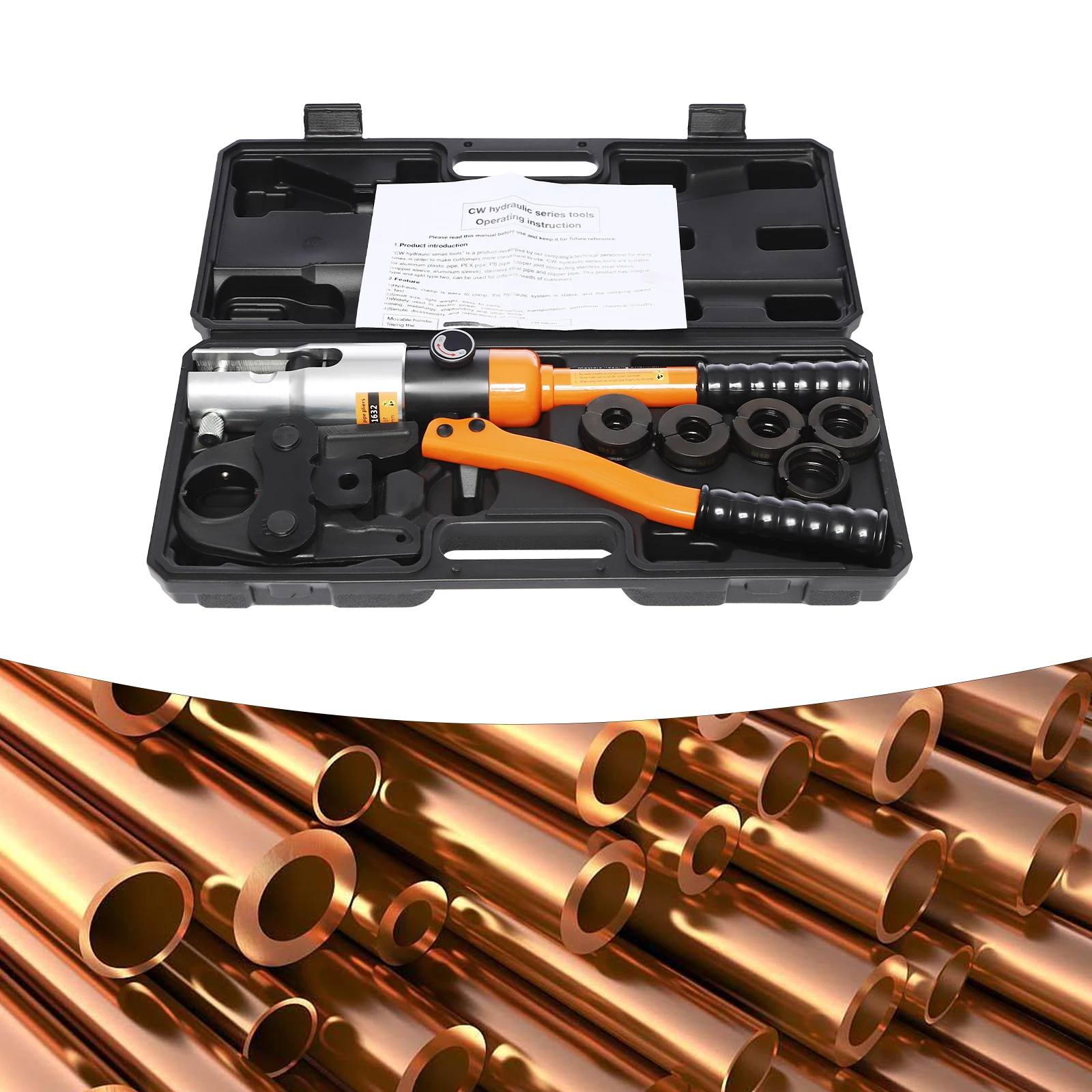

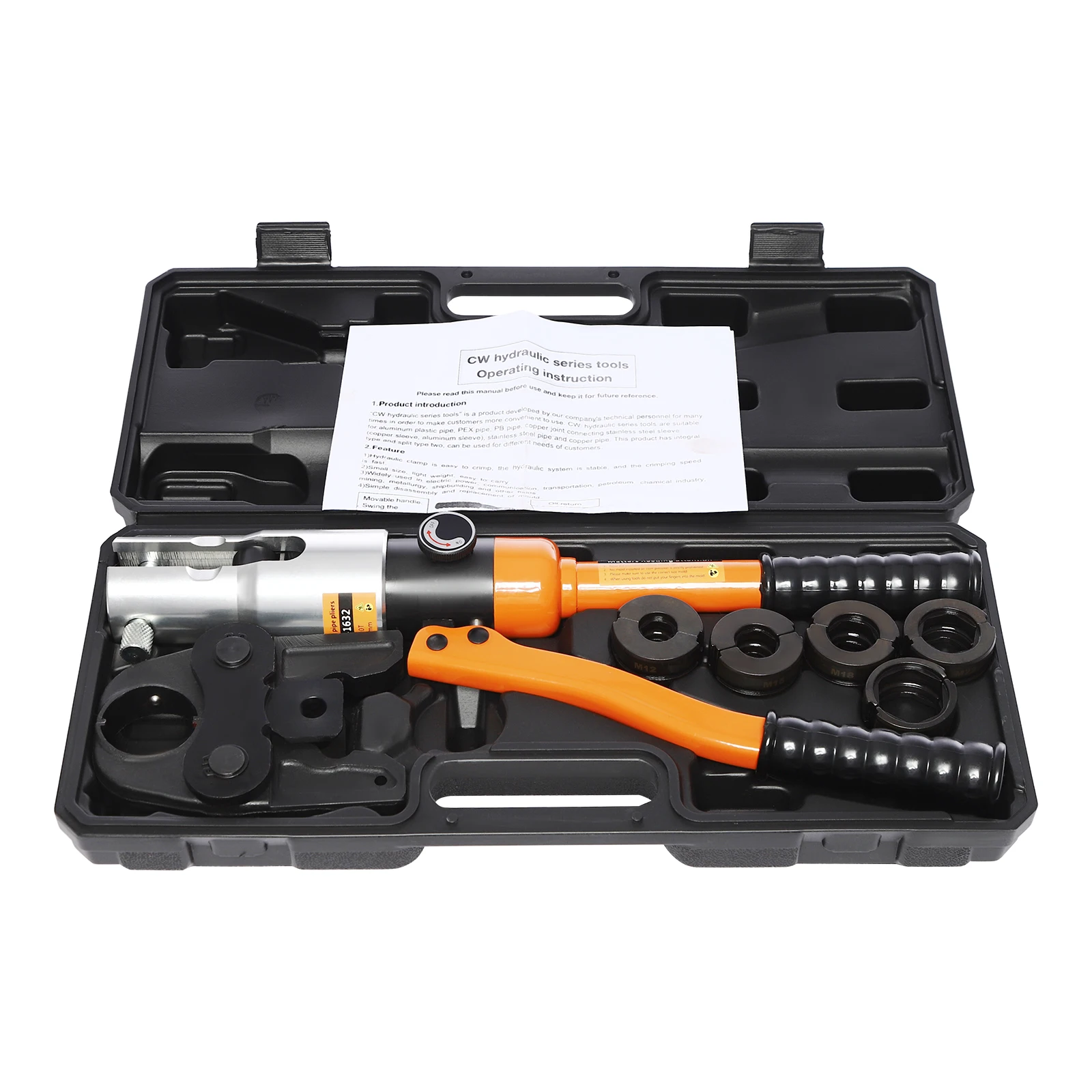

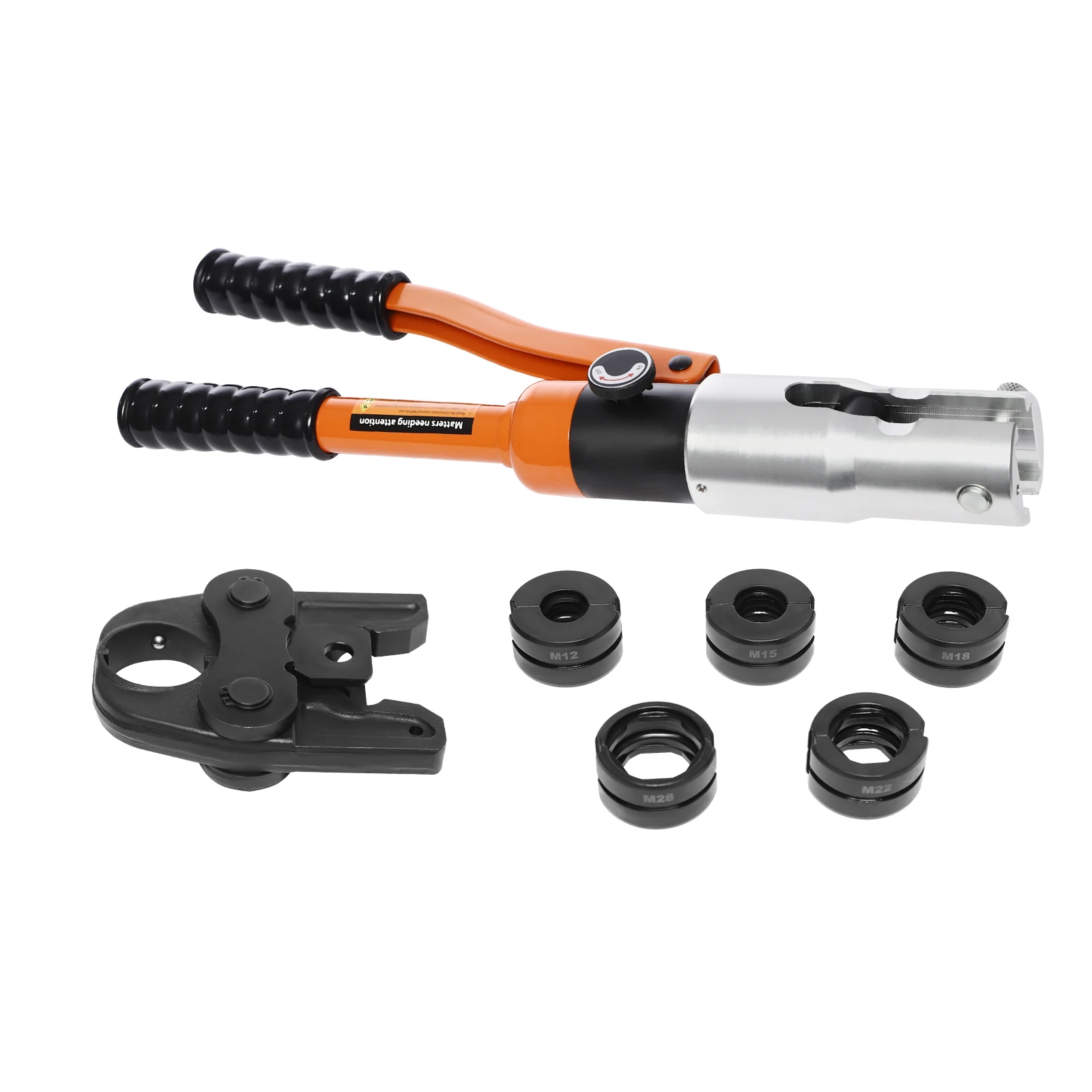

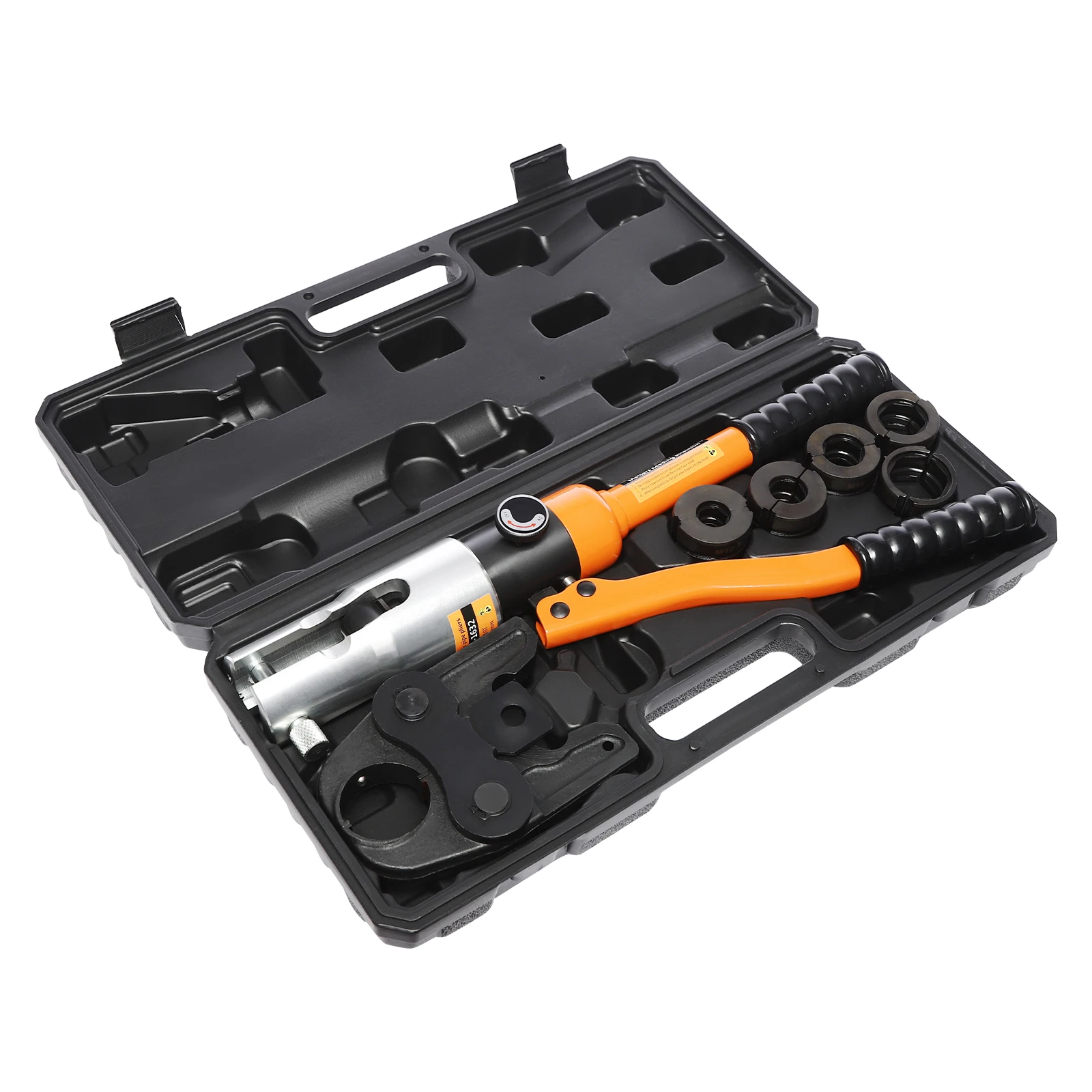

Package Included

1* Crimping Pliers

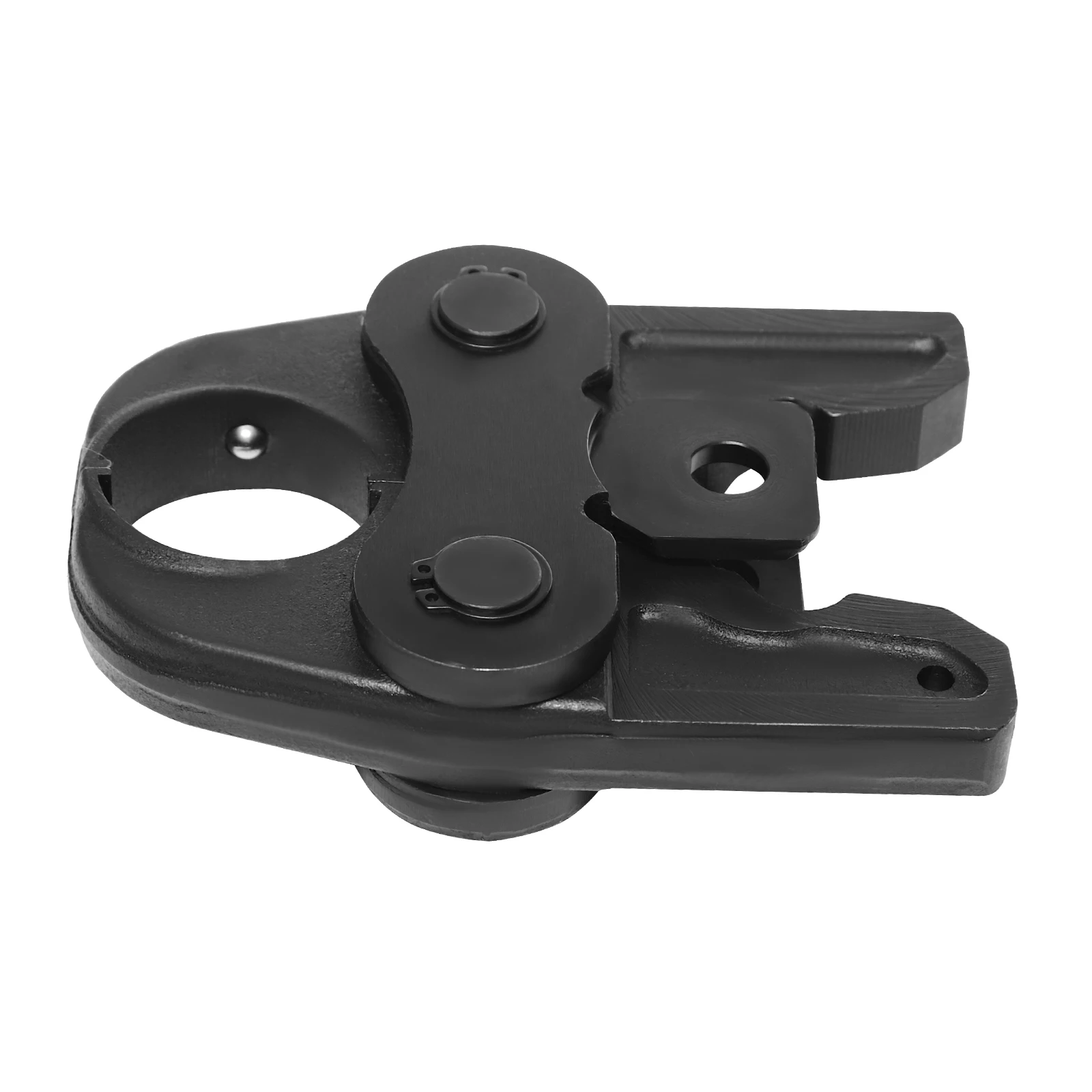

1* Butterfly Mold
5* M Molds
1* Toolbox
1* English Instruction

Notes

1.Please check the product specification before purchasing.
2.Please read the English instruction manual carefully and the product label before use and pay special attention to the safety matters therein.
3.It is strictly prohibited to use the tool without a mold. Please use the correct size mold, and do not put your fingers into the mold during use.
4.Please do not crimp energized cables or wires.
5.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement and make sure you do not mind before ordering.
