MPPT 2500W 48V Boost & Buck Wind Solar Hybrid Controller Wind 1000W & Solar 1500W Best Heat Dissipation Design with LCD Display

Intelligent Wind Solar Hybrid Controller is special designed for hybrid wind solar power system charge for low-power street lamp, monitoring etc. It can be flexibly installed in cruise ships, RVs, and land indoors.

Advantage

1.48V match for 0-1000W wind, 0-1500W solar system.Wind turbine charging adopted boos and buck MPPT technology, which makes under low wind speed, the Wind turbine's electricity can still be used.

2.The controller is provided with two-channel DC output interfaces, and each channel has a maximum output current 10A; for each channel, user can independently set three kinds of different output modes, namely, light-controlled on/off, light-controlled on/timecontrolled off, and normally open.

3.The controller is provided with MPPT (maximum power point tracking) function.This controller can used for GEL and lead-acid battery.

4.The controller is provided with a unique solar charging circuit, with a small loss and heat, which is of open-circuit unloading mode, so as to effectively prolong the solar cell's service life.

1.The controllers with perfect protection function, including: lightning counter-attack, solar charger, over-voltage automatic braking, storage battery reverse connect and open protection, etc.

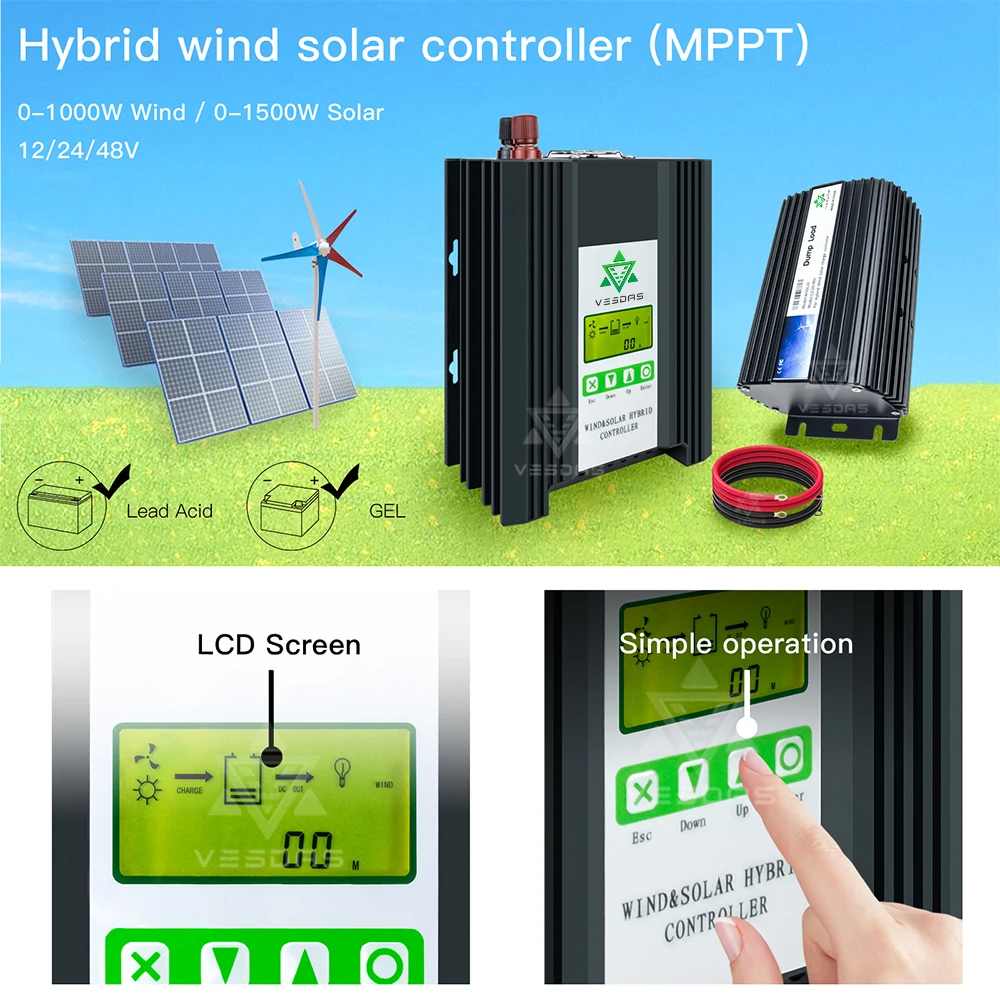

2.It is workable for GEL, Lead-acid battery with full charge and discharge protection. Large size LCD screen is convenient for parameter(from solar, wind and battery) query.
