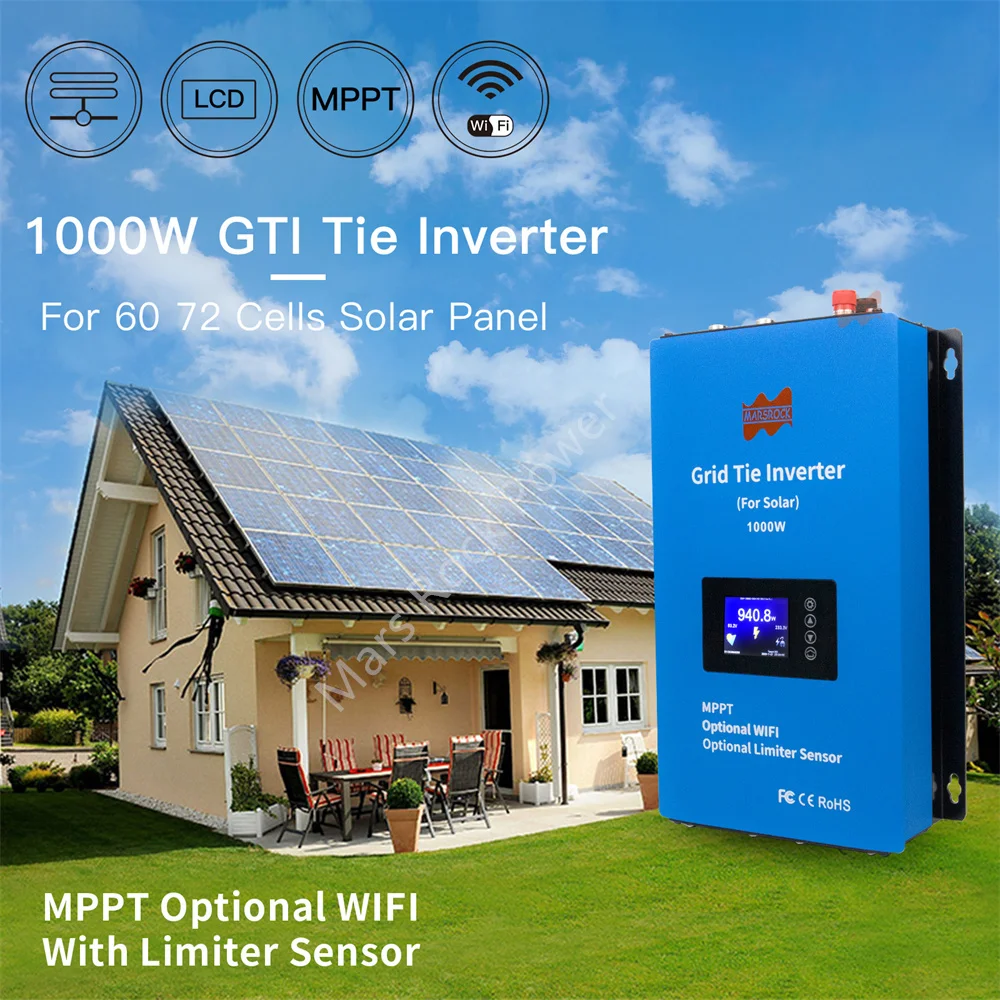

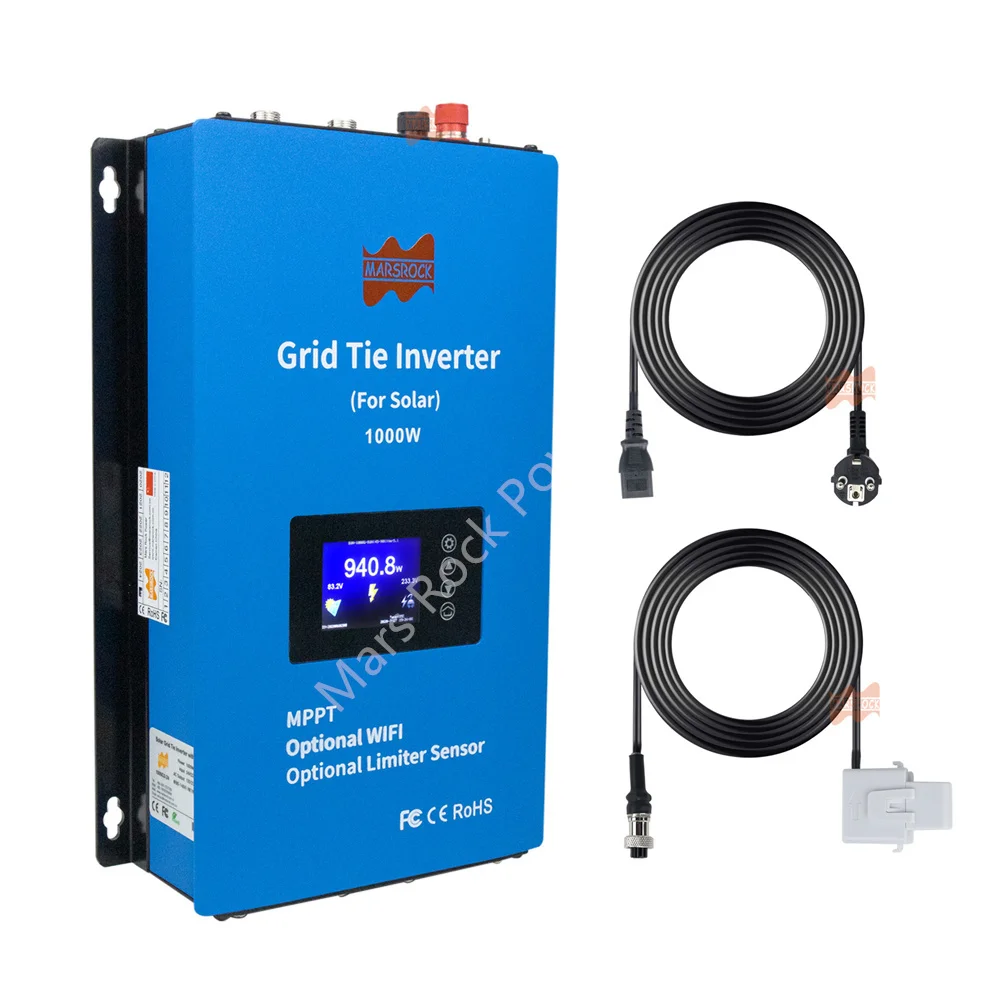

1000W Solar Limit Sensor Grid on Inverter DC 24/48V & AC 230V Built-in WiFi with LCD Display Household Solar Grid Tie Converter

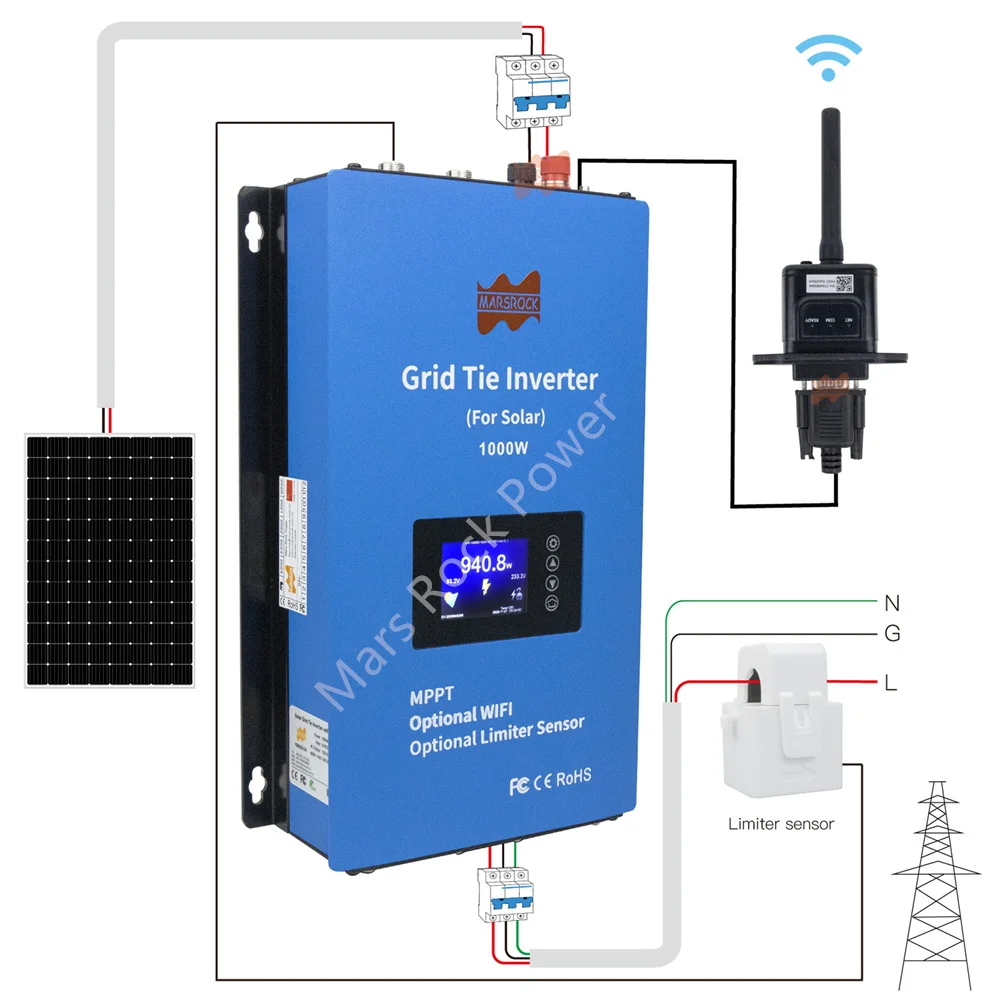

We call the system combining with small solar grid tie inverter and solar panels as'SGPV'. The system includes solar panels and small type grid tie inverter and installation kit. Solar panels can be mono silicon, polygon silicon, non- crystal film or any other material that can transform solar energy to electric energy. The power of grid tie inverter should be matched to the power of solar panels connected. So the power of SGPV is defined by its solar panels, it can be standardization according to the actual using.

The small grid tie inverter monitors the volume, frequency and phase of the home utility grid, then produce pure sine wave AC power that the frequency and phase are as same as the grid's, and the volume is a bit higher than the grid's, then according to the current controlled PWM, to control the output power to the grid.

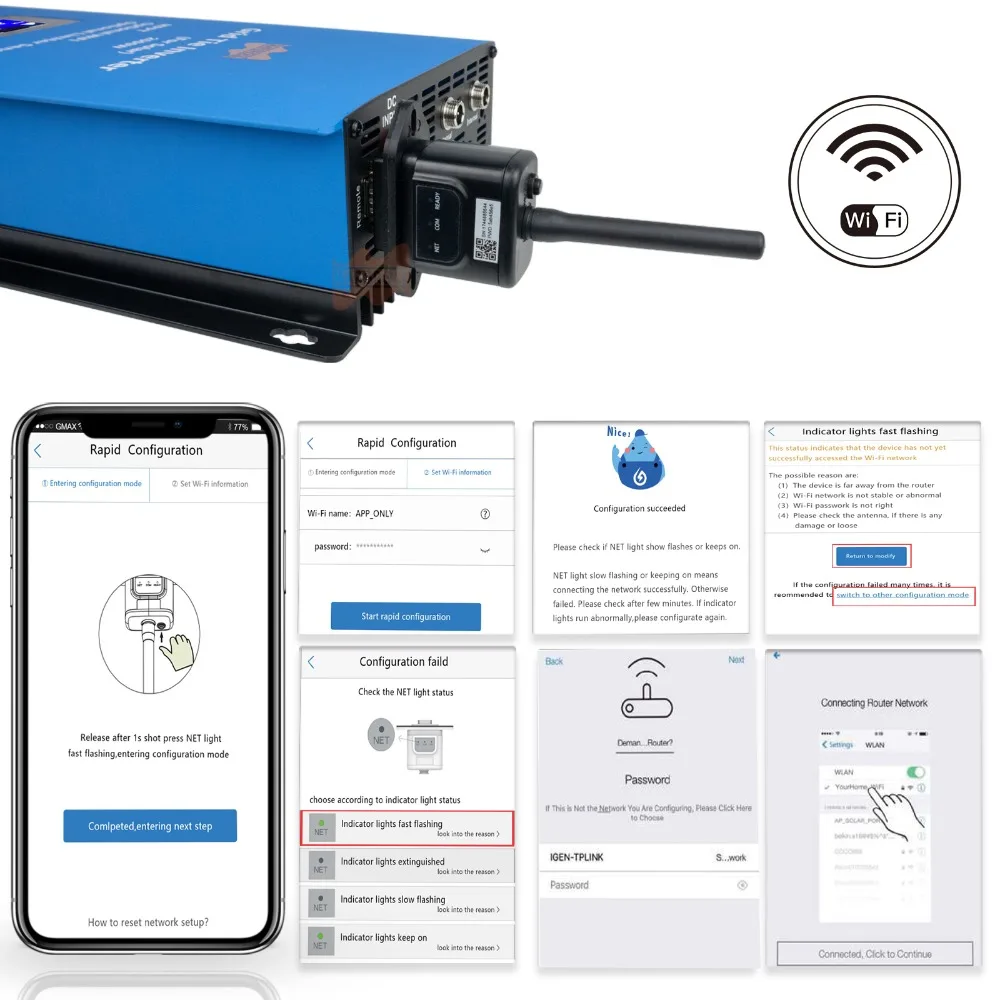

1. The product can be controlled through a mobile device after connecting to WIFI

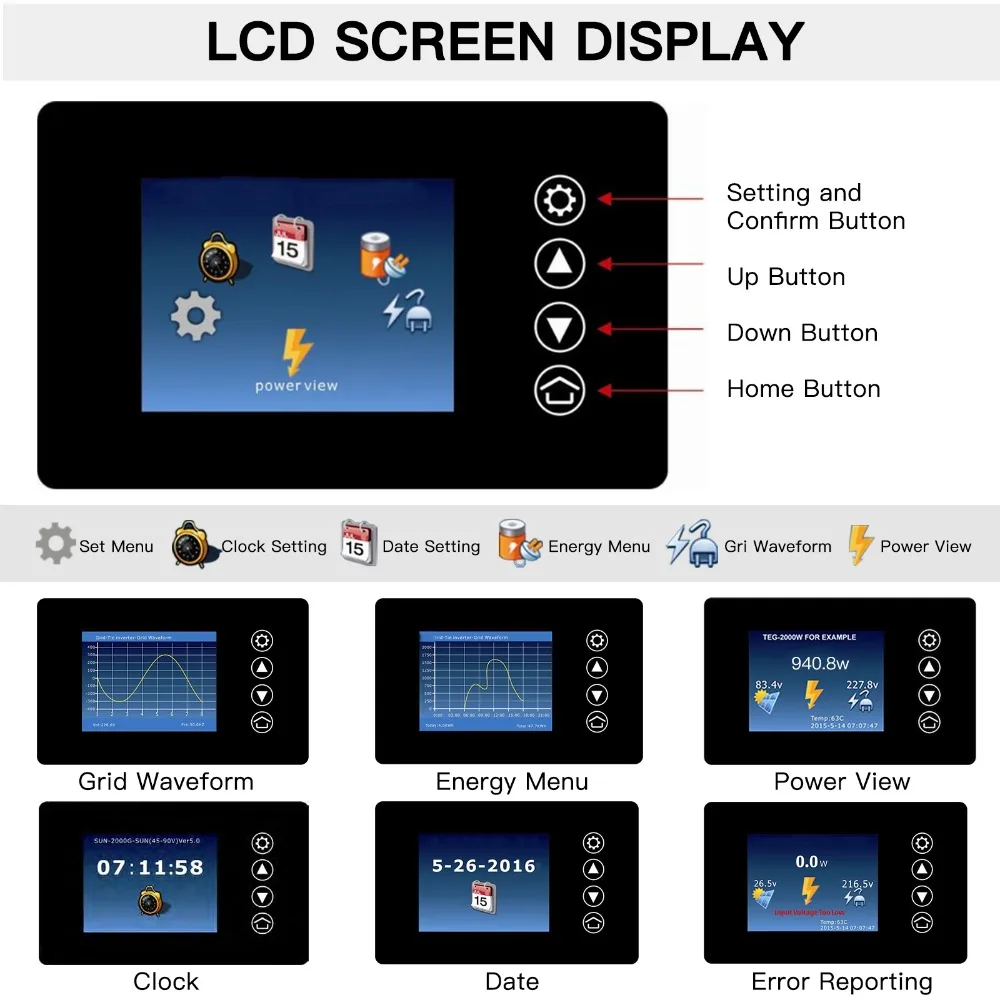

2.Adopting LCD screen display, convenient for real-time viewing of relevant data

3.Anti backflow function

4.Multiple safeguards ensure that the product is not harmed during use

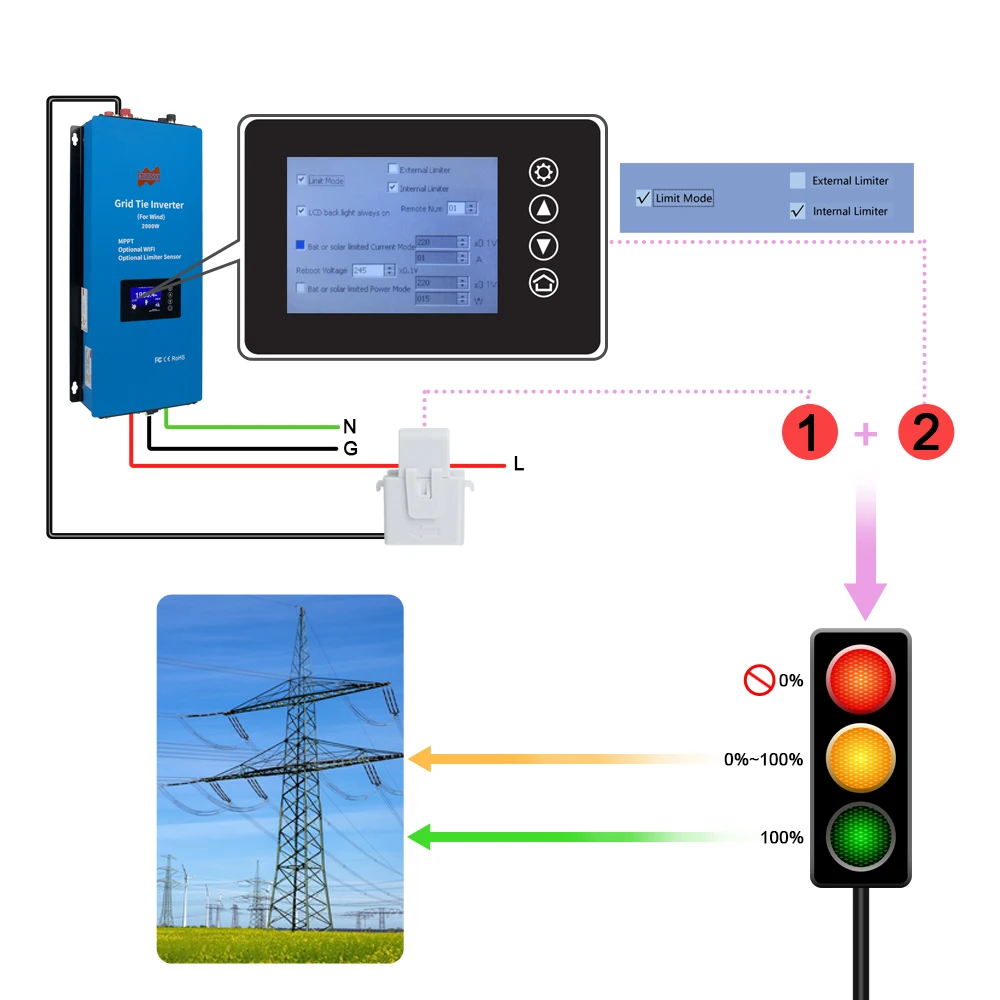

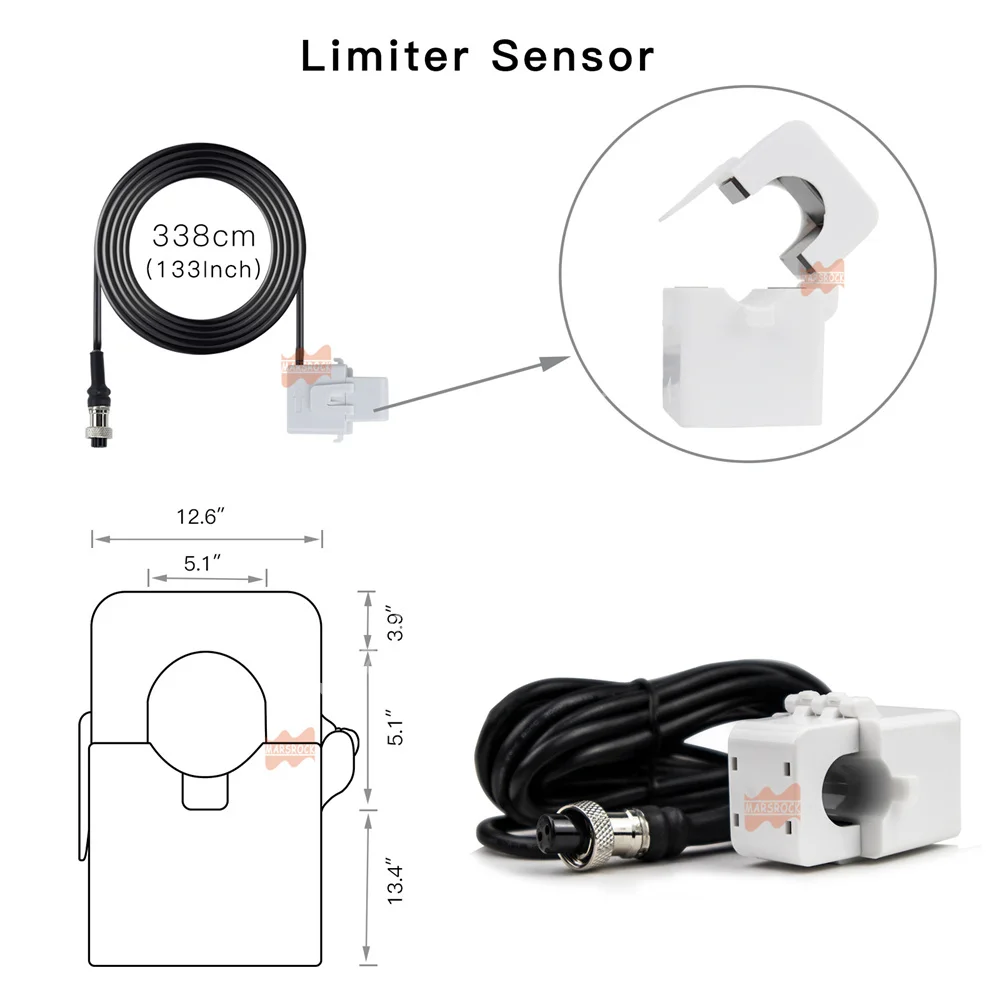

What does the limiter sensor can do in solar grid tie power inverter system?

In some countries,Power Meters (the one provided by the electricity provider in the area) are not aware of the direction of power flow. the consumers will be charged for power even if it is given to the grid.So it is called limiter ,It delivers only the power needed by the load and prevents delivering excess power hence avoids excess power in going back to the Grid
