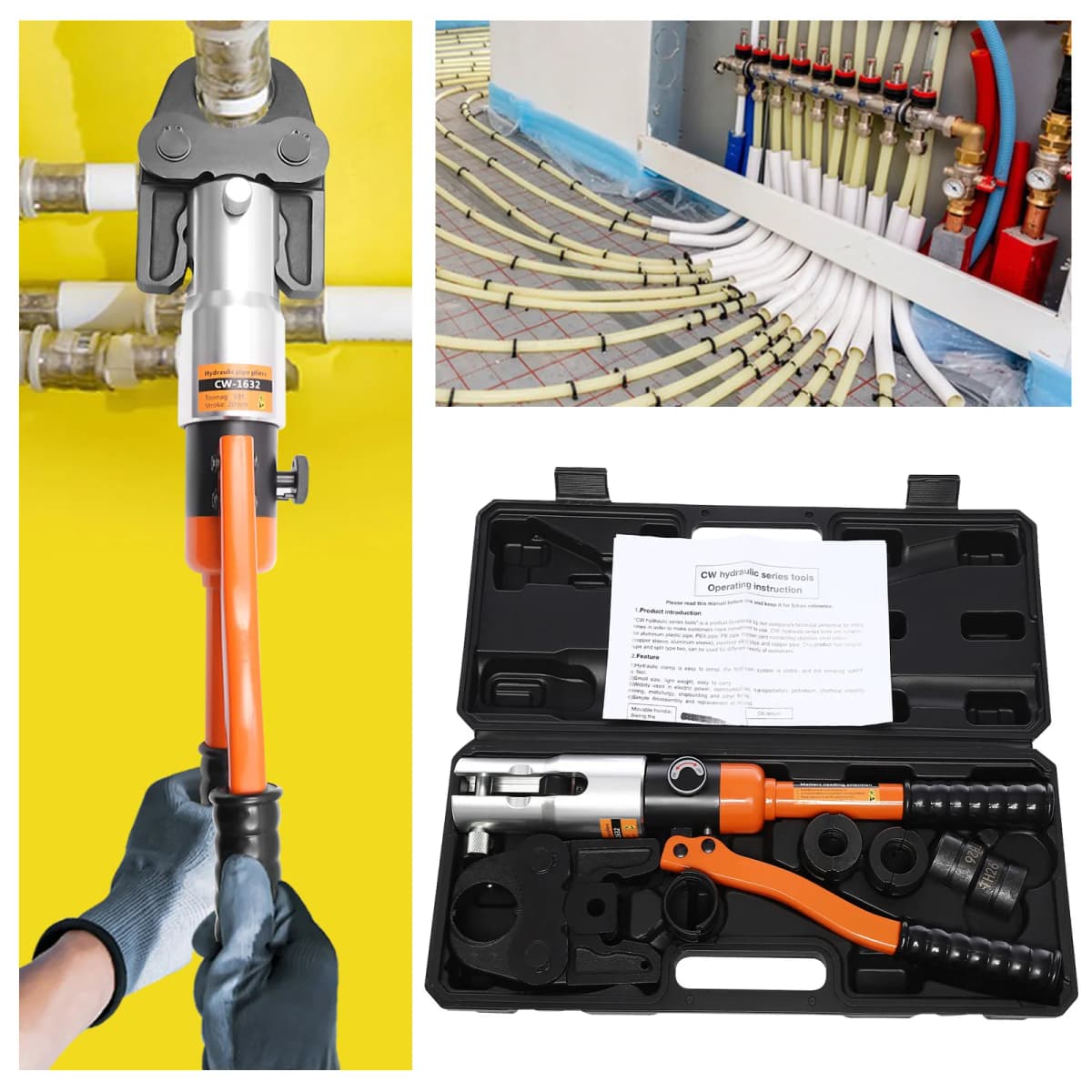

10T Hydraulic Crimping Tool Pliers Set - 4 Dies U16 U20 U25 U32, PEX PB Pipe Tube Crimper with Case, 16-32mm Manual Press Tool

Hydraulic Plastic PB PEX Tube Fittings Pipe Crimping Tool Pliers CW-1632 -U (4 dies -16, 20, U25, 32)

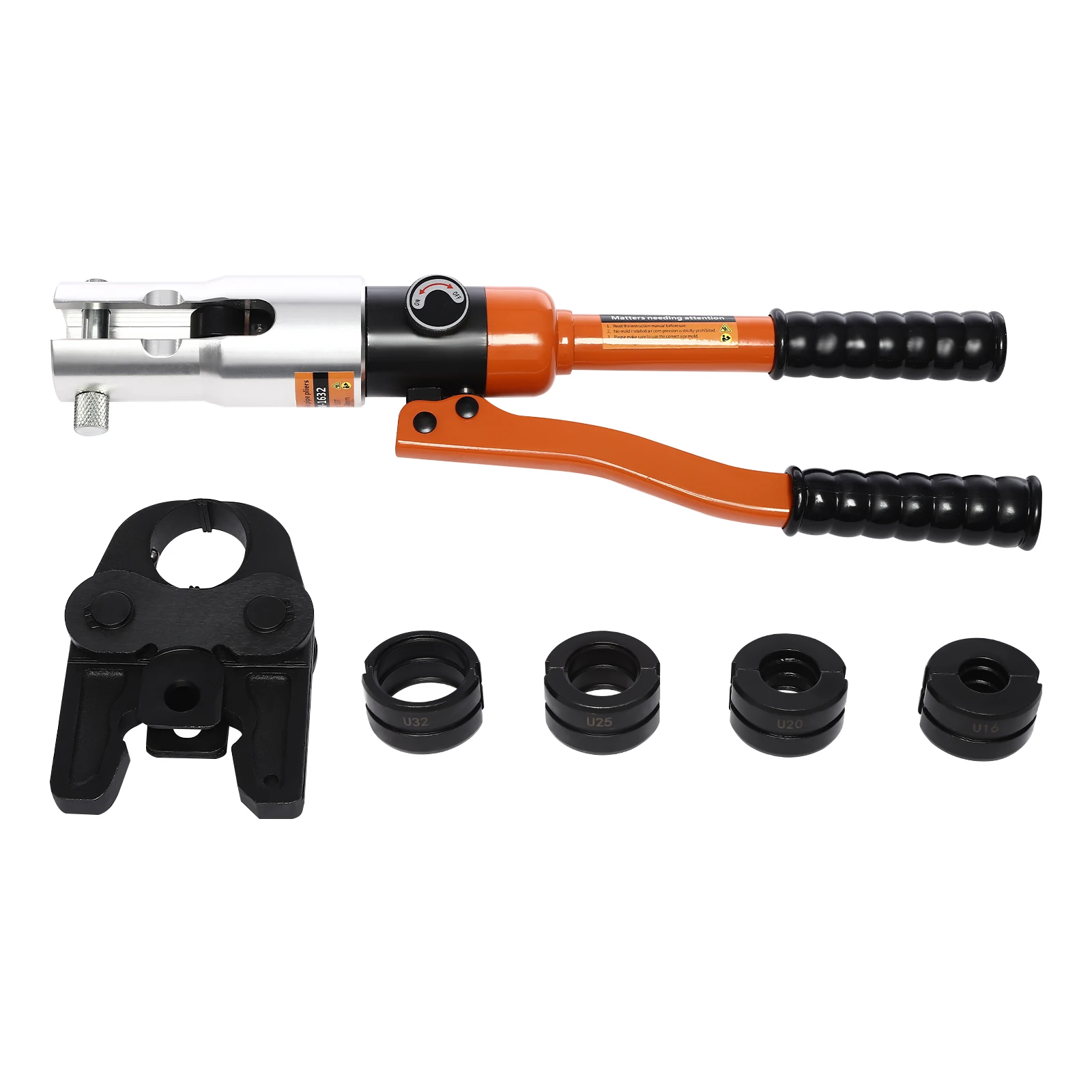

✅Package Included

1* Crimping Pliers
1* Butterfly Mold
4* U Molds
1* Toolbox
1* English Instruction

Description

Are you still finding professional crimping pliers that are efficient and labor-saving? Come and look at our products that help you easily crimp most pipes. High-hardness materials and exquisite processes ensure robustness and durability. It also offers molds in different specifications to meet your different crimping needs, which is undoubtedly a good helper for your work.

Key Features

⭐Made to Last:
The high-quality Cr40 steel cylinder, aluminum plier head, and 42Crmo molds, with oxidizing, quenching, and blackening processes, can resist abrasion and rust and maintain excellent performance for long-term use.

⭐Practical and Powerful 10T:
This product adopts a hydraulic design, with a maximum crimping force of 10T, which can help you complete crimping with less effort. The U16, U20, U25, U32 /TH16, TH20, TH26, and TH32 molds can meet your different usage requirements.

⭐Thoughtful Design 360°:
Its pliers head is fixed with a small screw, and you can rotate it 360° according to your needs. When used, the pliers firmly grip and crimp the item without falling off.

⭐Easy to Carry and Store:
The toolbox with a built-in handle, together with its compact and lightweight(11.02 lbs) design, makes it easy to store these tools without easy loss and damage, as well as convenient to carry to any worksite.

⭐Outstanding Sealing Performance:
The sealing ring and anti-leakage plunger can seal the cylinder well and reduce the occurrence of oil leakage.

⭐Easy to Use:
It is ergonomically designed, utilizing the principle of leverage and a high rebound spring for effortless handling.

⭐Simple Maintenance:
It has a smooth surface and simple structure, so you can wipe the surface clean of stains with a damp rag.

⭐Customer Service:
We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Specification

Color: Orange
Grip Type: Ergonomic
Model: CW-1632
Stroke: 20mm/0.79in
Material: Aluminum, Cr40 Steel, 42Crmo
Process: Oxidized, Quenched, and Blackened Treatment
Maximum Crimping Force: 10T/100KN

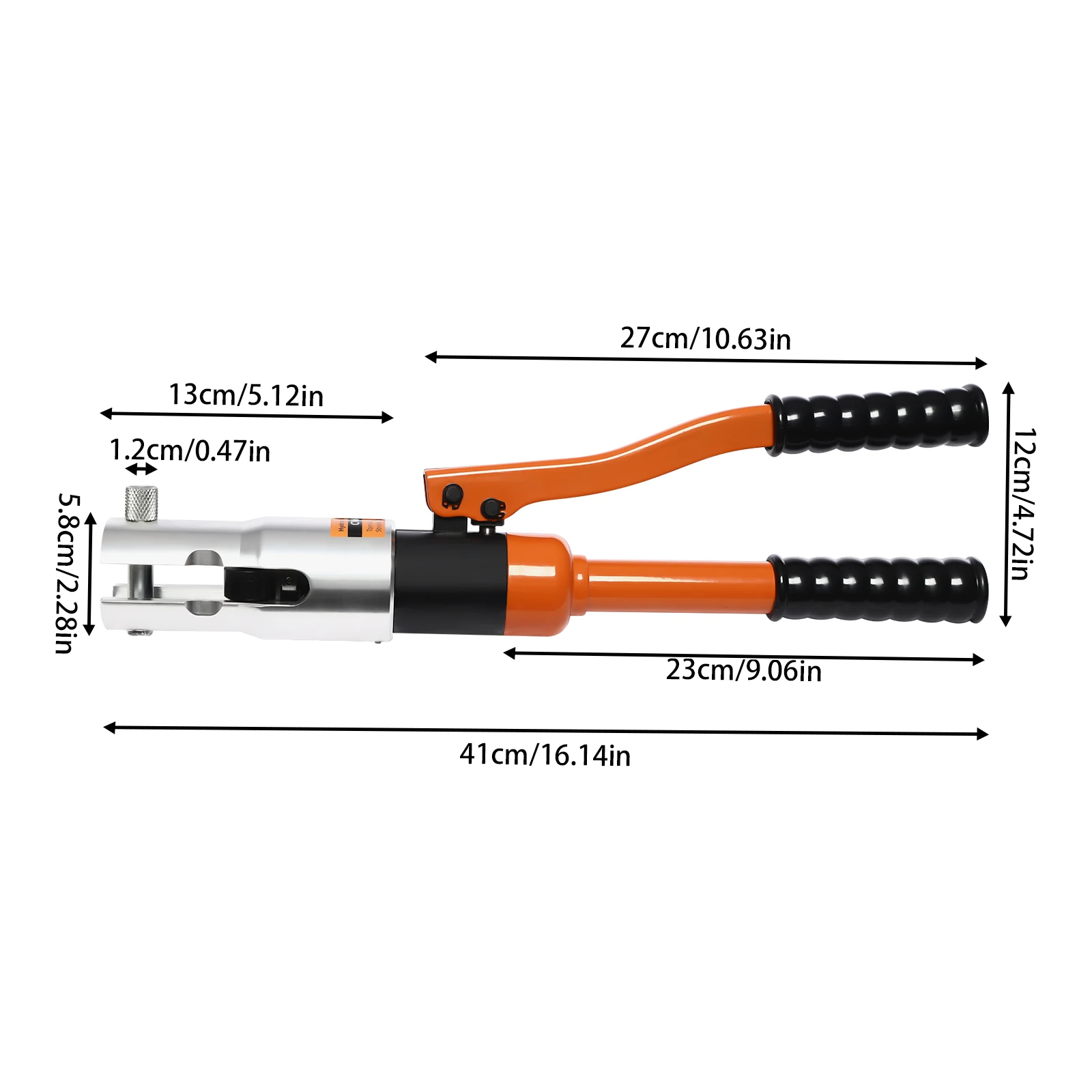

➡️U Molds Specifications: U16, U20, U25, U32
Hole Diameter: 12mm/0.47in
Tong Head Max. Width: 58mm/2.28in
Tong Head Length: 13cm/5.12 in
Handle Closed Opening: 12cm/4.72in
Handle Length: 23cm/9.06in, 27cm/10.63in
Overall Length: 41cm/16.14in
Package Size: 45*22*11cm/17.72*8.66*4.33in
Gross Weight: 5.5kg/12.13 lbs
Net Weight: 5kg/11.02 lbs

Details

1️⃣Comfortable Handle:
The ergonomic insulated handle with a wave-shaped design is comfortable to hold without slipping and reduces hand fatigue.

2️⃣Pressure Relief Switch:
It facilitates you to be safe and reliable when releasing pressure after crimping.

3️⃣Locating Pin:
It can be easily removed for mold replacement. Moreover, it prevents the loaded molds from falling off.

How to Use

1. Check that the specifications of the mold and the pipe are matched.
2. Select the matching mold.
3. Load the mold.
4. Turn the oil return switch clockwise and crank the handle repeatedly.
5. When the upper and lower molds touch one place, crimping is complete.
6. Then loosen the oil return switch.

Notes

1. Please check the product specification before purchasing.
2. Please read the English instruction manual carefully and the product label before use and pay special attention to the safety matters therein.
3. It is strictly prohibited to use the tool without a mold. Please use the correct size mold, and do not put your fingers into the mold during use.
4. Please do not crimp energized cables or wires.
5. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement and make sure you do not mind before ordering.
