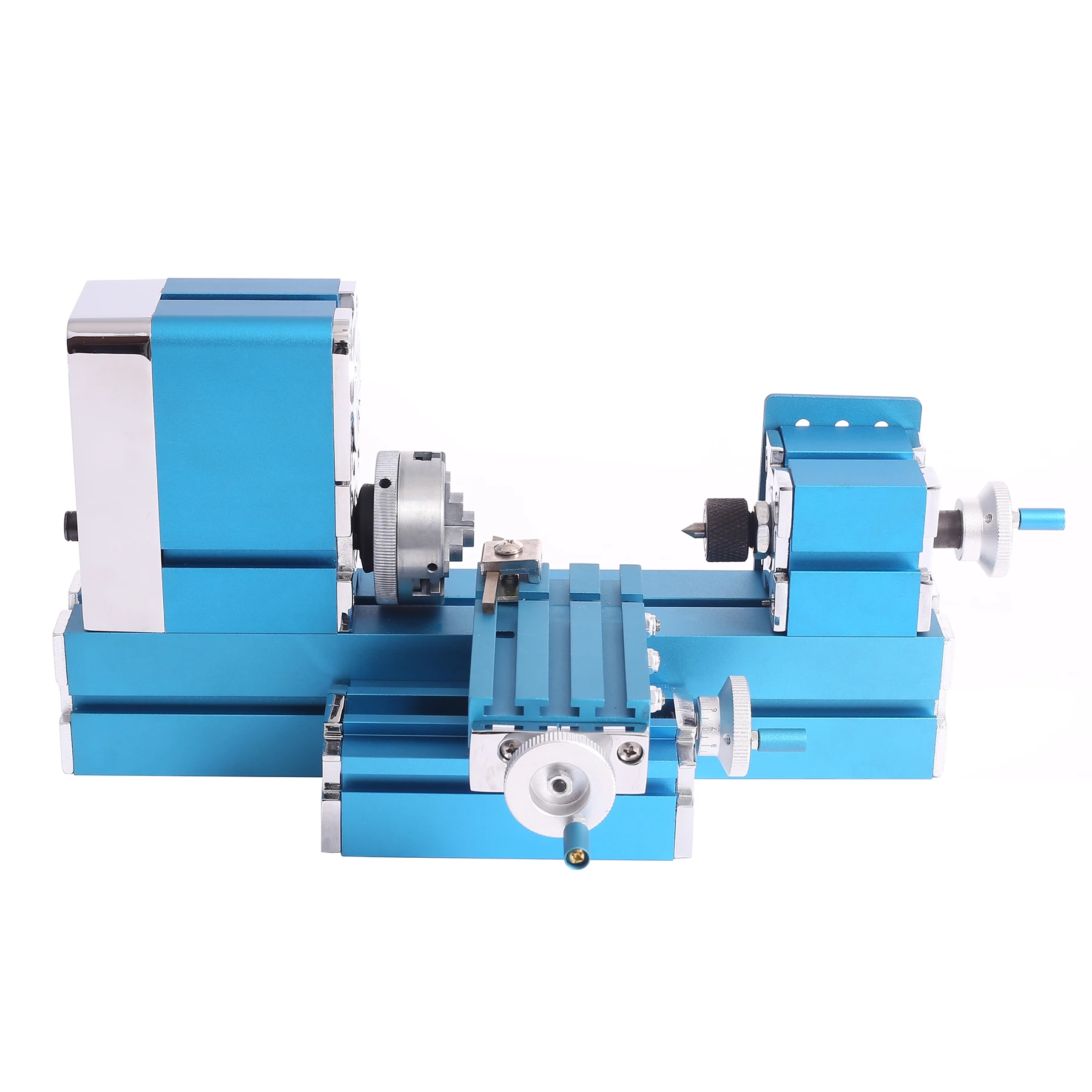

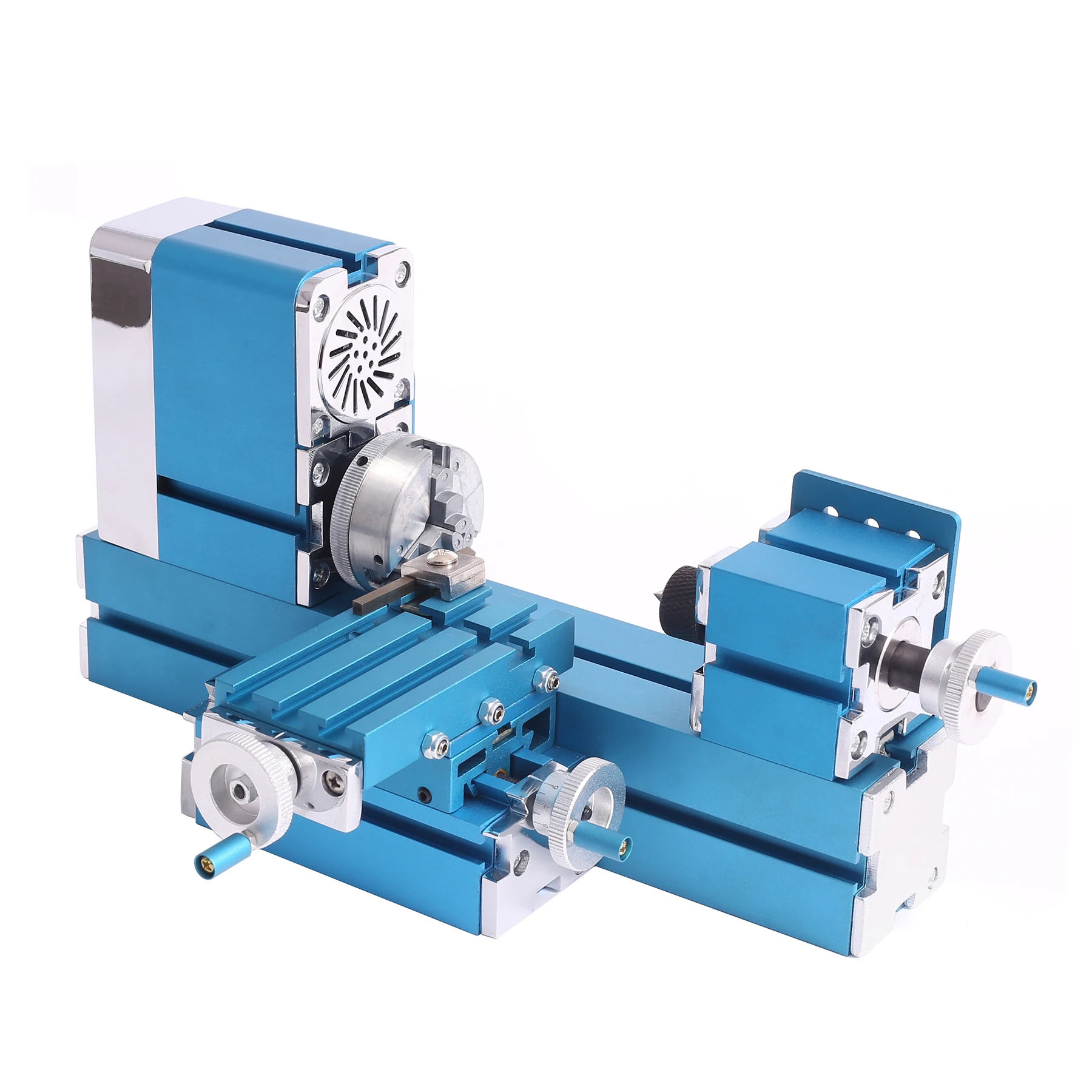

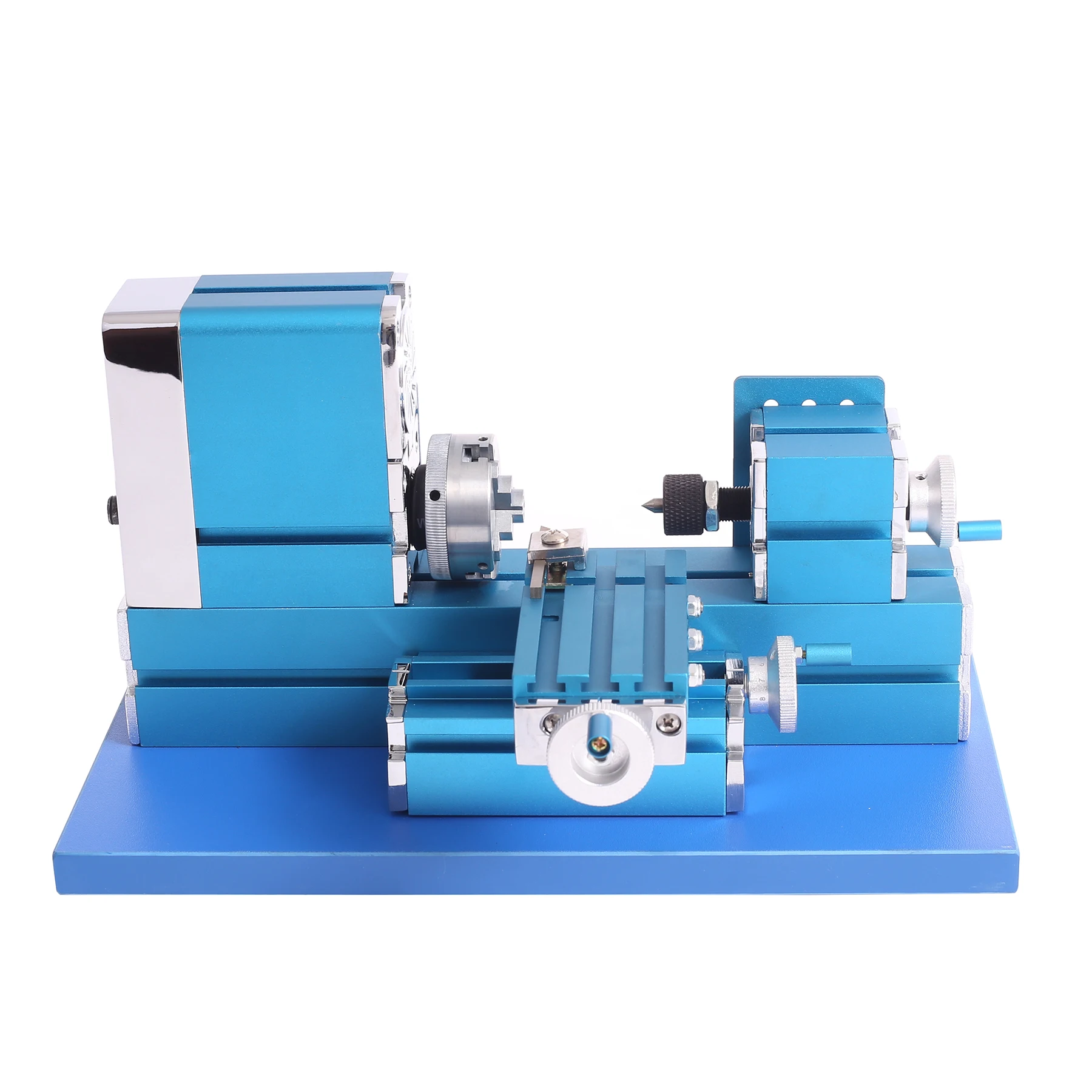

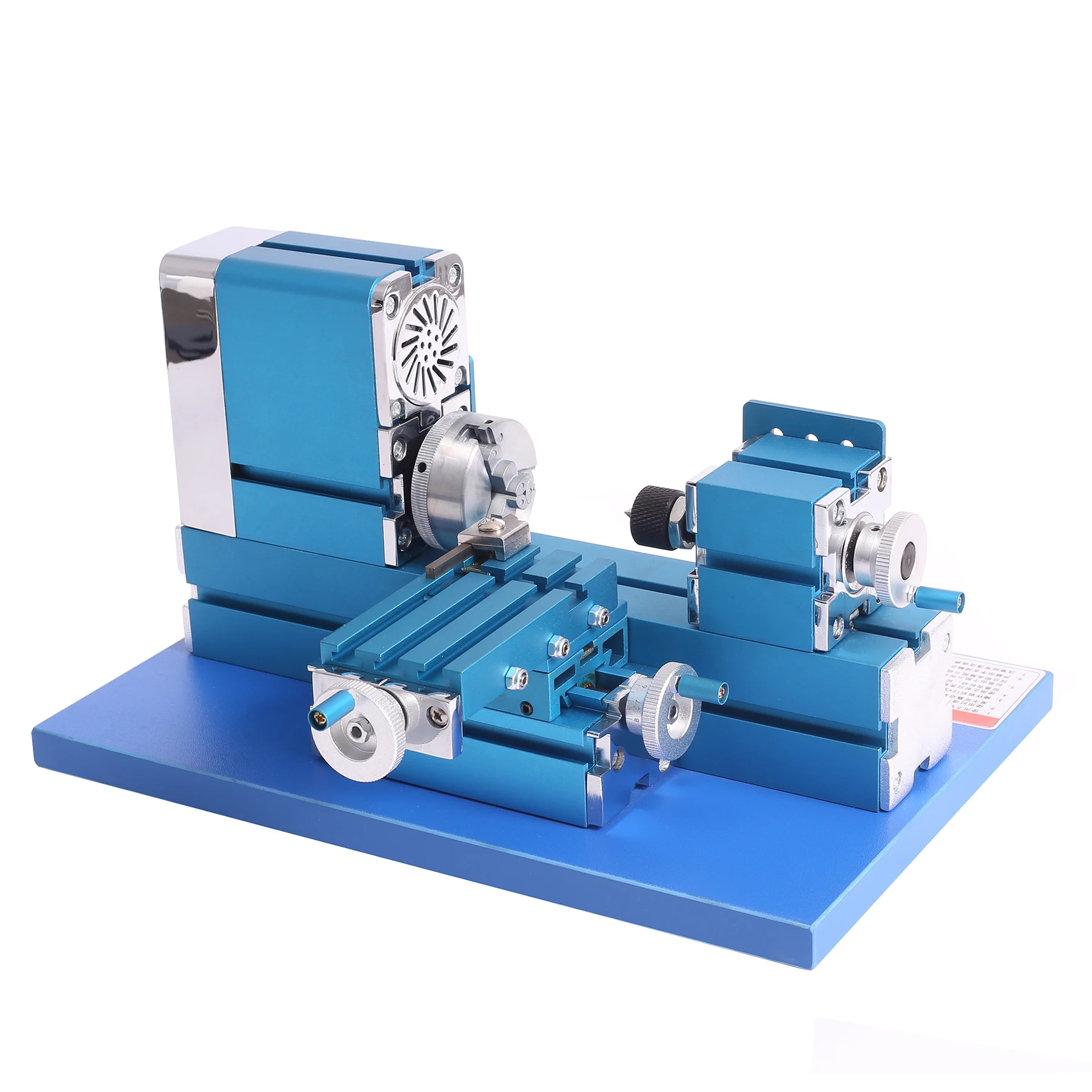

Mini Metal Lathe 36W CNC DIY Woodworking Lathe Machine 20000RPM Milling Bench Top Digital Lathe Education Modelmaking

20000rpm Mini lathe woodworking machine metal processing tool Teaching Model

Application:

Youth Activity Center, School General Technical Room, Science and Technology Activity Room Equipment, Science and Technology Museum Student Science and Technology Creation, DIY hobbyist.

Main parts of the machine:

The main components of the headstock, intermediate block, connecting block, tailstock, large slider, small slider, hand wheel, bases and so on are made of metal. The quality of the product is improved, more durable and more precise.

Parameter:

Input voltage: AC100V~240V 50/60HZ

Output voltage : DC12V 3A/4A

Motor rated power: 36W

Motor speed: High speed motor 20000r/min±15%

Spindle speed: high speed motor 3000r/min±15%

Spindle jump: <0.1mm

Large slider stroke（Z axis）: 45mm

Small slider stroke（X axis）: 35mm

Center height: 25mm

Center distance: 110mm

Turning tool size: 3.5*3.5mm

Maximum processing diameter: 0-10mm positive claw, 10-45mm reverse claw

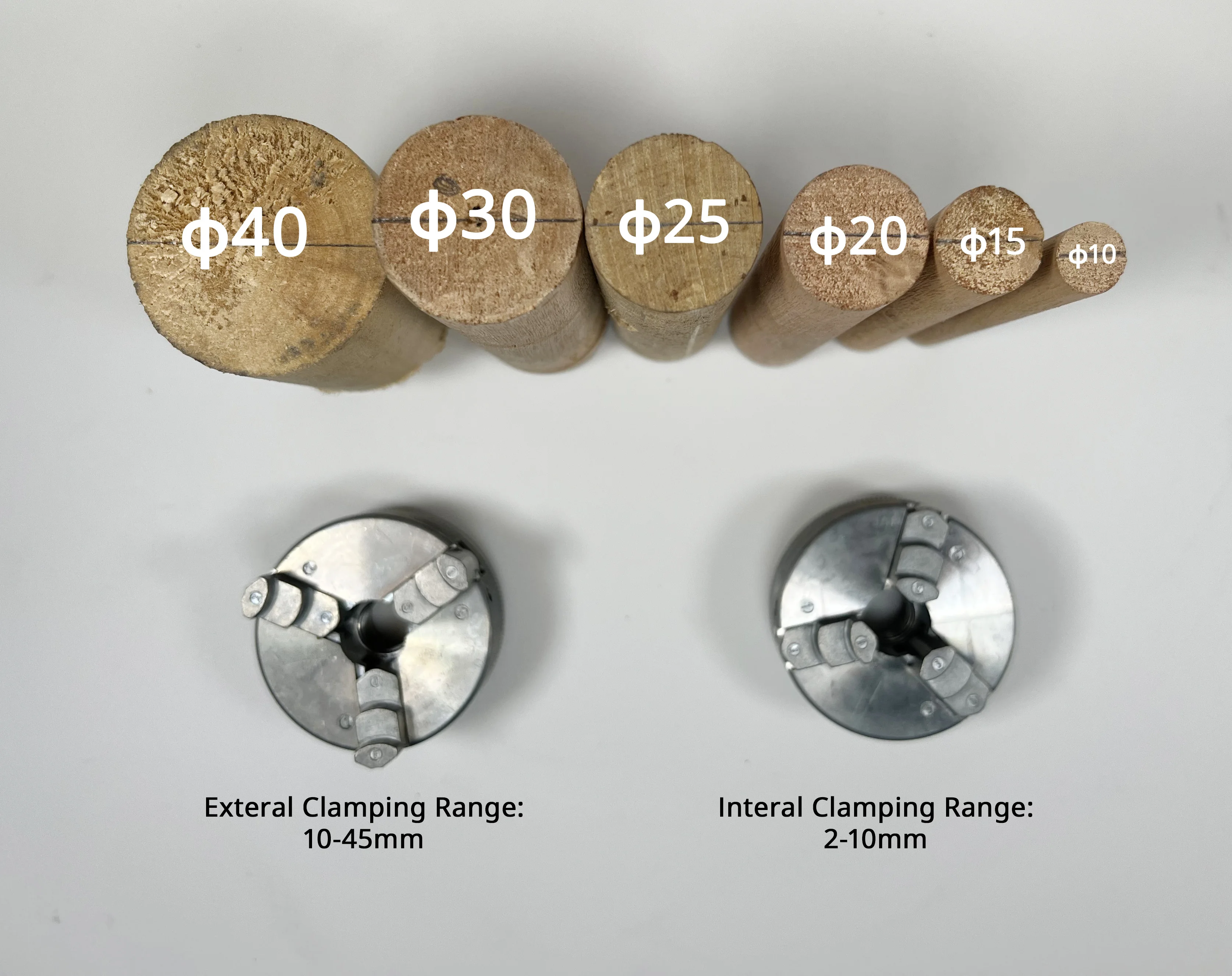

Three-jaw chuck clamping diameter: 0-10mm claw, 10-45mm reverse claw

Handle scale: 0.1mm/division

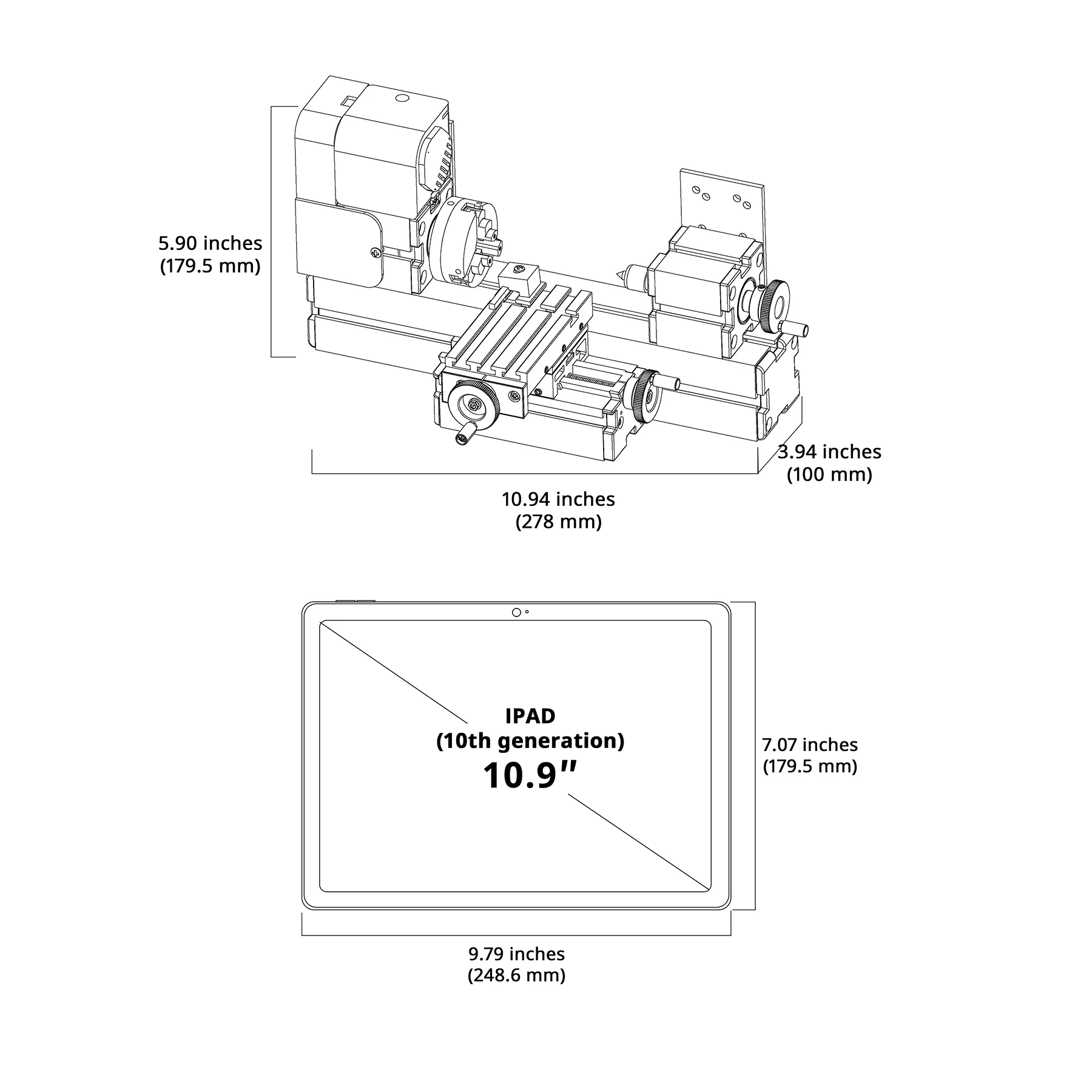

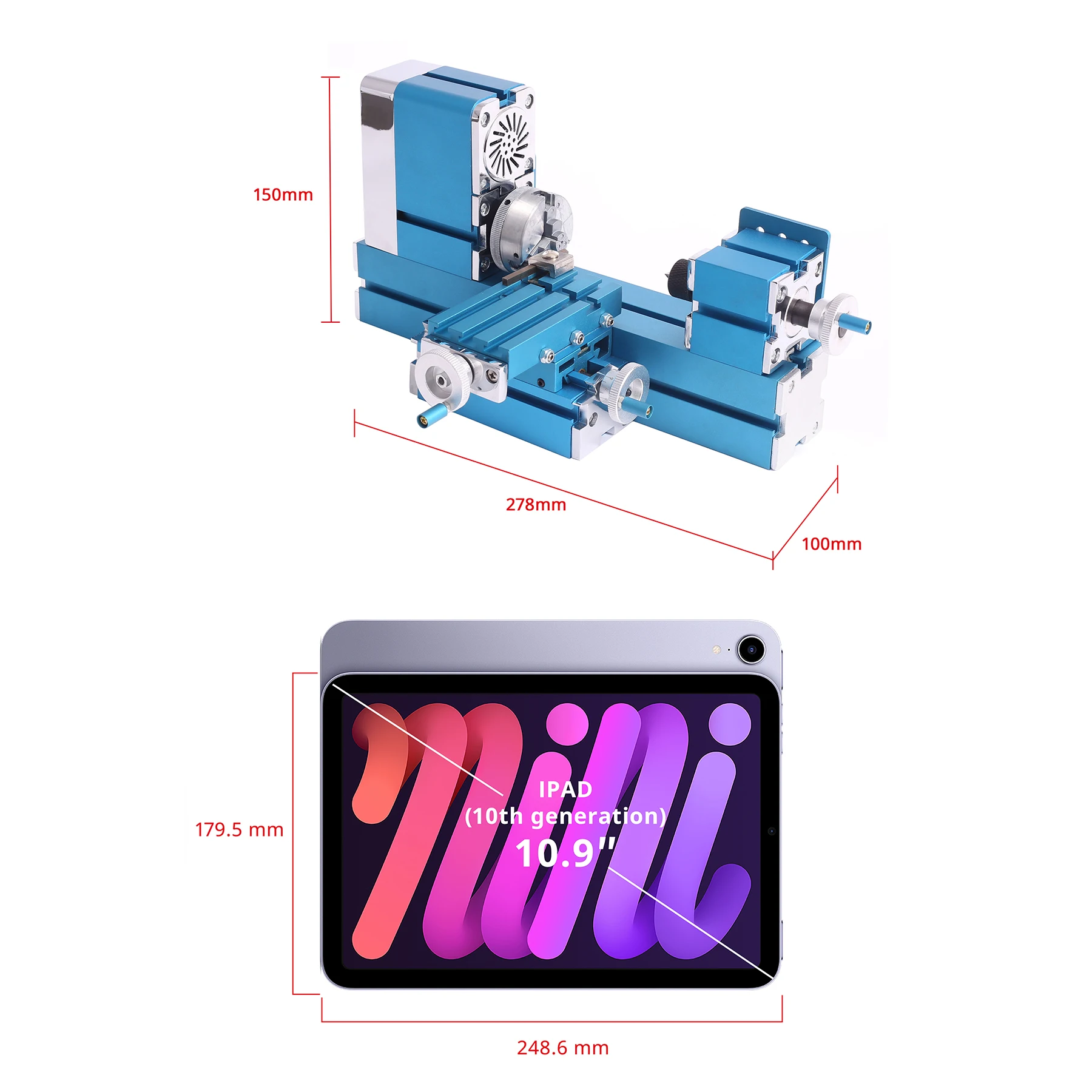

Production size:278*100*150 mm

Packing size: 325mm*200mm*240mm

Weight: 3.7KG

Processing ability: It can process wood, plastic and soft metals (pure copper and pure aluminum).

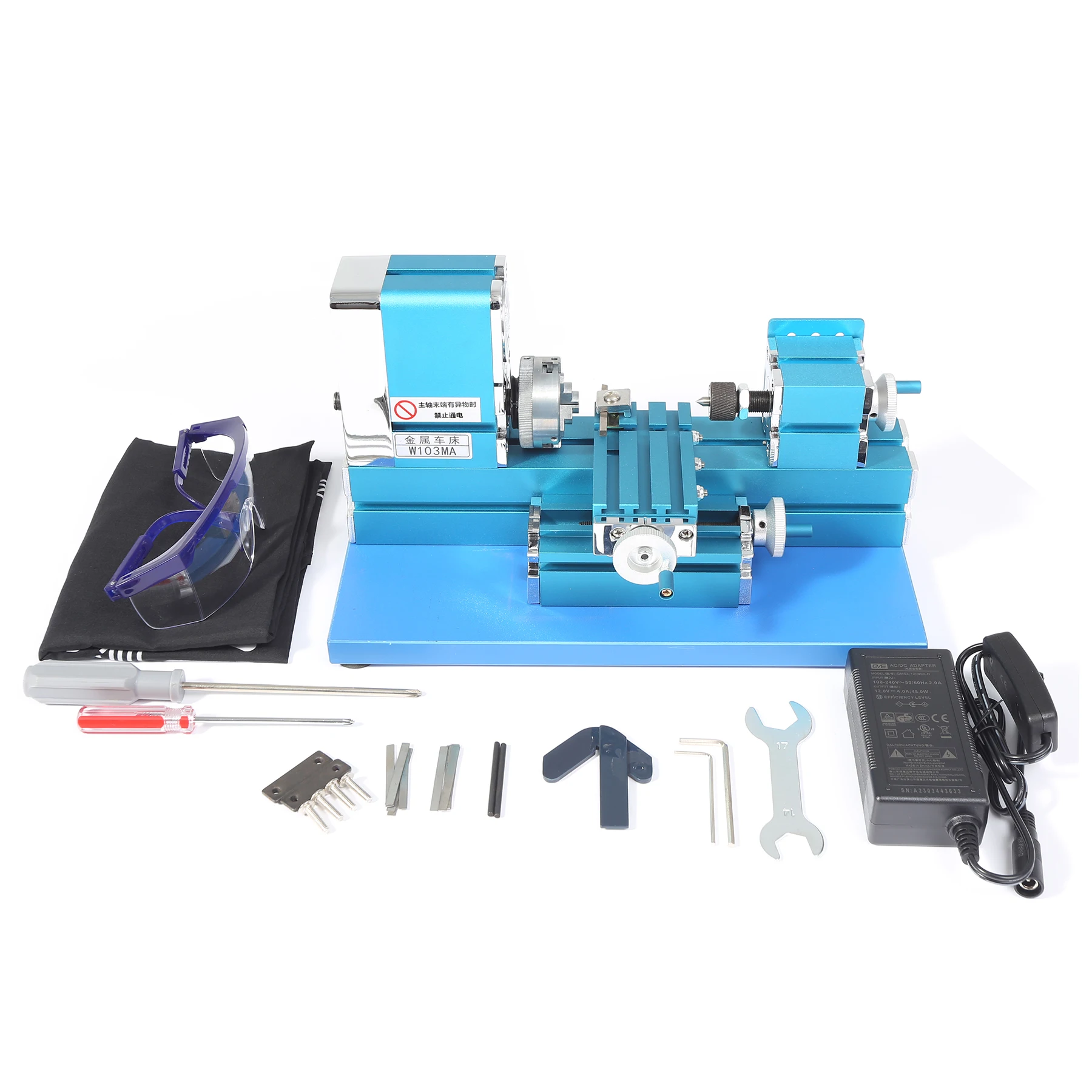

Package include：

1 set of lathe

1 set of Accessories:

inner hexagon spanner   2pcs(S=2\3)

double-headed wrench   1pcs(S=14\17)

cross screwdriver        1pcs

turning tool            1pcs(3.5*3.5mm), on machine

shim                  5pcs(0.3mm)

shim                   5pcs(0.4mm)

center finder            1pcs

three-jaw chuck locking rod 2pcs

two hole clamping plate   2pcs

screw                  2pcs(M4*16)

1 set of apron

1 set of goggles
