NEWEST V2021.11 Single PCB Board TCS Multidiag Pro TCS Cars/Trucks 2017 R3 Free Keygen BT4.3 Wireless Diagnostic Tool

For Buyer Concern About the Color Optional Difference:

This link has Multi-Type Single PCB Board ,please check each Color Name and each optional Picture Display to select Correct one you need .

Single PCB B Version with Bluetooth Standard

Single PCB A+ Version with USB Connection

Single PCB A+ Version with Bluetooth Standard

Single PCB A+ Version with Bluetooth 4.3 High Speed

All Types Single PCB default setting Firmware 1622 and it all supports Upgrade Firmware to Flash 3201.

All Types Single PCB Supports flash to the 3200 or 3201 version by buyer yourself, and the single board perfectly uses the 3200/3201 hardware version.

Q: How to choose each one and buy ?

A: Here below are explain the difference ,buyer can choose the one you need according to your actual needs

Single PCB B Version is a cost-effective model .

Single

PCB A+ Version has all new and high-quality chips and ICs etc..., with

the difference is Transfer Connection from USB, Bluetooth Standard and

Bluetooth 4.3 high speed.

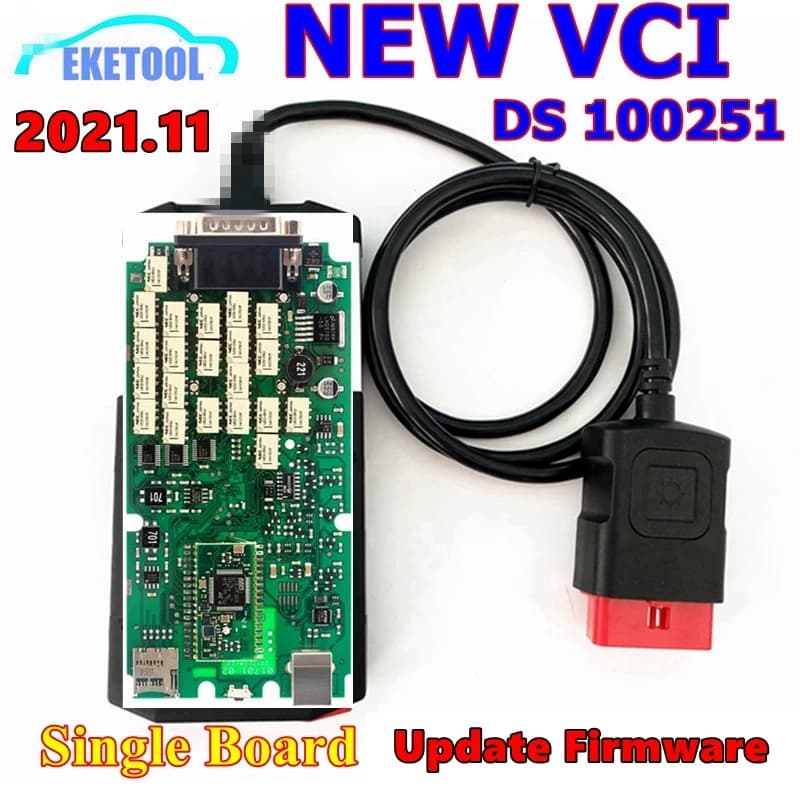

PCB Board Display:

Model: Single PCB A+ Version with Bluetooth Standard

High Quality A+ Single PCB Green Board+ Standard Bluetooth Chip(Note: Different Bluetooth Module):

Single PCB Board Display：

100% Brand New White NEC Relay UD2-5NU+Black 701 Inductance+FT232RQ+9251A+GEZ Chip+ARM Main Process

1.Single PCB Board: The 1:1 Design Board with high Quality and supports More Car Modles

2.100% Brand New Japan NEC Original Relay:Responsible for proper communication with the driver in the vehicle

3.FT232RQ CHIP:Responsible for fast and trouble-free USB communication

4.Bluetooth Wireless Module:Stable and fast wireless communication

5.Single Board With Real 9241A:Support for Mercedes For Benz/For Audi/For SEAT/For Skoda/For BMW/For Opel/For Volkswagen/For Renault

6.GEZ Chip:Protective

function with very fast response time, which can prevent voltage surges

that may damage the electronic equipment of the device

7. Black 701 Inductance: Single board necessary module

Model: Single PCB A+ Version with Bluetooth 4.3 High Speed

A+ Single PCB Green Board Bluetooth 4.3 High speed NEC Relay 5V FT232RQ GEZ Chip 9241A Chip:

A+ Quality V2021.11 V2020.23 Multidiag Pro+ VD150 Single PCB Board TCS Pro Scanner OBD2 Code Reader for Cars/Trucks

Newest Version 2021.11 Released.

Please Note:

1. If buyer CD damaged or need different version software, please contact us, we will send you welink to download

2. Not every car models can support all the function or for all system, Need test in real operation.

3. Not every car model under the car brand can be working.

4.Please do not choose wrong for with Bluetooth/without Bluetooth

V2016.R1 Support more new/old cars than V2015.R3, Part of car list display:

Software List Display:

1.V2017.R3 With Keygen activator Free Activate yourself.We default send V2020.23 on CD.

2.V2021.11 Newest send with pacakge.

3.V2015.R3/V5.008 R2  With Keyen too. If buyer reqeust this software ,please leave message ,or we can provide via Mega Link.

4. Best Compatible system is Win XP and WIN 7 32bits

Description:

TCS PRO+ is a quick and reliable diagnostic tool serving as a link between vehicle and computer. It works on both old and new vehicles.

With CARS, you are able to perform brand specific diagnostics for cars and light vans from 1988 onwards. A total of 47 different brands. With TRUCKS software package, you are able to perform brand specific diagnostics for light and heavy commercial vehicles, buses and trailers from 1995 onwards.

A total of 37 different brands. The diagnostic program GENERIC is designed for the legislation based diagnostics, specially targeted for emission related fault codes. GENERIC is included in CARS and TRUCKS packages.

Multiplexer function, 2xHS CAN (ISO 11898-2), SW CAN (SAE J2411), K/L (ISO 9141-2), VPW (J1850), PWM (J1850), RS485 (J1708), TTL and (SPI, analog in, 5volt out).

Highlights of TCS PRO+:

Work for CAR + TRUCK + Generic 3 in 1

High Quality With green dual board with 9241 chips.

Support system :Win7 32bit/XP/Win10 32 bit.

With Built-in Bluetooth module, will be better to use.

One year quality warranty, Powerful and in time technician support.

We can share wow software to you as gift.

In serial we do following:

1) Read and erase fault codes;

2) Read live data ;

3) Basic settings ;

4) Scan function ;

5) Fully compliant to the eOBD/OBDII standard.

Languages:

English, Cesky, Bulgarian,Dansk, Deutsch, Espanol, Francais, Greek,Hrvatski,Hollan, Hungarian, Italiano, Norsk, Polish, Romania, Russian, Srpski, Suomen kieli, Svenska, Turkish, Portugues.

TCS Pro+ Functions:

1. Manufacture specific serial diagnose ;

2. Scan function;

3. EOBD/OBDII communication;

4. Serial Systems ;

5. Engine ;

6. Ignition ;

7. ABS ;

8. Service reset ;

9. SRS ;

10.Immobilizer ;

11.Instrument ;

12.Comfort system ;

13.Gear-box etc

FLIGHT RECORDER

With the flight recorder function, you can record parameters in real time while you are driving a vehicle. During recording, you can, with a press of a button, highlight the specific error so that you can investigate the detected error at a later time. TCS Pro+ is equipped with built-in memory thus removing the need to bring a computer. Memory cart not include in package .

VOLTAGE CHECK

When TCS PRO+ is connected to the vehicle, the unit will check the battery voltage of the vehicle and automatically adjusts itself to the vehiclersquos voltage level of 12 or 24 volts. If the voltage gets too high or too low, TCS PRO+ will warn you with both sound and light and you will also be alerted through the battery icon in our diagnostic software.

CHASSIS NUMBER VIN

In our CARS software, we have a smart function that allows you to read out the chassis number from the vehicle that you would like to diagnose. This ensures that the right model and year is selected automatically. In addition, engine code for vehicles, which are commonly available on the markets, is also selected automatically.

ISS

Intelligent System Scan (ISS) scans through all the systems in the vehicle and displays the fault codes that are stored in each system. This saves time and you get a quick overview of the actual status of the entire vehicle. When the ISS is complete, you can then select a specific control system to analyse the results further on.

ISI

Intelligent System Identification (ISI) identifies and selects automatically the type of controller that is mounted in the vehicle. This ensures that the diagnostic session is performed correctly with the correct parameters as required.
