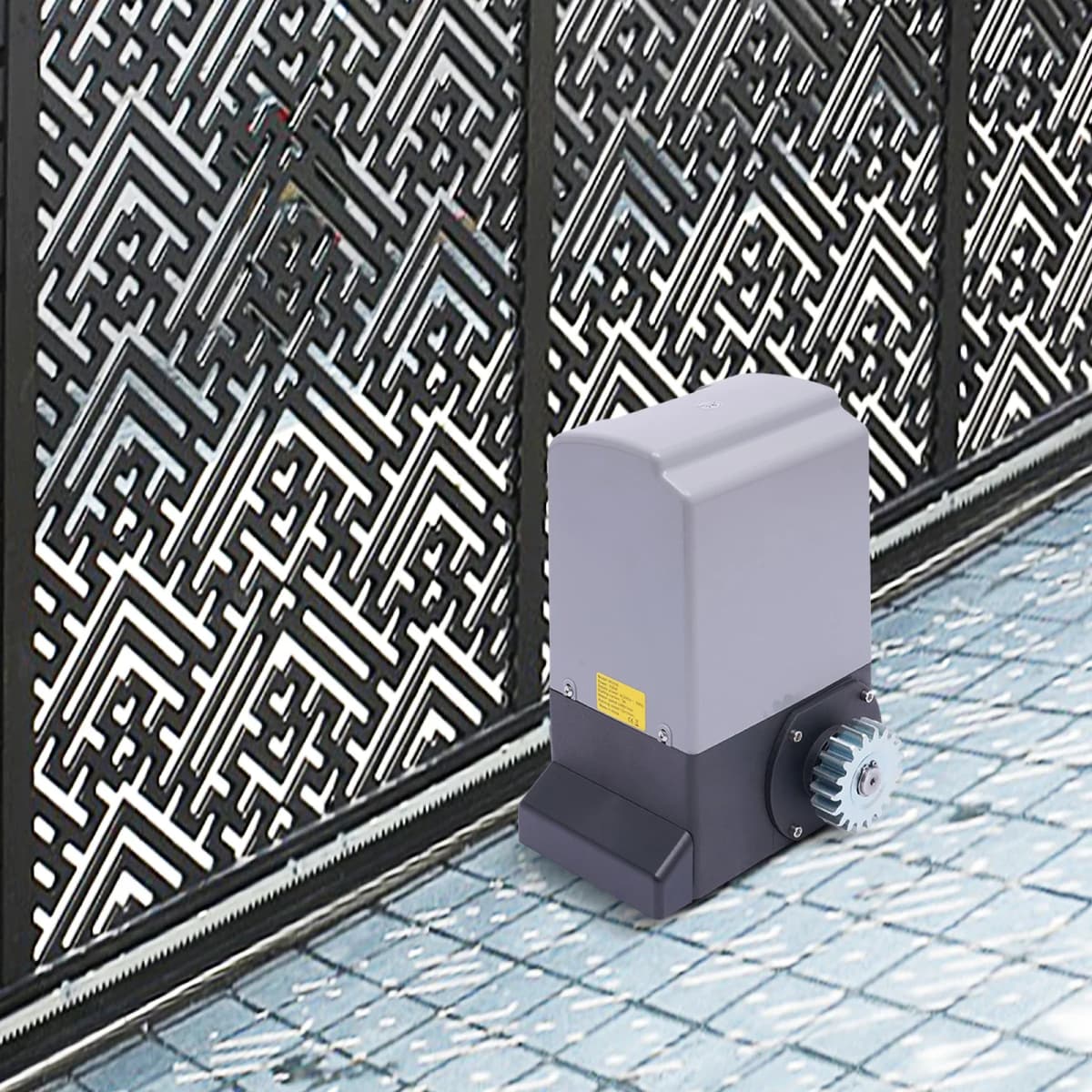

Automatic Sliding Gate Drive,550W Electric Sliding Gate Opener 1200kg/2645.55lbs, Automatic Door Opener Motor

Description

If you still need to open the door when entering and exiting the villa manually, it's really frustrating. Our sliding gate opener is the answer you have been searching for. This powerful sliding gate opener is a safe, intelligent, reliable, and long-lasting gate operating system! With its help, you only need to be prepared to experience enhanced security and convenience. Take it home and prepare to use the sliding gate opener to open up a new experience, bringing your family additional safety measures and a more relaxed and comfortable life.

Key Features

Good Butler: It is like a loyal and sharp guard who understands your needs, is always on standby, and opens the door for you when you need it. It eliminates the hassle and allows you to immerse yourself in convenience and comfort every time you enter or exit.

Powerful Function: This sliding gate opener uses a maximum power 550W motor and its exquisite chain to smoothly slide doors weighing up to 2645 pounds/39.3 feet/width 2-12mm at a speed of 39.3 feet per minute.

Outdoor Work: It has an IP44 protection level, which can prevent damage to the machine from rain, dirt, or dust, minimizing maintenance requirements and allowing you to use it safely in outdoor environments of -17-158℉.

Remote Control: This sliding gate opener comes with 2 remote controls, allowing you to open the villa door from a distance of 164 feet by simply pressing a button, providing more convenience in your life.

Manual Mode: You can use the key to switch it to manual mode, so that even if the power is cut off, it can still work, avoiding the weakness of excessive dependence on electricity.

Self Setting: It has an automatic closing function, and the closing time can be adjusted between 5/10/20 seconds, eliminating the need for frequent opening and closing of doors and making your entry and exit smoother.

Multiple Protections: To better ensure your travel safety, it will slow down when starting, rebound when encountering resistance, and will not deviate from the original itinerary. In addition, the automatic limit and overload protection allow you use it with more confidence.

Silent Operation: The all-copper motor provides sufficient power while keeping the operating noise within 50dB, avoiding annoying squeaking sounds.

Details

High Strength Gear: The gears have undergone high-temperature quenching, resulting in significant improvements in hardness and strength, and can maintain good working conditions for a long time.

Encryption System: The frequency encryption technology of this system can also protect your remote control from deception and protect your door from intruders.

Application

It is suitable for sliding doors made of stainless steel, iron, wood, vinyl, etc. with a weight of less than 2645 pounds, a length of less than 39.3 feet, and a thickness of 2-12mm. It can easily meet the needs of large families, small communities, businesses, schools, residential areas, courtyards, farms, ranches, etc.

Specifications

Material: ABS, Copper, Steel, Aluminum Alloy

Color: Black, Grey

Style: Modern

Surface Treatment: Spray Painting, High-temperature Quenching

Current: 3A

Voltage: 200~240V

Power: 550w

Speed: 1400RPM

Assembly Required: Yes

Protection level: IP44

Noise: ＜50Db

Maximum Door Weight: 1200kg/2645.55lbs

Applicable Door Width: 2-12mm

Maximum Door Length: 12m/39.3ft

Working Temperature: -25-70 ℃/-17-158 ℉

Automatic Door Closing Time: 5/10/20s

Operating Speed: 12m/39.3ft/min

Remote Control Range: 50m/164ft

Gross Weight: 13.5kg/29.8lbs

Net Weight: 12.8kg/28.22lbs

Gear Diameter: 8.5cm/3.35in

Product Size: 27*16*33cm/10.63*6.3*13in

Package Size: 39*32*25cm/15.35*12.6*9.84in

Package Included

1*Sliding Gate Opener

2*Remote Controls

2*Keys

3*English Manuals

1*English Diagram

All Accessories for Assembly

Notes

1. Please carefully read the manual and strictly follow the precautions to have a better experience.

2. Please ensure that no debris is on the chain to ensure smooth operation of the motor, and regularly add oil to the chain for optimal performance.

Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
