ISWARD GS Wire-Free RTK+AI Vision Robot Lawn Mower:1000㎡, Obstacle Avoidance, 4G/WiFi/Bluetooth App, GPS Anti-Theft

Important Notice!!!

1.First-Time Use Reminder

As this may be your first experience with a wireless robotic lawn mower, please allow some time to become familiar with its operation.

If you have any questions during use, feel free to reach out. Our engineers will provide 1-on-1 online guidance and will resolve your issue within 24 hours (excluding weekends).

2.A Quick Note

We truly appreciate your support. If you encounter any concerns, we kindly ask that you contact us before leaving any feedback — we are committed to providing you with a satisfactory solution.

Key upgrades of the 2026 model include:

-----Improved Structure & Performance: The flip-top cover has been removed, a higher-performance chip has been adopted, and the structure has been reinforced with enhanced waterproofing.

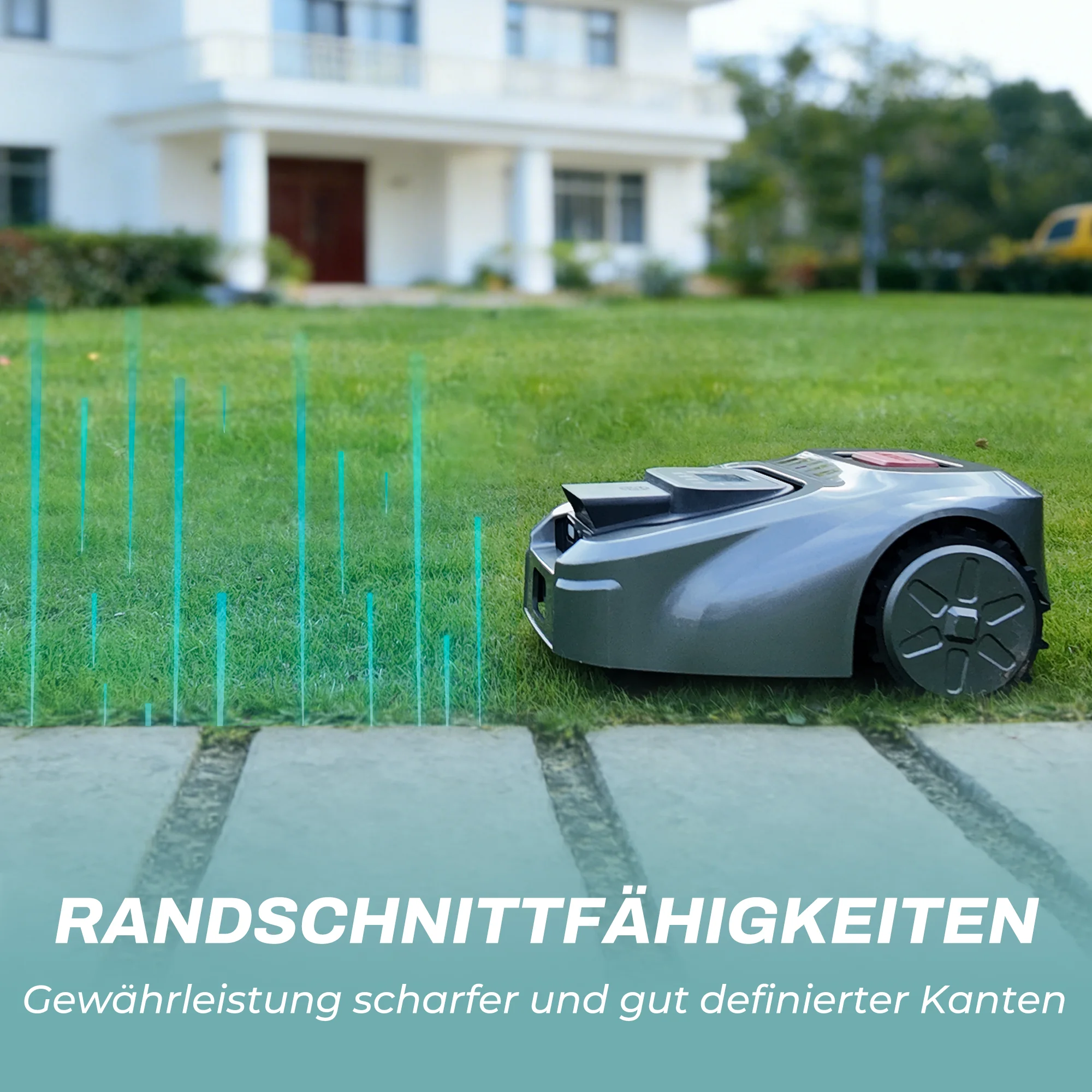

-----New Boundary-Following Function: Enables precise trimming along edges for a more complete lawn finish.

-----More Flexible Charging Dock Installation: No longer needs to be fixed on the lawn—can be freely placed on any suitable nearby ground.

Quick and Simple Installation:

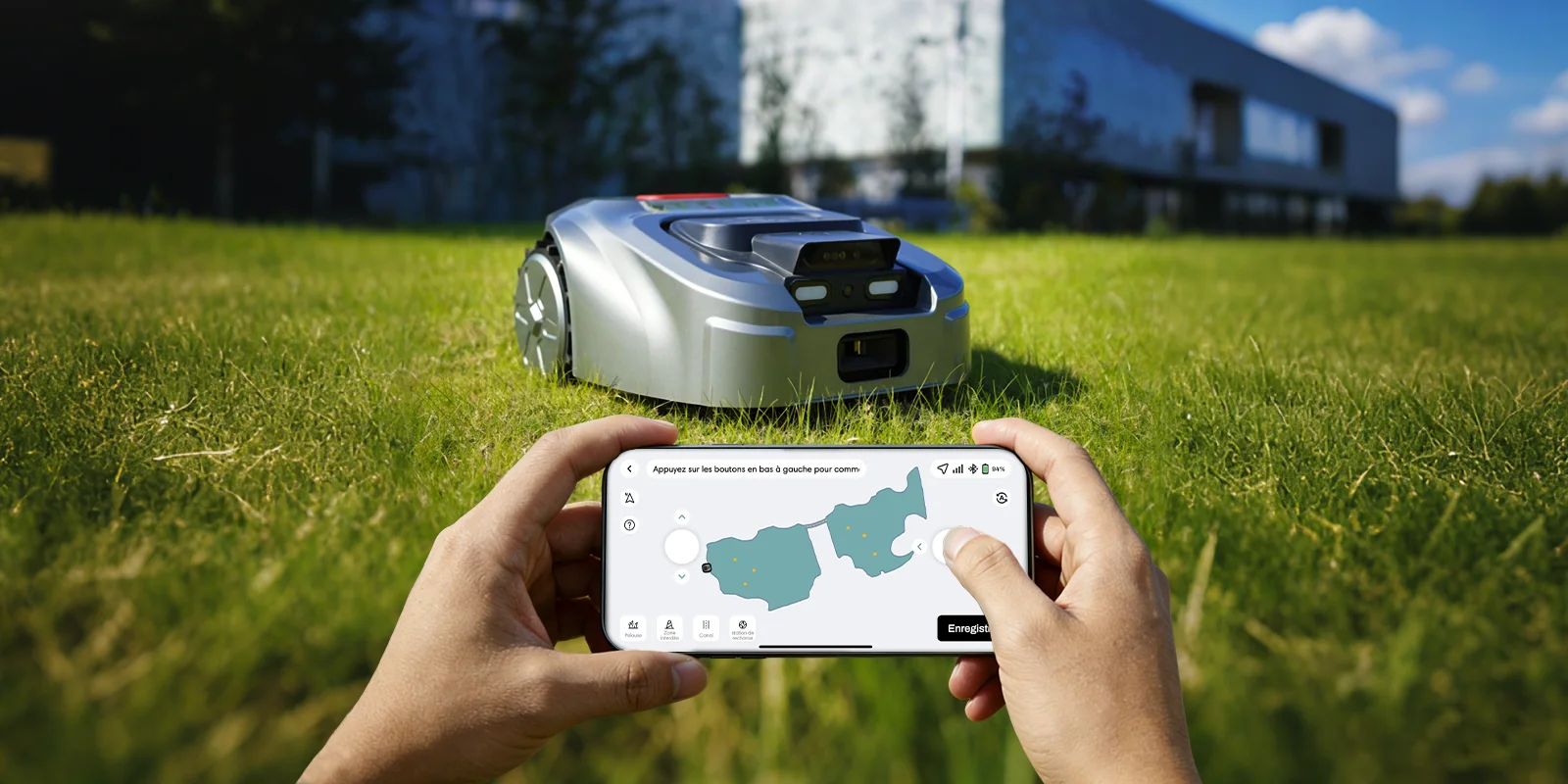

No manual wiring is necessary. All you need is a connection between the device and the app. This allows the mower to set multiple lawn boundaries where you want them, mark exclusion zones and even create paths that connect multiple areas.

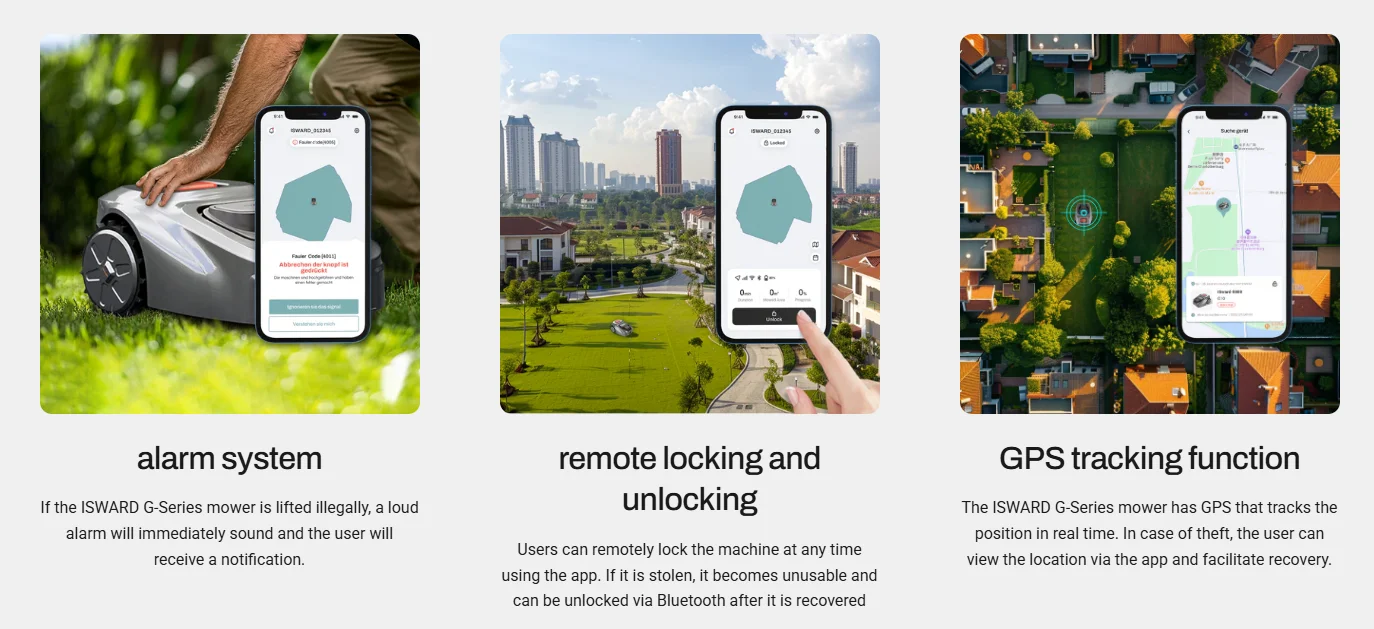

Discover Theft Protection and remote locking

Combines PIN access, alarm function, charging station pairing and GPS theft tracking for maximum protection.

Automatic monitoring mode in case of RTK signal failure

When the satellite signal weakens, the GS automatically activates surveillance mode. The AI-based camera technology continues to find the best path to continue working—no matter where you are.

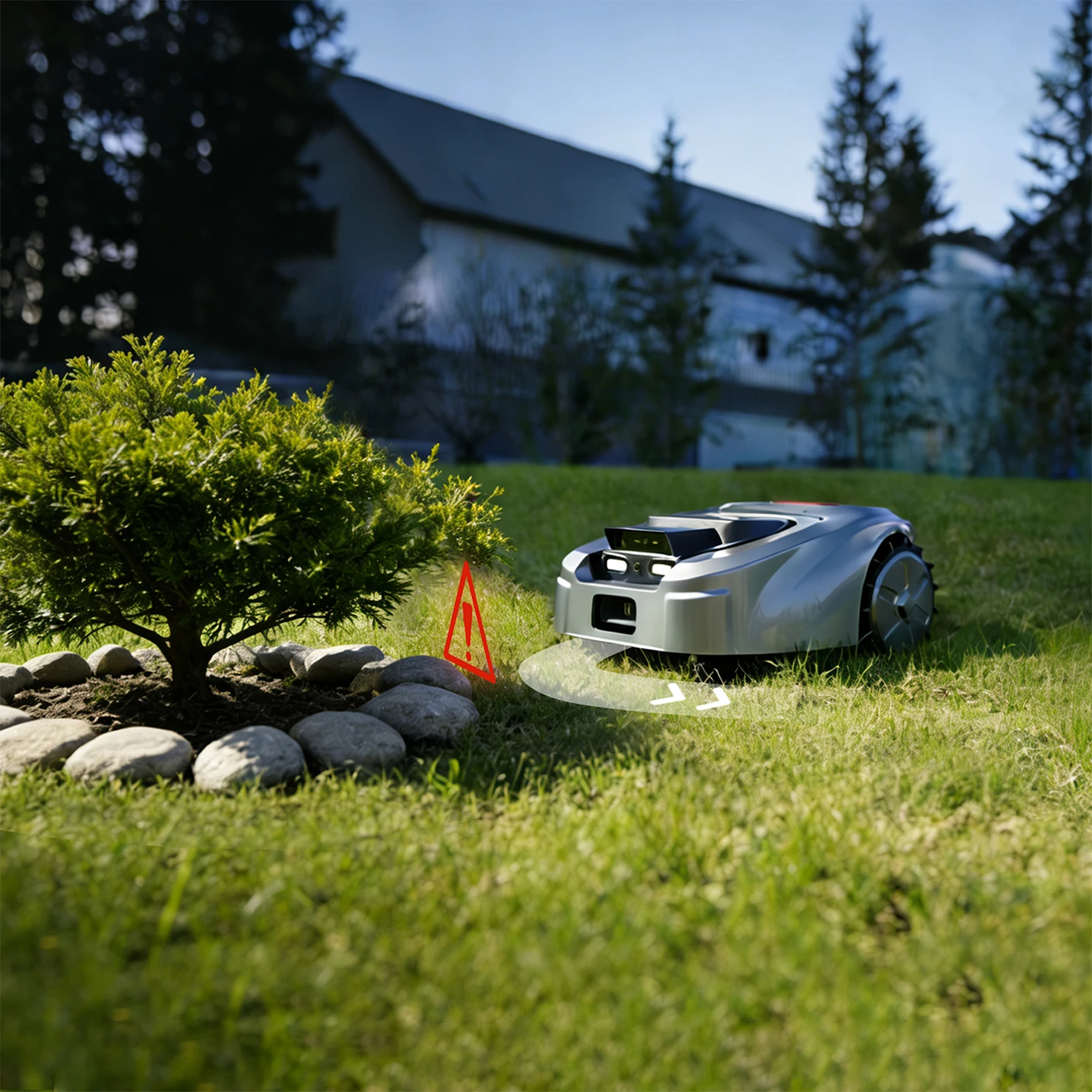

Eliminate potential mowing risks

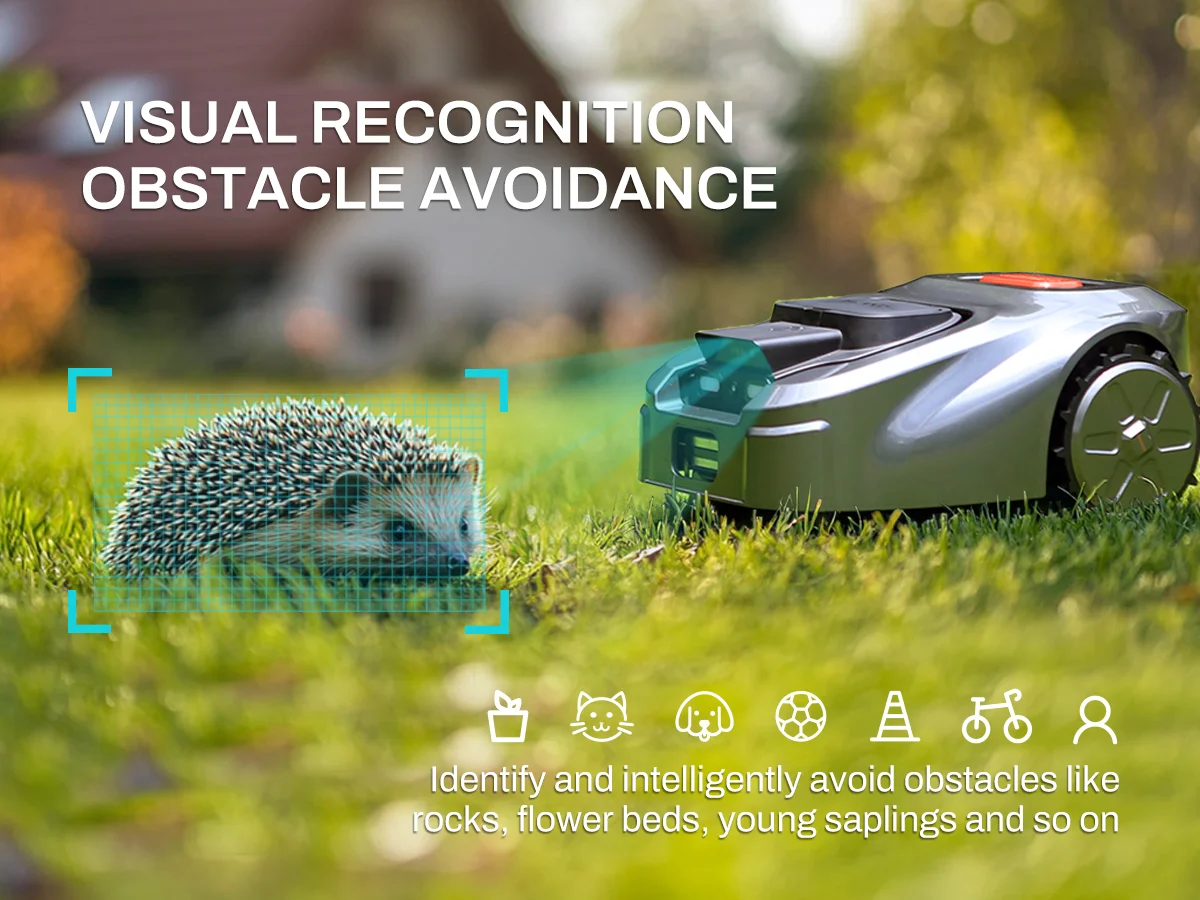

Isward is equipped with visual and collision sensors that ensure safe and efficient operation and provide a worry-free mowing experience.

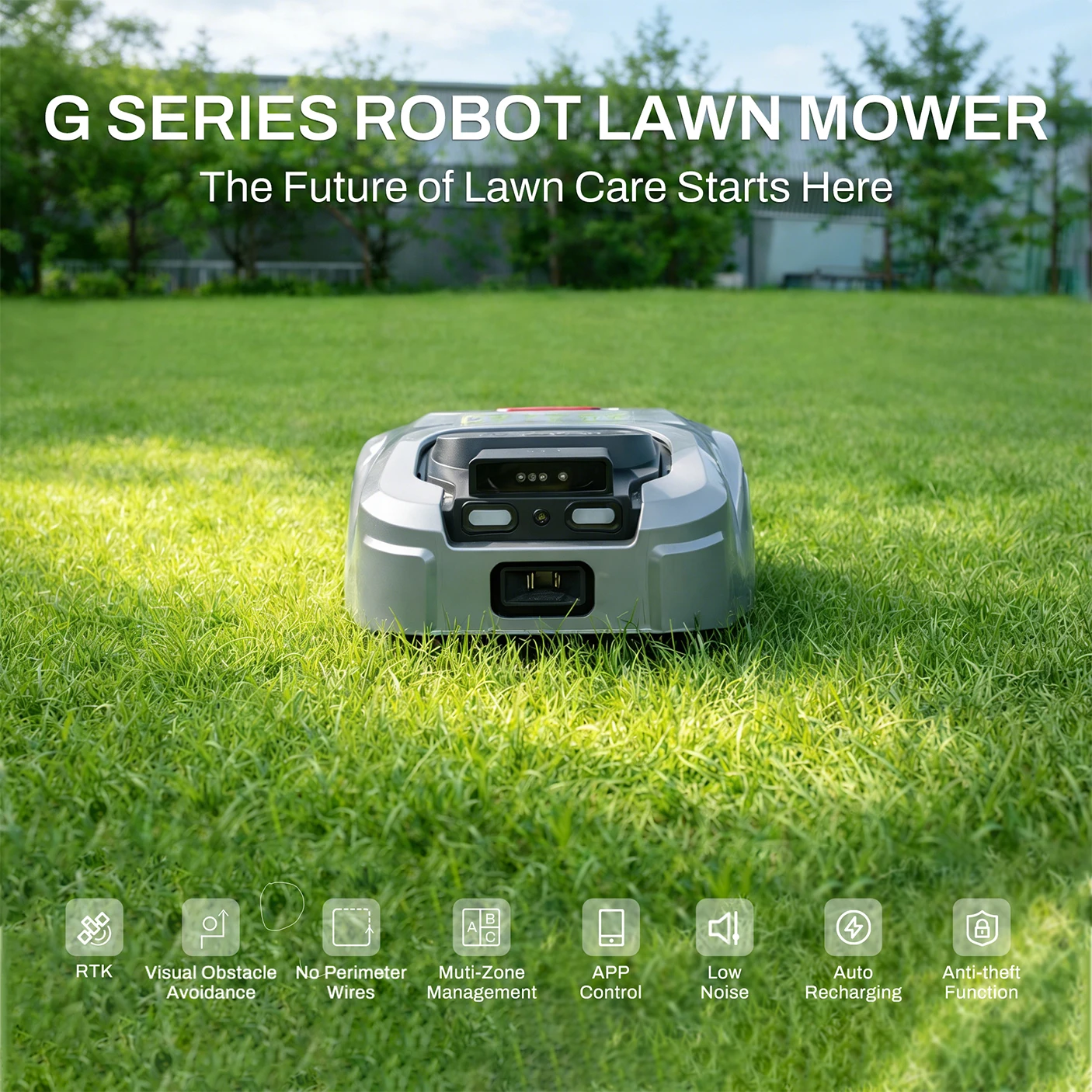

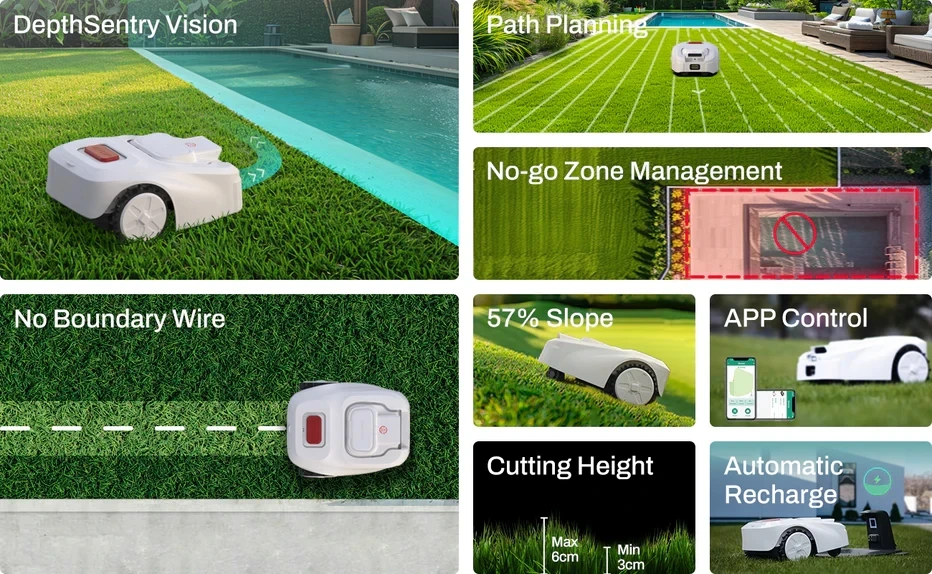

ISWARD G-Series: 5 Core Advantages:

1. Wireless Precision & Smart Mapping

Cable-Free Setup: App-based mapping eliminates boundary wires.

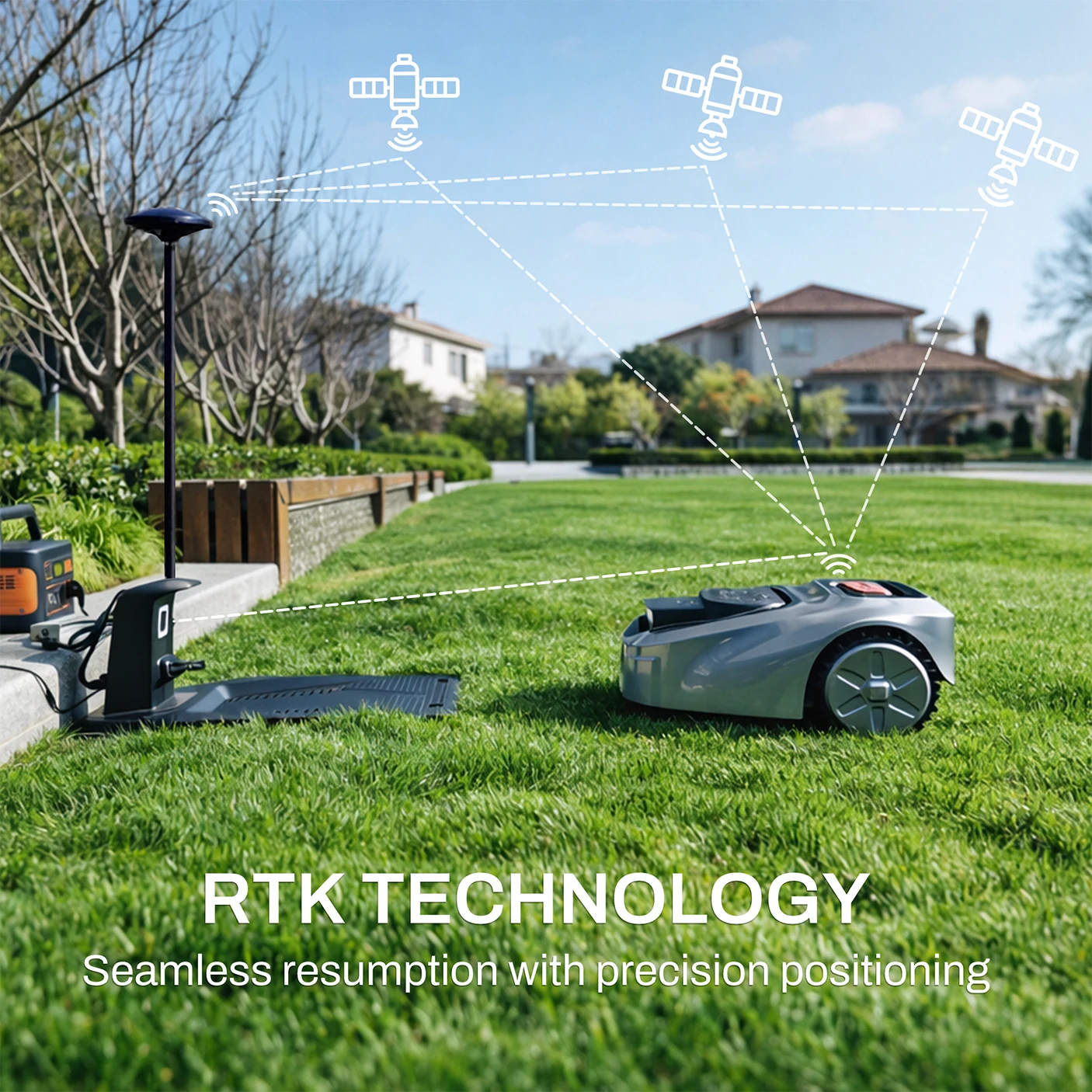

Pinpoint RTK Guidance: 1km range, centimeter accuracy, reliable in any weather.

Flexible Zone Control: Easily set custom mowing and No-go Zones for total control.

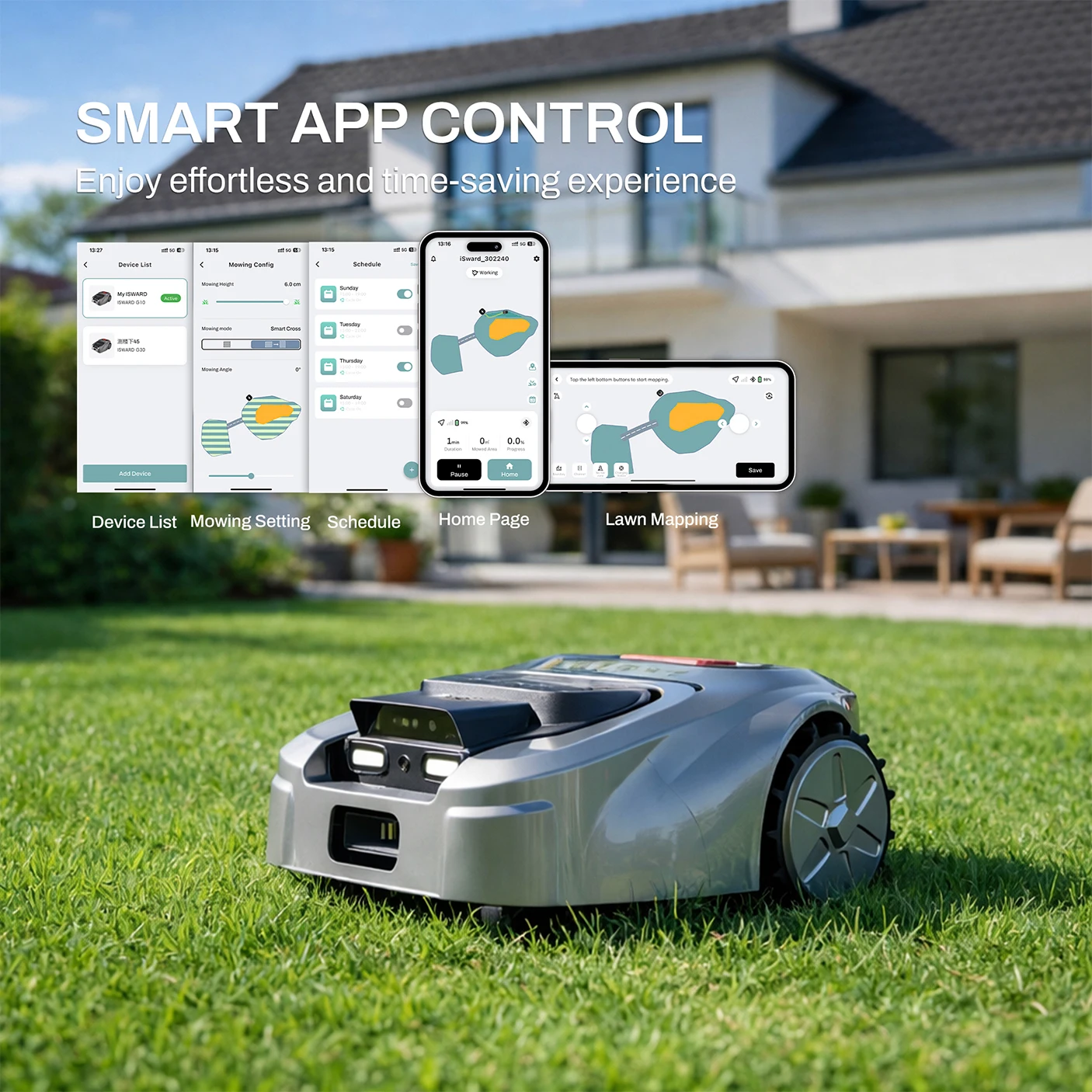

2. Anytime, Anywhere Smart Control(Multi-Smart Control via 4G/WiFi/Bluetooth)

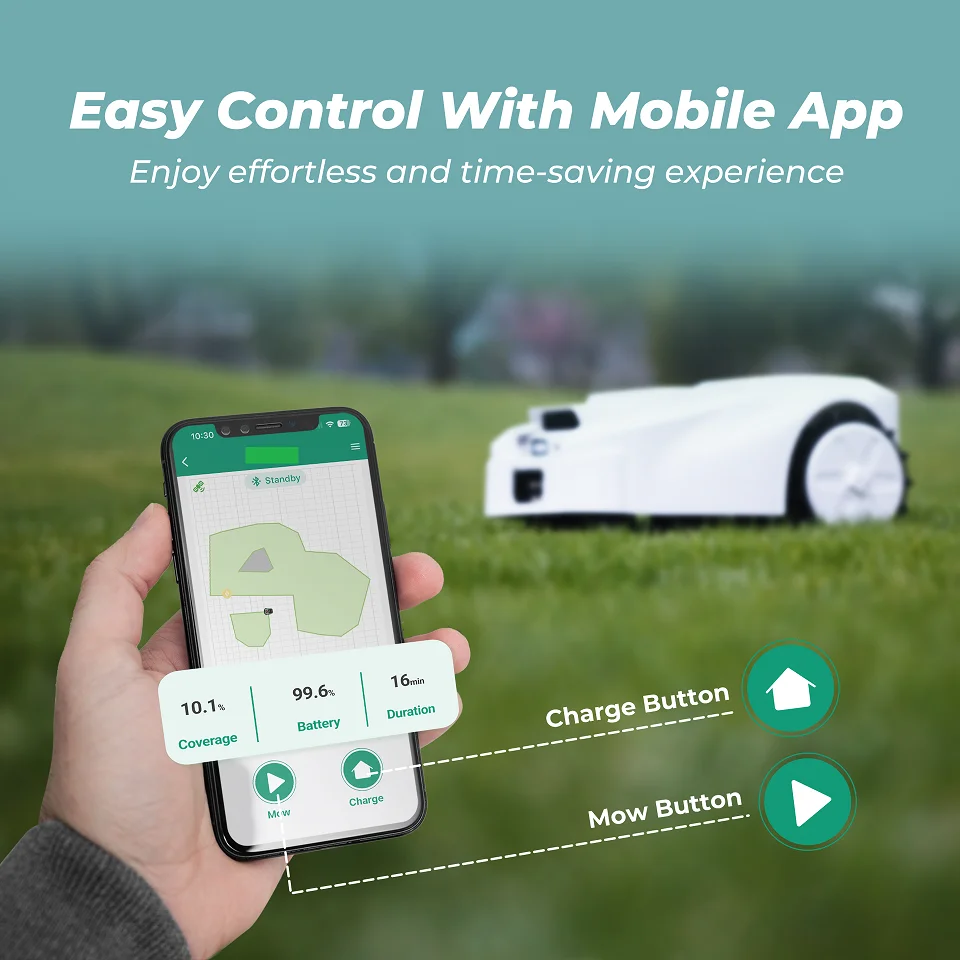

Full Remote Management: Real-time monitoring, scheduling, and GPS tracking from your phone.

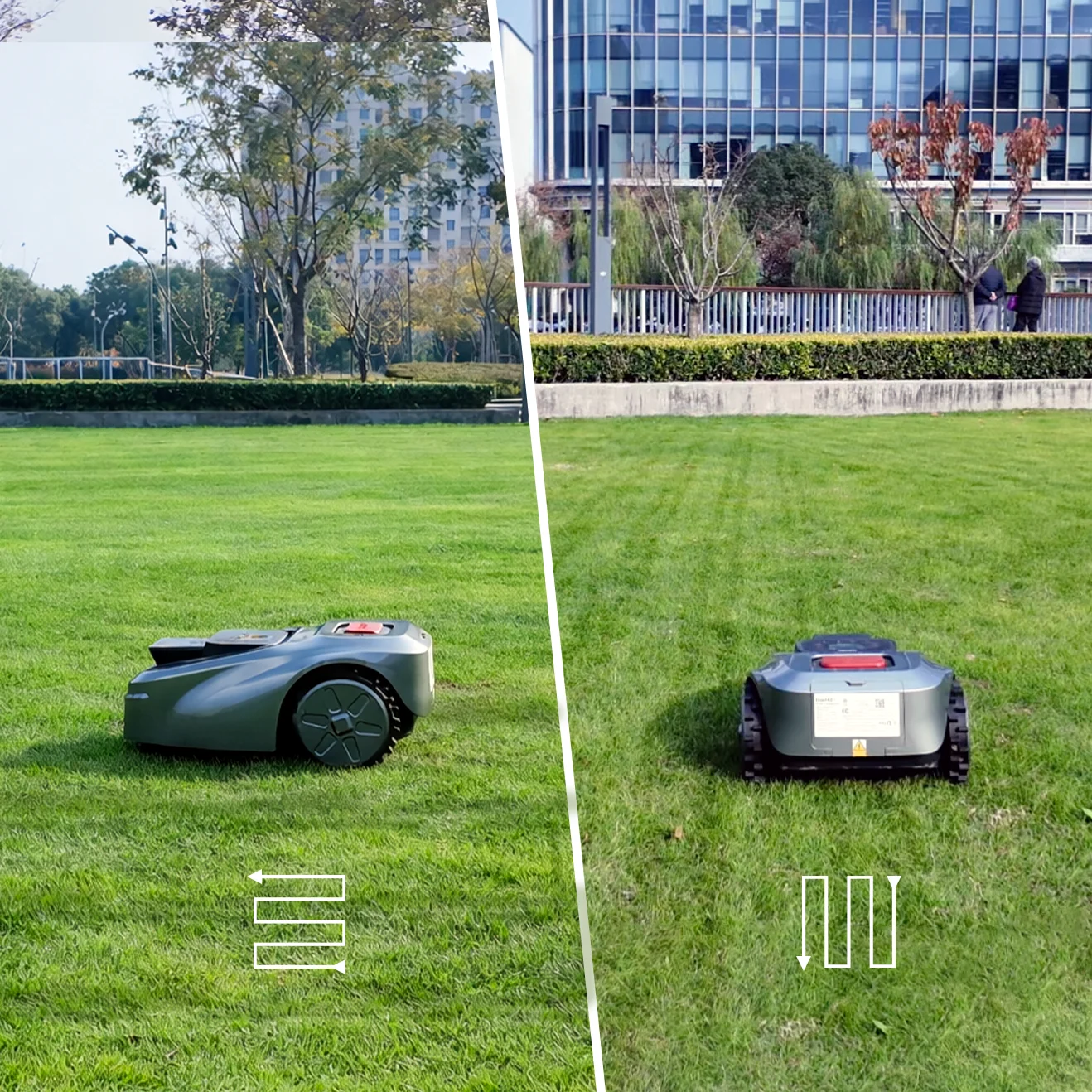

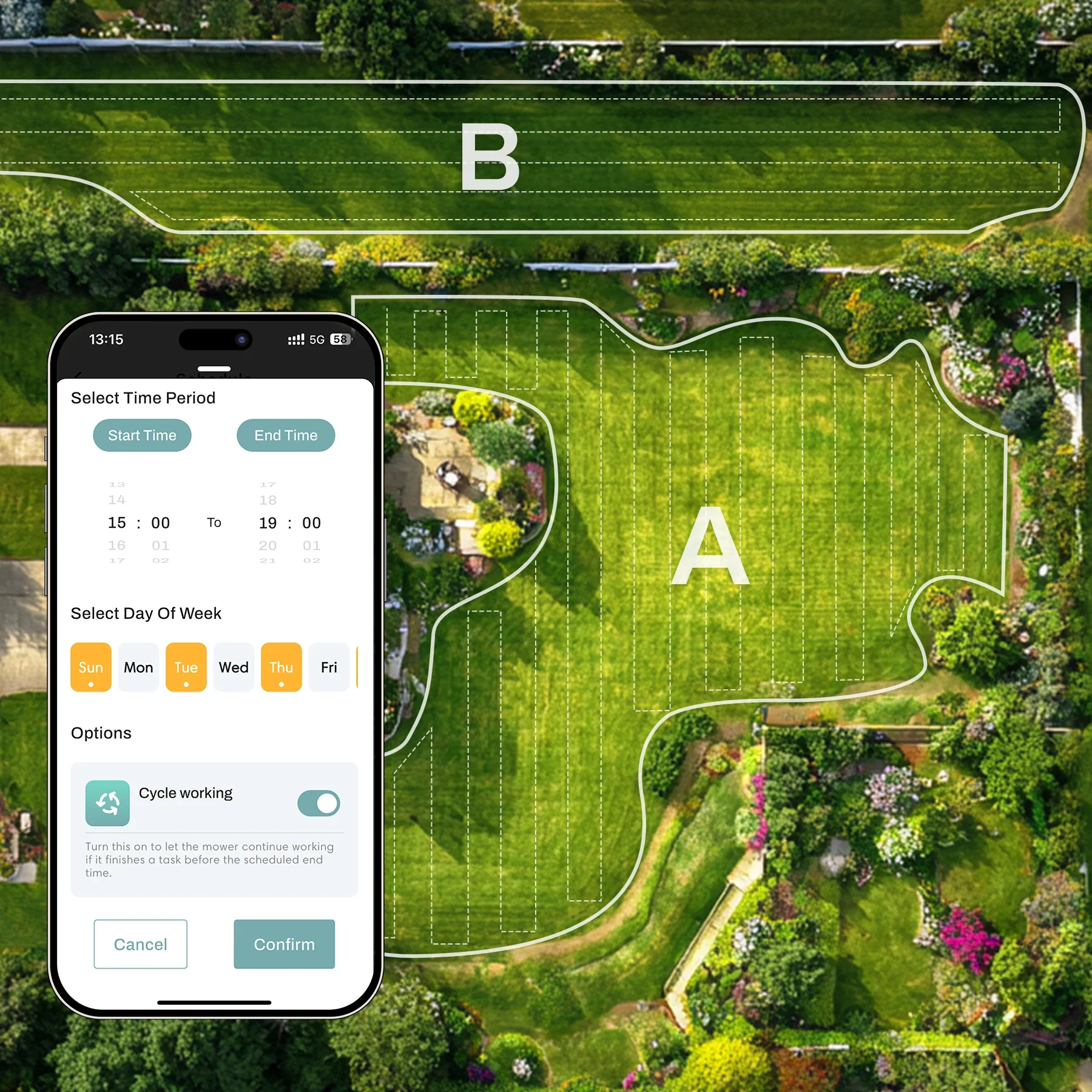

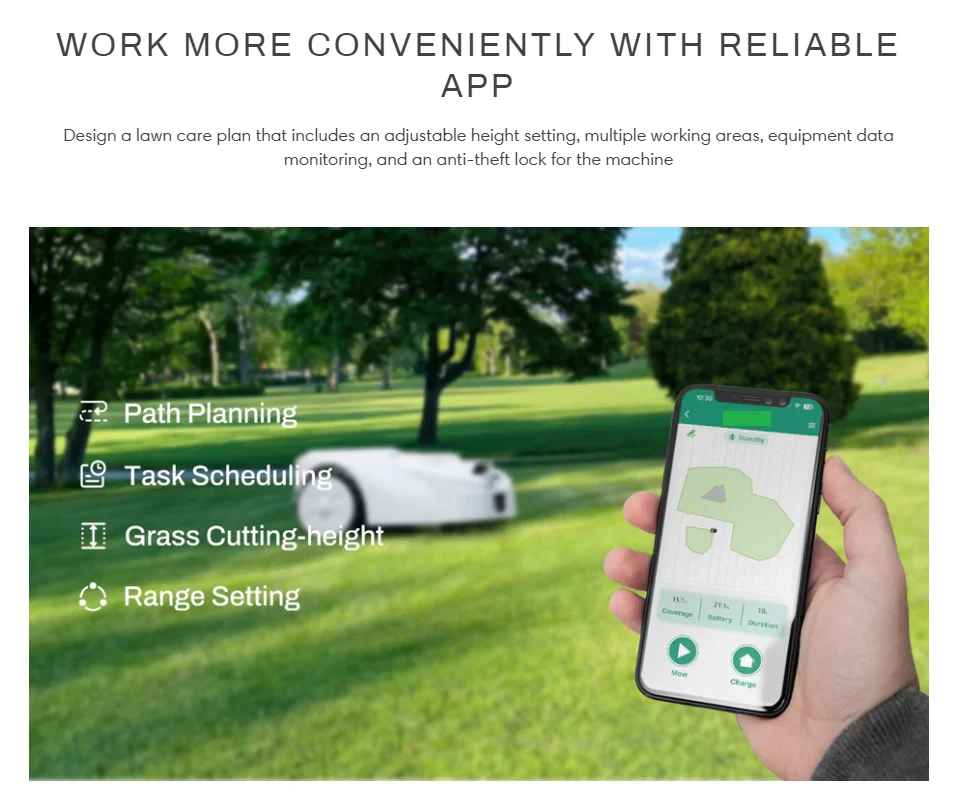

Custom Cutting Plans: Set 24/7 schedules and patterns (like stripes) for your ideal lawn.

3. Uninterrupted & Efficient Performance

Covers 1,000㎡

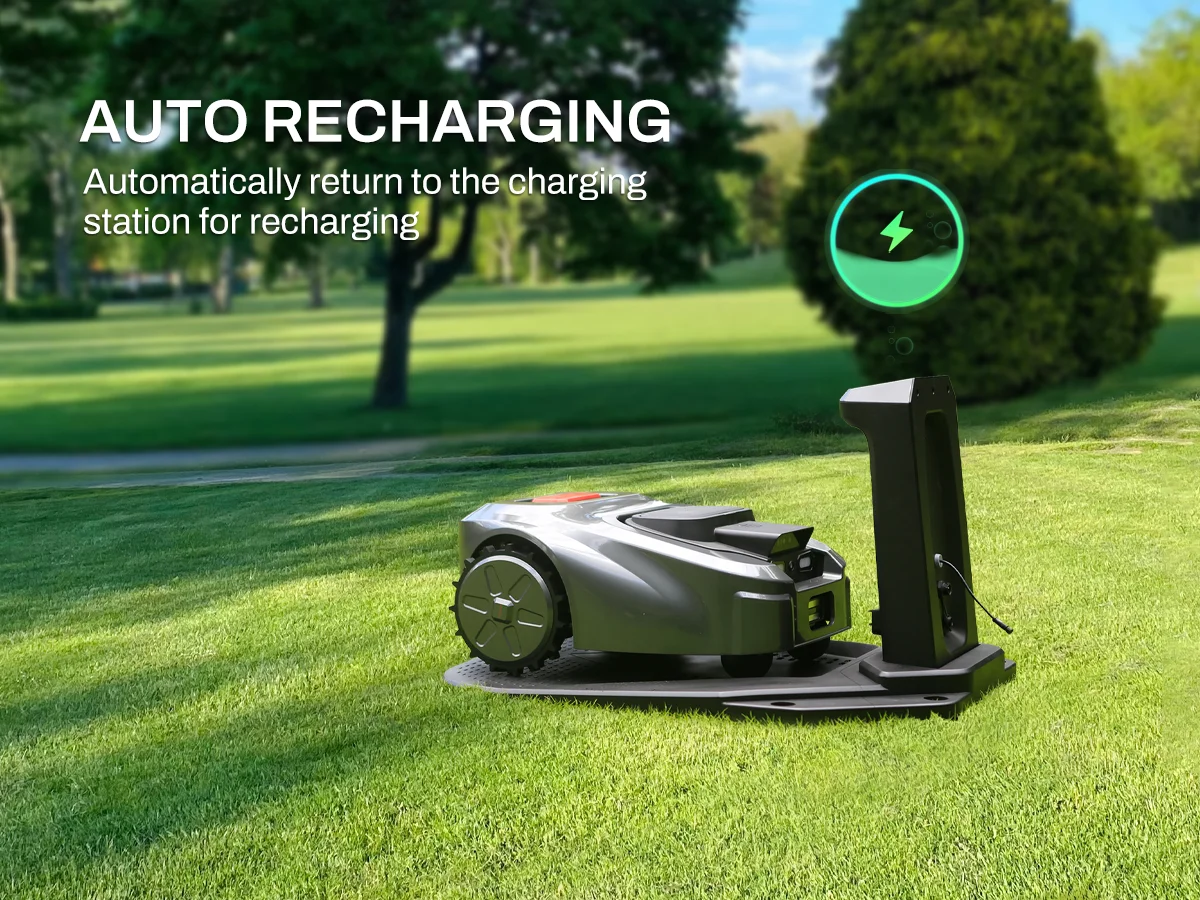

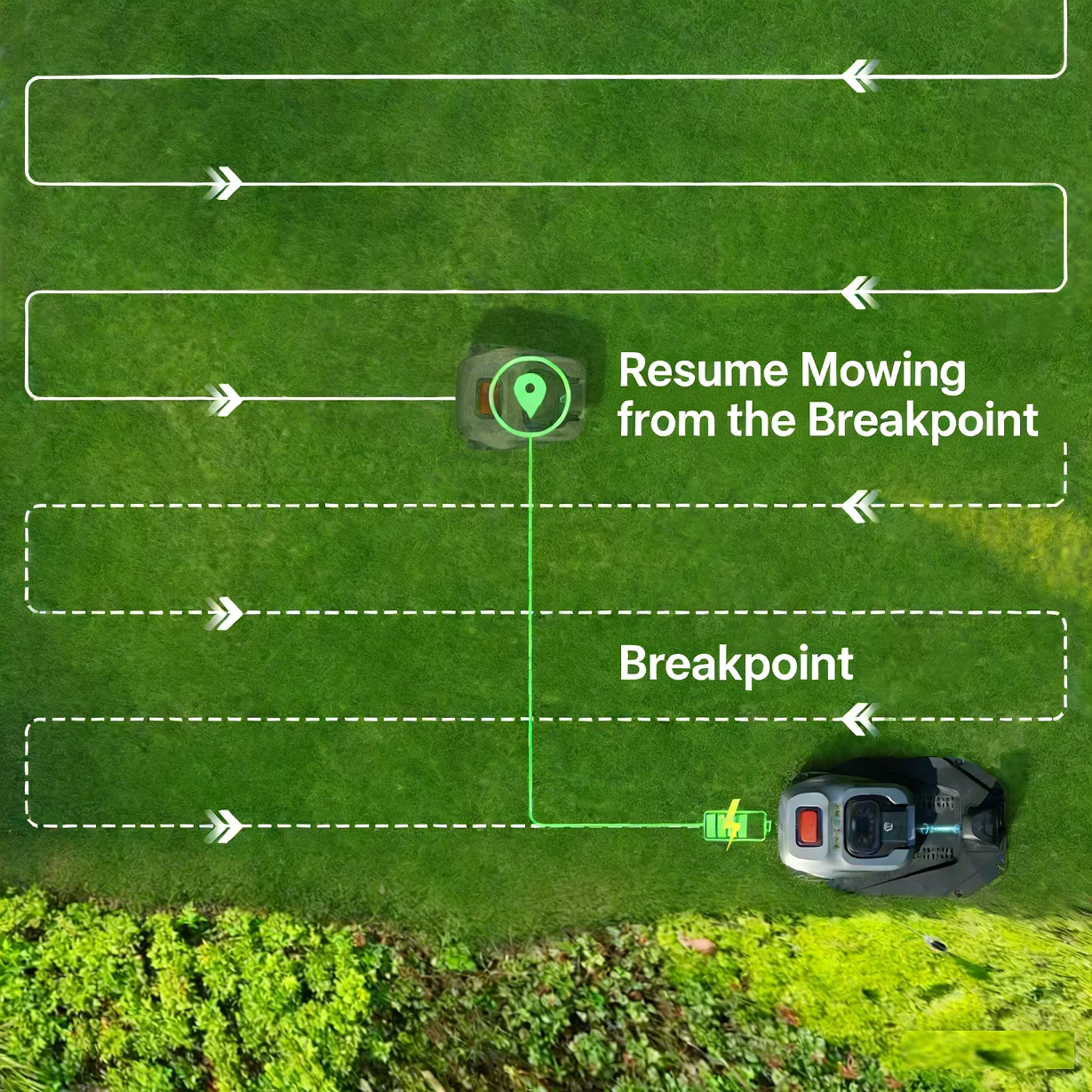

Resume-to-Last Point: Automatically recharges and resumes cutting precisely where it stopped.

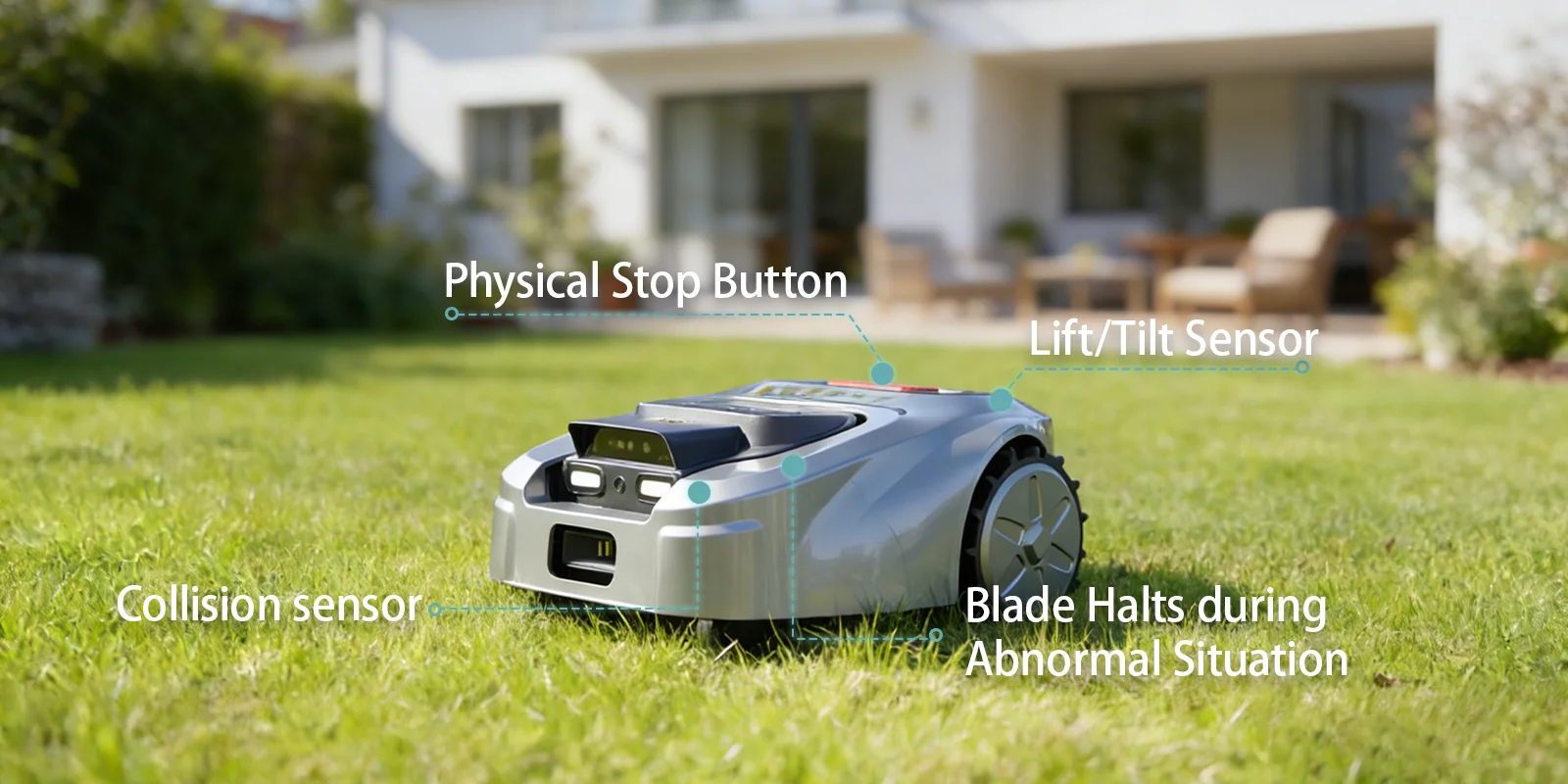

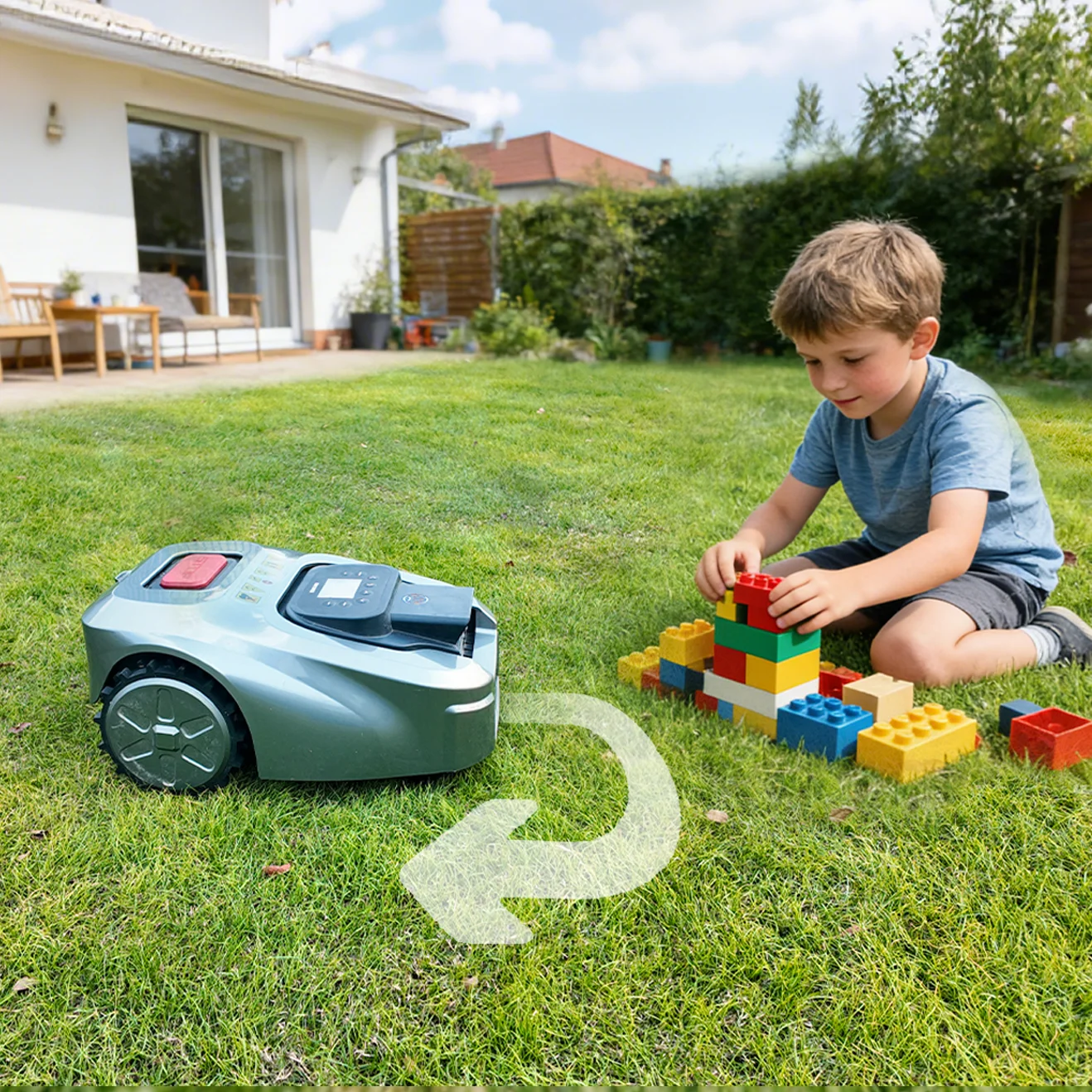

4. 360° Intelligent Safety System

Full-Perimeter Awareness & Collision Detection:360° aroundmonitoring identifies and avoids many differenct obstacle types.

Multi-Layer Protection: Instant blade stop upon lift/tilt; auto-return in rain.

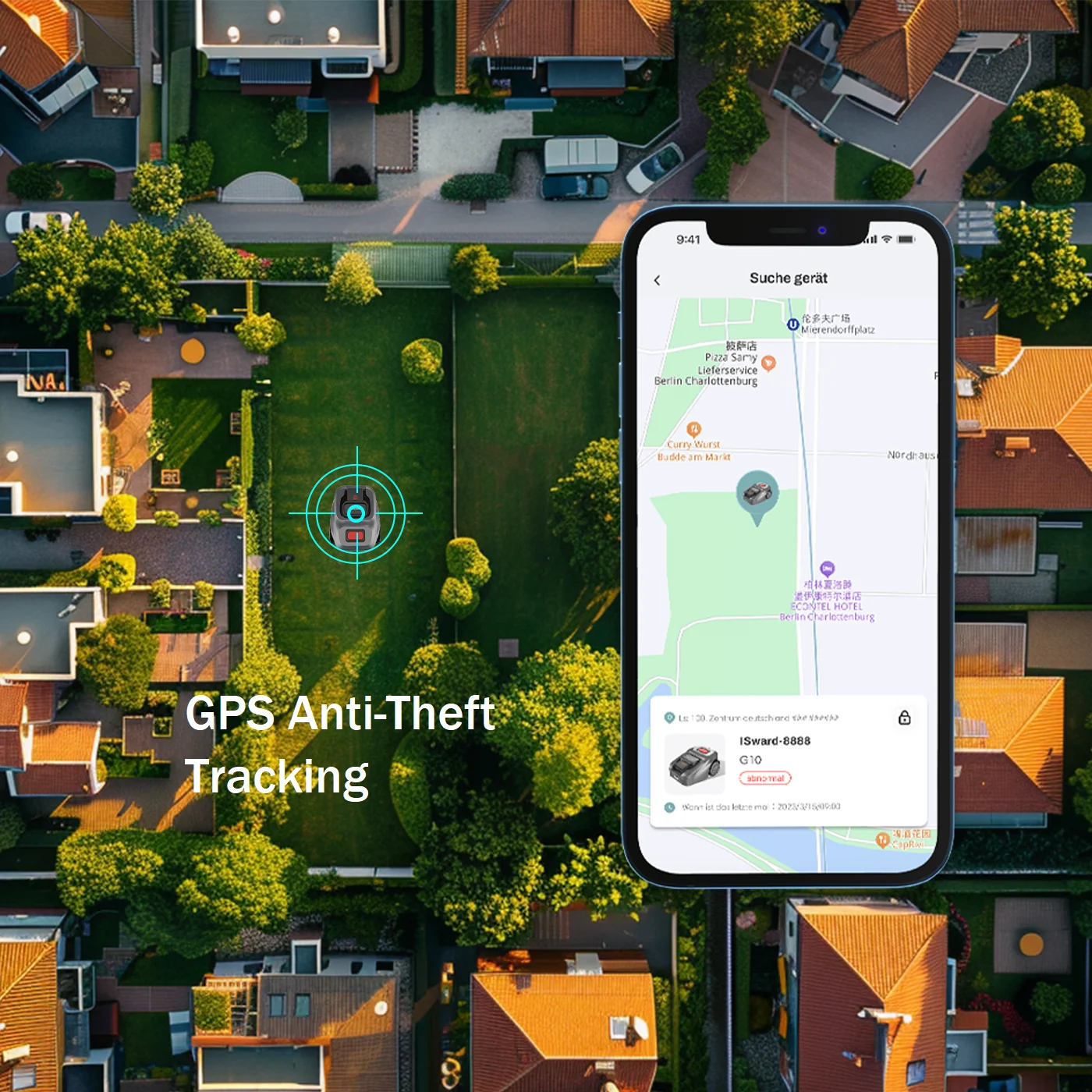

Theft Deterrence: Real-time GPS tracking and remote lock functionality.

5. All-Terrain & Low-Profile Operation

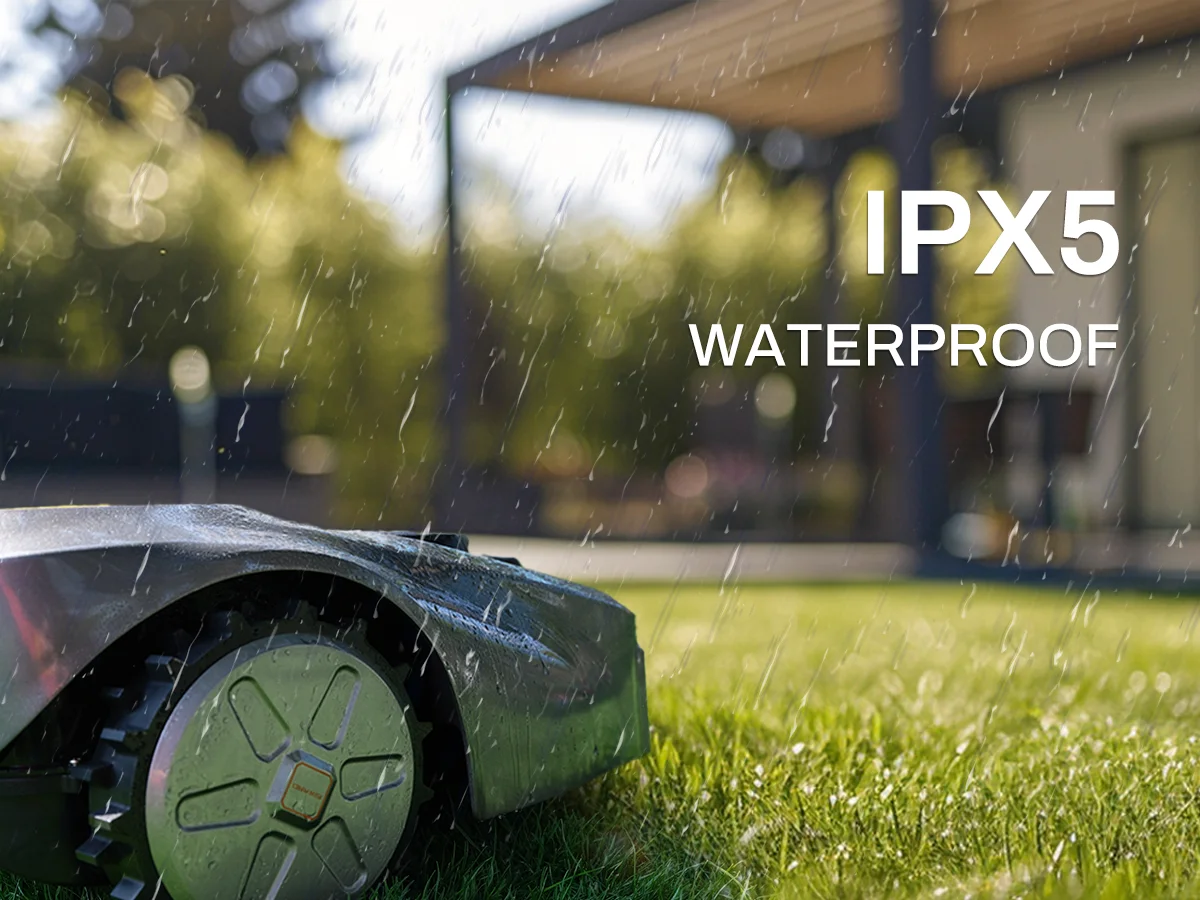

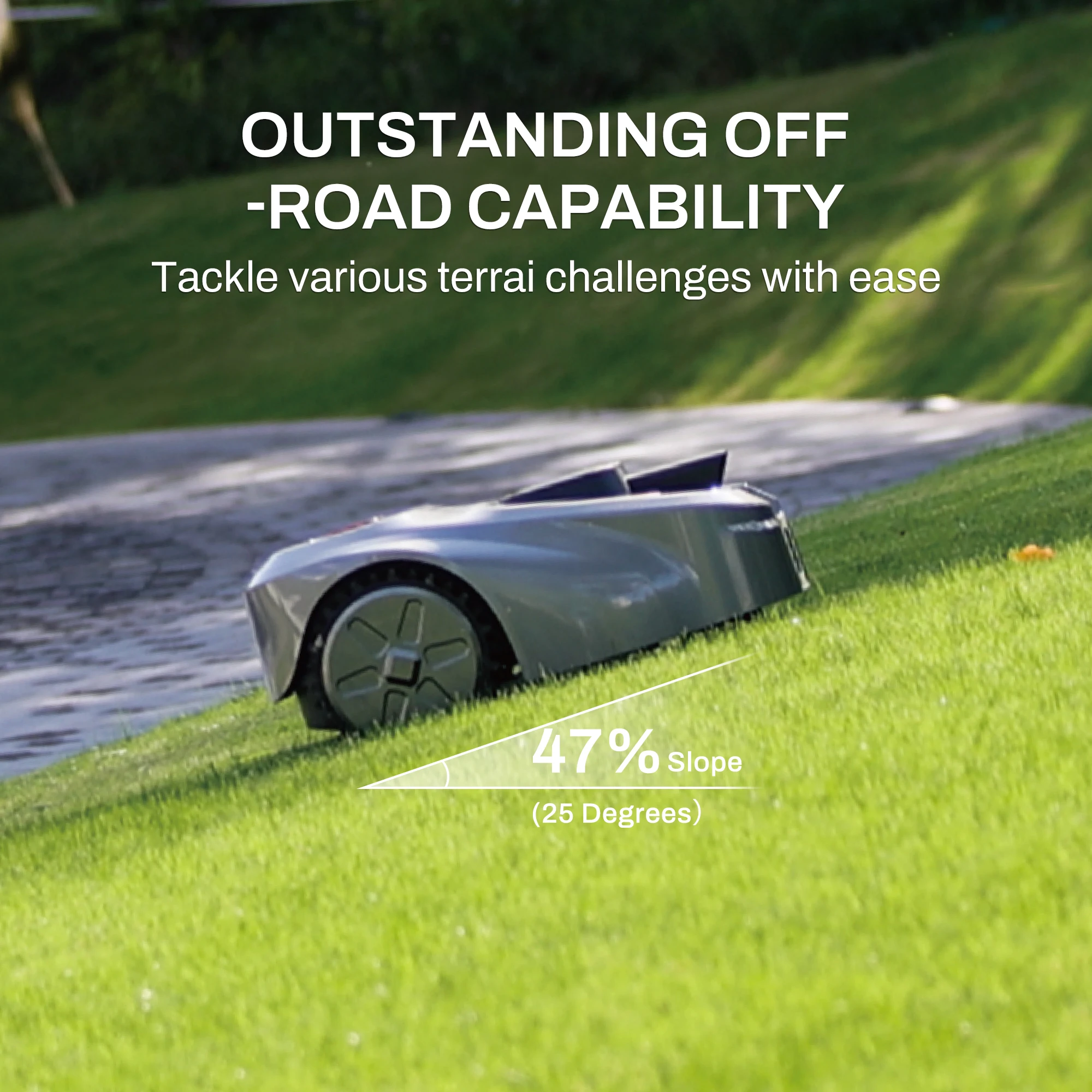

Built Tough: IPX5 waterproof, conquers 25° (47%) slopes.

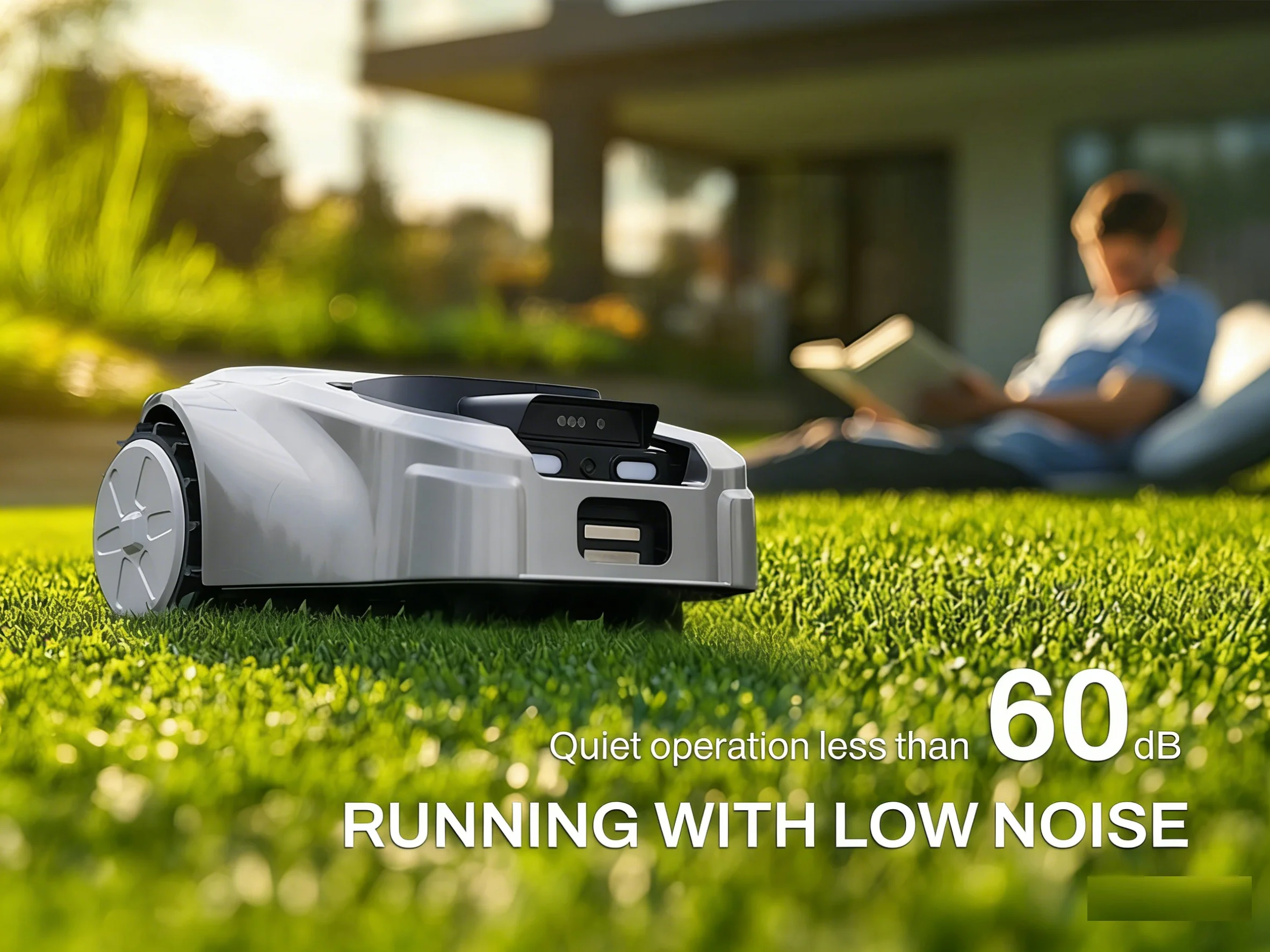

Quiet Neighbor: 60dB operation allows for day or night use without disturbance.

Basic Information:

Model:GS(G10)

Dimensions :(L×W×H) 560mm × 450mm × 250mm (22×17.72×9.8in)

Net Weight 13kg (Battery Included)

Material Lawnmower frame:

ABS

cover: PC+ASA

Maps Capacity:10

Lawnmower Parameters:

Recommended Mowing Area :1000㎡

Typical Mowing Time Per Charge :2.2H

Cutting Width :19.6cm

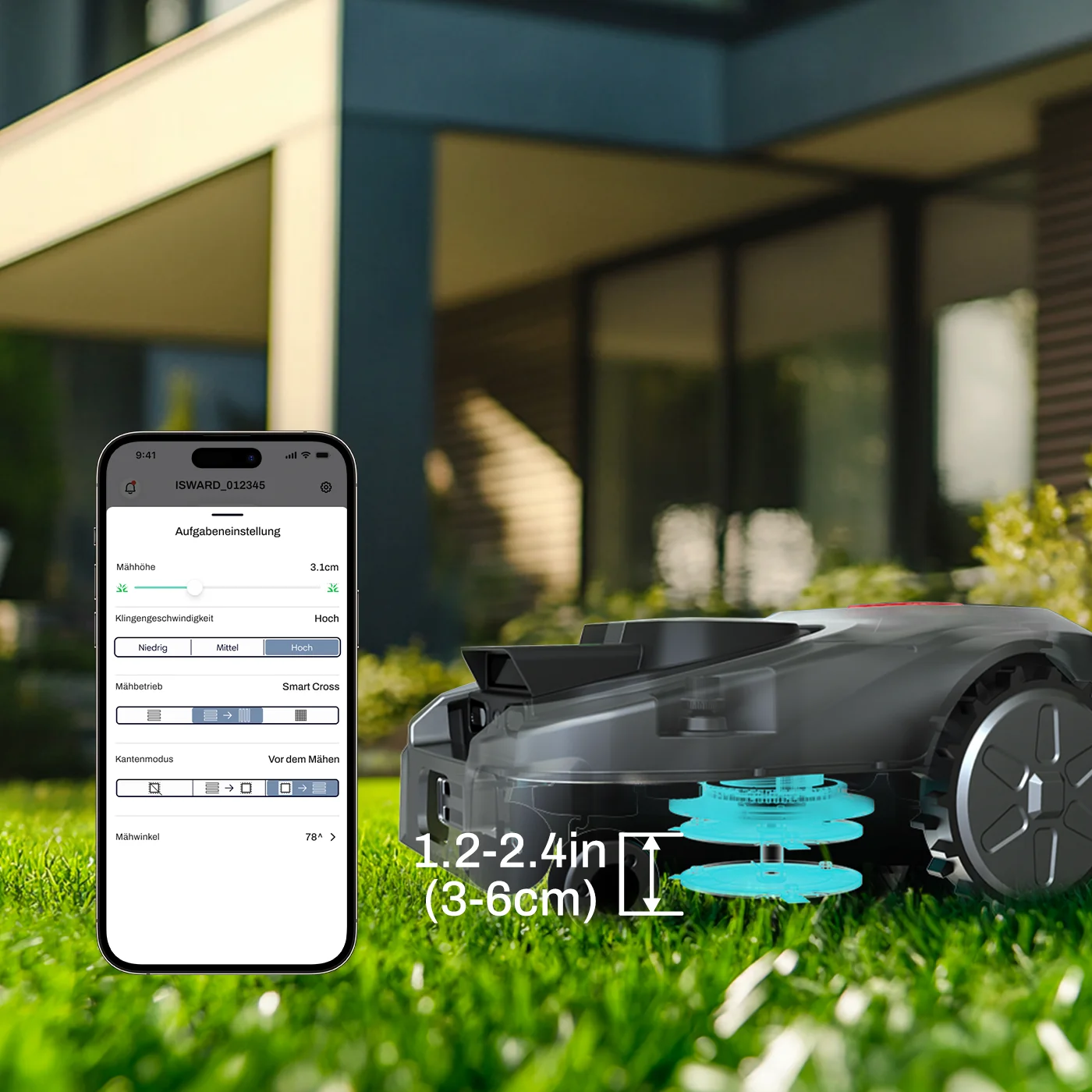

Cutting Height :3-6cm (1.2–2.4in)

Charging Time :2H

Battery Pack:

Battery Type :Rechargeable LiFePO4

Nominal Voltage :22.4V

Nominal Capacity :4000Mah/89.6Wh

Protection Features: Over-heating, short circuit, over-current, over-charge

Working Conditions:

Working Temperature -10℃ ~ +60℃

Storage Temperature -20℃ ~ +45℃

IP Rating:

Body: IPX5

Station: IPX4;

Power: IP65

Max. Incline (Working) :47% (25°)

Max. Incline (Boundary): 10% (5.5°)

Motors:

Driving Motor :

Rated Speed 0.4m/s

Motor Type: Brushless motor

Blade Motor:

Rated Speed 2950r/min

Motor Type :Brushless motor

Power Supply

Type :AP-PN180CH02800040L

Input :100-240VAC, 50/60Hz, 2.5A MAX

Output Voltage :28VDC

Output Current :4A

Charging Station:

Type :G10-CDZ

Input Voltage :28Vdc

Input Current: 4A

Output Voltage :28Vdc

Output Current: 4A

Sensors:

IMU Sensor

Obstruction Sensor

Lift Sensor

Rain Sensor

Wheel Encoder

Vision sensor

Temperature Sensor

Rollover Sensor

Other Features:

Front Wheel :Omni-directional wheel

Rear Wheel :Brushless DC motor drive

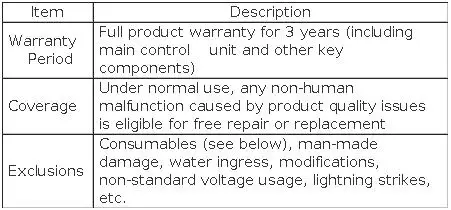

I. Standard Warranty Policy

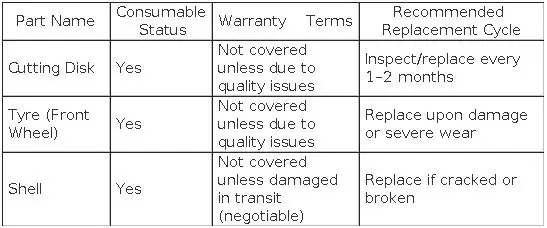

II. Scope of Consumables & Warranty Support

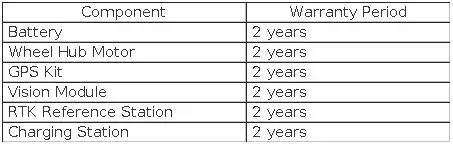

Warranty-Covered Components

Non-Warranty / Consumable Components

Support：

l If damage to consumables is caused by manufacturing defects, warranty claims can still be submitted

l We provide standard operation guides and videos for replacing consumables, supporting self-maintenance

l Optional 1-year extended warranty available for €199/year

III. After-Sales Service Process

1. Customer Submits Claim:

2.  Submit issues via official website phone or email (include photos or videos)Response Within One Business Day:

3.  Customer service provides initial diagnosis and issues SN number if repair is neededRepair Plan & Logistics:

a. Local repair center address in Germany or designated return shipping details provided

b. For in-warranty repairs due to quality issues, a prepaid shipping label is provided, and we cover logistics costs

4. Repair Timeline:

a. General issues: repairs or replacements completed within 1 week

b. If parts are needed: parts shipped within 1–2 business days

5. Return & Confirmation:

a. Repaired unit is sent back to the customer

b. Once the customer confirms receipt, the service ticket is closed

FAQ?

The G seires supports WI-FI+4G And Bluetooth?

Yes ,All support

WiFi: Make sure the machine's working area has WiFi coverage, otherwise data transmission delays may occur .

4G:Use 4G to connect to the Internet without worrying about coverage issues.

GX model is coming with Sim Card.First Year is FREE.

GS model need to buy the Sim Card by yourself.

Security and privacy protection of the robot lawn mower app?

Our software is CE certified and does not transmit any sensitive data to the outside world. The camera processesdata locally, without data transfer or storage. The data bandwidth of our robot is also limited and only transmits the robot’s working data.

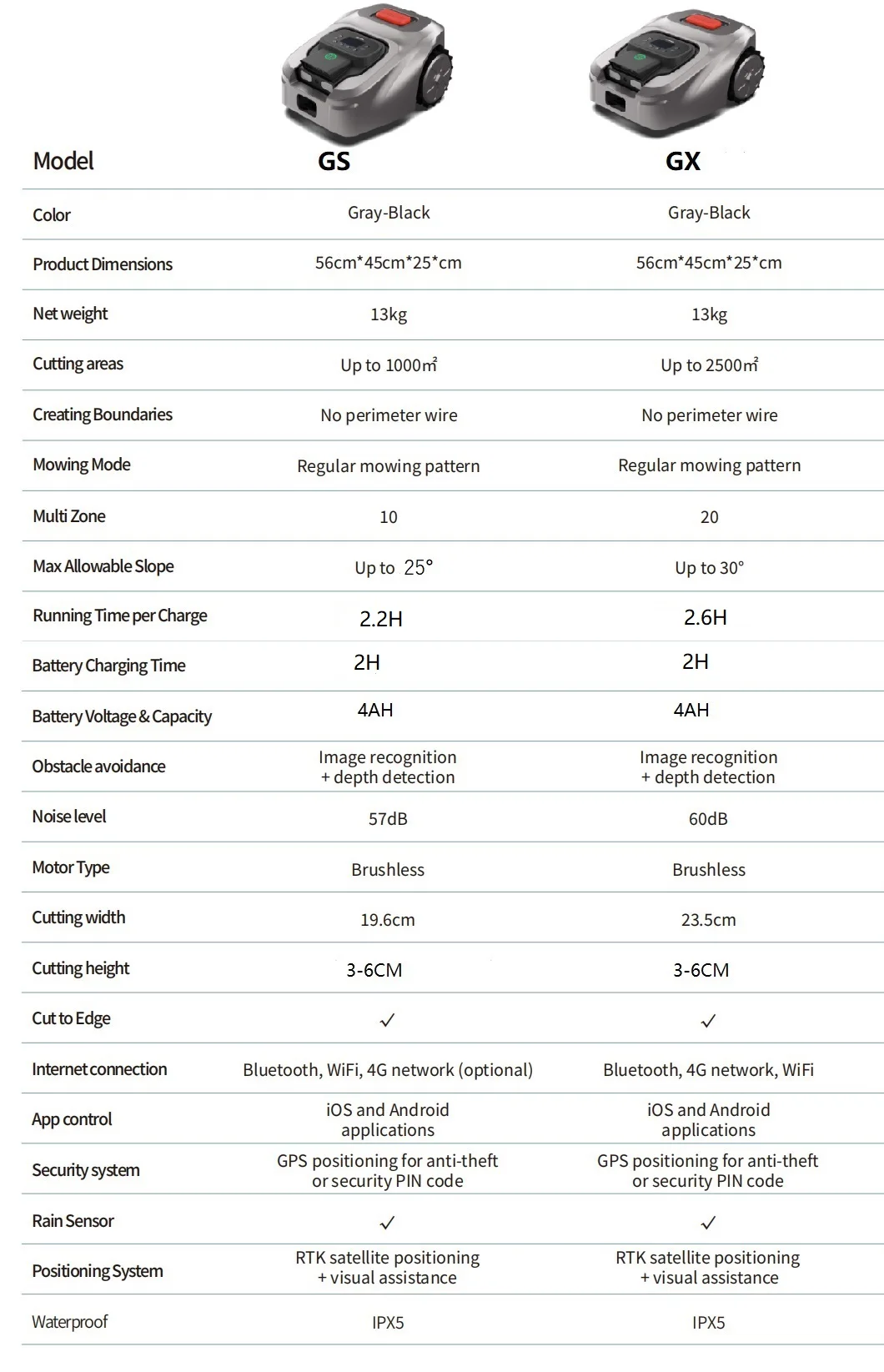

What are the differences between GS and GX?

a. Differences in hardware: The blade disc of the GS is located on the side and has a cutting width of 19.6 cm, while the blade disc of the G30 is located in the middle and has a larger cutting width of 23.5 cm.

b. Maximum daily mowing area: The GS and GX correspond to a mowing area of 1,000㎡ and 2,500㎡ respectively.

c. Different cloud services: The two models store a different number of cards in the cloud. GS: 10 cards, GX: 30

What are the installation requirements for the Robot lawn mower?

It is best to have a power source close to the lawn. Avoid areas with professional signal shielding equipment. Place the charging station in a place where water does not collect.

Can be used on uneven lawns?

Thanks to its large drive wheels, the Robot also works on uneven terrain and slopes up to 30° .

Can abnormal weather conditions such as rain or thunderstorms cause robot

failures?

There is a rain sensor on the top of the robot. When the water reaches a certain level, the robot automatically.returns to the charging station. When it starts working again, it returns to the previous memory point to continue mowing.

What does the resumption of mowing mean?

When the battery is empty, it automatically returns to the charging station. After recharging, it resumes work at the memory point. This can also happen when avoiding temporary obstacles and driving around the lawn.

Does the mower support operation in multiple areas?

The G-Series mower supports multi - area operation. You can create paths to connect the areas to be mowed.

Can I set up and save multiple cards?

Yes, you can set up multiple maps and perform mowing tasks in the same job. The maps can be backed up to the cloud and switched as needed to operate the mower.

Does the mower work in the rain?

The G-Series mower is equipped with a rain sensor and will automatically return to the charging station if it starts raining during operation. If a scheduled task starts while it is raining, the mower will wait until the rain has stopped. However, it is also possible to set the mower to continue working when it is raining.

Can the mower be used at night?

Yes, the mower turns on its lights at night and its noise level of 60 dB does not disturb the neighbors.

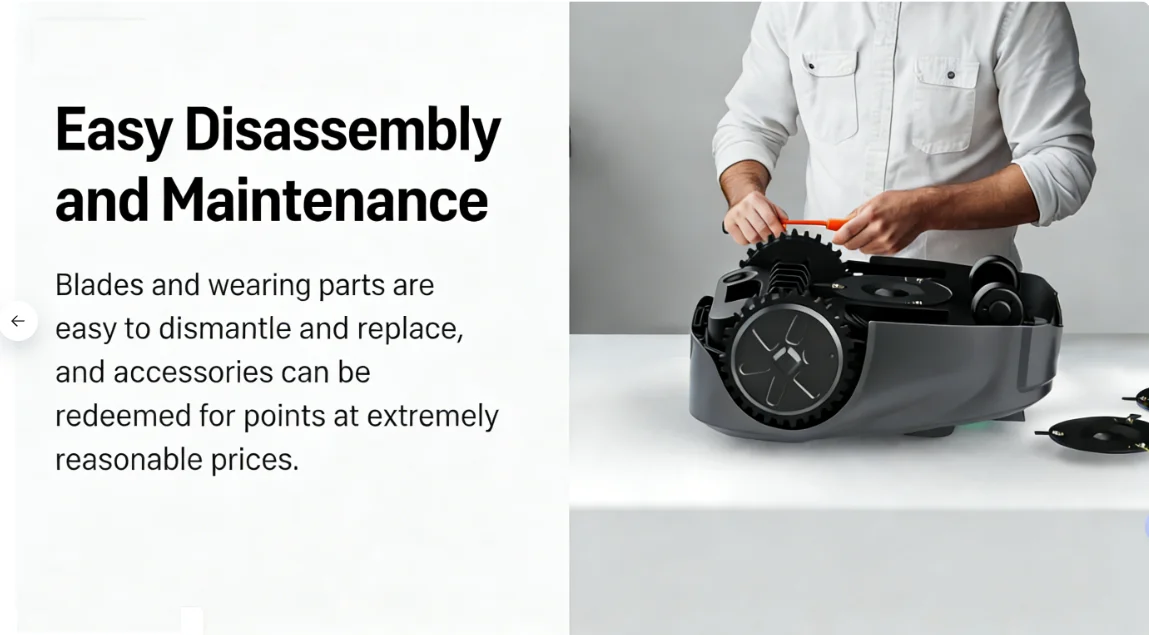

How often should the mower be cleaned and the blades replaced?

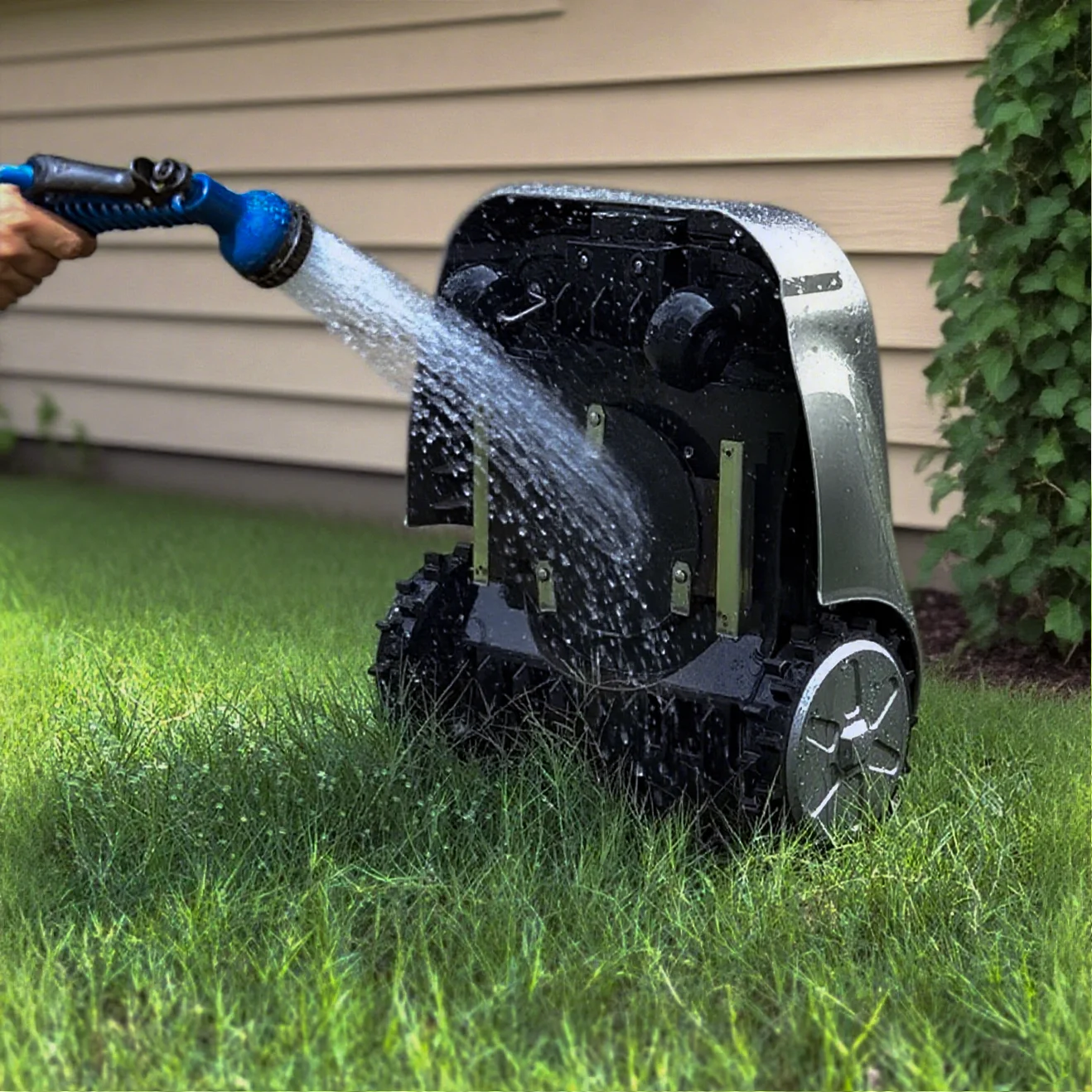

If mowing is done daily, it is recommended to clean the mower every 1 - 2 weeks, especially to remove grass buildup on the blades. To do this, use a water spray nozzle and the brush provided. The app maintenance section provides information on blade wear.

How much grass can the mower mow per day?

The GS can mow an average of about 600 to 1,000 square meters per day, while the GX can mow about 2,000-2500 square meters.

Does the mower automatically avoid moving obstacles such as small hedgehogs and

dogs?

The G-Series mower is equipped with a high - resolution camera that uses an image analysis function to detect and avoid moving objects. It also has a collision avoidance function to ensure safety in case the visual detection is not activated.

How is the mower’s theft protection?

The G-Series mower can be effectively tracked, remotely locked and unlocked when needed (applies to SIM card version). Please refer to the manual for more details.

Troubleshooting:

Why Does the App Show Rain Pause When It Isn’t Raining?

This is likely due to moisture or water accumulation on the mower's rain sensor. Wipe the sensor clean and try again. Even if it’s not raining, we recommend mowing during drier periods for better results.

Why Are There Many Missed Spots in the Mowing Area?

Complex obstacles on the lawn may confuse the mower, making it think it can’t pass

through certain areas. Keep the lawn free of excess debris.

If many areas remain unmowed, continue using the mower through multiple cycles, as the

mower will eventually cover all missed areas.

Why Did My Mower Suddenly Stop Working?

This is typically due to weak GPS signal. The mower will automatically reconnect to the satellite and resume operation. If the signal is lost for a long time, try adjusting the base station's position.

Why Does the Mower Take So Long to Return to Charge or Not Charge at All?

If the charging connector is in good condition but the mower isn't charging, clean the charging contacts on both the charging station and the mower, then try charging again.

Why Is the Mower Not Passing Through the Path I Set?

Ensure the path is clear of obstacles and that the width is greater than 1 meter. Also, check that the start and end points of the path are within the map's boundaries.

Why Is the RTK Signal Light Flashing, and the Mower Can’t Connect to Satellite?

Try moving the RTK base station to an open area (refer to the quick installation guide) and press the reset button 3 times to re-match the connection.

What to Do If There Are Many Missed Cuts and the Grass Is Not Cleanly Cut?

If this is your first time using the mower, manually mow the lawn first, or increase the cutting height. For thick grass, consider using the grass deflector.
