Vibration Motor for Concrete, Electric Vibration Motor, Vibration Motor for Vibrating Table Well-Designed Structure Long Power

Description

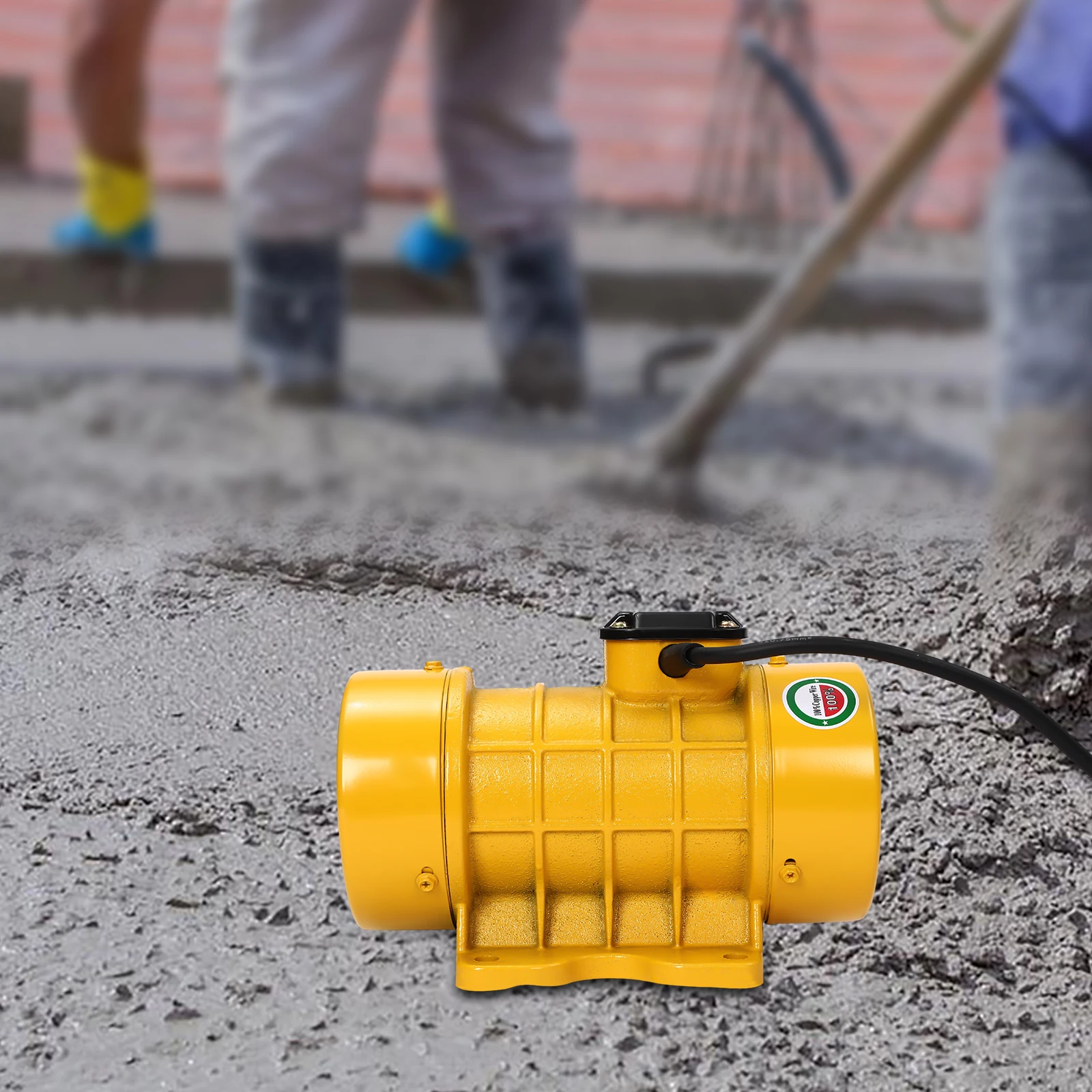

This 250W concrete vibration motor will greatly enhance your work efficiency and machine performance. The copper wire motor with high vibration frequency can provide strong power support for your equipment. The equipped power switch allows for a simple start and operation. Moreover, the cast iron housing and solid base ensure reliability and durability while making your work easier and more efficient!

Key Features

Long Service Life: The cast iron boasts high strength and good resistance to compression, wear, and high temperature, and the spraying paint and dipping paint treatments effectively protect the product from oxidation and rust, greatly extending its service life.

Excellent Performance: The product uses a 250W copper wire motor with low-temperature rise, low noise, high-temperature resistance, and stable current, and boasts a vibration frequency of 2840rpm, which is very efficient.

Well-designed Structure: The housing is fully sealed to protect inner components from debris and insects, together with the well-designed heat-dissipation structure, extending the product's service life.

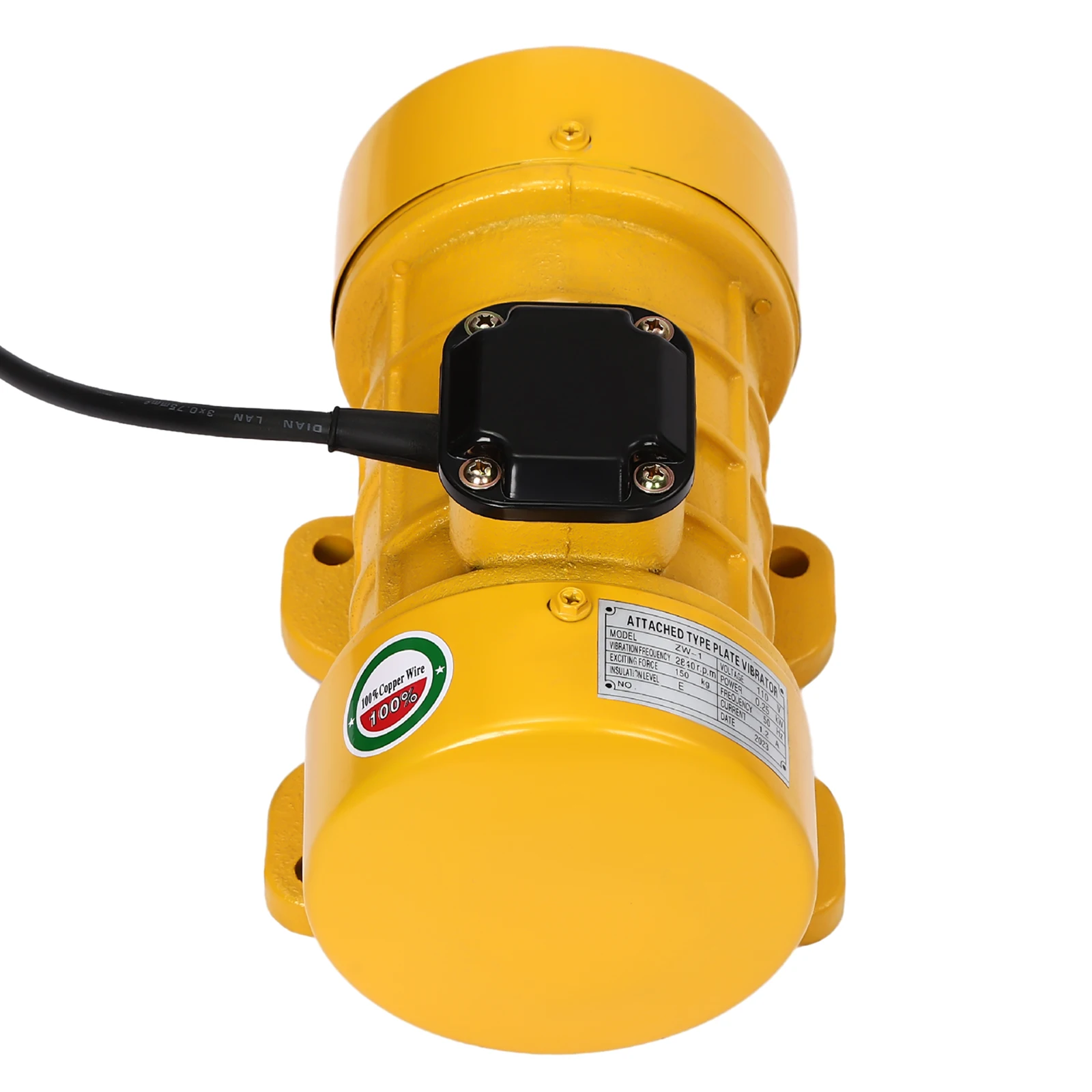

Thoughtful Design: The equipped capacitive switch makes it easier to start, and the four-core rubber power cord is highly bendable and not easy to break.

Simple Installation: The integrated design with pre-drilled holes on the base makes it only need to be installed on the needed equipment and connected to the power supply to start use.

Easy to Maintain: The product only requires regular maintenance, inspection, and cleaning, which saves you time and effort on maintenance.

Compact and Lightweight: The lightweight(less than 13.23 lbs) and compact size(8.46*5.9*5.51inch) allow you to easily take this product to the workplace and install it on the needed equipment.

Customer Service:  We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Details

Solid Base: The thickened base and pre-drilled holes hold the product in place so that it does not tilt easily during work.

Long Power Cord: The 3.28ft long power cord makes it easier and more flexible for you to use this motor.

Application

It is widely used in mining, metallurgy, coal, electric power, construction, chemical industry, construction sites, food machinery, sieving equipment, brick-making machines, road construction, port terminals, bridge construction, engineering construction, and other fields and machines.

Specifications

Color: Yellow

Model: ZW-1

Material: Cast Iron

Assembly Required: No

Plug Type: EU Standard

Process: Spray Paint, Dipping Paint

Motor Type: Copper Wire Motor

Voltage: 220V, 50Hz

Power: 250W

Current: 1.2A

Insulation Level: E

Vibration Frequency: 2840rpm

Exciting Force: 150kg/330.69lbs

Power Cord Length: 1m/3.28ft

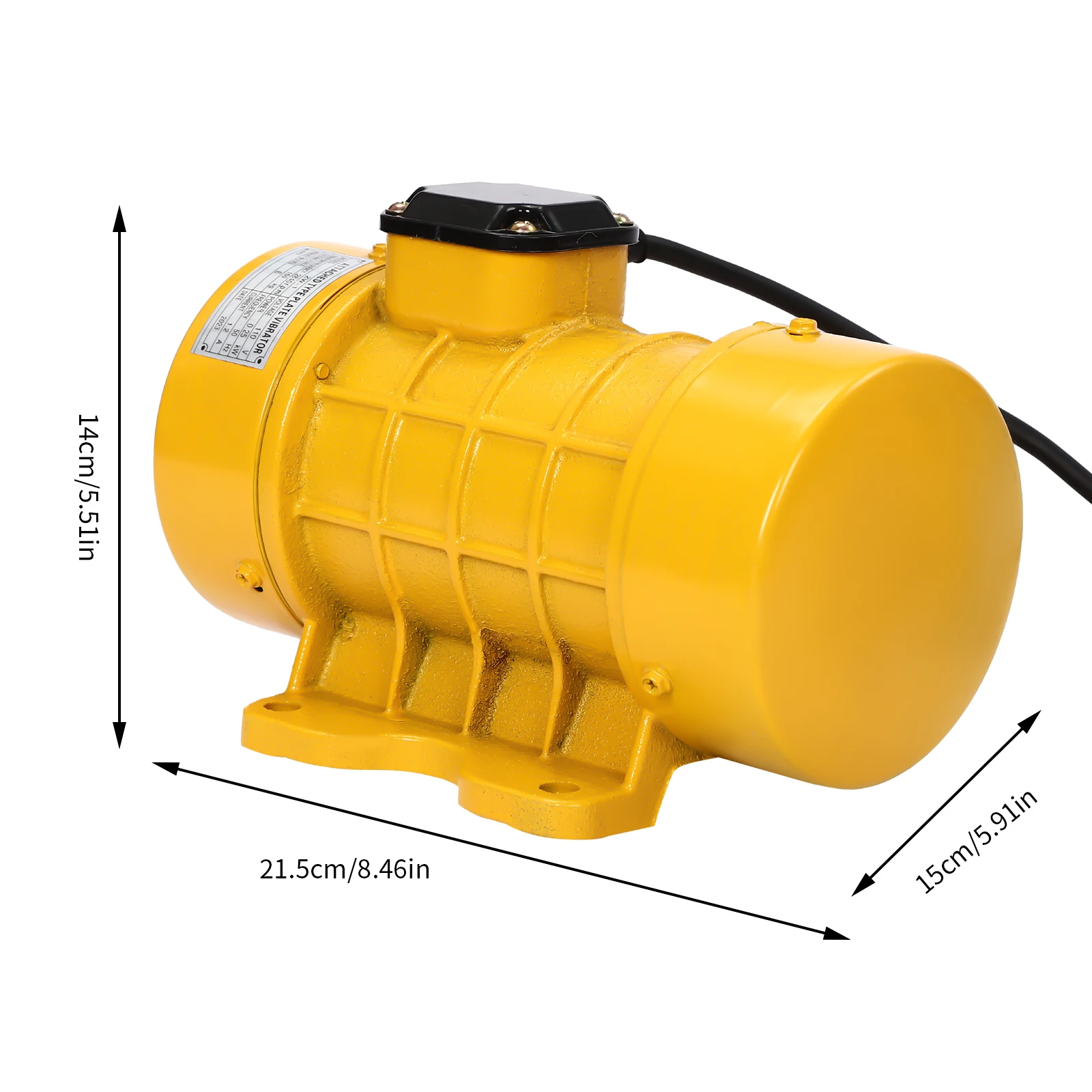

Product Size: 21.5*15*14cm/8.46*5.9*5.51inch

Packaging Size: 21*15*16cm/8.27*5.9*6.3inch

Gross Weight: 6kg/13.23lbs

Package Included

1*Concrete Vibration Motor

1*English Manual

Notes

1. Please check the size carefully before ordering. The base plate is not included in this package.

2. Please read the operating manual completely before use. And pay particular attention to the safety instructions included.

3. When installing the machine, the base plate (not included) and the machine holes should be correctly corresponded to each other, and should not be twisted diagonally to prevent the machine from being unevenly pressurized and damaging the machine parts.

4. The insulation of the motor should be well maintained, meanwhile the power supply should be checked whether the power supply meets or is correct when connecting the power. Please check the sealing and insulation, if it is damp, dry it in time. Please check whether the wires and connectors are firm and safe.

5. Please do not run it in the dry and hard ground for a long time to avoid excessive vibration damage to the machine parts. Please note that the motor is not waterproof or dustproof, so it is not suitable for use in dusty and damp environments.

6. After use, the outer device must be cleaned to ensure that the motor is running normally and has good heat dissipation. The bearings should be cleaned and replaced with grease regularly. Regularly check the other parts and overhaul them in time.

7. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
