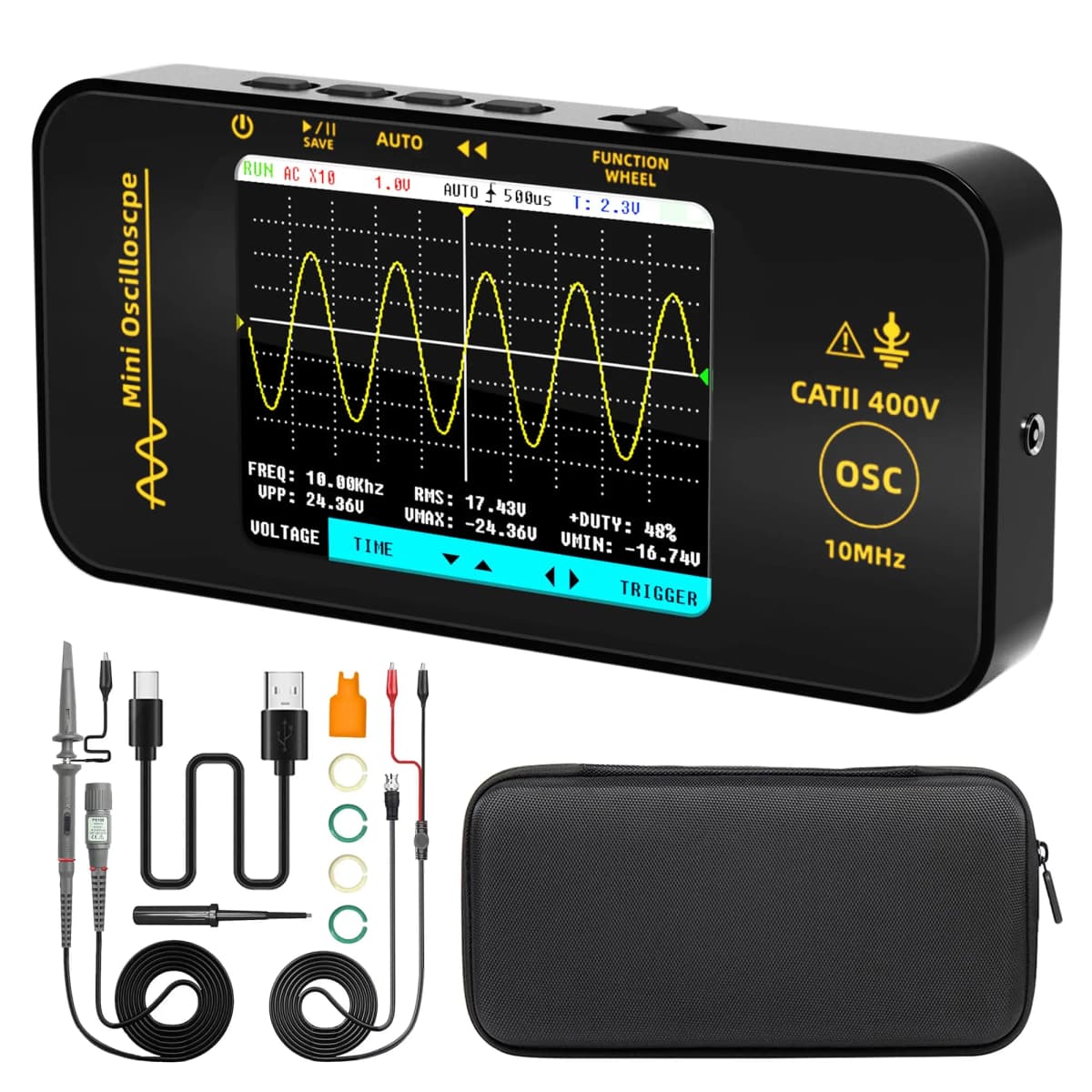

OT3 Handheld Digital Oscilloscopes 48MS/s Sampling Rate 10MHz Analog Bandwidth Support Firmware Upgrade Waveform Storage

Features:

Handheld oscilloscope

Portable graph scope tester

Rechargeable color display oscilloscope

Tested data can be saved and exported to your computer

Full-viewing oscilloscope with low battery indication

Specifications:

Display: 3.2 inch TFT

Bandwidth: 10MHz

Real-time sample rate:48MSa/s

Input Impedance: 1MΩ,@16pf

Maximum input voltage: X1: 40V; X10: 400V (DC+AC peak)

Horizontal SEC range: 100ns/div -20s/div

Vertical sensitivity: 20mV/div -10V/div

Power: 1200mAh Rechargeable Li-ion battery

Size: 129.2 x 63 x 22.3 mm

Weight: 138g

Package Includes:

1 x Handheld Oscilloscope

1 x Oscilloscope Probe

1 x BNC to Double-Headed Alligator Clip Test Leads

1 x Carrying Case

1 x Charging Cable

4 x Marker Rings

1 x Adjustment Tool

1 x User Manual

OT3 / OT2 firmware upgrade link:

https://www.mediafire.com/file/pfvollrcaoul5hk/FW_VOT2V1014.OT2/file

If you encounter a BUG in the system, you can contact customer service to update the firmware and repair it
