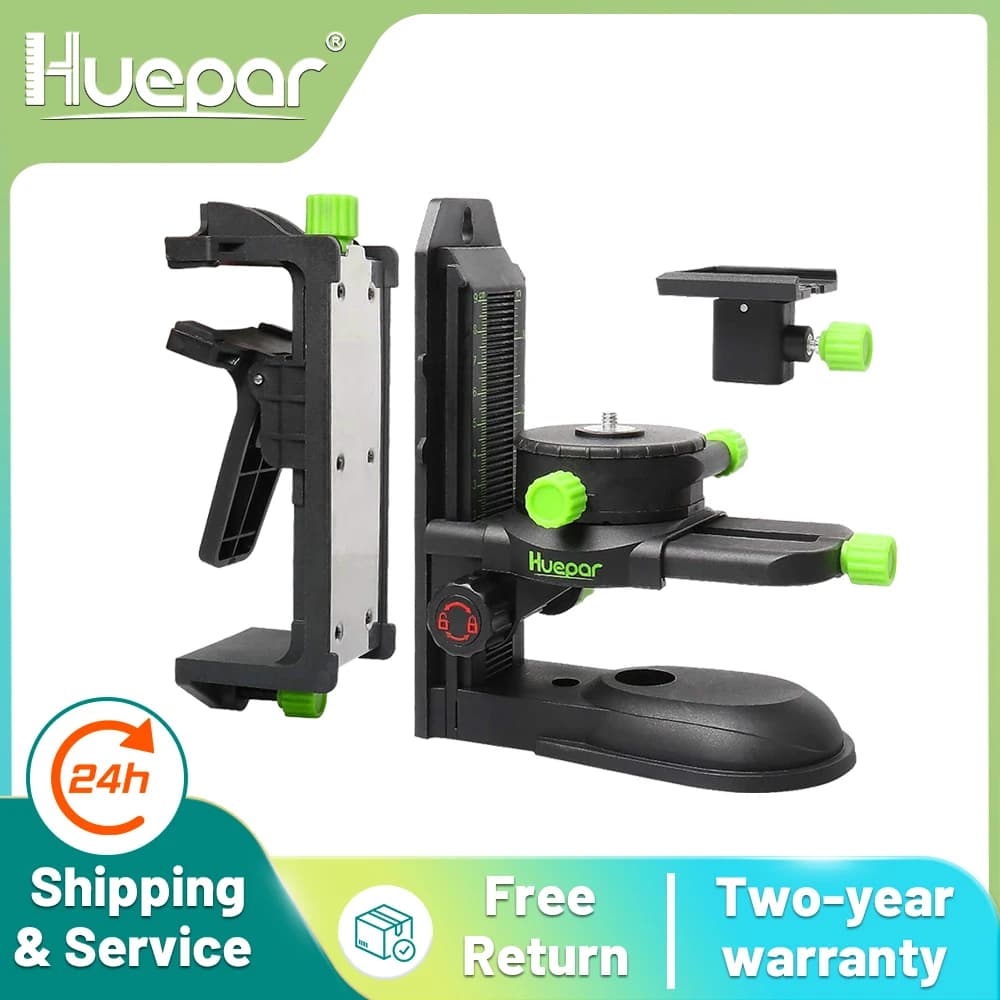

Huepar PV10+ Fine-tuning Bracket Laser Level Adapter Multifunctional Magnetic Pivoting Base Adjustable Clip 360° Adjustable Tool

Huepar Fine-tuning Bracket Laser Level Adapter, Multifunctional Magnetic Pivoting Base with Adjustable Clip, 360° Adjustable Support with 1/4"-20 Male Threaded, Height Adjustment - PV10+

Multi-functional Auxiliary Back Clip:

The opening size of the clip: 1-5cm

The size of the steel sheet: 14 x 5.5cm

Net Weight & Size: 242g , 18.5 x 8 x 5.5 cm

Adjustment: Opening size of clip, adjust the vertical angle of the bracket against the wall in to 90-degree

Specification of Huepar PV10+ Adjustable Base:

Magnetic Pivoting Bracket with Dedicated Window Adapter:

Heigth Adjustment Graduations: cm / inch

Male Thread for Laser Level: 1/4"-20

Female Thread for Tripod: 1/4"-20 and 5/8"-11

The length of the male thread to the side of the bracket: 3-8.5cm

Load capacity: 3KG

Net Weight & Size: 458g , 17.5 x 15.5 x 8.5 cm

Adjustment: 360-degree horizontal rotation, X-axis (adjust the horizontal position left and right), Y-axis (adjust the horizontal position front and back), Height adjustment.

The fine-tuning knob of the adapter helps adjusting pitch angle.

The adapter only compitable with: Huepar 901CG/R, 902CG/R, 903CG/R, GF360CG/R, AK360G/R, B02CG/R, B03CG/R, B21CG/R.

⭐【Multi-directional Fine-tuning Bracket】: The micro knob allows the user to make 360° clockwise or counterclockwise rotation adjustments. The X-axis knob and Y-axis knob help the user adjust the horizontal position left and right, front and back. Can be adjusted within 5.5cm in depth so it can be used with any laser tool that measures 3-8.5cm from the back.

⭐【Height Fine-tuning】: The height can be fine-tuned by rotating the fine-tuning knob, and the adjustment range is 9 cm. The height adjustment lock helps to fix the adjusted height. The graduations are marked in inches and centimeters to help adjust easily. In addition, you can also use the back clip to magnetically pull the bracket to any height on the steel sheet of the back clip.

⭐ 【Multi-functional Auxiliary Back Clip】: The auxiliary steel sheet can help to fix on the wall and wood. The opening size of the clip and the vertical angle of the bracket against the wall can be adjusted by the fine-tuning knobs, with a nail hole helps to fix on the wall. The magnetic base can be placed anywhere on the steel plate of the back clip according to your needs. It can be compatible with most magnetic bases on the market and to increase the adsorption force of the magnets and achieve

⭐【Multiple Installation Methods of the Bracket】: With 1/4"-20 male thread, compatible with most line lasers. 1/4"-20 and 5/8"-11 female thread makes it possible to be attached to a tripod or laser pole. The magnet can be attached to a metal surface or a steel plate. The nail holes are designed to make the installation much firmer. The groove design on both sides of the back of the bracket can be fixed to a rope.

⭐【Huepar Dedicated Laser Window Adapter】: Huepar dedicated window adapter help to hang the laser tool and make the laser window close to the wall. The fine-tuning knob for adjusting pitch angle. Due to the design of the slot, Huepar adapter is only suitable for certain models: Huepar 901CG/R, 902CG/R, 903CG/R, GF360CG/R, AK360G/R, B02CG/R, B03CG/R, B21CG/R.

The laser tool can help you easier on Home Decoration, Partition Wall Construction,

Chandelier Installation, Alignment of Drilling Positions, Stair Handrail Installation, Pictures Hanging Design, Laying out Tile,

Windows Construction etc.
