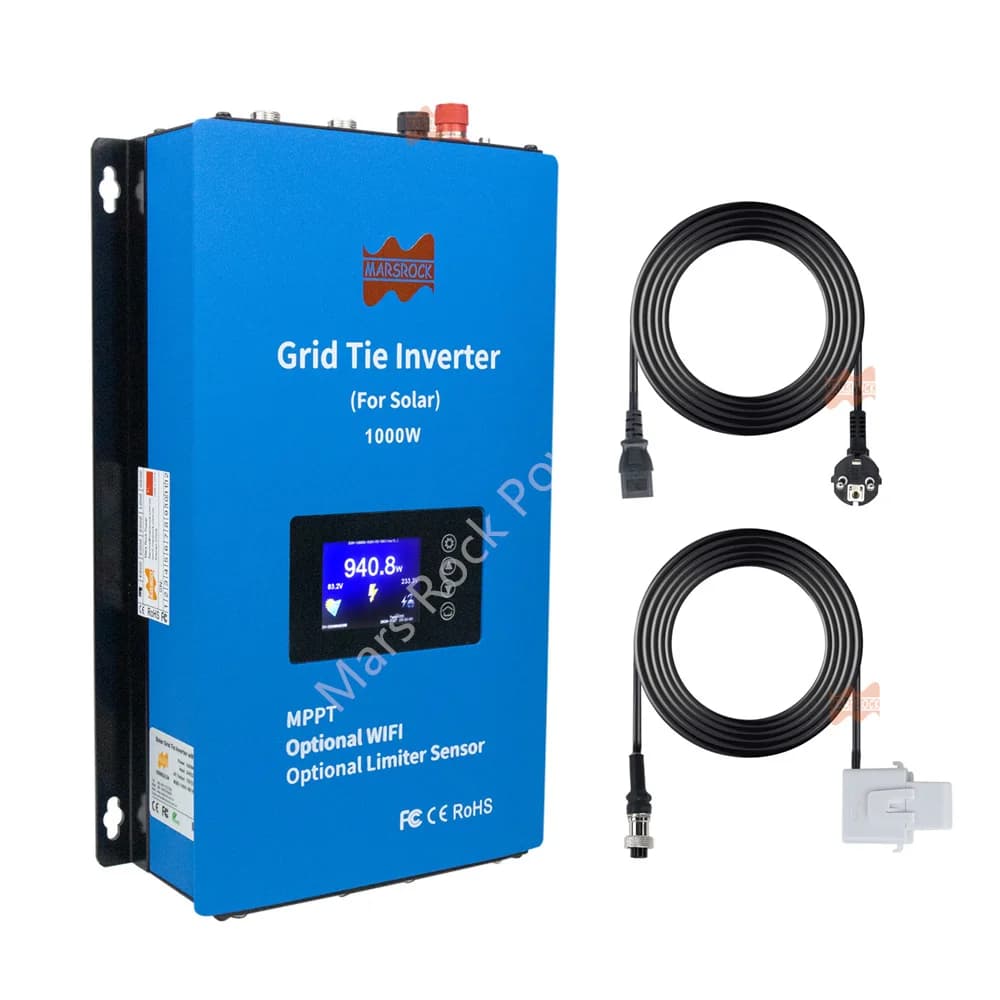

1000W 24V 48V Solar PV Grid-On Inverter DC 22-90V to AC 95-265V With Limiter Sensor Solar Converter for PV SolarPanels

What does the limiter sensor can do in solar grid tie power inverter system?

For in DIY my own solar power system to cut down electricity bill.

As we know in some countries,Power Meters (the one provided by the electricity provider in the area) are not aware of the direction of power flow. the consumers will be charged for power even if it is given to the grid.

So it is called limiter NOW!!!! It delivers only the power needed by the load and prevents delivering excess power hence avoids excess power in going back to the Grid

Connect System

With WiFi Function

Features

The small type solar grid tie power inverter can obtain the solar energy from solar panel, and can tie to the grid through its output cables with no extra equipment. The installation is very convenient and reliable using in utility-interactive applications

Detail Images

Working Principle

The inverter can be connected to any outlets of utility grid at house. The small grid tie inverter monitors the volume, frequency and phase of the home utility grid, then produce pure sine wave AC power that the frequency and phase are as same as the grid's, and the volume is a bit higher than the grid's, then according to the current controlled PWM, to control the output power to the grid. The small grid tie inverter just puts out power when the home grid is on.

Professional Certification
