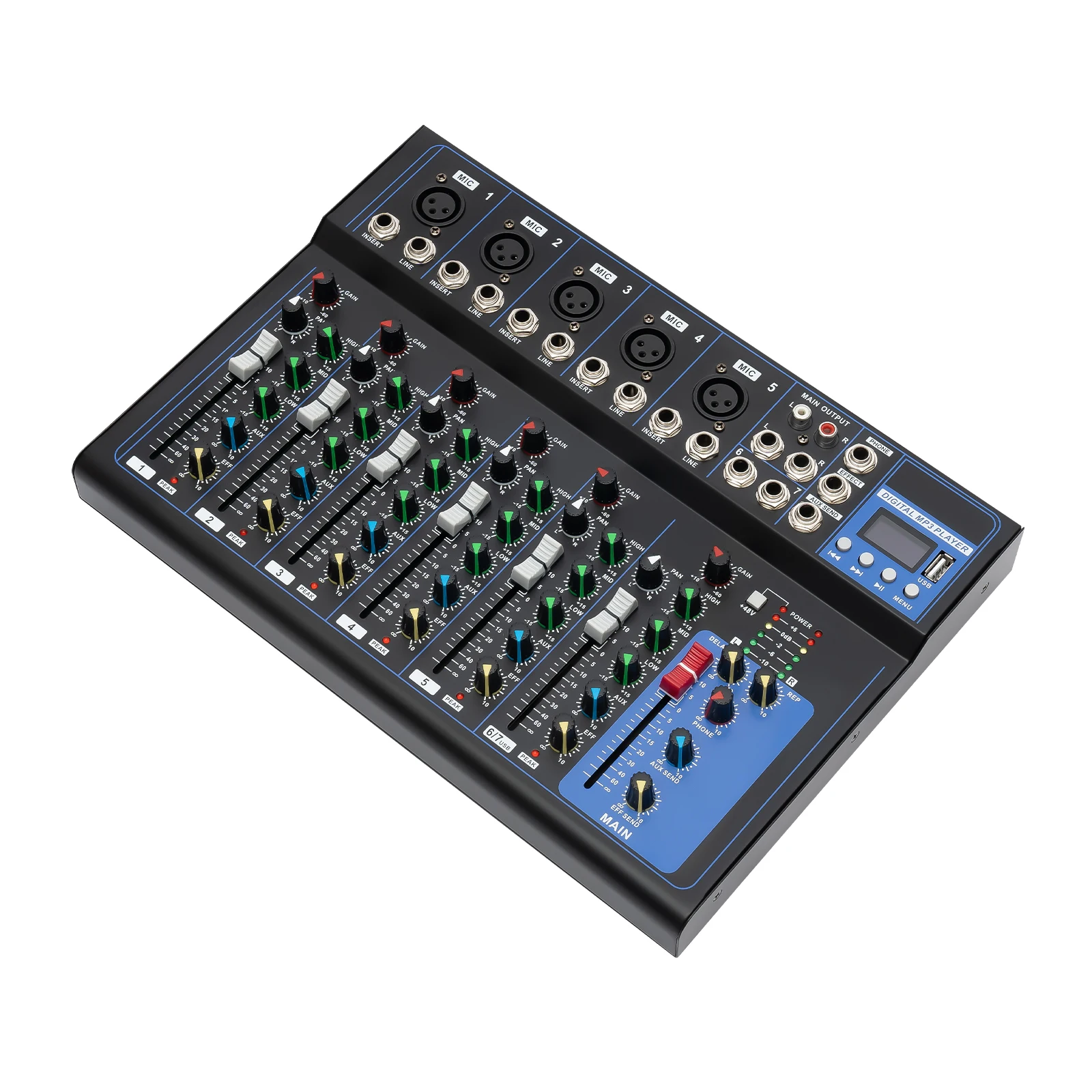

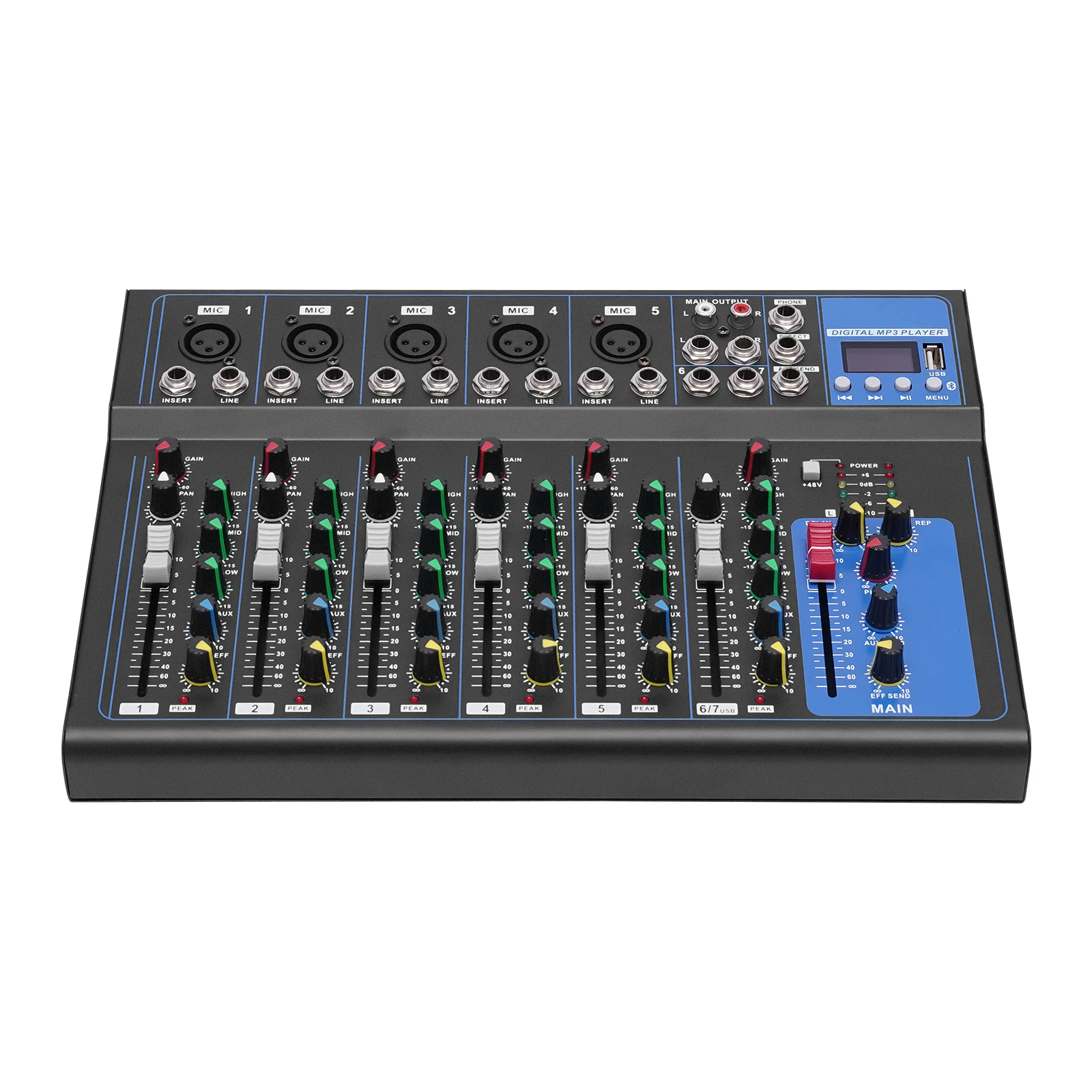

7/8-Channel Professioneller Mixer, Soundboard Konsole with Bluetooth USB PC Recording Input XLR Microphone Jack

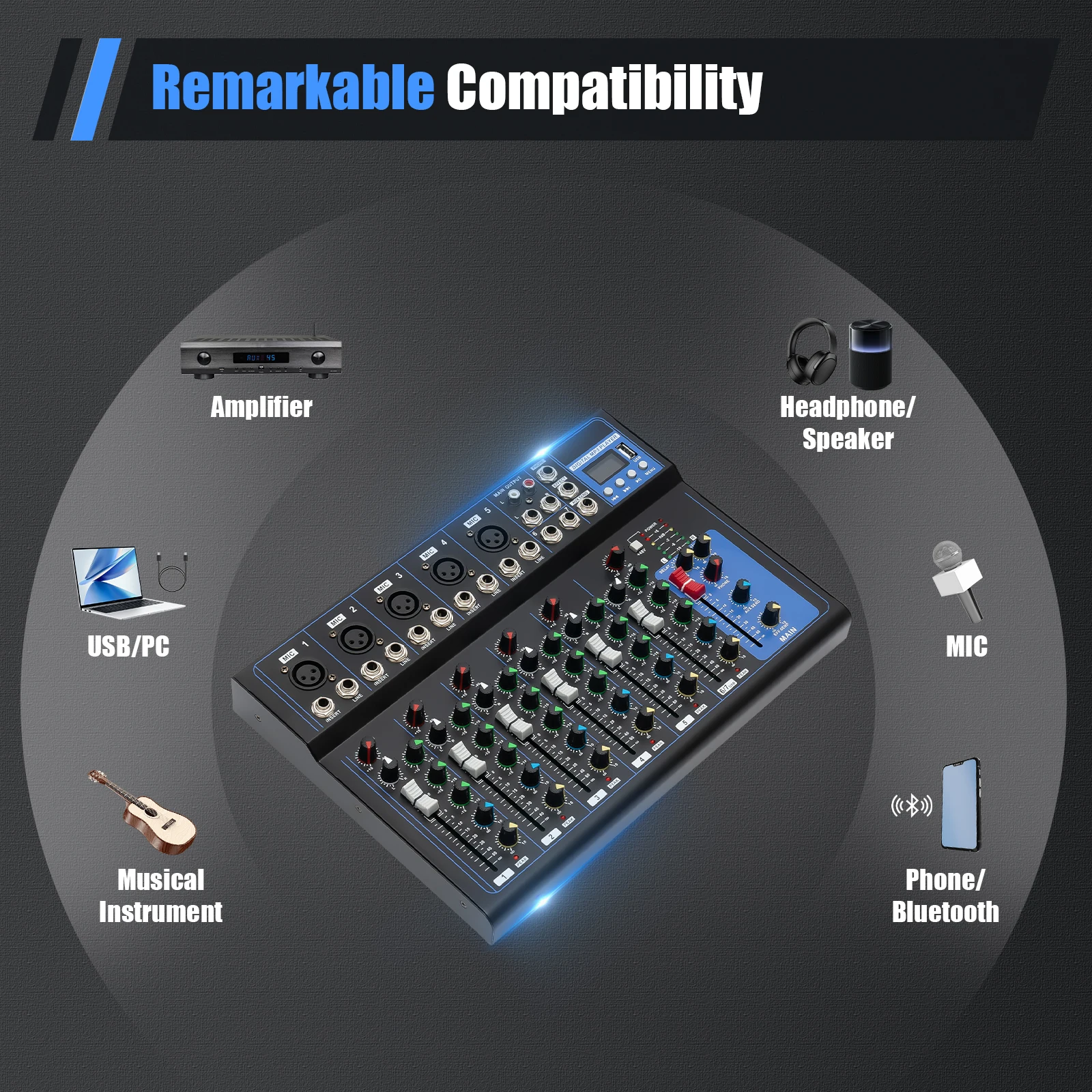

When inspiration strikes you, you can immediately turn on this audio mixer to keep it. It is equipped with a three-band equalizer for the main channel, so you can independently control the high / medium/low voice. It is very suitable for the connection of multiple devices, as it has 7/8 channels. With its built-in Bluetooth module and wireless range within 15 feet, it is compatible with TVs, desktop computers, laptops, cell phones, tablets and MP3 devices. It is suitable for home KTV, campus language, conferences, bars, stage performances, music dining bars, recording studios, etc.

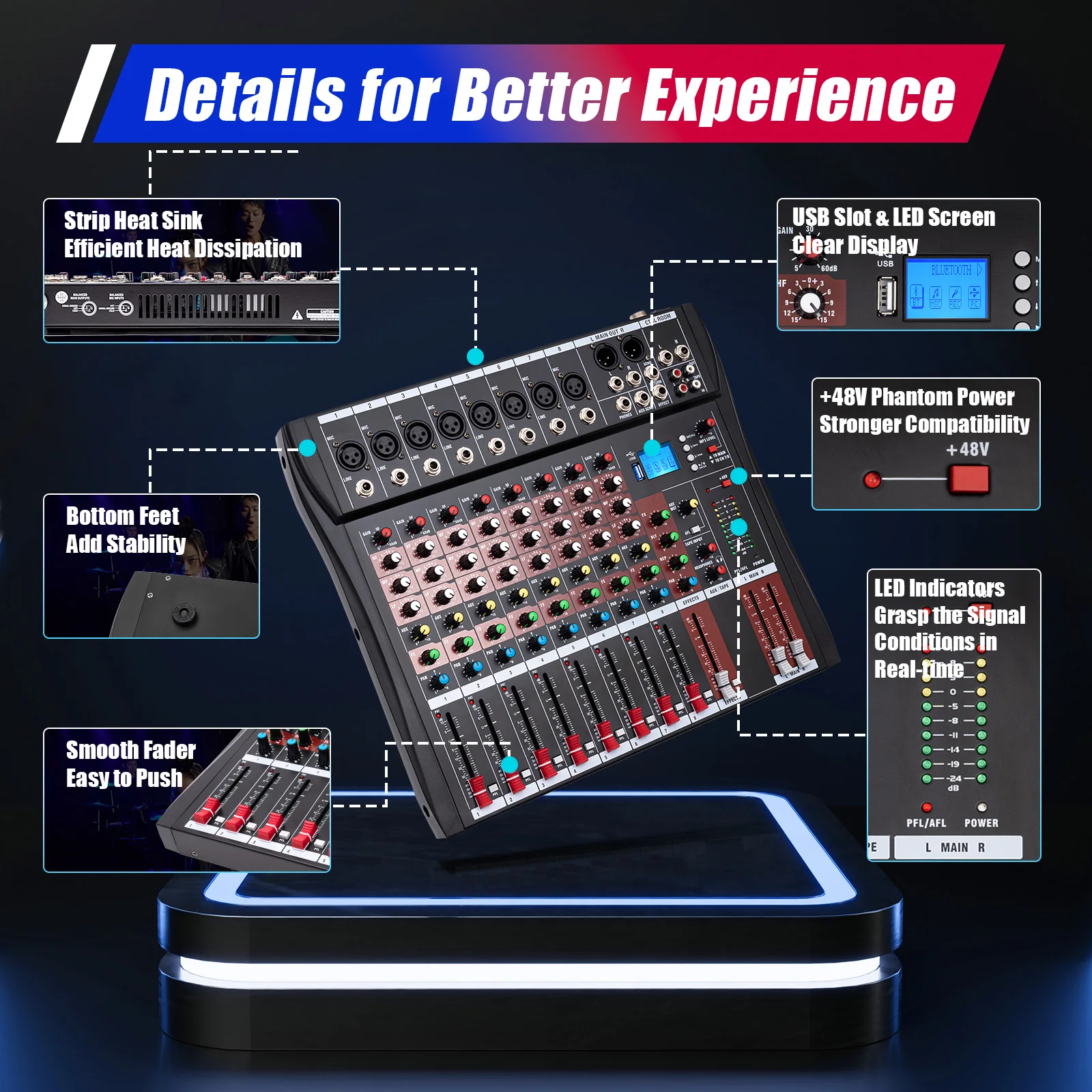

Details

Indicators: The left and right channels each have a 10-segment level peak indicator, allowing you to grasp the signal condition in real-time and accurately adjust to avoid overload on the amplifier and speakers caused by adverse effects.

USB Slot: The USB slot lets it connect to portable audio devices like USB drives or MP3s, so you can tune in anywhere, anytime!

LCD Display: There is an LCD screen on this product that displays system functions in real-time so you can easily adjust them.

Strip Heat Sink: The product comes with a strip heat sink on top to extend the life of the product.

Single-touch Power Switch: The product is equipped with a one-touch power switch, which is very convenient to turn on/off the power with just one touch.

Smooth Fader: The fader is made of selected high-quality damping material, smooth and easy to push and the concave convex design is for slip resistance.

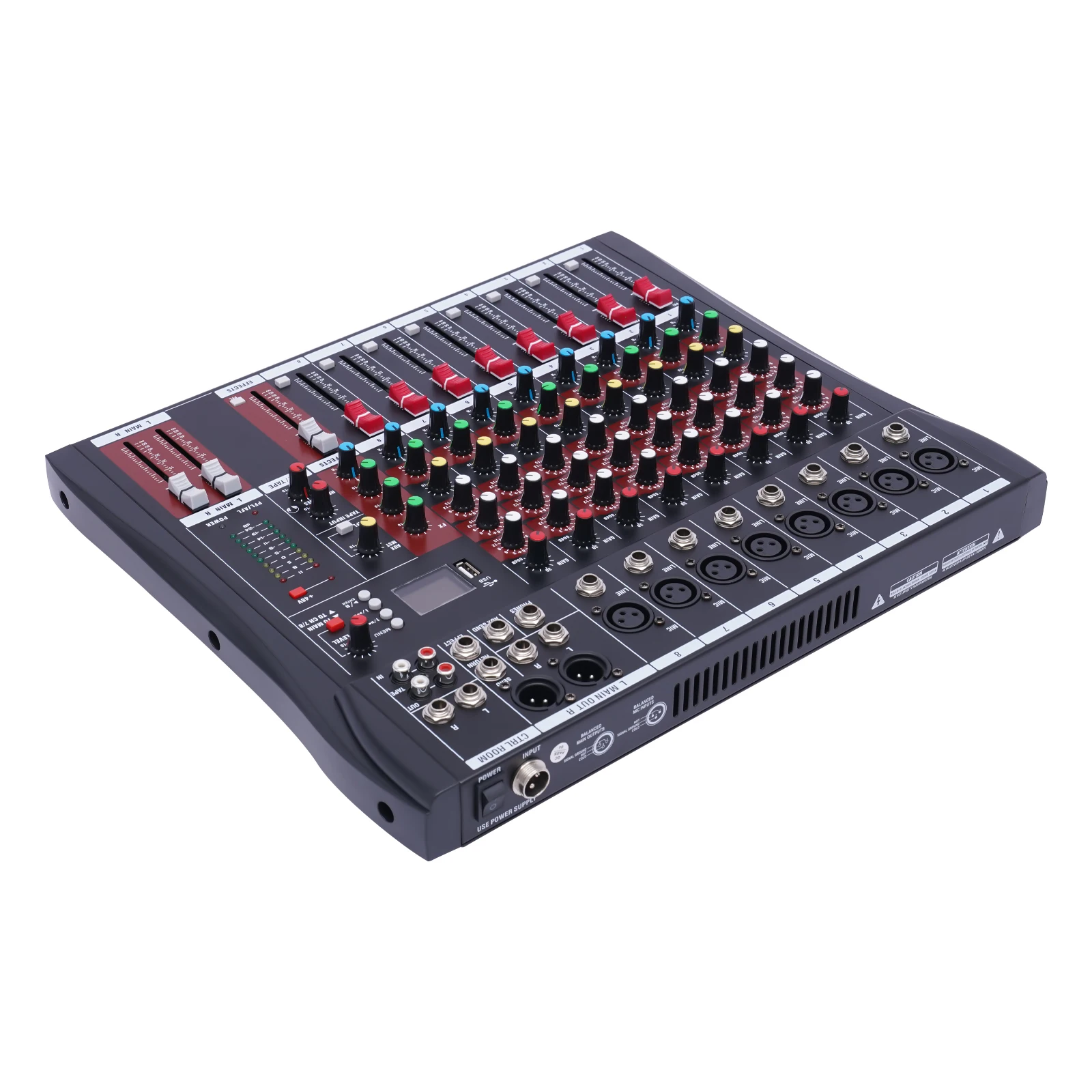

8-Channel EU Specification

Material: ABS
Color: Black
Number of Channels: 8
Plug: EU Standard
Power Source: Corded Electric
Connection Technology: USB, Bluetooth
Input: AC 230V 50HZ 18W
Output: AC18V*2 350mA
Maximum Input Level of the Microphone: + 24dBu
Maximum Input Level of the Line: + 24dBu
Maximum Output Level: XLR Card + 26dBu
Main Level Meter: 10-segment LED, -24 dB to CLIP
Frequency Response: 20Hz-30Khz ± 0.5dB
Maximum Input Power: 18W
Total Chopping Distortion (RHD + N): <0.01%.
Crosstalk (1 kHz): Fader off> 85 dB Channel> 82 dB
Noise (22Hz-22KHz): Equivalent Input Noise -122dBu Remaining Output Noise <-90dBu
Mono / Stereo Channel EQ: High Frequency +/- 15 dB, 12 kHz Low Frequency +/- 15 dB, 80 kHz High IF +/- 15 dB, 2.5 kHz
Mono: XLR Balanced, 2-pin Hot End, 2Kohm, Sensitivity -60-14dbu TRS Balanced, Tip Hot End, 10Kohm, Sensitivity -40+14dbu XLR Fantasy Power +48V
2-track Return: RCA-seat, Unbalanced, 4K ohms, -2dBu
2-track Gear: RCA-seat, Unbalanced, <75 Ohm, -2dBu
L / R Output: XLR, Balanced, Hot End of the Tip, <75 ohms, + 4 dBu, Max + 22 dBu
FX / AUX Output: TRS, Unbalanced, Hot End of Tip, <75 ohms, -2dBu, max + 18dBu
Headphone: TRS, Tip L, Ring R, Recommended Headphones with 30 to 600 ohms
Bluetooth Wireless Control Range: Max 4.6m/15ft
Package Size: 41*35*5cm/16*13.4*2in

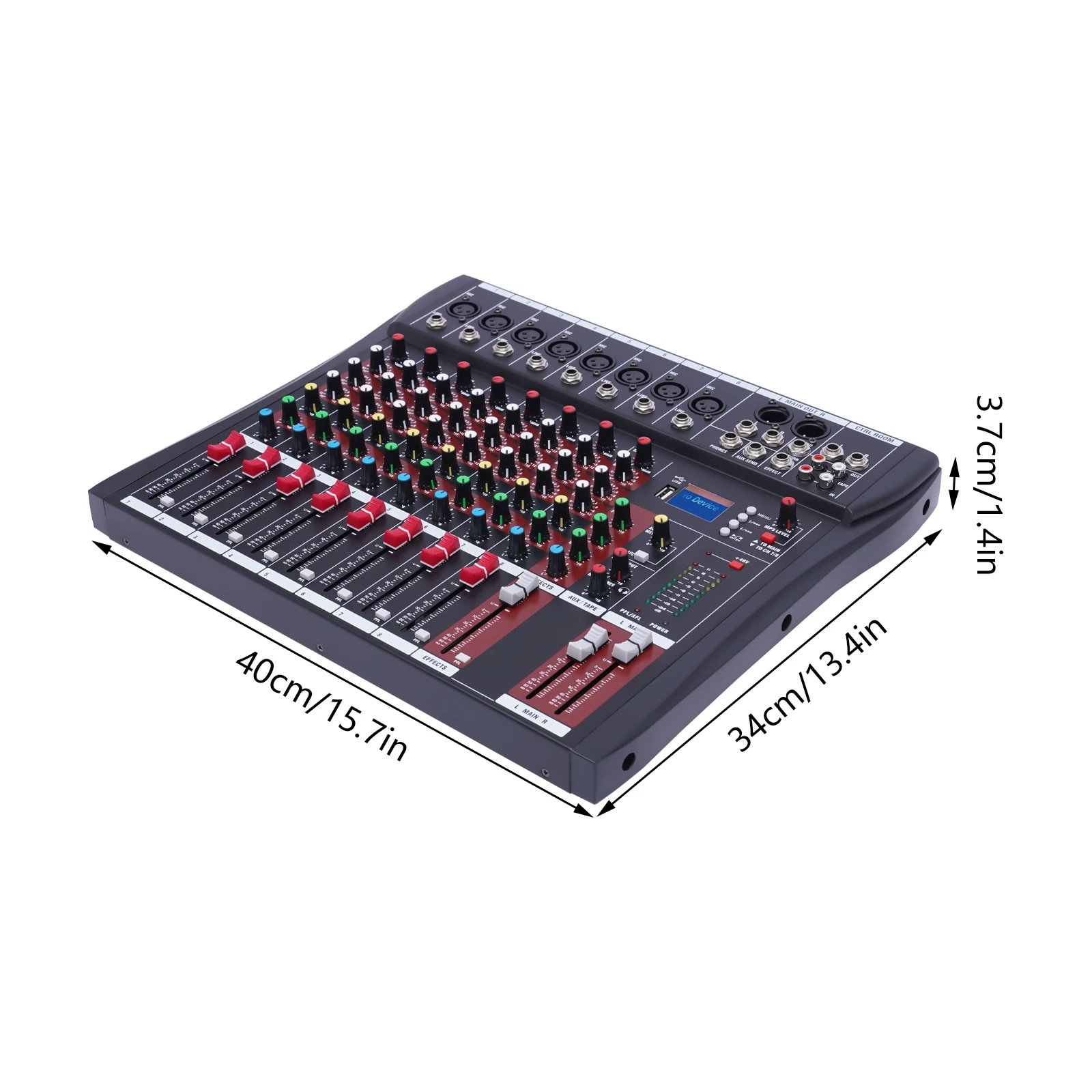

Product Size: 40*3.7*34cm/15.7*1.4*13.4in
Gross Weight: 4.6kg/10lbs
Net Weight: 4.4kg/9.7lbs

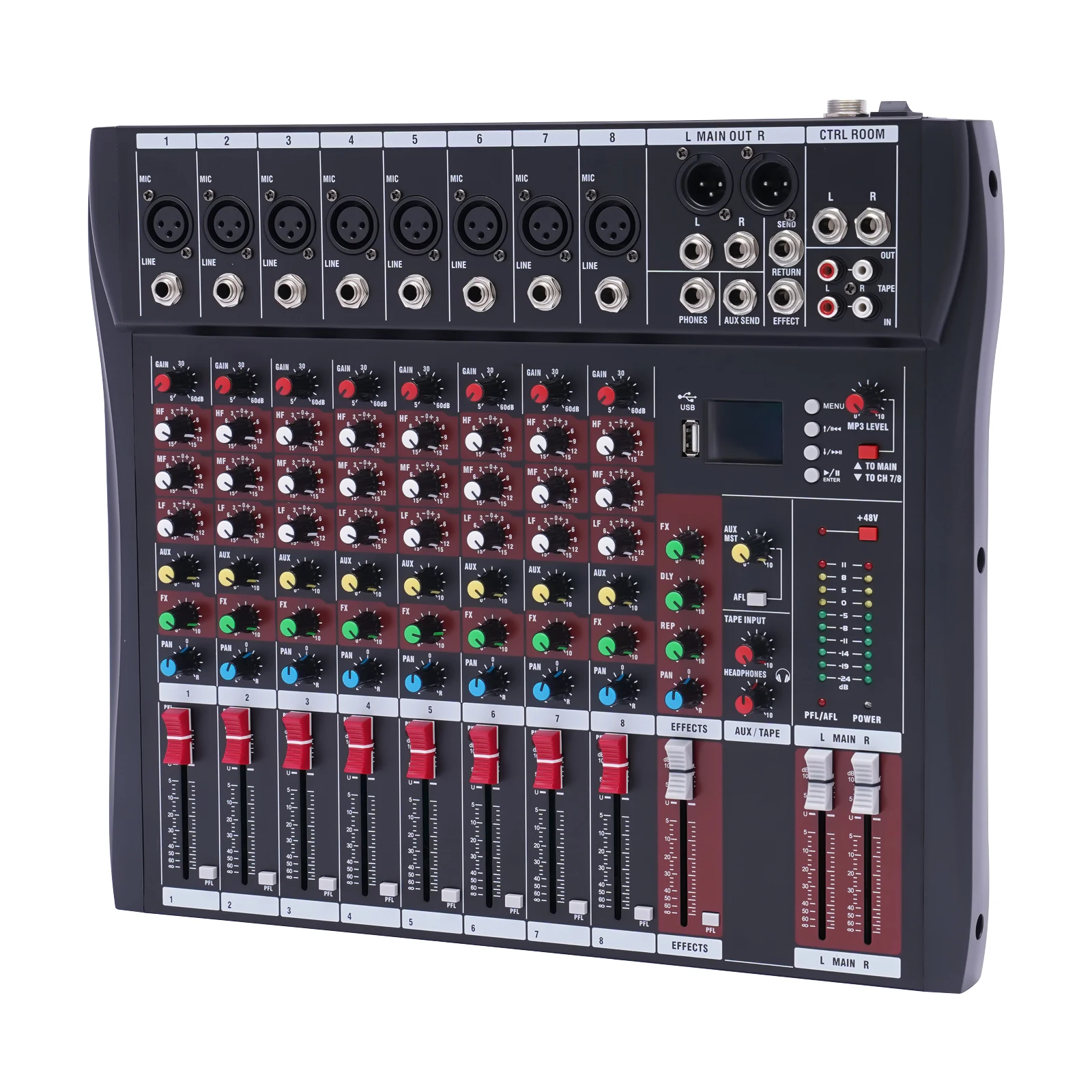

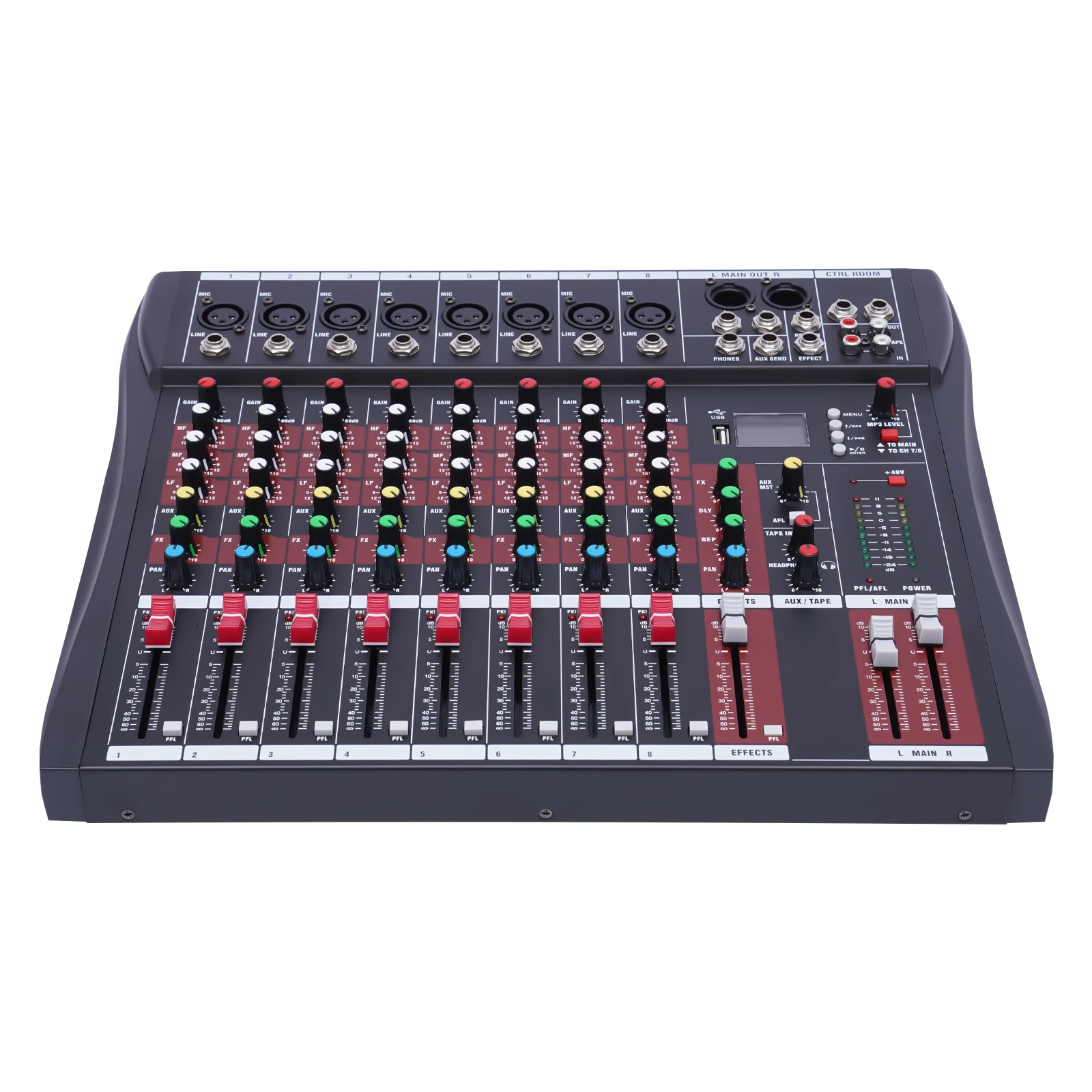

8-Channel US Specification

Color: Black
Material: Metal, Damping
Display: LED

Process: Powder Coating
Number of Channels: 8
Plug: US Standard
Max Input Level: +24dBu(MIC/Line)
Max Output Level: +26dBu(XLR)
Master Meters: 10 Segment -24dB to CLIP
Frequency Response: 20Hz to 30KHz 0.5dB
Max Input Power: 15W
THD+N: ＜0.01%(Channel Input to Mix Output)
Crosstalk at 1kHz: ＞85dB(Fader/Mute Shut Off); ＞82dB(Inter Channel)
Noise (22Hz to 22KHz): Equivalent Input Noise -122dBu, Residual Output Noise <-90dBu
2-track Return: RCA, Unbalanced, 4K ohm, -2dBu
2-track Send: RCA, Unbalanced, ＜75 ohm, -2dBu
L/R Output: XLR Unbalanced, Pin 2 Hot, ＜75 ohm, +4dBu, Max.+22dBu
FX/AUX Output: TRS Unbalanced, Tip Hot, ＜75 ohm, -2dBu, Max.+18dBu
Headphones: TRS, Tip L, Ring R, 30 to 600 ohm Headphones Recommended

Mono Channel:
XLR Balanced, Pin 2 Hot, 2K ohm, Sensitivity -40 to +14dBu
TRS Balanced, Tip Hot, 10K ohm, Sensitivity -20 to +14dBu
XLR, Phantom +48V

Adaptor:
Model: LWV, 16PS
Input: AC 110V 50Hz, 18W
Output: AC 18Vx2, 350mA

Slide Length: 7cm/2.76inch
Gross Weight: 4.65kg/10.25lbs
Net Weight: 4kg/8.82lbs
Package Size: 44.5*42*11cm/17.52*16.54*4.33inch
Product Size: 40*34*5cm/15.75*13.39*1.97inch

Package Included

1*8-Channel Audio Mixer
1*Power Adapter
1*English Manual

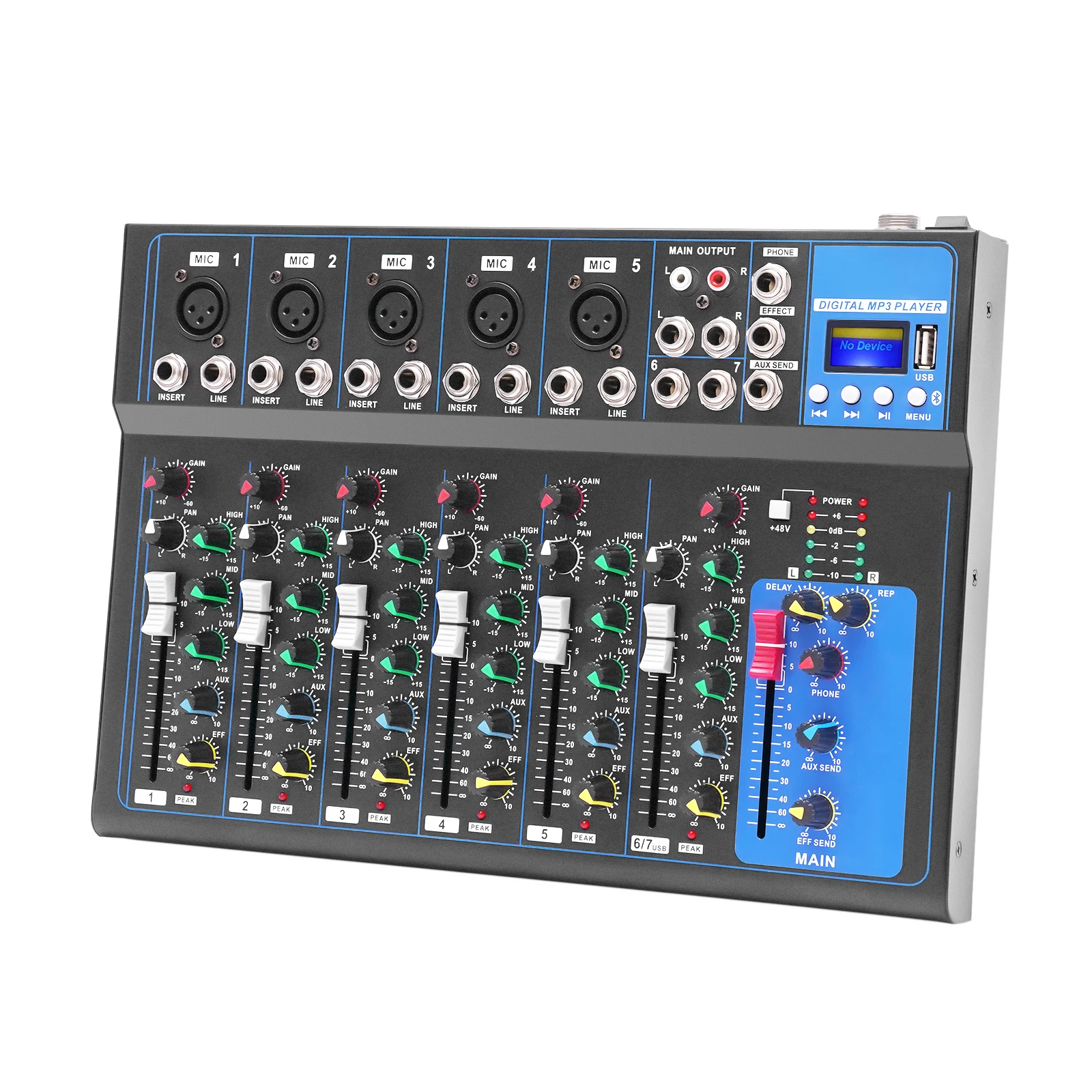

7-Channel EU Specification

Material: Iron
Color: Black
Style: Modern
Shape: Rectangle
Process: Spraying
Plug Type: EU Standard
Music Modes: Nature, Pop, Rock, Jazz, Classical, Country
Model: LWV 16PS
Input: AC 230V 50Hz
Input Power: 18W
Output: AC 18V × 2 350mA
Maximum Mic Input Level: +24dBu
Maximum Line Input Level: +24dBu
Maximum Output Level: +26dBu
Main Level Meter: 5-segment Light-emitting Diode
Frequency Response: 20Hz-20kHz±0.5dB
Common Mode Rejection Ratio (MIC 1kHz): >75dB
Total Attainment Distortion (THD+N): ＜0.01% (Channel Input to Mix Output)
Crosstalk (1kHz): >85dB
Noise (22Hz-22kHz): Equivalent Input Noise -116dBu, Residual Output Noise <-80dBu

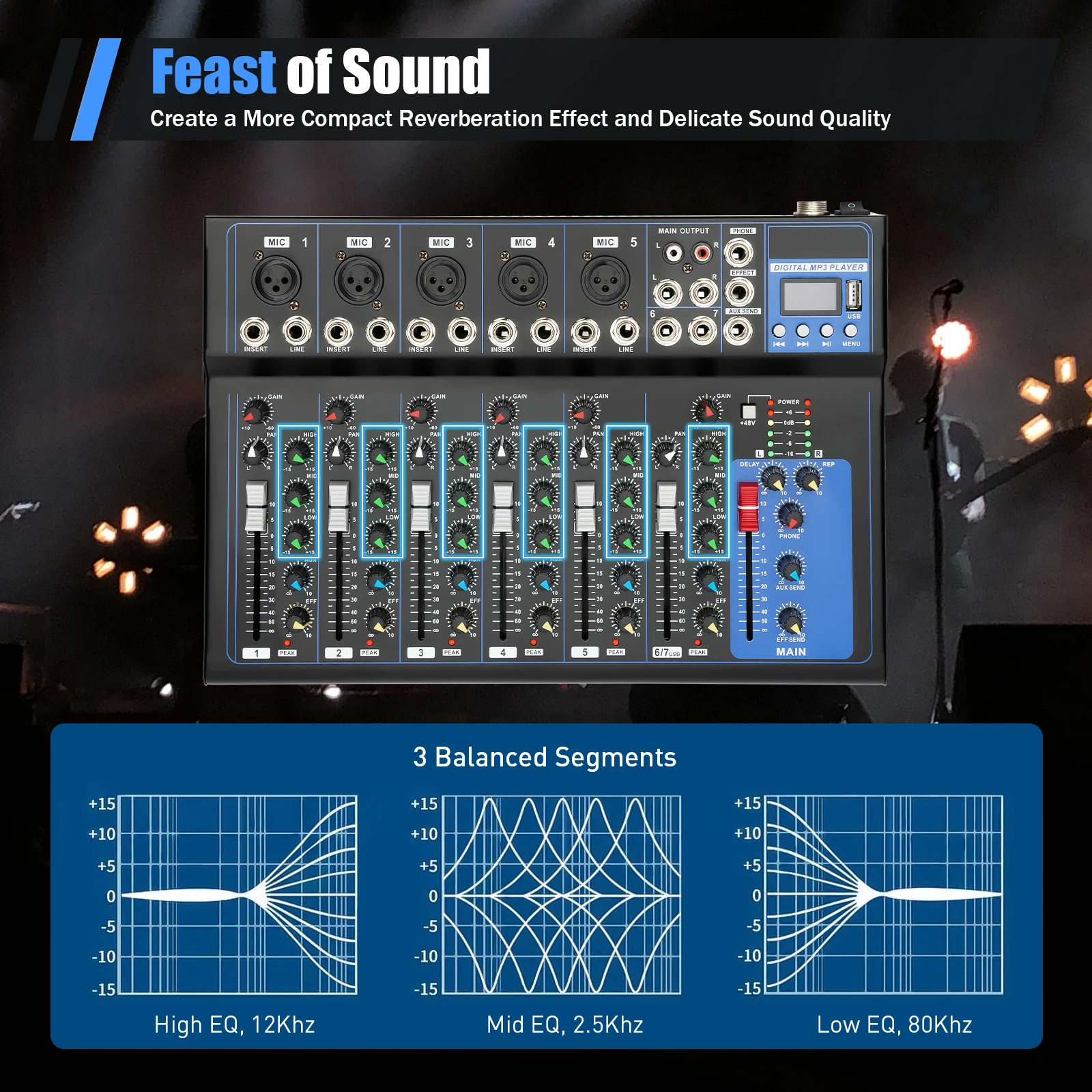

Mono/Stereo Channel EQ: High, Broom, +/-15dB, 12Khz
Low, Broom, +/-15dB, 80Khz
Mid, Peak-to-Valley, +/-15dB, 2.5Khz
Mono: XLR Balanced, 2-pin Hot End, 2Kohm Sensitivity -60 to +14dBu
TRS Balanced, Tip Hot End, 10Kohm Sensitivity -40 to +14dBu
XLR Phantom Power +48V
Stereo: TRS Unbalanced, Hot Tip End, 10Kohm, Sensitivity -40 to +14dBu
L/R Outputs: TRS, Unbalanced, Hot Tip, <75ohm, -2dBu, +18dBu Max.
FX/AUX Output: TRS, Unbalanced, Hot Tip, <75ohm, -2dBu,+18dBu Max.
Headphone Type: TRS, Tip L, Recommended for 30-600ohm Headphones
Number of Channels: 7
Bluetooth Connection Range: Within 10m/32.8ft
Fader Slider Length: 70mm/2.8in
Product Size: 33.5*23*4cm/13.2*9*1.6in
Package Size: 38.5*31*10cm/15.2*12.2*3.9in
Net Weight: 2.5kg/5.5lbs
Gross Weight: 3kg/6.6lbs

7-Channel US Specification

Color: Black
Style: Minimalist
Material: Iron
Number of Channels: 7
Connectivity Technology: Interface, USB, Bluetooth
Plug Voltage: U.S. Plug 110V
Microphone Maximum Input Level: +24dBu
Maximum Line Input Level: +24dBu
Maximum Output Level: +26dBu
Main Level Meter: 5-segment Light-emitting Diode
Frequency Response: 20Hz - 20kHz ± 0.5dB
Common Mode Rejection Ratio (MIC 1KHz): >75dB
Total At-wave Distortion (THD+N): <0.01% (Channel Input to Mix Output)
Crosstalk (1kHz): >85dB
Noise (22Hz - 22KHz): Equivalent Input Noise -116dBu Residual Output Noise <-80dBu
Mono/Stereo Channel EQ: High Frequency, Broom Type, +/-15dB,12KHz
Low frequency, Broom Type, +/-15dB,80KHz
High/Midrange, Peak/Valley Type, +/-15dB,2.5KHz
Mono: XLR Balanced, 2-pin Hot end, 2Kohm Sensitivity -60 to +14dBu
TRS Balanced, Tip Hot End 10Kohm Sensitivity -40 to +14dBu
 XLR Phantom Power +48V
Stereo: TRS Unbalanced, Tip Hot End 10Kohm Sensitivity -40 to +14dBu
L/R Output: TRS, Unbalanced, Tip Hot End, <75ohm, -2dBu, +18dBu Max
FX/AUX Output: TRS, Unbalanced, Tip Hot End, <75ohm,-2dBu,+18dBu Max
Headphones. TRS, tip L, Recommended for Headphones from 30 to 600ohm
Product Size: 33*23*3.7cm/ 12.99*9.05*1.46in
Package Size: 38*8*30cm/ 14.96*3.15*11.81in
Net Weight: 2.58kg/ 5.69lbs
Gross Weight: 2.85kg/ 6.28lbs

Package Included

1* 7 Channel Mixer
1* Adaptor
1* English User's Manual
