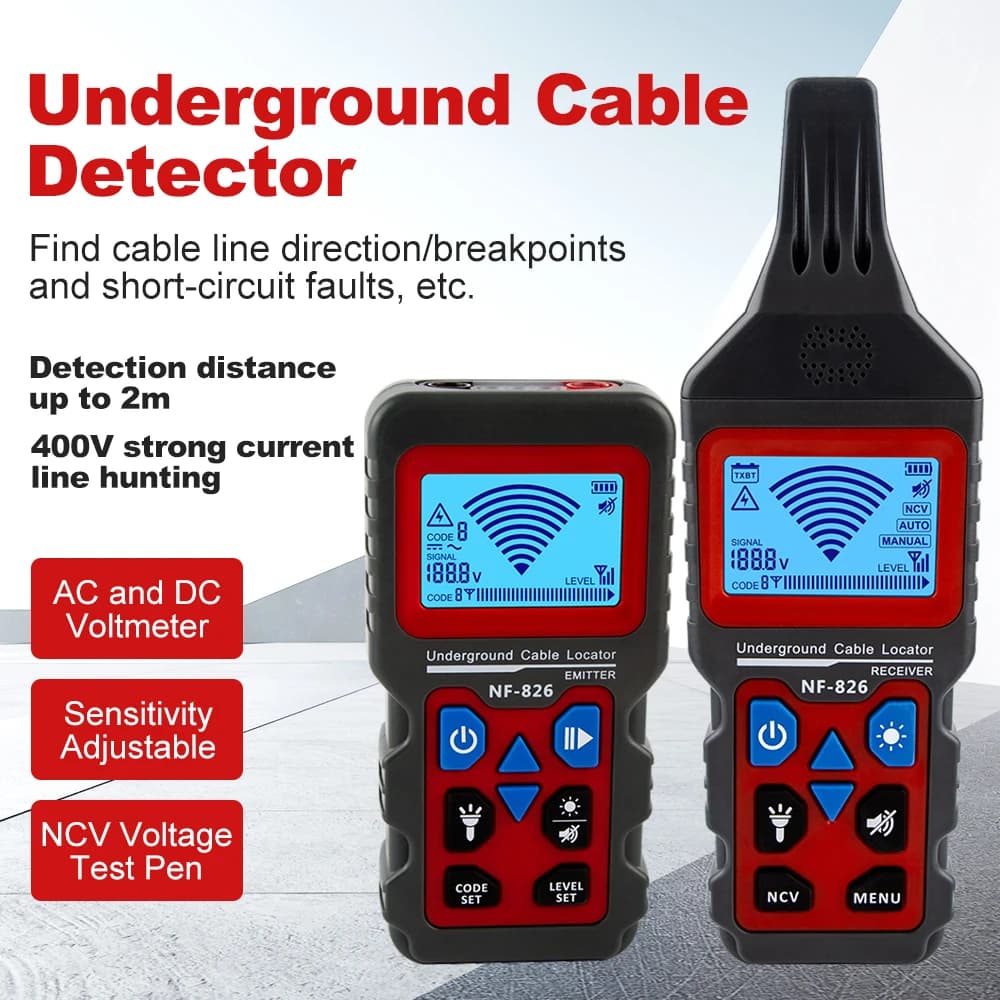

NOYAFA NF-826 Underground Cable Locator Anti Interference Cable Tester Visual Fault Wire Tracer High&Low Voltage Cable Finder

Product Feature:

1. Detecting cables, electrical lines buried in wall or earth, Detection depth is 0-1.5m;

2. Detecting the direction, break points and short circuit points of the cable and electrical lines in wall or earth;

3. Detecting fuse and fuse circuits;

4. Finding the sockets and junction boxes which having been covered.

5. Detecting the broken wires and short circuits of the electric heating circuits under the floor.

6. The transmitter has built-in AC and DC voltmeter function, which can linearly measure AC and DC voltages of 12 to 400V. AC: 12-400V(50-60Hz)±2.5%, DC: 12-400V ± 2.5%,

7. Sensitivity adjustment function: can be adjusted manually or automatically

8. Both receiver and transmitter have mute function

9. The receiver LCD screen has a backlight function, which is convenient for application in poor light places

10. Both receiver and transmitter are equipped with torch function, convenient to work in dark environment.

11. Rechargable Lithium battery for long-time work. Automatic shutdown function.

Three Common Methods of Use（Line must be de-energized）：

1. Look for underground cables

Use the red clip (red needle)to clamp the cable that needs to be searched and the black clip (black needle)to the ground wire and the receiver traces the signal along the line to find the cable direction.

2. Look for short-circuit points of underground cables

Use the red clip/black clip to clamp the short-circuited wire separately, adjust the sensitivity to an appropriate level the receiver will sound before the short-circuit point, and the receiver will not sound after the short-circuit point.

3. Find underground cable breakpoints

The red clamp clamps the target line, the black clamp clamps all the remaining lines and then connects the ground rod to ground(good grounding is required), the receiver will sound before the break point and the receiver will not sound after the break point.

Product Description:

Brand: NOYAFA

Product Name: Underground Wire Tracker

Type: NF-826

Size: 156x80x32mm(Transmitter) , 226x73x69mm(Receiver)

Detection Depth: 0.1 - 1.5 meter

External voltage identification range: DC 12~400V±2.5%, AC12~400V(50~60Hz)±2.5%

External voltage's dielectric strength: Max.400VAC/DC

Fuse: F0.5 A 500V 6.3x32mm

Single-pole Application: About 0~1m

Dual-pole Application: About 0-0.5m

Single Loop Line: Up to 2.5m

Power Supply: 3.7V 1400mAh Lithium Battery

Display: LCD Display with function display and column chart
