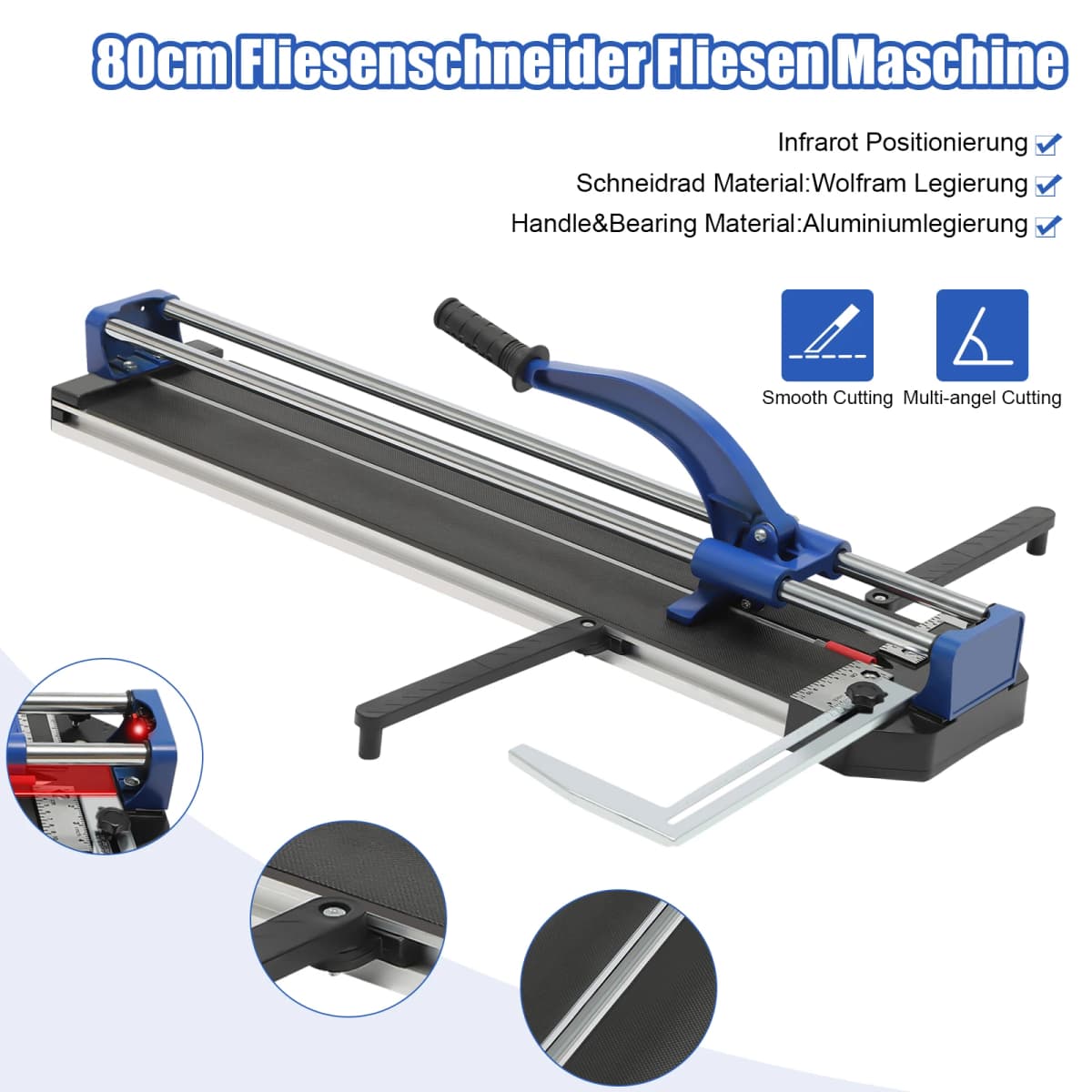

Manual Tile Cutter 800 Mm Damp Carriage Cut Manual Carriage Cut Maximum Cutting Thickness 15 Mm for Tiling and Renovation

Description
A manual tile cutter is a commonly used cutting tool in construction. The reinforced tungsten alloy cutting wheel can ensure efficient cutting. Simply apply appropriate pressure on the handle to push the cutting wheel into the tile for cutting. Compared to electric tile machines, manual tile machines are compact and easy to operate, making them suitable for cutting a wide range of tiles.

Key Features
Efficient&Precise Cutting: The reinforced tungsten alloy cutting wheel with high hardness can ensure smooth and flat cutting without burrs, making the joints more beautiful to save decoration costs with an efficiency of 5-10 times higher than an electric cutting machine. Meanwhile, the embedded collimator with infrared positioning function and the precise guiding ruler with clear scale can facilitate high-precision cutting.

Energy-saving&Environmentally Friendly: It is easy and economical to use without having to connect to a power supply or add petrol, saving lots of energy.

Thoughtful Design: The high-quality ball bearings allow for smooth rolling cuts. Also, the cutter wheel is highly visible, making it easy to observe the working process.

Good Stability: The large and thickened base and screw-reinforced handle ensure good stability, so you can use this product safely.

Sturdy and Durable: The tungsten alloy cutting wheel, aluminum alloy handle&bearing&base, and hardened alloy steel slide rail are wear-resistant, corrosion-resistant, and can resist shock, deformation, and break, ensuring extended service life. And the electroplating process makes the slide rails shinier and less prone to rusting.

Hassle-free Use: It can achieve dust-free and noise-free cutting, providing you with a comfortable operating environment. Once the tile has been marked, you can easily cut it by gently pressing the handle. And the thickened sponge pad on the base and shockproof U-shaped sheath can protect the tiles from breakage. Meanwhile, you can adjust the ruler through nuts.

Guaranteed Customer Service: We aim to provide quality products and services. If you have problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Details
Ergonomic Handle: The curved ergonomic handle makes it easier to operate with less effort. The aluminum alloy handle has a non-slip rubber cover on the end, which does not hurt your hand and makes it more comfortable to use.

Balancing Bracket&Ruler Bar: They can flexibly move within 90° to support the tiles and accurately measure them.

Application
It is suitable for cutting materials with a thickness within 3/5'' and width within 0.39-31'', such as wall tiles, groove tiles, raised tiles, patterned tiles, flat tiles, solid tiles, glazed tiles, polished tiles, glass tiles, and many other mainstream tiles. It can be used in multiple workshops and industrial sites.

How to Use
1. Fixed Position: Hold the handle with one hand, pull the slide back to the seat, and place the ceramic tile flat on the base plate (if necessary, extend the ruler to measure). Align the cutting line of the ceramic tile with the center support plate, and the front end of the ceramic tile should be close to the notch of the base plate.
2. Score and Press Down: Lower the handle and make the cutting wheel contact with the surface of the ceramic tile. Push the handle forward lightly to cut a continuous, even straight line on the ceramic tile.
3. Break-off: Lift the handle slightly backward, allowing the pressure block to fall smoothly onto the front end of the ceramic tile. Apply appropriate force to push the handle down, and the ceramic tile will break along the scoring line.

Specification
Product Model: 800F
Cutting Wheel Model: YG96
Color: Blue
Cutting Wheel Material: Tungsten Alloy
Handle&Bearing Material: Aluminium Alloy
Base Material: Aluminium Alloy, Sponge
Slide Rail Material: Alloy Steel
Slide Rail Surface Treatment: Hardening Process, Electroplating Process
Operating Method: Manual
Guide Rail: Dual Track
Special Function: Infrared Positioning
Balancing Brackets&Ruler Bar Adjustable Angle Range: 0-90°
Battery Type: 2* AAA (Included)
Slide Rail Diameter: 20mm/0.78in
Base Plate Thickness: 1.2mm/0.04in
Maximum Cutting Width: 80cm/31in
Minimum Cutting Width: 1cm/0.39inch
Maximum Cutting Thickness: 15mm (3/5inch)
Gross Weight: 10kg/22lbs
Package Size: 102*27*18cm/40*10*7inch
Base Size (L*W): 101*20cm/39.76*7.87inch

Package Included
1* Manual Tile Cutter (With Balancing Brackets+Ruler Bar)
1* English Manual

Notes
1.Shallow and thin knife marks result in a flatter edge of the tile when chipping, while deep and thick knife marks lead to a slanted and unattractive edge.
2.Please note that the force used when pushing must be light and the cut marks on the top of the tile must not be interrupted, otherwise, the tile will be chipped.
3.It is recommended that you choose a tile with a flat surface to cut.
4.Please read the manual completely before installation and use, and pay particular attention to the safety instructions included.
5.Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
