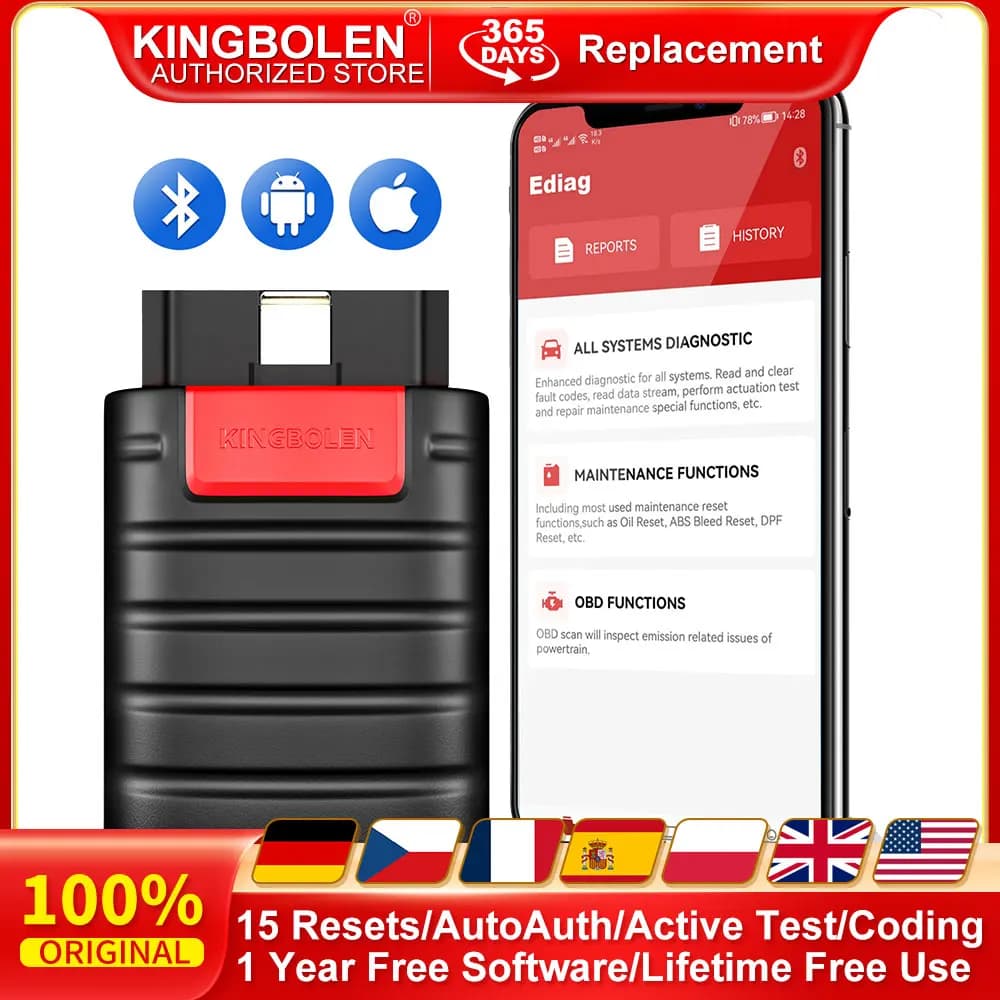

KINGBOLEN Ediag OBD 2 EOBD Scanner Offline Coding Active Test 15 Resets Auto Full System Car Diagnostic Tool with AutoAuth

OBD2 & EOBD Full Function:

The KINGBLOEN Ediag Bluetooth OBD2 Scanner also supports all OBD2 test modes,such as read/clear codes,live data stream/freeze frame, I/M Readiness,O2 Sensor Test,etc. It's an ideal choice for DIY car enthusiasts and small/mid-sized repair shops to do quick automotive repairs and maintenance.

1. Read Codes: Show the detailed description of the Diagnostic Trouble Code (DTCs)
2. Clear Codes & Reset: Turns off Check Engine Light (MIL), clears codes and resets monitor
3. Data Stream: Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data
4. I/M Readiness Status: Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.
5. Read Live Data Stream: Show the information of continuous data stream from a vehicle in live graphic (waveform) display.
6. View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.
7. O2 Sensor Test: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle's on-board computer.
8. On-Board Monitor Test: Retrieves and displays test results for emission-related Powertrain components and systems.
9. Read Vehicle Information: Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.
10. Component Test: Certain vehicle components can be actuated by commands sent from the scanner to test their operability.

Supports Full Bi-directional Test + Coding(Offline Coding):

It features full Bi-directional control that can drive solenoids and actuators for active testing, which allow sending commands directly from the APP to vehicle ECUs to perform active tests, like a window, door, and sunroof, etc. It's a standard choice in the workshop/auto repair shop, it enables accurate and pinpointing issues and greatly improves diagnostic efficiency. ECU Coding allows you to match/Initialize components adaptive data after replacing some components, and Flash Hidden Functions to optimize vehicle performance and activate high-end functions for VW, BMW, etc.
(NOTE: You need to make sure the car has a stable source of power.)

Bi-directional Control:

It supports a bi-directional control capability to send the command to the vehicle ECU to perform active/component tests to check its functionality which can accurately figure out whether a specific system, component or subsystem in vehicles goes well.
FOR EXAMPLE: If the vapor emission system failure may be due to the EVAP cleaning valve may have been opened or closed after being stuck or short circuit, you can use our LAUNCH 919E scanner to send the command to the vehicle ECU to perform EVAP tests, then diagnose the DTC and read the data stream. Can determine which part of the circuit, control unit, and actuator fails through comparative analysis.

Commonly-Used Active Tests including:
- EVAP Vent / Purge Solenoid;
- Fuel Injector Test;
- Cycling A/C Clutch Relay;
- Cycling ABS Motor Pump;
- Cooling Fan Test;
- Window/Light/Door Lock Actuators/Headlamp Test/Sunroof/Operate mirrors/Turn on the sound horn;

And also can perform other actuation test functions including Modulate the throttle,Turn Off ACC Lane Keeping Assist System (LKAS) ; Turn ON/OFF Front and Rear side ACM Solenoid, Left clutch electromagnetic coil test,Acceleration Device Test,Oil Pressure Control Test DYNAMIC camera aiming,Brake Vacuum Pump, Inlet and Outlet Valve tests, Open Brakes tests, Parking Brake Motors, Wheel Speed Sensor Supply, PARKING BRAKE tests, etc.

*Actuation test functions vary by the vehicle system.

Coding(offline coding):

With the help of coding, you can change the chimes on their car, set how many times its one-touch signal flickers for one touch, remember settings for Start/Stop systems, and more. Coders can also activate cornering headlights with fog lights, deactivate some buzzing sounds, and enable multiple functions of the comfort module.

Compatible for VAG Group cars.

Supports Full System Diagnosis+ Active Test:

The KINGBLOEN Ediag OBD2 Bluetooth scanner works as a professional scanner,which can perform comprehensive diagnosis through all available systems in the vehicle to read/clear codes, data stream, read control module information and bi-directional control for ECM, ABS, SRS, TCM, EPB, TPMS, SAS, A/C, BMS, ESP systems, etc. It is compatible with Android 5.0 and above, iOS 9.0 and above, allowing for full functionality via Bluetooth to connect to your car and begin working with it instantaneously.("Ediag"Android or iOS device App can be downloaded on Google Play/App Store.)

Provides 15 Most Used Maintenance Functions:

It provides 15 most used maintenance functions,such as Brake Reset, Oil Light Reset, SAS Reset, Electric Throttle Relearn, TPMS Reset, DPF Regeneration, Injector Coding, etc.

(Note: the special functions that can be performed may vary by car model.)

1. Oil Reset:The lightening of the car maintenance light indicates that the vehicle needs maintenance Reset the mileage or driving time to zero after the maintenance.
2. DPF Regeneration:It is used to clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode. Specially works for Diesel Particulate Filter system with DPF.
3. Electronic Throttle Adaption is to utilize the car decoder to initialize the throttle actuator so that the learning value of the ECU returns to the initial state. By doing these, the movement
of the throttle (or idle motor) can be more accurately controlled, thus adjust the intake
volume. Situations when throttle matching is needed:
a)After replacing the electronic control unit, the relevant characteristics of the throttle
operation have not been stored in the electronic control unit.
b)After the electric control unit is powered off, the memory of the electric control unit's
memory is lost.
c)After replacing the throttle assembly, you need to match the throttle.
d)After replacing or disassembling the intake port, the controlling of the idle speed by the
coordination between the electronic control unit and the throttle body is affected.
)Although the characteristics of the idle throttle potentiometer have not changed, the
intake volume has changed and the idle control characteristics have changed at the
same throttle openings.
4. Brake-pad Reset: To deactivating and activate the brake control systems, assist with brake fluid control, open and close brake pads, and set brakes after disc or pad replacement
If the brake pad wears the brake pad sense line, the brake pad sense line sends a signal
sense line to the on-board computer to replace the brake pad. After replacing the brake
pad, you must reset the brake pad. Otherwise, the car alarms.
5. SAS Reset: It helps clear the faulty steering angle sensor memories to reset the steering angle and plays an important role in the steering angle sensor calibration.
6. Battery Matching: Enables you to perform resetting operation on the monitoring unit of battery,in which the original low battery fault information will be cleared.
7. ABS Bleeding:When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity. If the ABS computer, ABS pump, brake master cylinder, brake cylinder, brake line, or brake fluid is replaced, the ABS bleeding
function must be performed to bleed the ABS.
8. IMMO Service:To prevent the car being used by unauthorized keys, the anti-theft key matching function must be performed so that the immobilizer control system on the car identifies and authorizes remote control keys to normally use the car. When the ignition switch key,ignition switch, combined instrument panel, ECU, BCM, or remote control battery is replaced, anti-theft key matching must be performed.
9. Injector Coding:After the ECU or injector is replaced, injector code of each cylinder must be
confirmed or re-coded so that the cylinder can better identify injectors to accurately control fuel injection.
10. TPMS Reset:When due to the tire pressure is too low,tire leaks,tire pressure monitoring device is replaced or installed,tire is replaced and tire pressure sensor is damaged,The tire pressure
resetting function must be performed to reset tire pressure and turn off the tire pressure
MIL.
11. Suspension Matching: When replacing the body height sensor in the air suspension system, or control module or when the vehicle level is incorrect, this function can adjust the body height sensor for level calibration.
12. AFS Reset:It is used to initialize the adaptive headlamp system.
13. Gearbox Matching:This function can complete the gearbox self learning to improve gear shifting quality.
14. Sunroof Initialization:This function can set the sunroof lock off, closed when it rains, sliding / tilting sunroof memory function, temperature threshold outside the car etc.
15. EGR Adaption: This function is used to learn the EGR (Exhaust Gas Recirculation ) valve after it is clean or replaced.

Featuring AutoVIN Function:

This diagnostic scanner has an Auto-VIN function. It can automatically identify the vehicle's VIN number and detail models and then enter the vehicle diagnostic menu. One-click 'Health Report' for a complete vehicle system scan to generate a detailed vehicle health report after diagnosis. Diagnostic reports records can be viewed and shared. Support a maximum of 4 live data to be merged into a graphic for easier comparison and data records to better monitor vehicle performance and analyzes abnormal parameters.
(Note: Some models may not support automatic scanning, please manually select the model software to complete the vehicle diagnosis. )

Wide Coverage + AutoAuth Access:

Supports up to 140+ vehicle brands, which can work well on all 12V vehicles manufactured after 1996 that use the OBDII protocol, like ISO 14230-4 (KWP2000), IOS 15765-4 (CAN), ISO 9141-2 (IOS), ISO 14229 (UDS), SAEJ 1850 (VPW&PWM). Supports AutoAuth for FCA SGW, which makes it compatible with Chrysler, Dodge, Jeep, Alfa Romeo, and Fiat vehicles manufactured after 2019.(*Only provide AutoAuth login portal, and need purchase the registration number on the AutoAuth website by yourself.)

Multilingual + 1-year Free Update:

It provides 12 languages for free use, including English, French, Spanish, German, Russian, Italian, Portuguese, Japanese, Turkish, Polish, Greek, and Traditional Chinese.And supports 1-year full software function use and update, after the free update period is due, you can still use this tool's OBDII functions for free, or to renew the subscription and continue to use all its features on all compatible models.

The Ediag Bluetooth Car Reader meets the following protocols:

-ISO 14230-4 (KWP2000)
-ISO 15765-4 (CAN)
-ISO 9141-2 (ISO)
-ISO 14229 (UDS)
-SAEJ 1850 (VPW & PWM)

Technical Details:

• Bluetooth Version: Dual-band Bluetooth 4.2
• Working Voltage Range: 9~18V
• Working Current:≤130mA
• Working Temperature: 0℃ to 50℃ (-32℉ to 122 ℉)

Packing List:

1. The Kingbolen Ediag OBD2 Scanner
2. Quick Start Guide
