400kg Electric Hoist Lifting Crane Wireless Remote Control Cable Hoist Winch with Double Rope

400kg Electric Hoist Lifting Crane Wireless Remote Control Cable Hoist Winch with Double Rope

Application

It is suitable for agriculture, factories, docks, mines, warehouses, logistics, construction sites, goods lifting, automobile manufacturing plants, railroads, stage construction, buildings, garages, ceilings, attics, barns, lofts, etc. It is used for lifting regular or irregularly shaped objects.

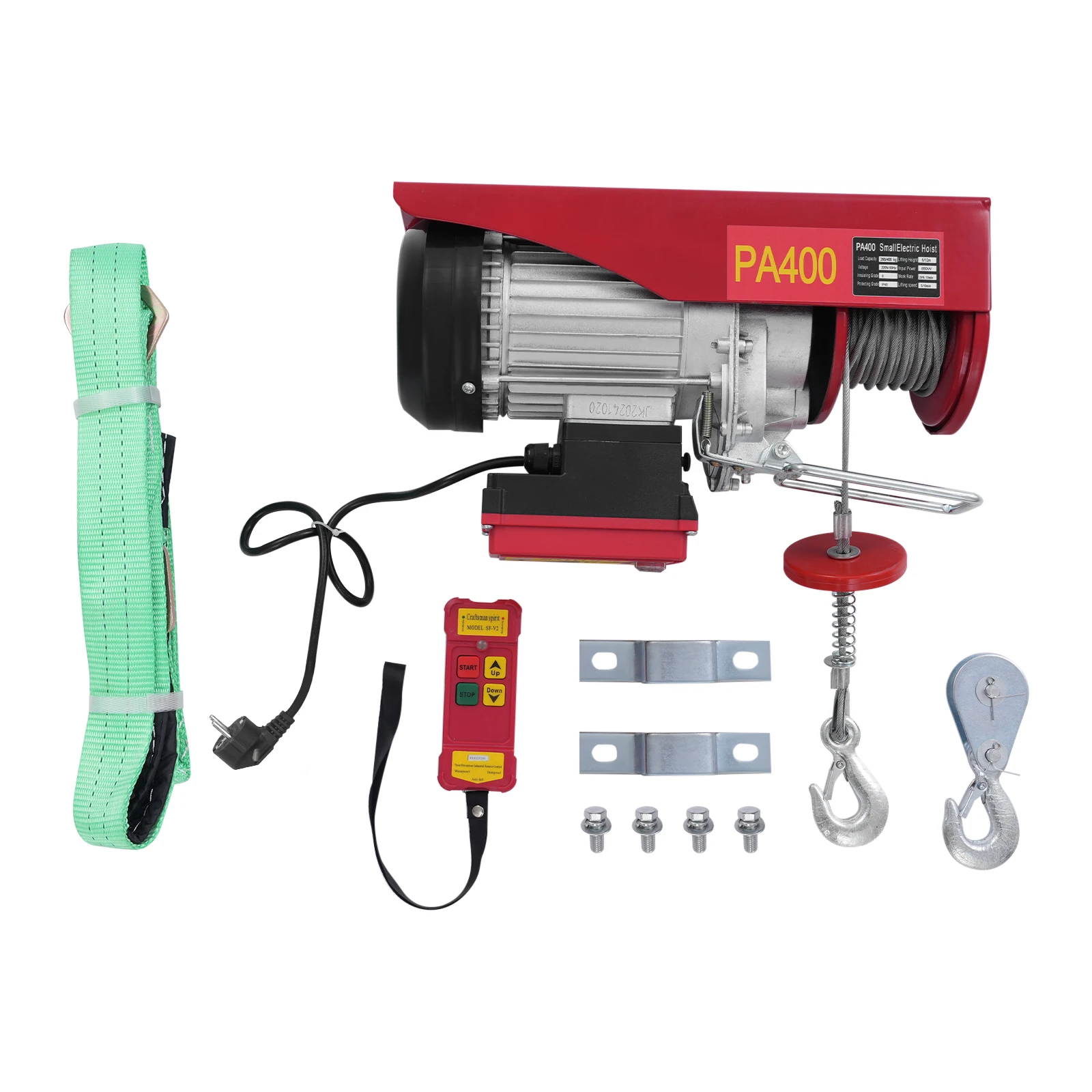

Package Included

1 * Electric Hoist

2 * Lifting Straps

2 * Hooks

2 * Mounting Brackets

1* Remote Control

All Accessories for Use

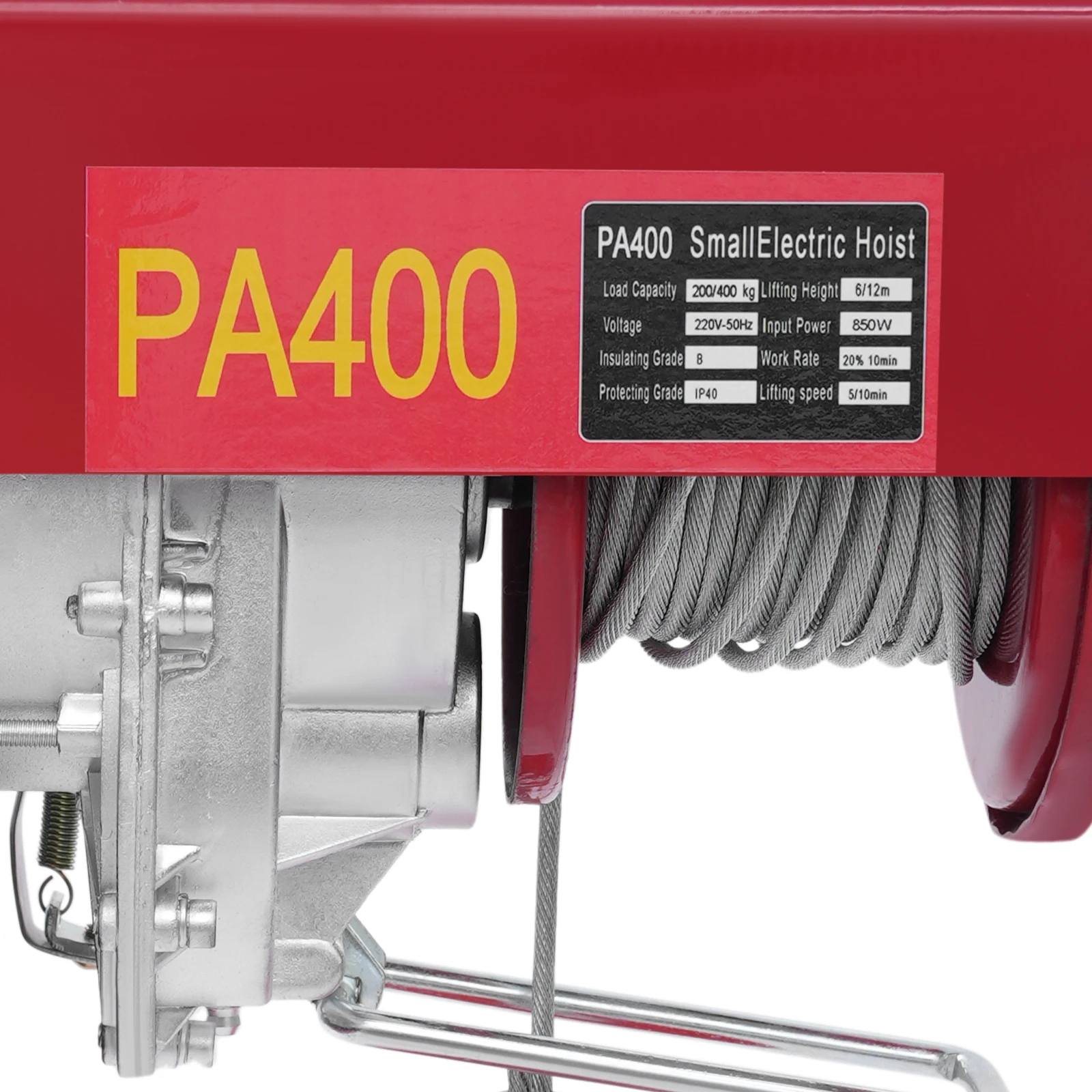

Specifications

Color: Red

Material: Q235 Steel, Aluminum Alloy, Steel

Process: Electrostatic Spraying, Spray Painting

Motor Type: Aluminum Wire Motor

Plug Type: EU Standard/UK Standard

Voltage: 220V-50Hz

Power: 850W

Insulation Grade: B

Protection Grade: IP40

Load Capacity: 200kg/441 lbs (Single Rope), 400kg/882 lbs (Double Rope)

Lifting Speed: 10m/32.81ft/min (Single Rope), 5m/16.4ft/min (Double Rope)

Lifting Height: 12m/39.4ft (Single Rope), 6m/19.69ft (Double Rope)

Work Rate: 20% 10min

Remote Control Distance: 80m/262.5ft

Power Cord Length: 0.5m/1.64ft

Product Size: 38.5*14.5*14.5cm/15.16*5.71*5.71in

Package Size: 48*28*20cm/18.9*11.02*7.87in

Gross Weight: 14kg/30.86 lbs

Net Weight: 13.3kg/29.32 lbs

Key Features

Build to Last:It is made of premium Q235 steel and aluminum alloy, and its surface is treated with electrostatic spraying and spray painting technology, which is wear-resistant, impact-resistant, rust-resistant, sturdy, and has a long service life.

High Load Capacity: The thick steel wire rope and sturdy hooks ensure its high load-bearing capacity, with a single rope-bearing capacity of 441 lbs and a double rope-bearing capacity of 882 lbs, meeting your heavy lifting needs.

Efficient Lifting: The 850W aluminum wire motor enables it to lift heavy objects smoothly and quickly, with a single rope lifting speed of 32.81ft/min and a double rope lifting speed of 16.4ft/min, improving work efficiency.

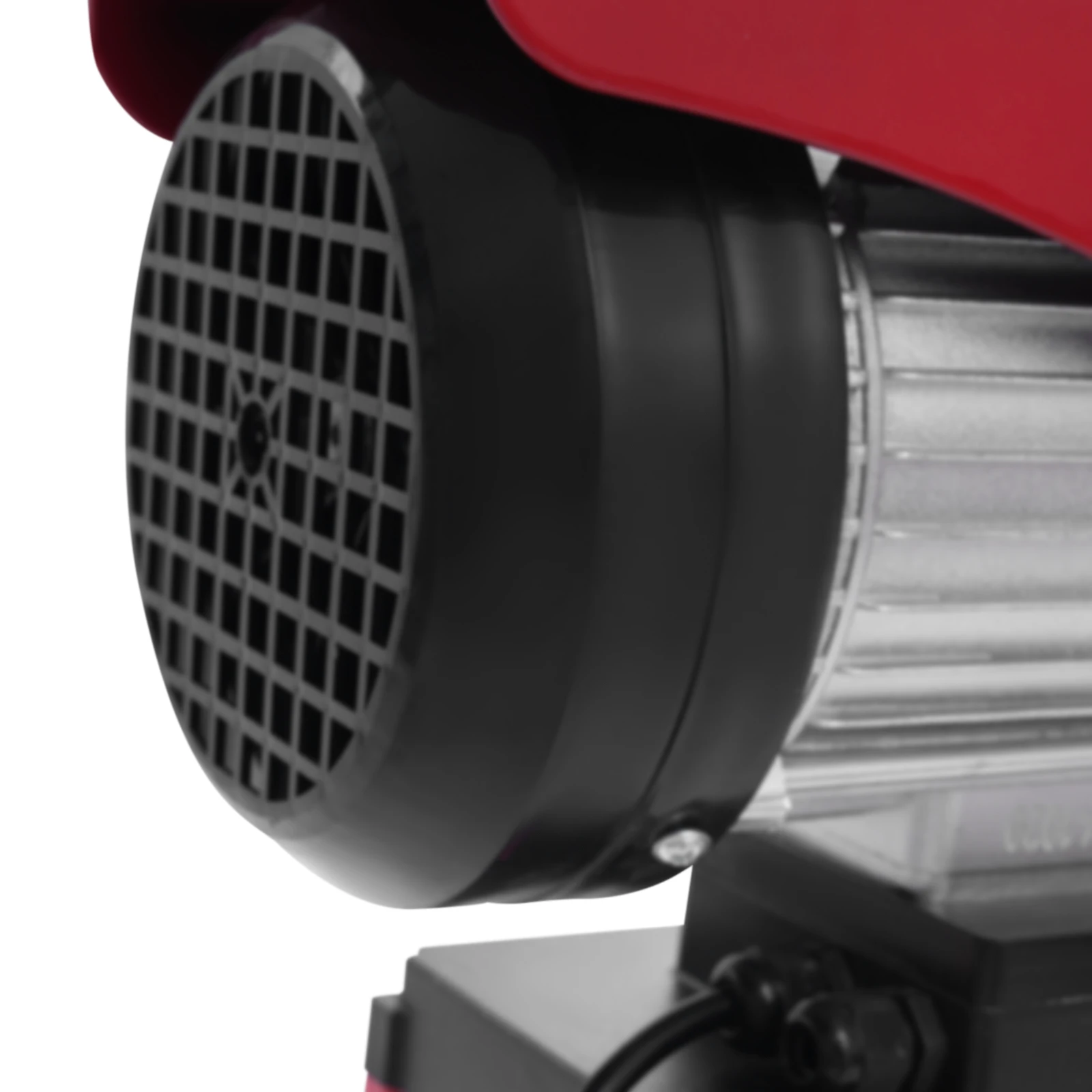

Strong Heat Dissipation: The built-in cooling fan and multiple heat dissipation holes can quickly dissipate heat, reduce the risk of burning the machine, and ensure long-term stable operation of the machine.

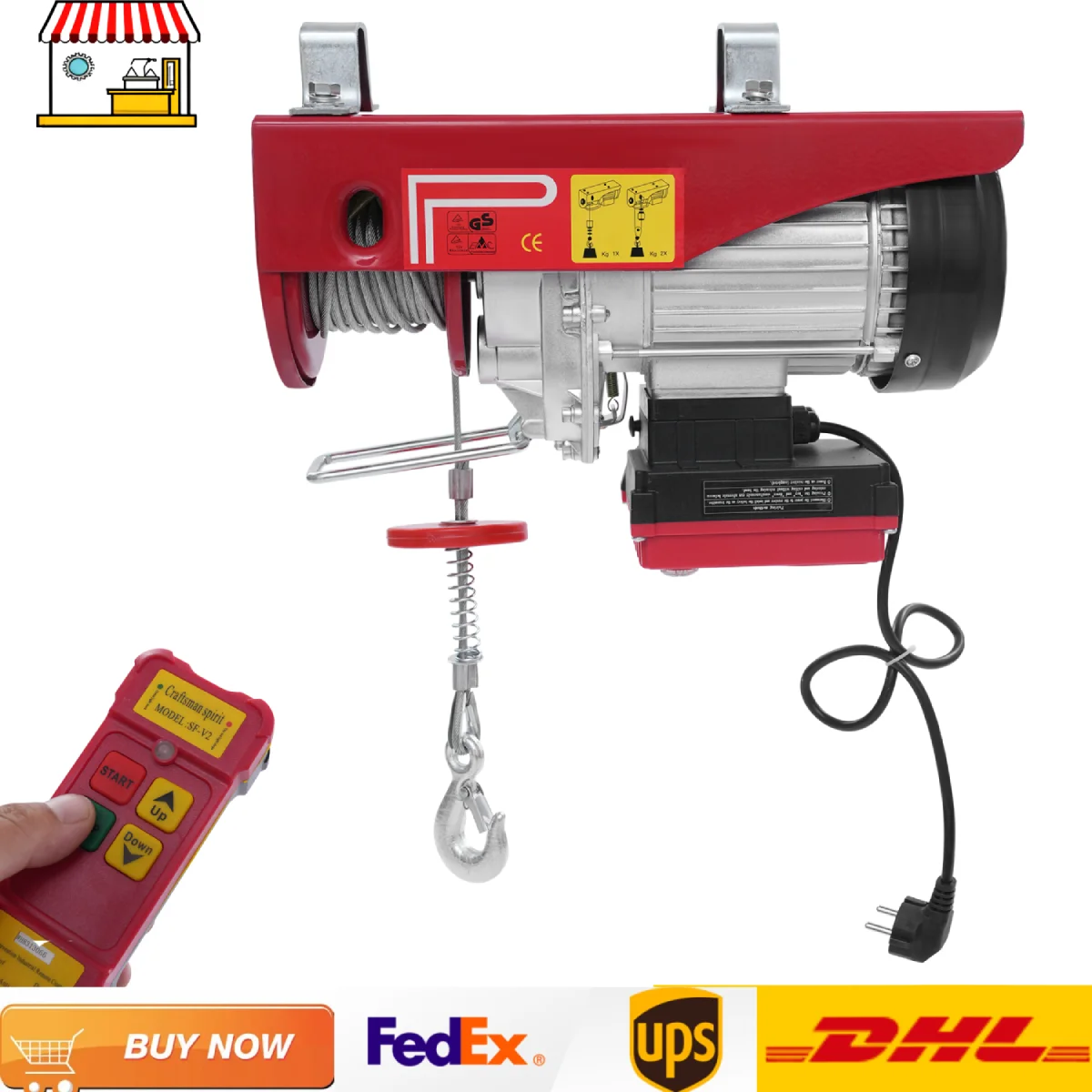

User Friendly: It comes with a wireless remote control with a remote distance of 262.5ft, allowing you to operate the electric hoist with one hand. It also comes with a double rope pulley hook, giving you the flexibility to choose between single or double rope use.

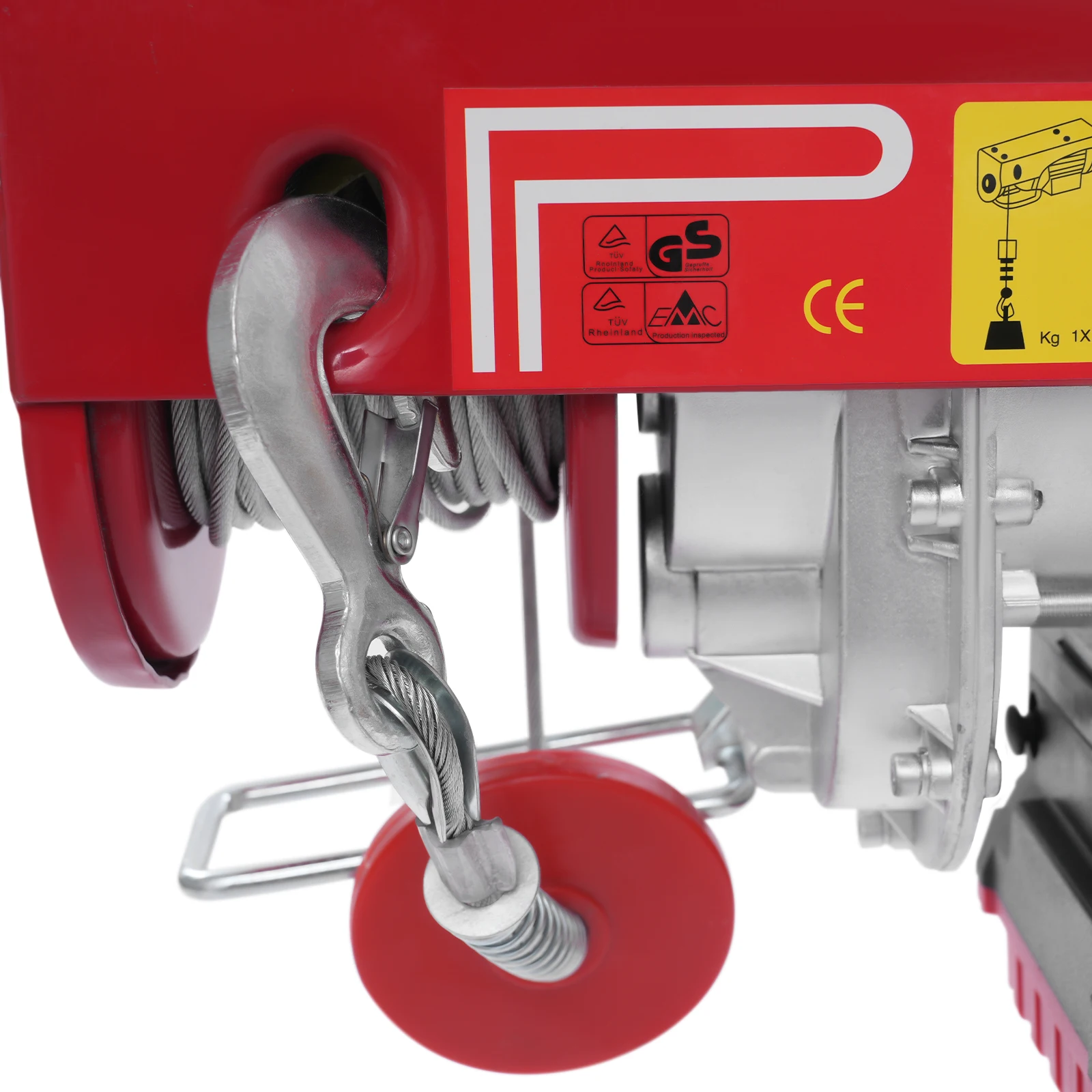

High Safety: It comes with a limiter that can automatically cut off the power to protect your safety when the machine is hoisted to a certain position.In addition, the hook with a latch design can provide further protection to prevent goods from falling off.

Easy to Install:We provide two mounting brackets, which allow you to directly install them onto the ceiling using horizontal bars or metal strips (not included), saving time and effort.

Customer Service: We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Description

Are you still troubled by the weight of things and the difficulty of manual handling? The development of modern technology has brought great convenience to human life and work. This electric hoist is made of premium materials and exquisite craftsmanship to ensure durability. The powerful motor and sturdy steel wire rope provide strong lifting capacity and high work efficiency. It will become your capable assistant for lifting work!

Details

Practical Lifting Straps: The package is equipped with two additional lifting straps for securing hard-to-hook goods, so you don't need to buy extra, which is economical and convenient.

Rounded Edges: The rounded edges not only improve the aesthetics of the product but also effectively protect your hands from scratches.

Notes

1. Please note that the width and height of the boom should not exceed the internal dimensions of the mounting bracket.

2. If the specified object is too large or the object cannot be hung directly on the hook, you will need to tie the sling around the object to lift the object.

3. Please ensure that all persons in the immediate area are informed and warned of the need for safety before lifting and moving heavy objects. If necessary, set up a lifting area to remind unoccupied and uninvolved persons that they are not allowed in.

4. Please purchase the electric hoist corresponding to the weight required for the job.

5. If the hook is cracked or deformed, or if the wire rope is kinked or corroded, please do not use the product.

6. Please do not leave lifted heavy objects unsupervised for long periods as this may cause injury.

7. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
