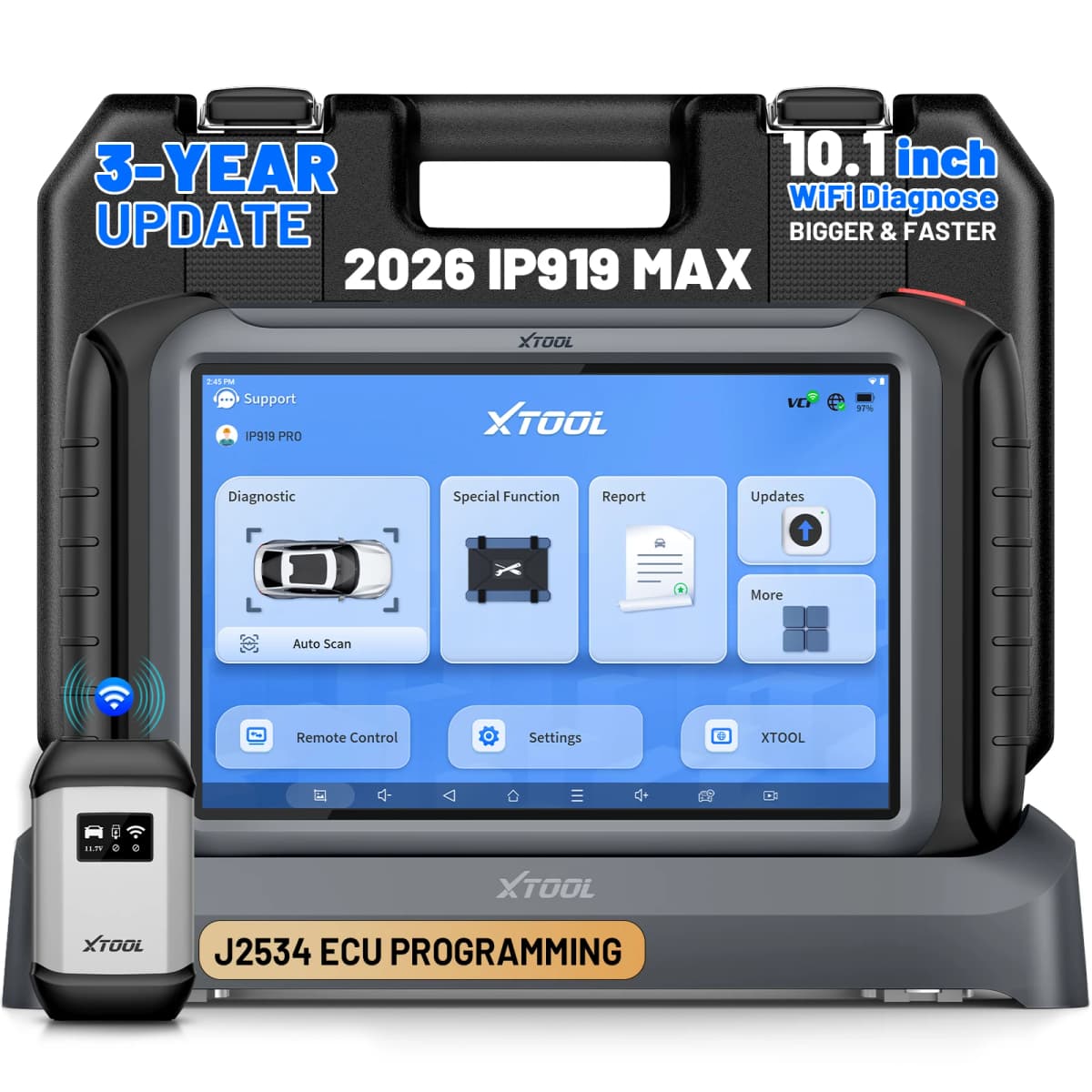

XTOOL IP919 MAX ECU Programmer J2534 Programming Car Diagnostic Tools 51 Resets Automotive Scanner Intelligent Topology FCA DOIP

2026 Newest Version INPLUS IP919 MAX All-in-one Scanner, Targeted for Professional Mechanics, INPLUS IP919 MAX Newly added FCA AutoAuth，With Advanced J2534 ECU Programming & Coding, Bi-Directional Control, Intelligent Topology Map for Full Diagnostic, Step-By-Step Guided Function (for VAG), 51+ Services, IMMO/Key Programming, With Smart WIFI Connection and Lined Connection Via USB Cable, Supports DOIP & CAN FD Protocols. Powerful basic configuration: Android 10.0 systems, 10.1 Touch Screen, 6400mAh 7.2V Battery, 1920*1200 Resolution, 8 Core 4.0GHz, 8G+128G

XTOOL INPLUS IP919 MAX PROFESSIONAL ALL-IN-ONE CAR DIAGNOSTIC TOOL

ADVANCED J2534 ECU PROGRAMMING AND REPROGRAMMING

IP919 MAX Diagnostic Scanner allows technicians to program and reprogram automotive ECUs to install new software or calibration data. XTOOL IP919 MAX ECU Programmer can fix software defects, improve performance or meet the latest emissions regulations. It is suitable for initialization settings after replacing the ECU module to ensure that the replaced ECU is compatible with the vehicle. Supports personalized settings for specific vehicle parameters, such as throttle response, transmission shift logic, suspension height, etc. This feature varies by manufacturer, Please contact the seller to inquire before purchasing.

ADDED FCA AUTOAUTH FUNCTION--NEWEST

XTOOL INPLUS IP919 MAX Automotive Diagnostic Scanner supports access to the Security Gateway Module on 2018 and For Fiat/Chrysler/Dodge/Alfa Romeo/Renault vehicles so that diagnostic tools can clear codes, run bi-directional active tests, drive, relearn and even IMMO passwords Key programming (PIN extraction and writing), ECU encoding, initialization, ADAS calibration assistance, etc. (No Need FCA 12+8 Cable). Note: The buyer is required to register an FCA account, any charges have nothing to do with the seller.

XTOOL IP919 MAX NEW ADD PRE SCAN & POST SCAN FUNCTION

The PRE SCAN and POST SCAN functions generally refer to diagnostic operations before and after vehicle repairs. An important step in ensuring automotive repair diagnostic integrity, repair quality and customer satisfaction. Greatly adds to the credibility of the shop and its technicians that also goes a long way to justify the diagnostic charge. V2.0 Report: Report 2.0 allows you to customize shop and vehicle information, Try to add the customer's vehicle problem in the form of a picture to the report, and don't forget to put your shop logo in a prominent position in the report!!

WIRELESS WIFI DIAGNOSTICS POWERFUL THAN BLUETOOTH DIAGNOSTICS

Compared to Bluetooth and Cable Connection Diagnostics, WIFI Connection Diagnostics has a faster transmission speed and a Longer Communication Distance, more free and not limited by the length of diagnostic cable, make work is more efficient, convenient and stable.

OE-LEVEL FULL DIAGNOSTIC & GUIDED FUNCTION (FOR VAG)

XTOOL INPLUS IP919 MAX scanner can scan all available vehicle systems like Engine, Trans, ABS, Airbag, Brake, Body, Chassis, HVAC, Radio and etc to perform dealer-level diagnostics: Read/Clear DTCs, Data Stream & Graphing like fuel trims/misfire/trans oil temp/ mass airflow/ clutch sensors/ O2 sensors/ ABS speed sensors, export data as CSV, and active tests(bidirectional controls), retrieve freeze frame & ECU info and turn off warning lights/reset monitors on various systems.

INTELLIGENT TOPOLOGY MAP TO FASTER DIAGNOSIS

XTOOL INPLUS IP919 MAX auto diagnostic scan tool new-added intuitive topology module mapping, having everything in a view on the communication structure between modules just one click to display all fault codes, executive functions and view live data in graphing directly. Help technicians to save time and effort! Shop Repair efficiency improved at least by 60%! Note: Do not available for All Vehicles

BI-DIRECTIONAL CONTROL (ACTIVE TESTS)

INPLUS IP919 MAX is a full bi-directional control scan tool that can command car ECUs to perform various active tests like: Injector Tests, Fuel Injector Balance, Compression Test, Cooling Fan, A/C Clutch On/Off, ABS Motor Pump, Windows/Wipers/Sunroof/Doors, to provide in-depth diagnostic tests and pinpoint fault causes like locating bad injector efficiently & accurately. Note: Active Tests available vary across vehicles. Older vehicles tend to have less tests available

PROFESSIONAL IMMO/KEY PROGRAMMING

The IMMO service can disable a lost vehicle key and program the replacement key fob. One or more replacement key fobs can be programmed. like programming new key fobs, Read PIN Code/Pin Code calculation, Check number of keys, Generate key, Add key, All key lost

51+ SPECIAL FUNCTIONS MAKE REPAIRING EASIER

INPLUS IP919 MAX Auto Scan Tool Comes With Comprehensive Special Functions: Oil Reset, EPB, SAS, BMS, Throttle, Injector Coding, ABS Bleed, Immobilizer, A/T Match, Suspension, TPMS Reset, Headlight, Window, Seat, Power Balance, ABS Initialization, VSC Yaw Rate, SWS Calibration, Fuel Alcohol, Content Reset, Trans Fluid Counter Reset, Idle Relearn and etc. New Add Function: GPF, Sunroof Initialization, Camshaft Learning, Coolant Refrigerant Change, TCM Oil Reset, EVAP Test, Glow Plug Reset, Fuel Injector Calibration, Prime Fuel Pump.Note: Special Functions do NOT work on all cars.

SUPPORT CAN FD/DOIP PROTOCOLS

Compatible More CAN FD Protocol Vehicles (For GM Vehicles After 2020) (CAN FD Adapter NO Needs Buy Separately); DOIP Function Compatible For BMW E/F/G Chassis, Jaguar, Land Rover vehicle makes.

3 YEARS SOFTWARE UPDATE, LIFETIME TECHNICAL SUPPORT

INPLUS IP919 MAX is equipped with one-click online update and 3-year free update to get the latest software, which can support more functions and new model coverage. Even after the free update has expired, the device will still work normally. If you encounter any problems, our technicians will serve you for free for life.

XTOOL INPLUS IP919 MAX SUPPORTS 22 LANGUAGE

English, Spanish, French, German, Polish, Portuguese, Russian, Danish, Greek, Finnish, Hungarian, Italian, Japanese, Korean, Dutch, Norwegian, Swedish, Thai, Arabic, Turkish, Vietnamese, Traditional Chinese. English is default language, if you need other language, Please send the S/N to seller authorized language.

TOP HARDWARD CONFIGURATION

🚩Pre-Scan and Post-Scan🚩Added FCA AutoAuth🚩Android 10.0 Systems🚩Support CAN FD/DoIP🚩Intelligent Topology Map🚩10.1 Touch Screen🚩6400mAh 7.2V Battery🚩1920*1200 Resolution🚩8 Core 4.0GHz CPU Processor 🚩8G + 128G

XTOOL INPLUS IP919 MAX A HIGH-END J2534 ECU PROGRAMMING

XTOOL INPLUS IP919 MAX Professional Diagnostic Scan Tool can Perform Online ECU Programming on BMW, Mercedes Benz, Volkswagen, Offline ECU Programming on Ford, Lincoln, Mazda and ECU Coding on Volkswagen, Audi, Skoda and etc to program/reflash ECUs, perform Online Calibrations, Online Parameterizations and customize car settings.

➤Perform Online ECU Programming on ECM, PCM, BCM For BMW/BENZ/VW, to: Replace the existing software, firmware in the ECU；Program/reflash new modules after ECU replacement；Fix software-controlled driving performance and emission issues.

➤Perform Offline ECU Programming For Ford/Lincoln/Mazda, to: Copy the codes from old module to the new one when you have swapped the ECU/Module from a doner car；Perform Programmable Module Installation(PMI) to reprograms the adaptive data for certain components after repairs or replacements.

OE-LEVEL FULL SYSTEM DIAGNOSTIC

OE-Level Full System Diagnostic with Topology Module Mapping: With Topology Map for faster full system diagnostic to view the communication structure between modules clearly with all the situation of each system to read/clear codes, live data PIDs graphing for all vehicle systems including Engine, Transmission, Chassis and Safety control system, Body control system, Communication and Entertainment system, etc.

INTELLIGENT TOPOLOGY MAPPING

➤Equipped with color coded module status for faster full system diagnostic results.

➤View the communication structure between modules clearly with all the situation of each system.

XTOOL IP919 MAX NEW ADD PRE SCAN & POST SCAN FUNCTION

The PRE SCAN and POST SCAN functions generally refer to diagnostic operations before and after vehicle repairs. An important step in ensuring automotive repair diagnostic integrity, repair quality and customer satisfaction. Greatly adds to the credibility of the shop and its technicians that also goes a long way to justify the diagnostic charge.

➤PRE SCAN: Can read the vehicle’s current fault codes and stored historical fault codes. These fault codes will provide initial clues to potential problems in the vehicle's systems. Help technicians and car owners understand the current health status of the vehicle and provide guidance for repairs.

➤POST SCAN: After repair or maintenance is completed, use the diagnostic equipment to scan the vehicle again to ensure that all fault codes have been cleared and the vehicle system is normal. Make sure all issues are resolved, the vehicle is in top condition after repairs, and avoid hidden problems.

➤V2.0 REPORT: Report 2.0 allows you to customize shop and vehicle information, Try to add the customer's vehicle problem in the form of a picture to the report, and don't forget to put your shop logo in a prominent position in the report!!

BI-DIRECTIONAL CONTROL/ACTIVE TEST

Full bi-directional control ability to verify system input/output by sending commands to vehicle’s systems/components. Such as EVAP Tests, Compression Test, turn on/off radiator fan, A/C Clutch On/Off, Fuel Pump, Window/Mirror/Door Lock Test, Pump and Value Tests, Interior & exterior lights Test, Sound horn Test, etc

51+ SPECIAL FUNCTIONS TO PERFORM COMPREHENSIVE VEHICLE SERVICE MAINTENANCE

Advanced Special Functions:Oil Light Reset, EPB, SAS, DPF, BMS Reset, Throttle, TPMS Reset, ABS Bleeding, Injector Coding, Immobilizer, Gearbox Match, Suspension, Window Initialization, Seat Calibration, Headlight, ECU Configuration, A/F settings, Start/Stop Reset, Airbag Repair, Instrument Cluster, Language Change, Transporte Mode, Tire Size Reset, Crank Sensor Relearn, Power Balance, EEPROM, Coolant Bleeding, ADAS Calibration, Speed Limit, Clutch Adaption, SRS, EGR Relearn, FRM Reset, Nox Reset, Write VIN, VGT Relearn, HV Battery, A/C Relearn, Rain/Light Sensor, Control unit Reset, Odo Read, etc.

New Add Functions:GPF, Sunroof Initialization, Camshaft Learning, Coolant Refrigerant Change, TCM Oil Reset, EVAP Test, Glow Plug Reset, Fuel Injector Calibration, Prime Fuel Pump.

Note: Special Functions vary across vehicle makes, models, year. Please come to us with VIN number to check compatibility before purchase.

XTOOL INPLUS IP919 MAX WORKS ON MORE PROTOCOLS CARS

➤Added FCA AutoAuth

XTOOL INPLUS IP919 MAX Automotive Diagnostic Scanner supports access to the Security Gateway Module on 2018 and For Fiat/Chrysler/Dodge/Alfa Romeo/Renault vehicles. (No Need FCA 12+8 Cable) Note: The buyer is required to register an FCA account, any charges have nothing to do with the seller.

➤Support CAN FD Protocols

It is the only product in this price range that is compatible with CANFD Protocol and supports the latest For GM vehicles manufactured after 2020. Adopts advanced CRC algorithms to accommodate more data from 8 to 64 bytes in the CAN frame, which runs faster than other products and reduces the risk of undetected errors to greatly enhance the user experience.

Supports For Chevrolet Onix 2020-2021 year

Supports For Chevrolet Tracker 2020 year

Supports For Chevrolet Suburban 2021 year

Supports For Chevrolet Tahoe 2021 year

Supports For Buick

Supports For Cadillac Escalade 2021 year

Supports For Cadillac Escalade 2021 year

Supports For GMC Yukon 2021 year

Supports For GMC Yukon XL 2021 year

Supports For Holden

Supports For DAEWOO

Supports For Alpheon

Supports For Ravon

Supports For Pontiac

Supports For Saturn

Supports For Hummer

➤Support DOIP Protocols

With Diagnostics over DOIP, Diagnostics introduced over UDS are used over TCP/IP and Ethernet. This enables much higher data rates than with CAN. That makes XTOOL INPLUS IP919 MAX save both in terms of time and expenses in the case of complex diagnostic tasks and flash applications. Compatible For BMW (F&G chassis), For Vol*vo models (2018 later), For Land Rover & For Jaguar models (2017 later).

XTOOL INPLUS IP919 MAX PROFESSIONAL KEY PROGRAMMING/IMMO EQUIPMENT

The IMMO service can disable a lost vehicle key and program the replacement key fob. One or more replacement key fobs can be programmed. like programming new key fobs, Read PIN code/pin code calculation, Check number of keys, Generate key, Add key, All key lost.

➤Read PIN Code/Pin Code Calculation

➤Check Number of Keys

➤Generate Dealer Key

➤All Key Los

➤Add Key

➤Delete Key

Note: Key Programming Function is not Universally Compatible, Please Check Compatibility with us.

2026 ADVANCED FUNCTIONS - SUPPORT YOUR NEED

➤PDF Diagnostic Report & Remote Support: XTOOL IP919 MAX auto diagnostic tool enables diagnostic tech or mechanics to generate history diagnostic reports for sharing with customers by printing it out or sending it to customers via PDF.If you encounter problems and are not able to solve them, you could come to us to reserve remote assistance from XTOOL TECH TEAM.

➤For BMW Guided Functions: XTOOL IP919 MAX Can automatically read module fault codes, match the fault codes with known failure modes in the database, and recommend the inspection sequence of the fault area to help technicians start inspection from the most likely fault point. Technicians can quickly troubleshoot problems under guidance and avoid unnecessary testing sessions.

➤For VAG Guided Functions: INPLUS IP919 MAX can perform complex functions such as special functions, ECU coding, etc., to help your diagnostic step by step with instructions for VW/Audi/Skoda, etc.

➤Auto VIN SCAN for Quick Diagnosis: XTOOL IP919 MAX diagnostic tool will start auto-detected process and you can scan your car’s detailed version information with one click. You can always navigate your vehicle manually to perform diagnostics if the AuoVIN do not work in some cases.

➤8 IN 1 Live Data Graphing Functions: XTOOL INPLUS IP919 MAXCar Diagnostic Tools can diagnostic all trouble codes and live data stream of full electrical control units and view Freeze Frame.Display live data stream in text or graphs like cylinder misfires data, transmission fluid/Oil temperature, fuel trim, ATF temperature, cylinder balance rates, engine rpm, O2 sensors, mass air flow sensor data, fuel pressure, actual fuel temperature vs desired fuel temperature and etc;

➤3 Years Free Update and Lifetime Technical Support: INPLUS IP919 MAX is equipped with one-click online update and 3-year free update to get the latest software, which can support more functions and new model coverage. Even after the free update has expired, the device will still work normally. If you encounter any problems, our technicians will serve you for free for life.

COVER 99% MODELS WORLDWIDE---UP TO 2024/2025 VEHICLE

XTOOL INPLUS IP919 MAX all-in-one scanner is specially customized for large Maintenance Shops, Workshops, Car Dealers, Auto Mechanic occupies a place in the XTOOL diagnostic series with its excellent Comprehensive Performance. Works on sedans, SUVs, minivans, 12V light trucks, etc.

For Aisa: Compatible with (JAPAN) for Acura,for Daihatsu, for Honda, for Infiniti, for Isuzu, for Jpisuzu, for Lexus, for Mazda, for Mitsubishi, for Nissan, for Nissan GTR, for Scion, for Subaru, for Subaru, for Suzuki, for Tlisuzu, (KOREA) for Daewoo, for Hyundai, for KIA, for Samsung, for Ssangyong; (CHINA) for Baic, for Beijing, for Changan, for Changan-Ford, for Changcheng, for Changhe, for Chsuzuki, for DF Peugeot, for DF Honda, for DF Nissan, for DF XK, for Flyer, for BYD, for Fukang, for Futian, for Foton, for Geely, for Gonow, for GZ Honda, for Hafei, for Haoqing, for HC BMW, for Hmada, for Huachen, for Isuzu, for JMC, for Jacty, for Jianghuai, for Jiao, for Jinlong, for Joylong, for Lifan, for Liuwel-TY, for Luxgen, for NJ Fiat, for Qirul-TY, for chery, for Qoros, for Saicmg, for Spark-TY, for Trumpchi GAC, for Weili, for Xiaokang Dongfeng, for Xili, for Faw Tianjin, for Xinkai, for YQ Mazda, for Zhongshun, for Zhongtai, for Zotye, for Zhongxing, (MALAYSIA) for Perodua, for Proton, (IRAN)for MVM, etc.

For Europe: Compatible with Vaz, for Porsche, for Maserati, for BMW, for Seat, for VW, for Audi, for Citroen, for Landrover, for Smart, for Renault, for Skoda, for Sprinter, for Land Rover, for Benz, for Fiat, for Opel, for Volvo, for Peugeot, for Ferrari, for Saab, for Gaz, for DR, etc.

For USA: Compatible with Gm, for USAFord, for Chrysler, for Willy, etc.

For Australia: Compatible with AustFord, for Holden, etc.

For Brazil: Compatible with BRFiat, for BRGM, etc.

XTOOL INPLUS IP919 MAX SUPPORTS 22 LANGUAGE

The device only can install 2 languages, English is default language, the other one you can choose from the following: Spanish, French, German, Polish, Portuguese, Russian, Danish, Greek, Finnish, Hungarian, Italian, Japanese, Korean, Dutch, Norwegian, Swedish, Thai, Arabic, Turkish, Vietnamese, Traditional Chinese.

Activate Device Language Tutorial

1. Activate the Device with Email and S/N

2. Send S/N to Seller Authorize Language

3. Switch Language in Settings

4. Click Update Device, Update All

Note: English is default language, if you need other language, Please send the S/N to seller authorized language.

TOP HARDWARE CONFIGURATION

OS: Android 10.0

Processor: 8Core 4.0 Ghz

Memory: 8+128G

Screen Size: 10.1 inches (1900*1200)

Operation Method: Tablet Touch Screen

Connection Method: Wire/WIFI Connection (VCI)

Battery Capacity: 6400mAh 7.2V

Indicator Light: Connection Status Indicator (VCI)

Upgrade Method: Online Upgrade

Upgrade Period: 3 Years
