MMA MIG MAG TIG Welding Machine IGBT DC Inverter Welder Automatic Wire Feeding Contact Welding Non-Gas Gas-Shielded Arc Welder

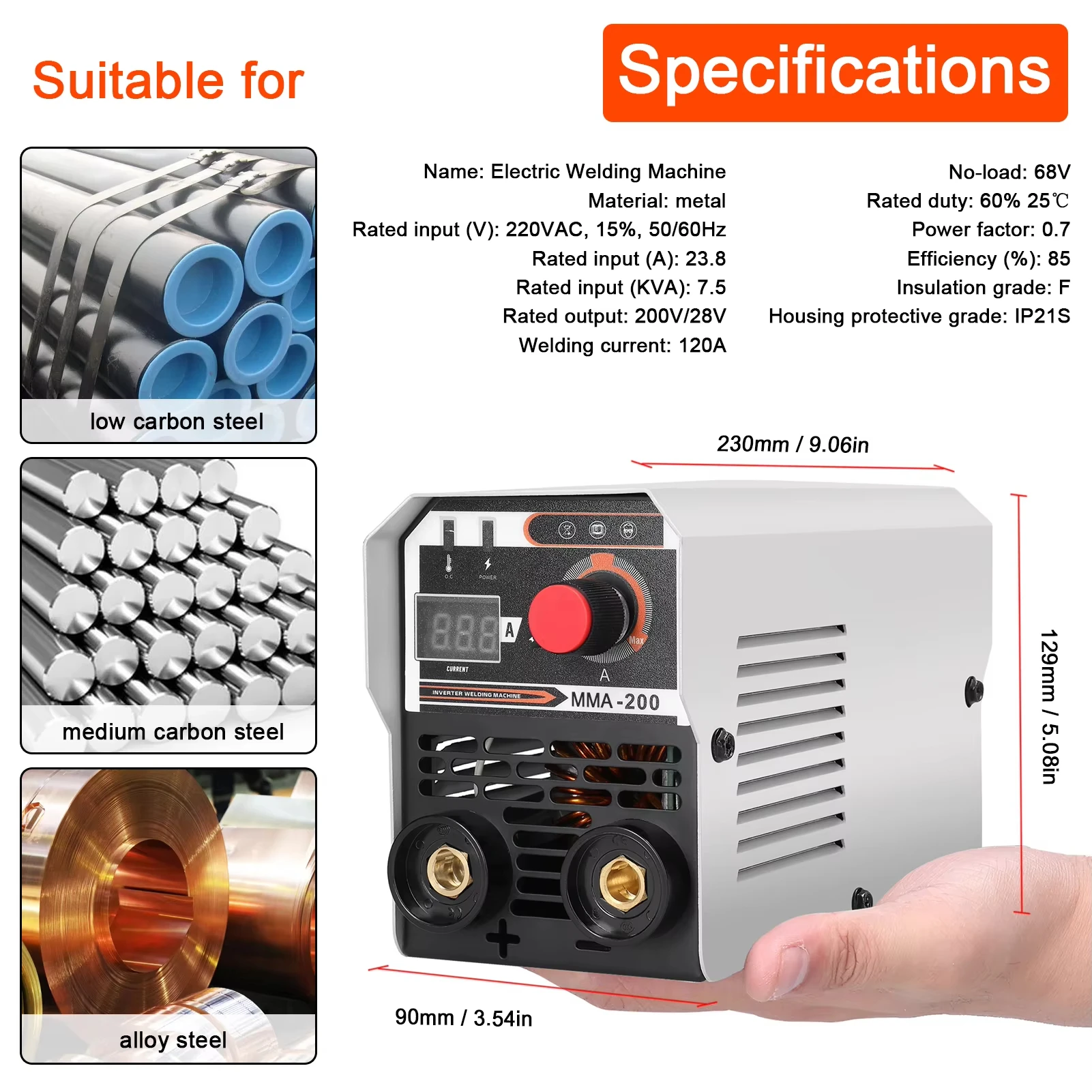

Specifications:

Name: Welding machine

Material: Metal

Rated input (V) : 220VAC, 15%, 50/60Hz

Rated input (A) : 23.8

Rated input (KVA) : 7.5

Rated output: 200V/28V

Welding current: 120A

No load: 68V

Rated operating voltage: 60% 25℃

Power factor: 0.7

Efficiency (%) : 85

Insulation class: F

Enclosure protection class: IP21S

Product size: 230*90*129mm/ 9.06*3.54*5.08in

Product weight: 2530 g /5.58 lb

Package size: 290*120* 230mm /11.42*4.72*9.06 inches

Package weight: 2730 g /6.02 lb

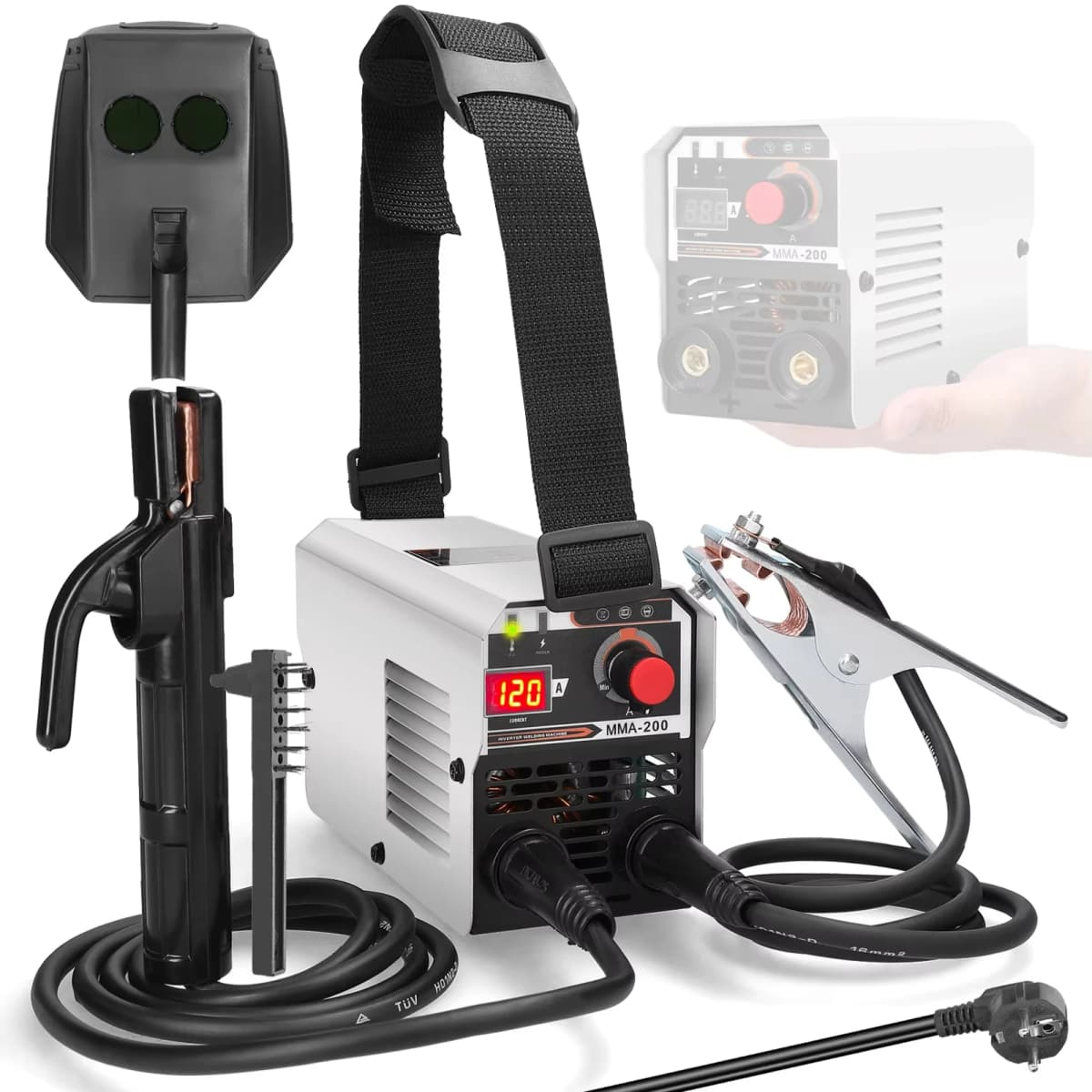

Packing list:

1 * welding machine

1 * electrode rack

1 * welding clamp

1 * face mask

1 * Wire brush

1 * Guide

The MMA welder is a portable welding device, also known as a manual arc welder, that uses IGBT inverter technology to melt and connect metal materials through an arc. Metal transition waveform control provides arc stability, easy arcing, small splash, and stable current. MMA welding machine is suitable for welding various metal materials, such as steel, copper, aluminum, etc., suitable for 1.0-5.0mm different specifications of wire, can be widely used in acid, alkali and other industries. The bottom electrode welding has the advantages of easy operation, high portability, low cost, etc., and is widely used in construction, manufacturing, automobile maintenance and other fields.

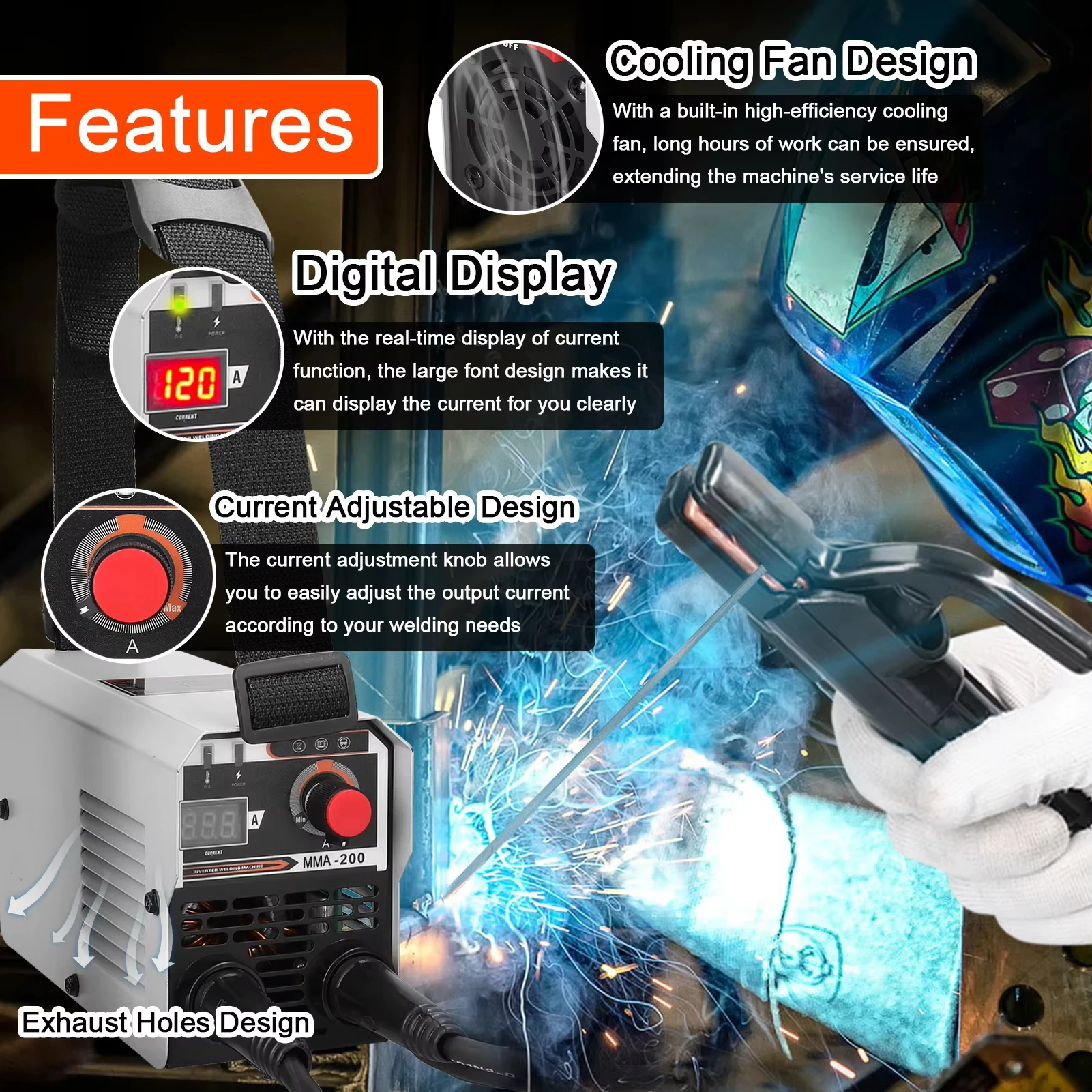

Features:

[Quality material] : Compact design makes the overall shape more beautiful. The front and rear panels are made of high-strength engineering plastics with high insulation, effectively ensuring the reliable performance of the machine in harsh conditions. -- Economical and efficient.

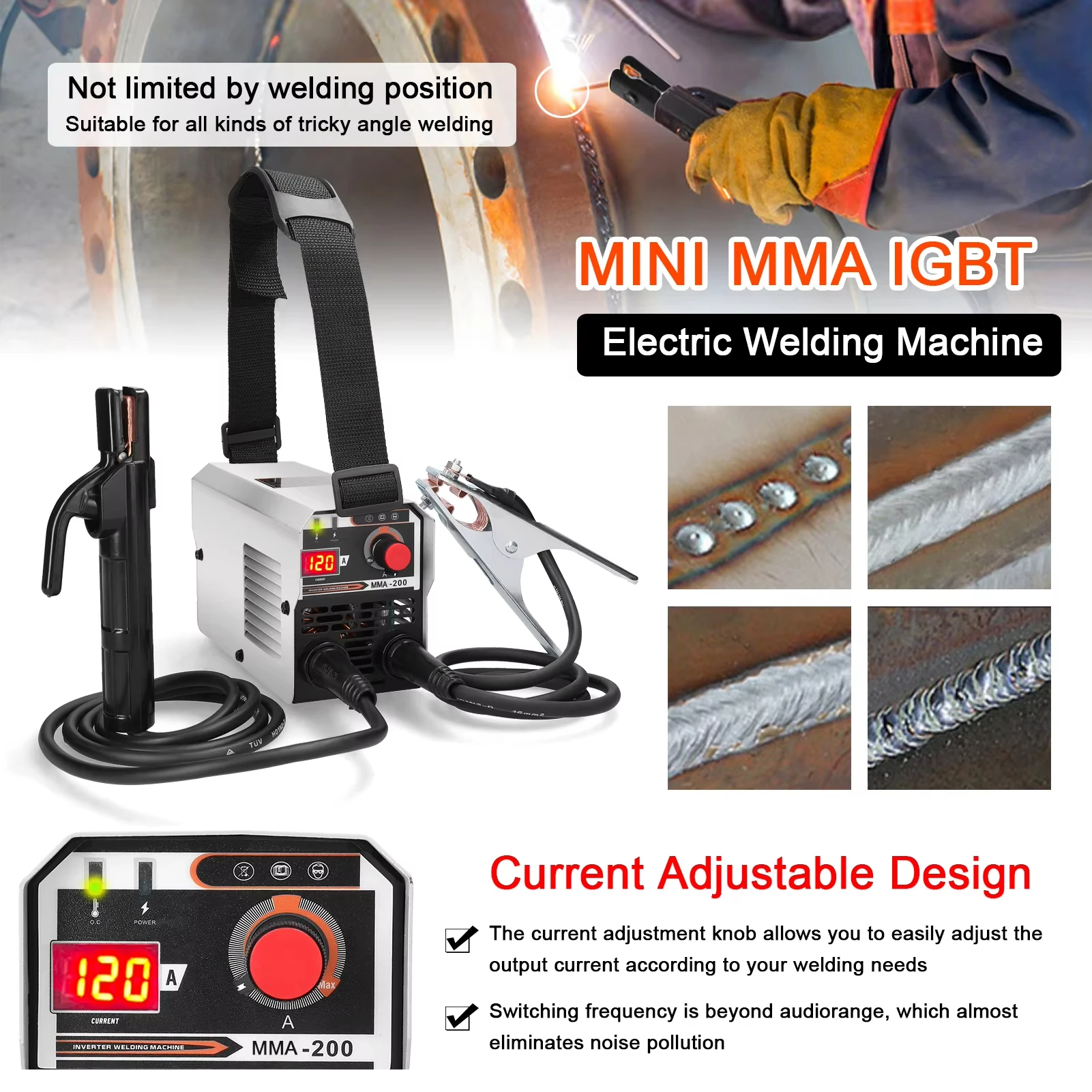

【 Digital display 】 : With large digital display, welding current display provides intuitive and convenient operation, you can clearly see the data.

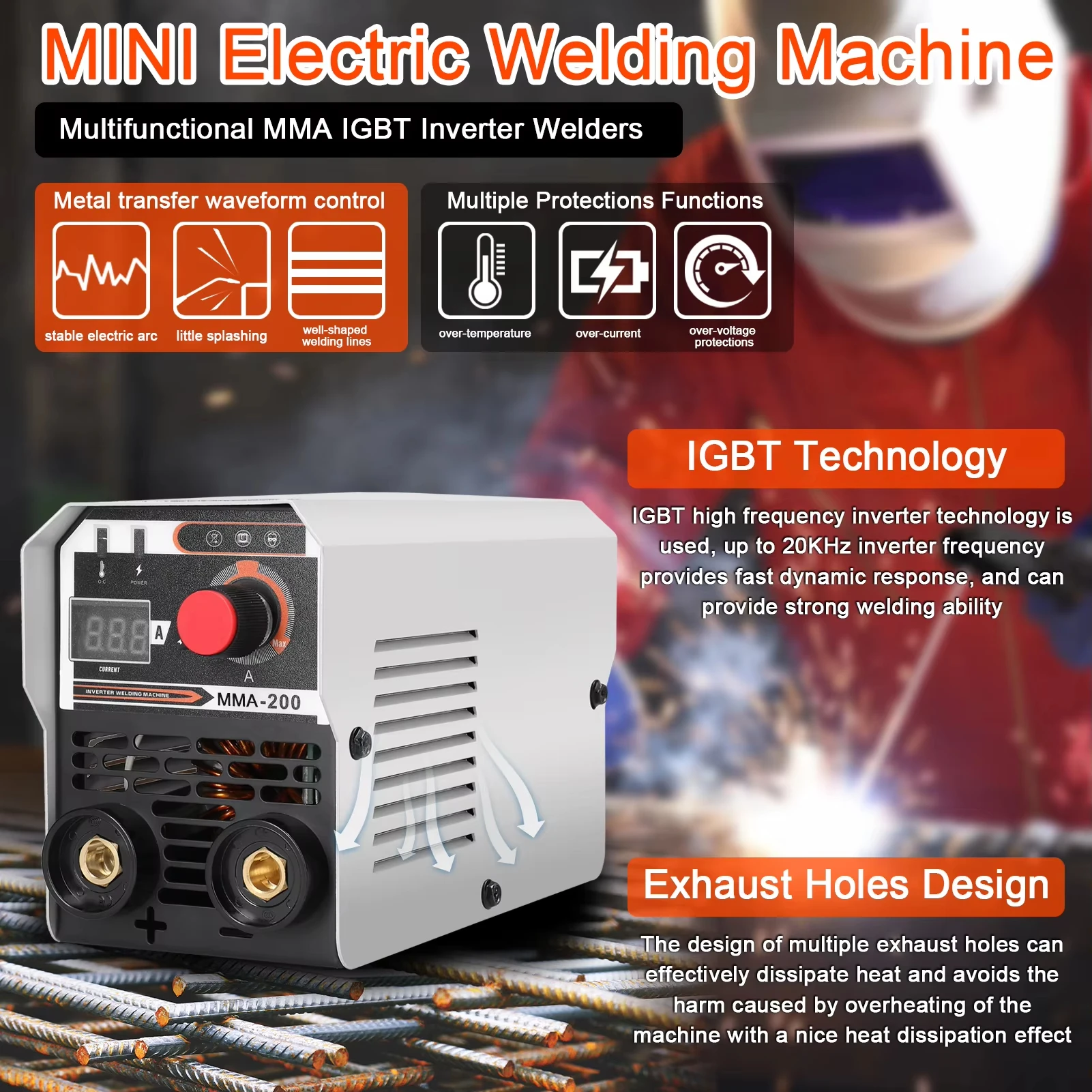

[IGBT technology] : Using IGBT inverter technology, the high-frequency inverter greatly reduces the volume and weight of the welding machine, and significantly reduces the magnetic loss and resistance loss, and significantly improves the welding efficiency and energy saving effect.

[MMA manual welding] : high efficiency, energy saving, light weight, arc stability, high-altitude load voltage, high arc force compensation, can meet the various welding requirements of field operations.

[Multi-functional design] : The switching frequency is beyond the audio range, almost eliminating noise pollution. Metal transition waveform control provides stable arc, easy arcing, less splash, stable current, and good weld formation.

[LED indicator] : equipped with two indicators, the power light indicates that the power button of the machine is turned on, and the overheat light indicates that the internal temperature of the machine is too high, and the machine is in the overheat protection state.

[Cooling fan and vent] : Built-in efficient cooling fan, excellent heat dissipation ability, can ensure long working time and extend the service life of the machine. The design of multiple exhaust holes can effectively dissipate heat and prevent damage caused by overheating of the machine.

[Multiple protection function] : with over temperature, over current, over voltage protection, safer to use, perfect protection circuit and fault display function, to provide safe, reliable and convenient fault location.

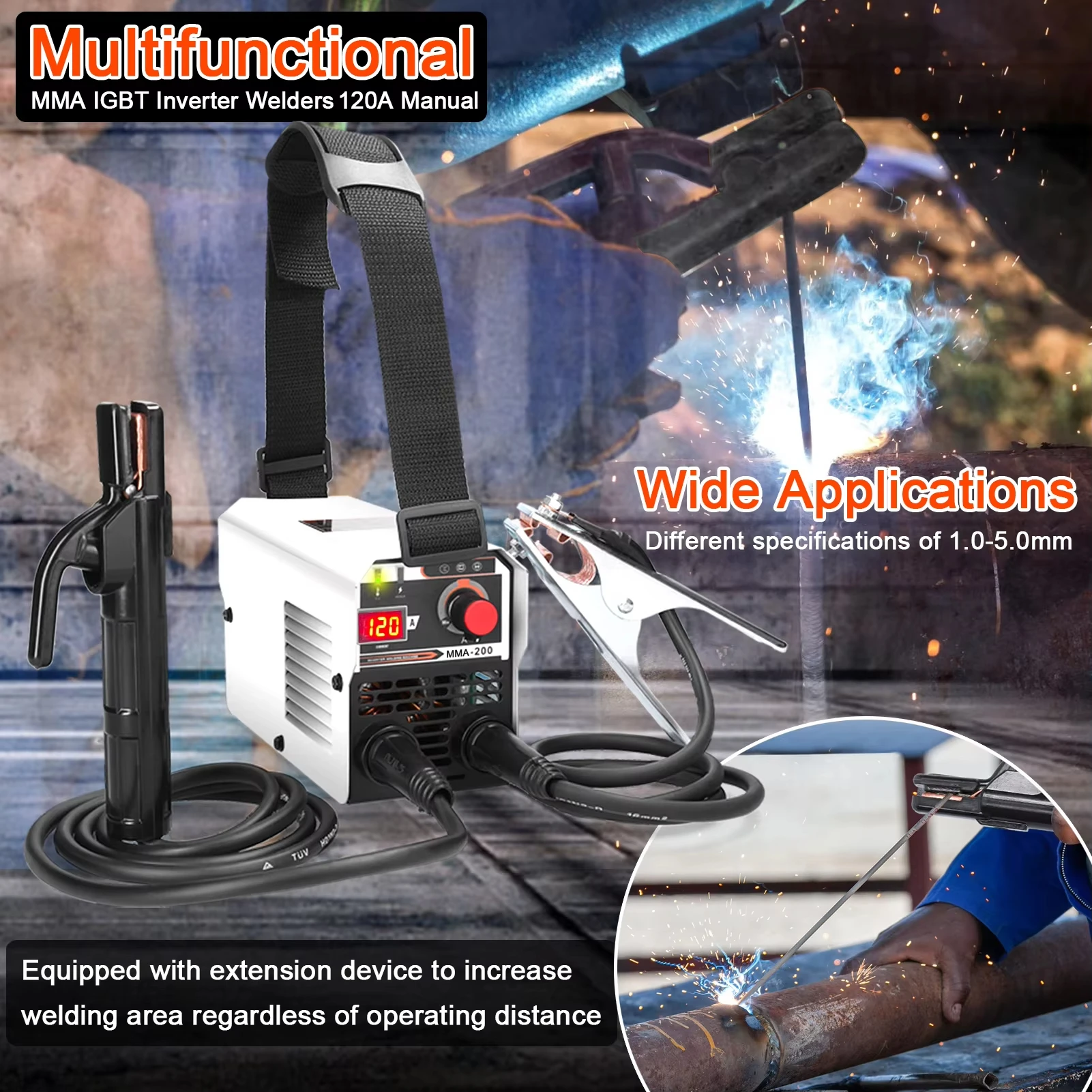

[Wide application] : Suitable for 1.0-5.0mm different specifications of wire, with high efficiency, high stability, high reliability, can be widely used in acid welding and alkaline electrode.
