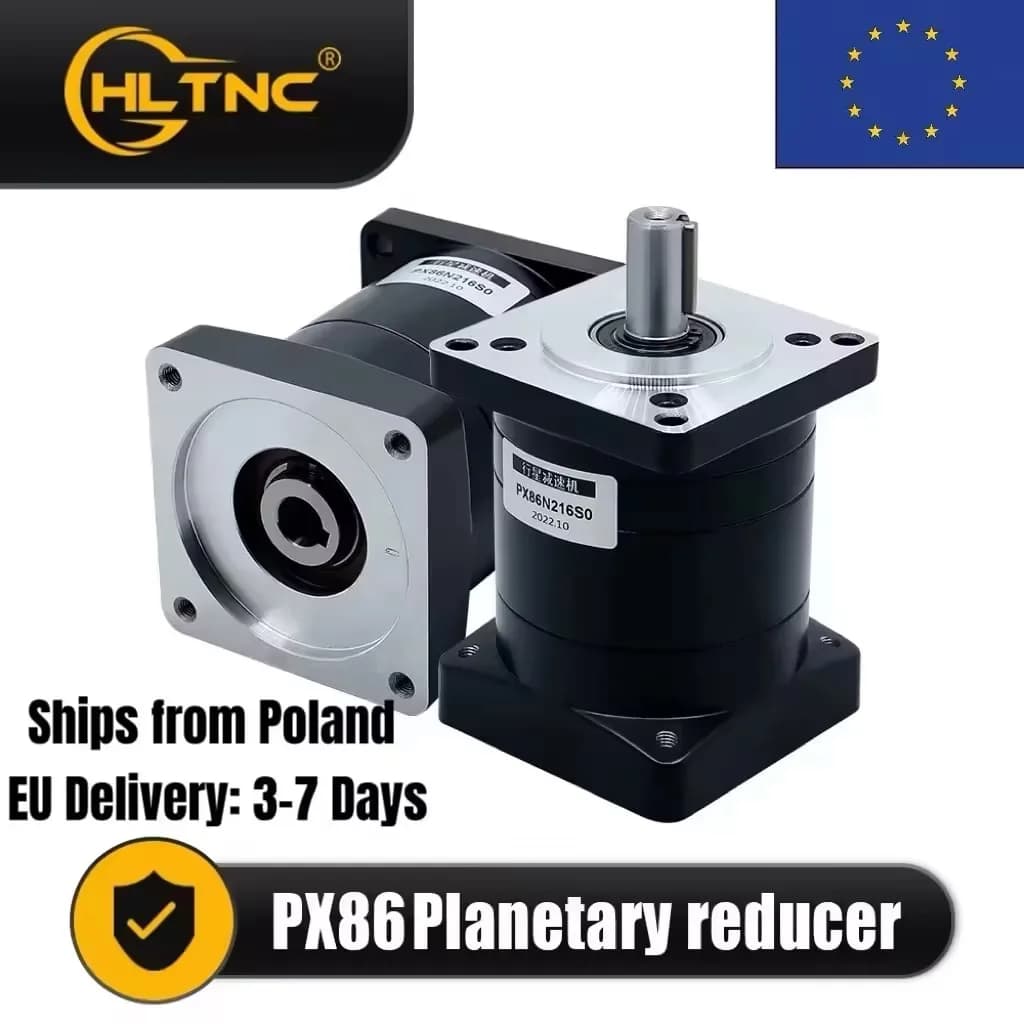

High Accuracy Planetary Reducer PX86 Suit For Nema34 86 Flange Stepper Motor Input Hole 14mm 10Arcmin Max 30Nm For CNC

HLTNC PX86 Planetary Reducer

Brief Introduction

HLTNC PX86 high precision planetary gear reducer is specially designed to match Nema34 86-flange stepper motors. It features a 14mm input bore, ultra-low backlash of only 10 arcmin and maximum output torque up to 30Nm. This unit boosts torque, reduces rotation speed and greatly improves positioning accuracy for CNC and automation machinery.

Shipping Information

Warehouse: Poland WarehouseDelivery: Deliveries to all EU countries within 3-7 working days. Local stock for fast shipment without long transit delays.

Material & Specifications

Model: PX86 Planetary Reducer

Compatible Motor: Nema34 (86mm flange) stepper motor

Input Shaft Hole Diameter: 14mm

Precision Grade: Backlash ≤ 10 arcmin

Maximum Output Torque: 30Nm

Housing Material: High-strength cast alloy with anti-rust black coating

Gear Material: Hardened alloy steel, wear-resistant and long service life

Application Scenarios

CNC engraving machines, heavy-duty woodworking routers, automatic linear sliding tables, packaging equipment, laser cutting machines, medium-sized mechanical arm joints.

Core Selling Points

High precision 10 arcmin backlash, stable positioning with zero machining offset error

Max 30Nm high torque output, greatly enhancing the motor's heavy load driving capacity

Perfect fit for Nema34 86 stepper motors, direct installation without modification

Hardened alloy planetary gears, excellent wear resistance and low transmission noise

Compact square housing design to save internal installation space of equipment

Multiple reduction ratios optional to satisfy diverse speed and torque matching demands

In stock at Poland warehouse, fast 3-7 day delivery across all EU nations

Package Includes

1 × PX86 Planetary Reducer
