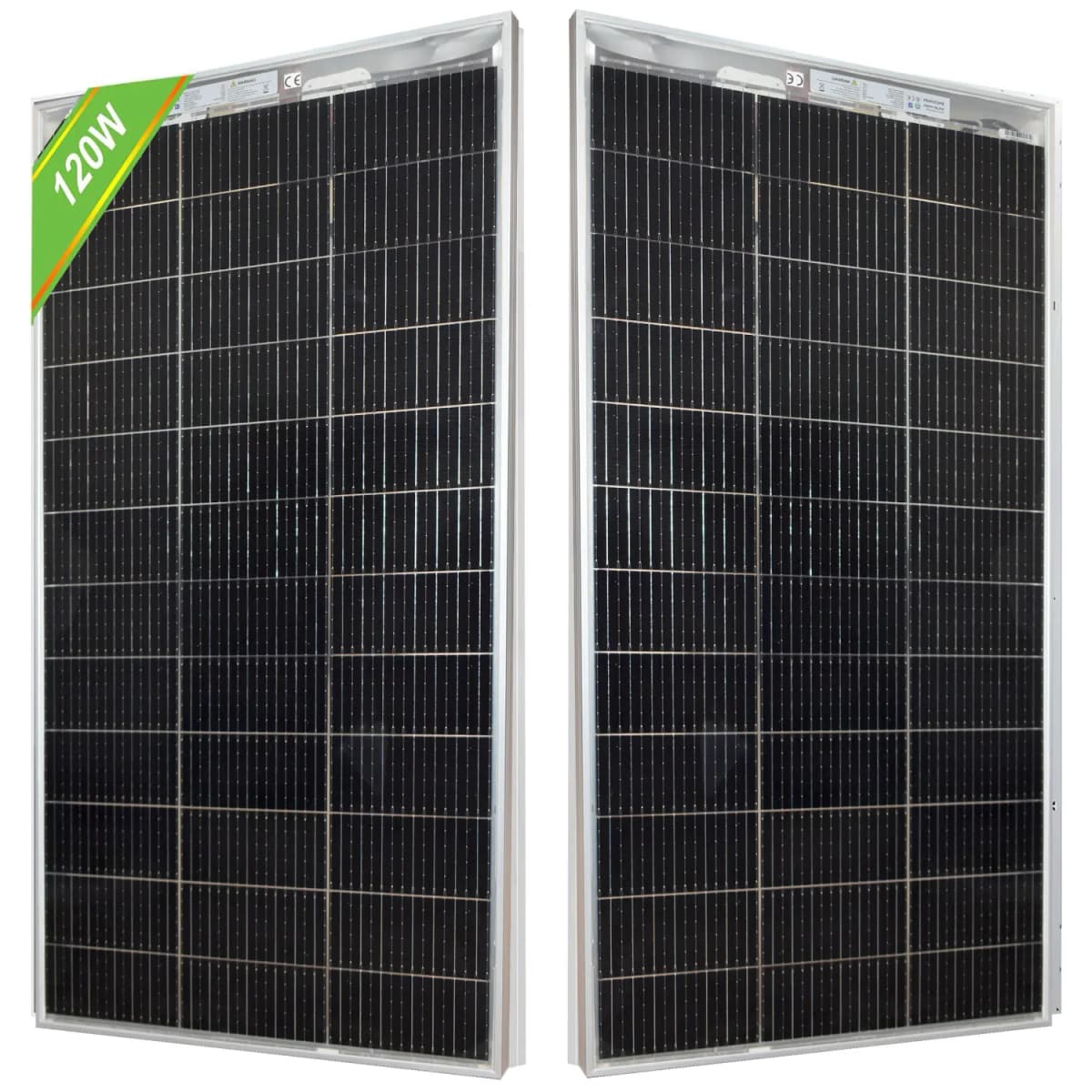

Bifacial solar panel 120W 18V monocrystalline Transparent solar panel for 12V batteries, photovoltaics for camper boat RV

Advantages of JINGYANG Tempered solar panels:

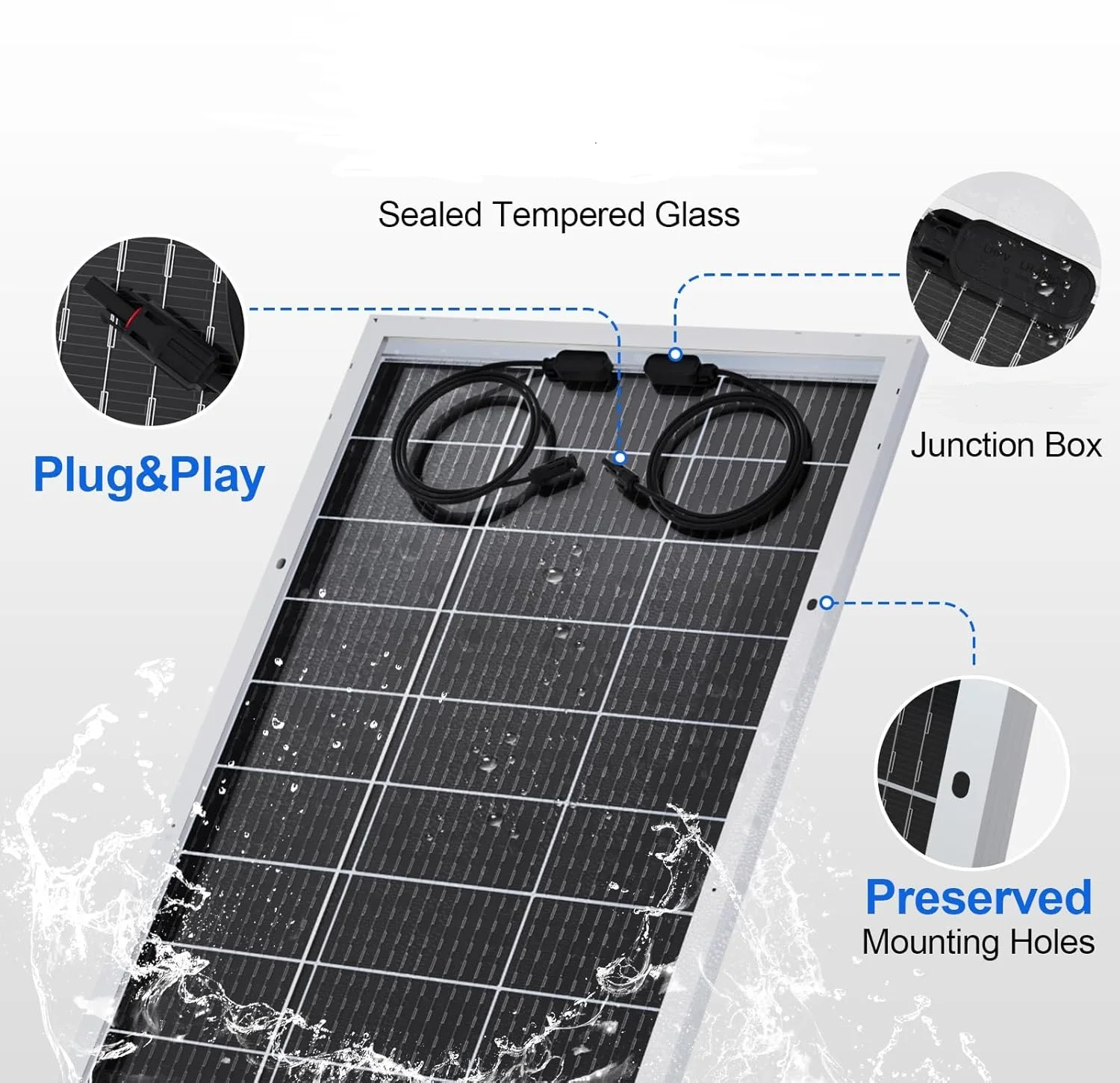

Multi-layer sheet package, sturdy and durable, good heat dissipation. No hot spots will appear.

The aluminum frame is corrosion resistant and is suitable for both indoor and outdoor use.

With a service life of more than 25 years, it is 3-4 times that of ordinary flexible solar panels. It is the better choice for motorhomes and families. It has a very high cost performance and is the better choice for home energy investment. We offer 5 Years Free Warranty For the Solar Panels

Model:CNMYPV120(36)M166

Material:Monocrystalline silicon

Maximum Power(Pmax):120W

Maximum Power Voltage(Vmp):21.50V

Maximum Power Current (Imp): 5.59A

Open-Circuit Voltage (Voc): 25.40V

Short-Circuit Current (Isc):5.92A

Solar Cell: Newly 166MM*166MM Monocrystalline

Nominal Operating Cell Temp.(NOCT):-45 to 80℃

Maximum System Voltage:DC1000V

Maximum Series Fuse:10A

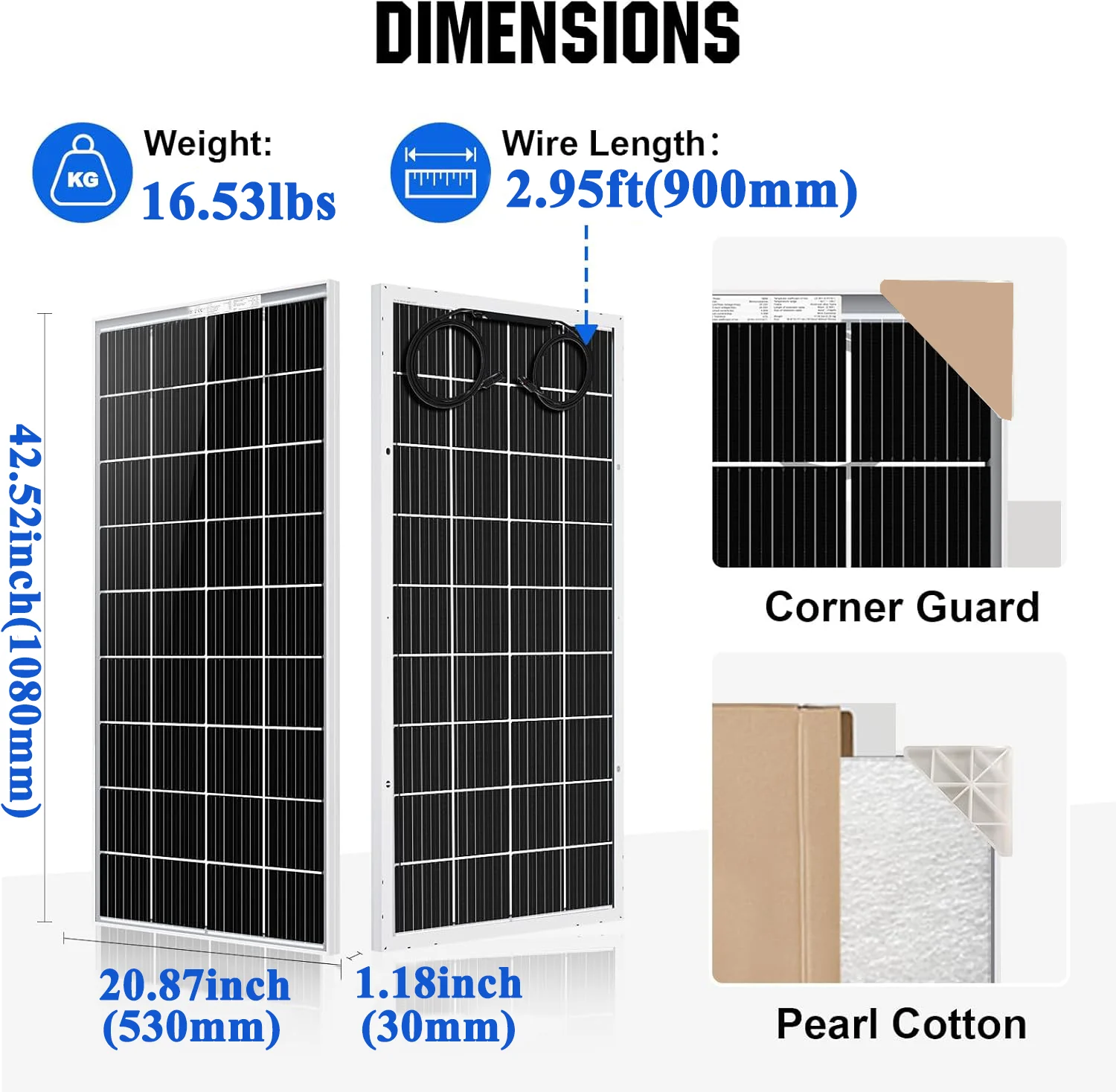

Dimension:1080mm*530mm*30mm

Dimension:42.52inch*20.87inch*1.18inch

Power Tolerance:+/-3%

Package Weight:6.00kg(12.95lb)

(The above data is based on the laboratory standard test environment)
