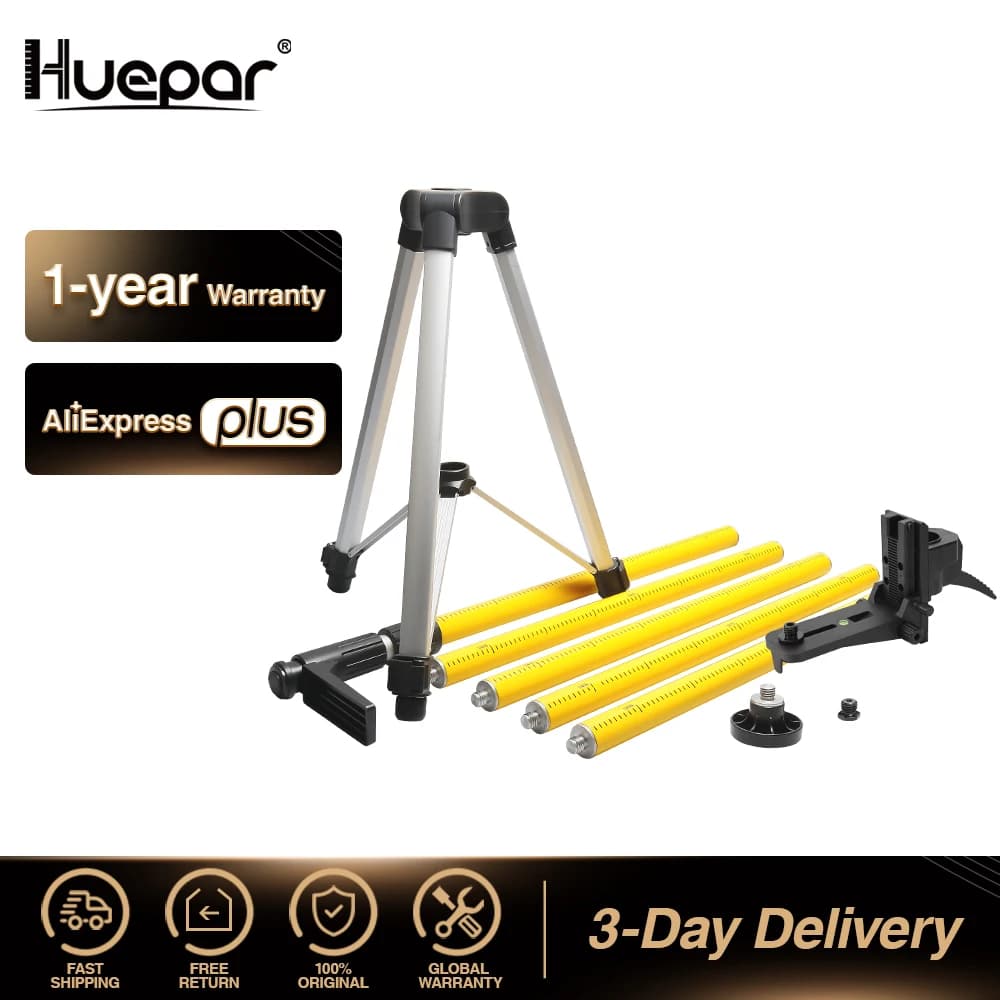

Huepar 12 Ft./3.7m Laser Tripod Telescoping Pole with 1/4-Inch by 20-Inch Laser Mount for Rotary Included Rod & 5/8"-11 Adapter

Huepar 12 Ft./3.7m Laser Tripod Telescoping Pole with 1/4-Inch by 20-Inch Laser Mount for Rotary Included Rod & 5/8"-11 Adapter

Descriptions：

Rod Sections: 4 telescopic rod + 1 Tail rod
Graduations: cm / inch
Rod Wall Thickness: 11mm
Connection interface between rods: 5/8"
Height of rod section: 60cm/23.62"
Height of arbitrary telescopic rod: 0-53cm /0-20.87"
Max height after fully assembled: 3.7m / 12.18ft.
Tripod height: 48-84cm / 18.90-33.07"
Bracket Mount Size:1/4"-20 & 5/8"-11
The length of the male thread to the side of the bracket: 11.5-6.5cm / 4.53-2.56"
Bracket Height Fine-tuning Range: 7cm / 2.76"
Material: Aluminum with a polyurethane coating
Gross Weight: 3.1kg / 6.834b
Storage length: 80cm / 31.5"

Package include：

4 x Telescopic Rod Section
1 x Tail Rod (with Spring-Loaded Base, Arbitrary Telescopic Rod Section, and Floor Skid Face)
1 x Top Ceiling Skid Plate
1 x Height Adjustable Bracket (with 1/4"-20 Male Thread)
1 x 5/8"-11 Screw Adapter
1 x Adjustable Stable Tripod
1 x Soft Carry Bag

Huepar LP36A 3.7m Laser Mounting Pole：

✔️Huepar LP36A 3.7m laser mounting pole is designed to work with your line or rotary lasers to help you level structures, level grade job sites, and prep farmland.

✔️Huepar LP36 multi-purpose support rod made of aluminum with a polyurethane coating for durability. Easy to read, Graduations are marked in black on the yellow pole in inches and centimeters.

✔️An ideal telescopic rod for any worksite using tools that can be easily placed at any height between the floor and ceiling

✔️The Tail Rod Section with Arbitrary telescopic rod section can telescope out another 53cm.

✔️It has 3.7m/12.18ft when fully assembled with all sections and both end parts.

Adjustable Mounting Bracket

✔️The bracket can be placed at any height of the rod according to your needs.

✔️With a Height Fine-tuning knob, the fine-tuning range is 7cm. There is a screw for fixing the adjusted height.

✔️Can be adjusted within 5cm in depth so it can be used with any instrument that measures 6.5-11.5 from the back.

✔️Mounting Bracket with 1/4"-20 Male Thread and 5/8"-11 Thread Adapter, compatible with most line lasers and rotary lasers.

Convenient Uses:

✔️The foot and head plate have a non-slip surface, and the larger force area strengthens the fixing of the end both of foot and head.

✔️Laser Mounting Pole features a spring-loaded base for quick and easy tension setup.

✔️1cm powerful spring provides a greater adjustable range and a more stable fixed requirement.

✔️Sturdy foot pedals make operation easier and safer.

Applicable Accessories:

✔️Two-section legs height adjustment buckle to meet your different needs, height adjustable range 0.48m-0.86m（18.89-33.85"）.

✔️While a screw clamp on the side of the head stabilizes the pole so that it won’t shift.

✔️A small bubble level embedded in the head to ensure that your measurements will be as accurate as possible.
