Deye Brand 600W INMETRO VDE IEC Solar Micro Converter Inverter 20-60VDC To AC184-265V, Two MPPT IP67 Built-in WiFi ,Ship From EU

600W INMETRO Solar Mini Inverter 20-60V DC to AC 184-265V 2MPPT IP67 Waterproof Built-in WiFi

Advantage of SUN600G3 600W Microinverter

Built-in WIFI

The Microinverter is used in utility-interactive grid-tied applications, comprised of two

NOTE:If the wireless signal in the area where the microinverter is weak is weak, it is necessary to add a wifi signal booster at a suitable place between the router and the microinverter.

This integrated system improves safety; maximizes solar energy harvest;increases system reliability, and simplifies solar system design, installation,maintenance, and management.

CONNECTION DIAGRAM：

Microinverters Maximize PV Energy Production：

Each PV module has individual Maximum Peak Power Tracking (MPPT) controls, which ensures that the maximum power is exported to the utility grid regardless of the performance of the other PV modules in the array.When PV modules in the array are affected by shade, dust, orientation,or any situation in which one module underperforms compared with the other units, the microinverter ensures top performance from the array by maximizing the performance of each module within the array.

More Reliable than Centralized or String Inverters：

The distributed Microinverter system ensures that no single point of system failure exists across the PV system.Microinverters are designed to operate at full power at ambient outdoor temperatures of up to 149℉ (65℃). The inverter housing is designed for outdoor installation and complies with the IP65 environmental enclosure rating.

Our 600W built-in micro inverter has several certificates, such as INMETRO VDE IEC. If you need to contact us via order message

Advantage

1) Maximum output power up to 600W;

2) Support high-power 210-400W 96 Cells solar panel for shunt parallel put into this inverter;

3) Warranty period: 5 years standard warranty

5) Smarter:Module level monitoring system; Remote maintenance and troubleshooting

6) Higher generation:Module Level MPPT achieved the highest power output, avoiding the Cask Effect like what happens to string inverter, which the performance will be limited by the weakest performing panel.

7) More reliable:World top class brands for key components;

8) No failure will not impact the total system working;

9) Peak efficiency 96.60%; CEC weighted efficiency 96.50%.

10) Static MPPT efficiency 99.80%; Dynamic MPPT efficiency 99.76% in overcast weather.

11) High reliability: NEMA6 (IP67) enclosure; 6000V surge protection.

12) IP67 enclosure design

PRODUCR APPLICATION

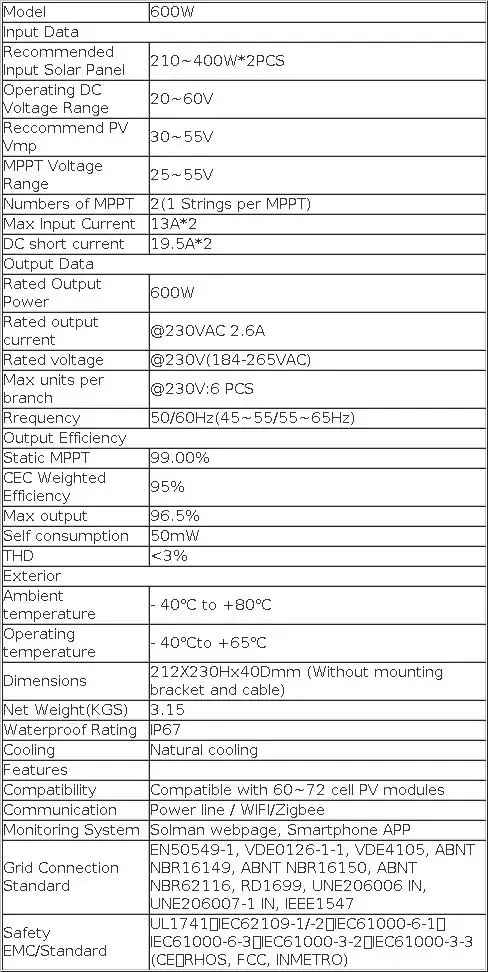

PRODUCR PARAMETER TABLEPPLICATION
