2000W Wind Grid Tie Pure Sine Wave Inverter Source Power from the Wind Turbine Input45V ~ 90V Output Frequency 46Hz~65Hz

Product Introduce

Product Features

Max Efficiency: >92%

Max Efficiency: K10>92%

MPPT Efficiency: 99%

AC 45V-90V

AC 220V 230V 240V 50hz 60hz

Advantage Features of the 2G Wind Power Grid Tie InverterThe 2nd Generation grid tie inverter, new technical, Higher efficiency.Higher MPPT efficiency, Max 99%Multiple intelligent protection to ensure safe use.Directly connect to three phase wind turbine, without regulator

Two years Warranty, life time technical support.

Pure Sine Wave output

Build in dump load function

Power Limit Function

Product Parameters

Please notice:Please don't choose any vertical wind turbine with our inverter, it will not work.

(1) (2) Dump load resistor connection Terminal. These terminals will connect to the

dump load resistor.

(3) AC socket, this socket will connect the inverter to the public grid via the AC cable.

(4) Cooling fans.

(5) Input Terminals. These terminals will connect to the wind turbine.

Product Details

The Inverter display can show many information,The main interface of the display and

the icons explainations are show above.

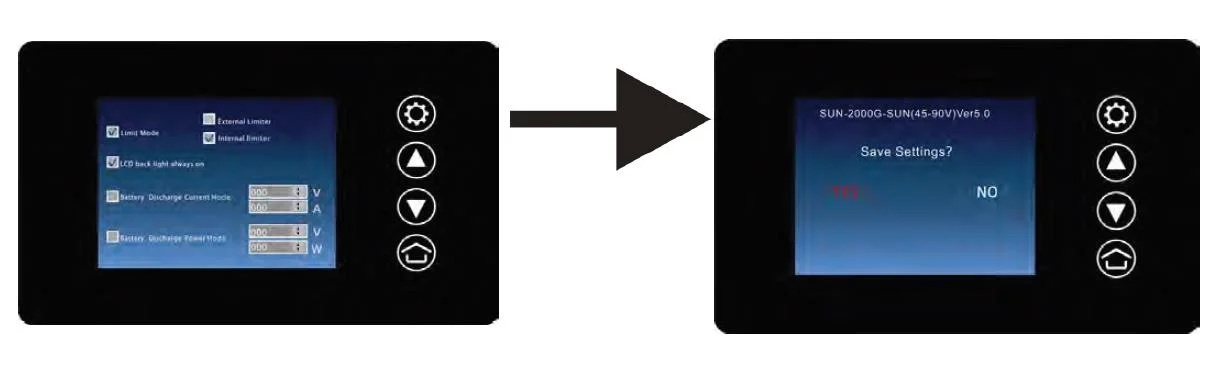

Set Menu:Choose the set menu icon on the main screen interface,click the confirm button

to enter into the interface show below,In this interface,can set the LCD backlight always on

or auto turn off backlight after 3 minutes no action.

The inverter also integrate with internal limiter and external limiter function which can prevent

excess power from going to the public grid.Select the internal limiter mode,inverter will work

under limiter mode,output power of the inverter will be determined by load power.Select the

external limiter mode,inverter need a external limiter module working with it.For more details

about the limiter function,pls contact supplie

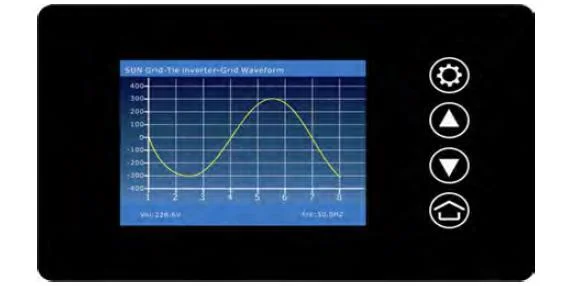

Grid Waveform:This interface will show the real time grid waveform.The grid voltage and frequency also

will show in this interface.

Energy Menu:The energy interface will show the power generation curve everyday. Today KWH and Total

KWH are also show in this page.

Power View:In this interface,the display shows real time power,PV input voltage, inside temperature,date

and time.

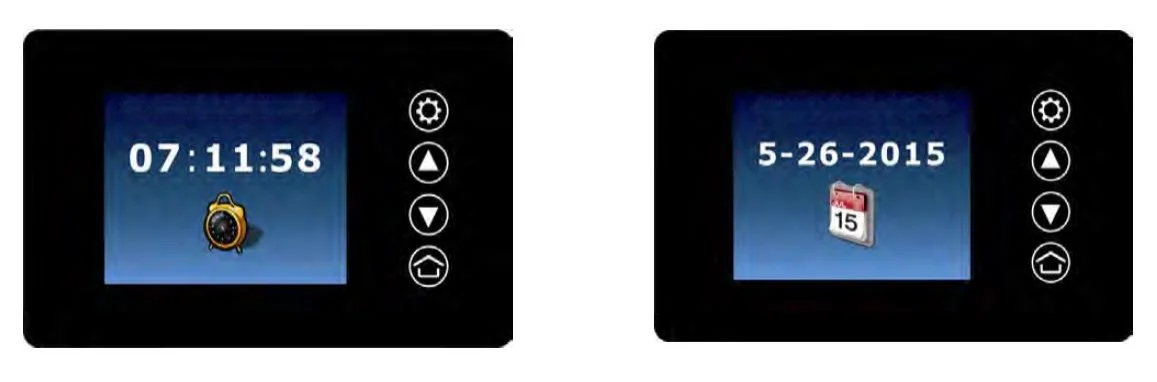

Clock And Date Setting:Set the clock and date in this page,save the setting before exit.

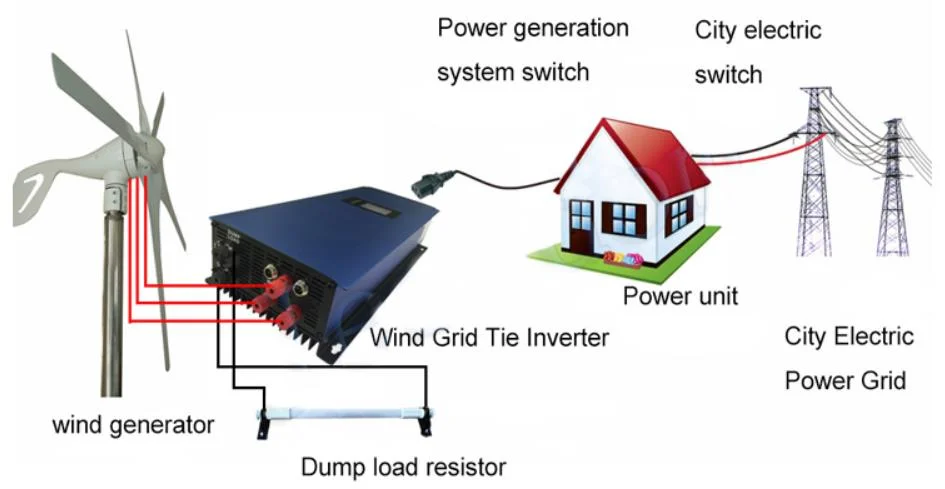

How to connect it?
