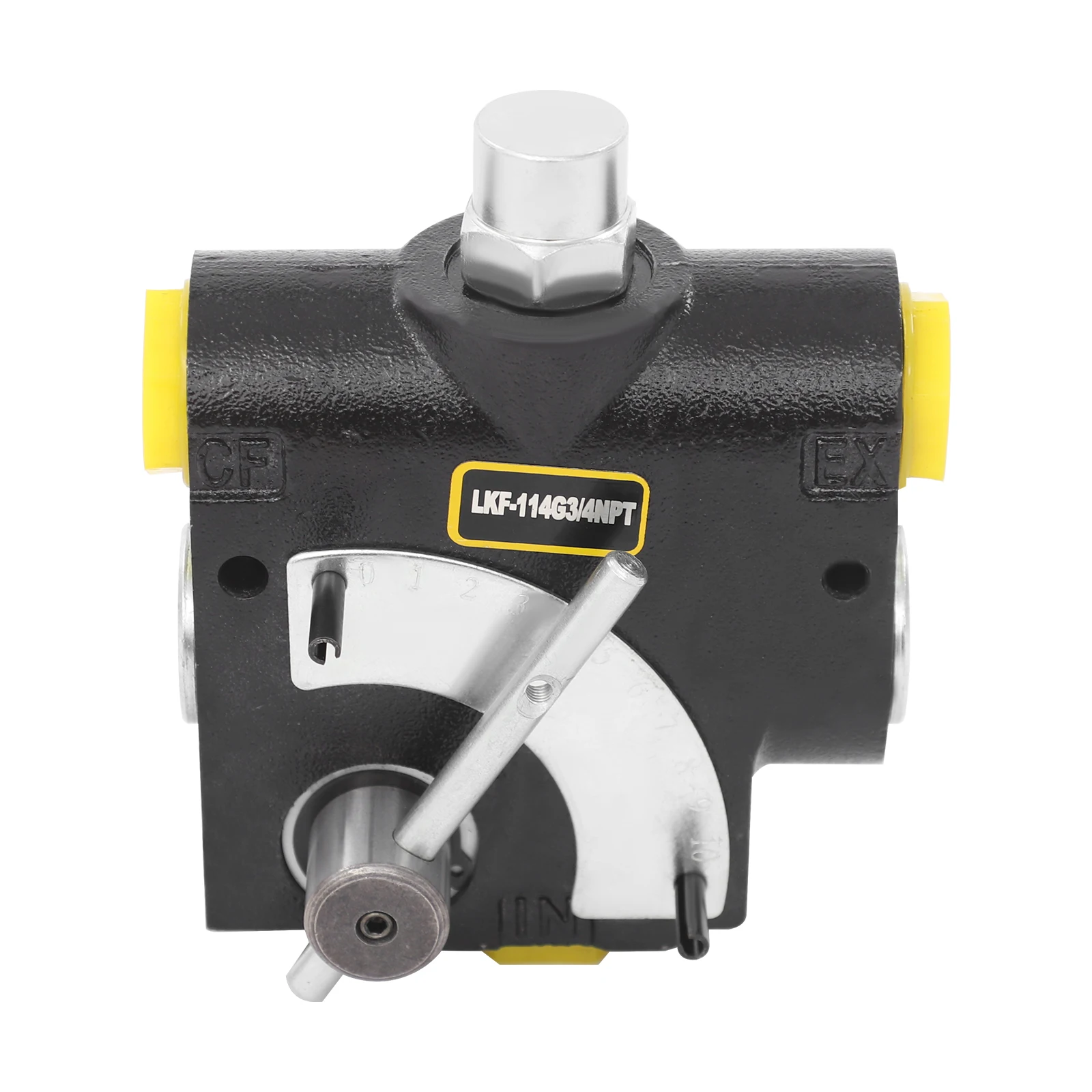

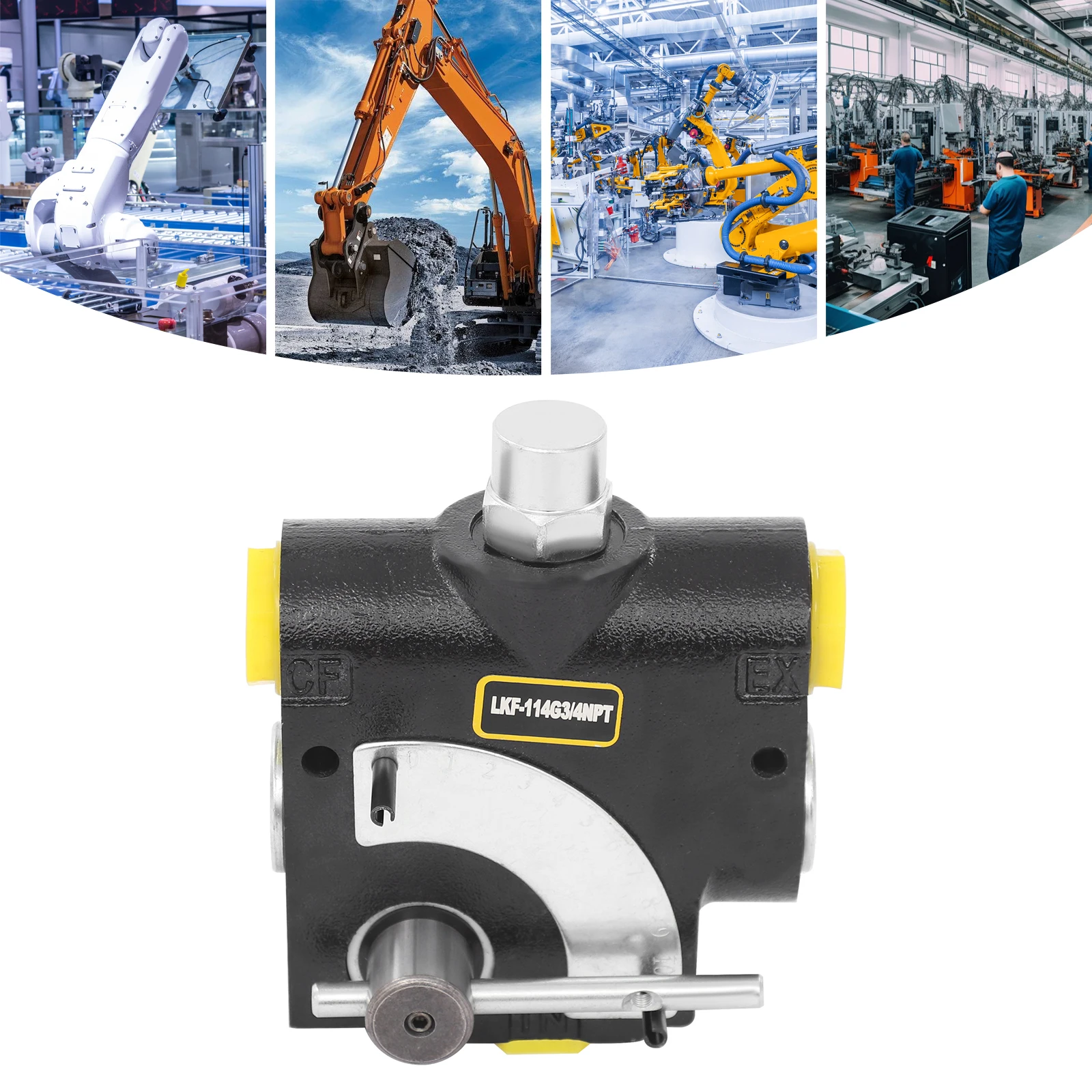

Hydraulic Flow Control Valve Adjustable Acting Valve 50 - 210 Bar for Small Tractors, Tractor Loaders, Log Splitters, Etc

Description

An exquisite hydraulic adjustable variable flow control valve, meticulously crafted to epitomize the harmonious fusion of precision engineering and fluid dynamics. This valve, with its sophisticated adjustability, stands as a testament to the pinnacle of technological refinement in regulating fluid flow dynamics with unparalleled professionalism and finesse.

Key Features

Build to Last: It is made of high-quality vermicular graphite cast iron with a phosphating process, which is durable and lightweight, and not easy to rust and corrode, so it can withstand the test of time.

Powerful Function: It can adjust the flow rate from 0-30 GPM to optimize system efficiency and avoid overload or energy waste. Additionally, it can speed up or slow down the motor over a wide range, adapting to your needs and convenience. Once set, it will maintain a constant speed even with variations of loads. The excess flow will be returned to the tank or used to power another function.

Economical and Practical: With it, you can prevent system overload and reduce energy consumption by limiting the maximum flow rate as well as precisely controlling the flow rate, helping improve overall energy efficiency.

Easy to Clean: Thanks to its smooth surface and simple construction, you can wipe the surface clean of stains with a damp rag.

Convenient to Use: Once you receive the product, you can install it directly into the tractors without additional assembly, which is very convenient and time-saving. Additionally, the pressure can be increased or decreased by 300 PSI by turning the set screw one turn.

Ideal Gift: Thanks to its practicality and powerful functions, you can give it to your friends as a Christmas, Thanksgiving or Halloween gift!

Customer Service: We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Details

Burr-free Edges: Smooth, burr-free edges are not only comfortable to touch, but also care for your skin.

Practical Knob: It helps you to regulate the flow more easily.

Application

It is suitable for small tractors, tractor loaders, log splitters, environment vehicles, light-loading machines, and so on. It is used to stop or start a hydraulic motor or cylinder.

Ports

IN: Inlet Port

CF (Controlled Flow): Flow coming from this port is pressure compensated and proportional. Flow can vary from closed to fully open depending on the position of the lever.

EX (Excess Flow): Flow coming from this port is pressure compensated. If the lever is set to 0 all flow will exit the valve from this port.

Specification

Material: Vermicular Graphite Cast Iron

Surface Treatment: Phosphating

Color: Black

Model: LKF-114

Assembly Required: No

Maximum Flow Rate: 115L/30.38Gal/min

Flow Control Range: 0.5-100 L/0.132-26.42Gal/min

Safety Valve Setting Range: 50 - 210 Bar

Pressure Relief Valve Adjustment Range: 500 - 3000 PSI

Applicable Fluid Temperature: -15~80°C/5~176°F
Adjustable Flow Rate: 0-30 GPMPort Size: 3/4" NPT
Maximum Working Pressure: 3000 PSI
Product Size: 11.5*4.8*14.7cm/4.53*1.89*5.79 in
Gross Weight: 3.9kg/8.6lbs
Package Size: 16*14*10.5cm/6.3*5.51*4.13in

Package Included
1* Hydraulic Adjustable Variable Flow Control Valve

Notes
1. Please note that the EX Port must be plumbed back into the tank for the relief valve to operate.
2.Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
