Durable Linear Actuator, 6000N Load Capacity, 24V Motor, 9-inch Stroke for Compact Installations

38-61cm lift chair parts motor replacement kit and Haushart Sofa PRO electric recliner motor actuator

Description

The meticulously crafted, highly efficient linear actuator is an indispensable asset in a wide range of industrial sectors and diverse applications, proving its superior ability to facilitate precise and powerful mechanical movements. A harmonious blend of advanced technology and craftsmanship, it plays a pivotal role in enhancing the operational dynamics of industries ranging from precision manufacturing to avant-garde automation.

Details

Burr-free Edges: The smooth, burr-free edges are not only comfortable to touch but also enhance the safety of use.
Mounting Brackets: They make it easy for you to install and secure the product.

Specifications

Color: Black, Silver
Material: Aluminum Alloy and POM
Process: Electrophoresis
Outdoor and Indoor Use: Indoor Use Only
Power Sourece: Corded
Plug Type: EU Standard
Voltage: 220V
Power: 60W
Max Load: 6000N
Motor Input: DC24V-2.3A
Adapter Input: 100-240V, 50/60Hz, 1.5A
Adapter Output: 29.0V, 1.8A, 52.2W
No-load Current:＜1A
Rated Current:＜8A
Interrupt Time: 1min/10min
Limit Switches: Fixed Inner(Not Adjustable)
No-load Speed: 5mm/0.197in/s
Noise: ≤50dB
Protection Class: IP44
Working Temperature Range: -5~50°C/23~122°F
Stoke: 230mm/9in
Motor Diameter: 6.4cm/ 2.5in
Minimum Hole-to-hole Installation Distance: 405mm/15.94in
Maximum Hole-to-hole Installation Distance: 635mm/25in
Package Size: 56*27*10.5cm/22.05*10.63*4.13in
Gross Weight: 2.95kg/6.5lbs
Net Weight: 2.5kg/5.5lbs

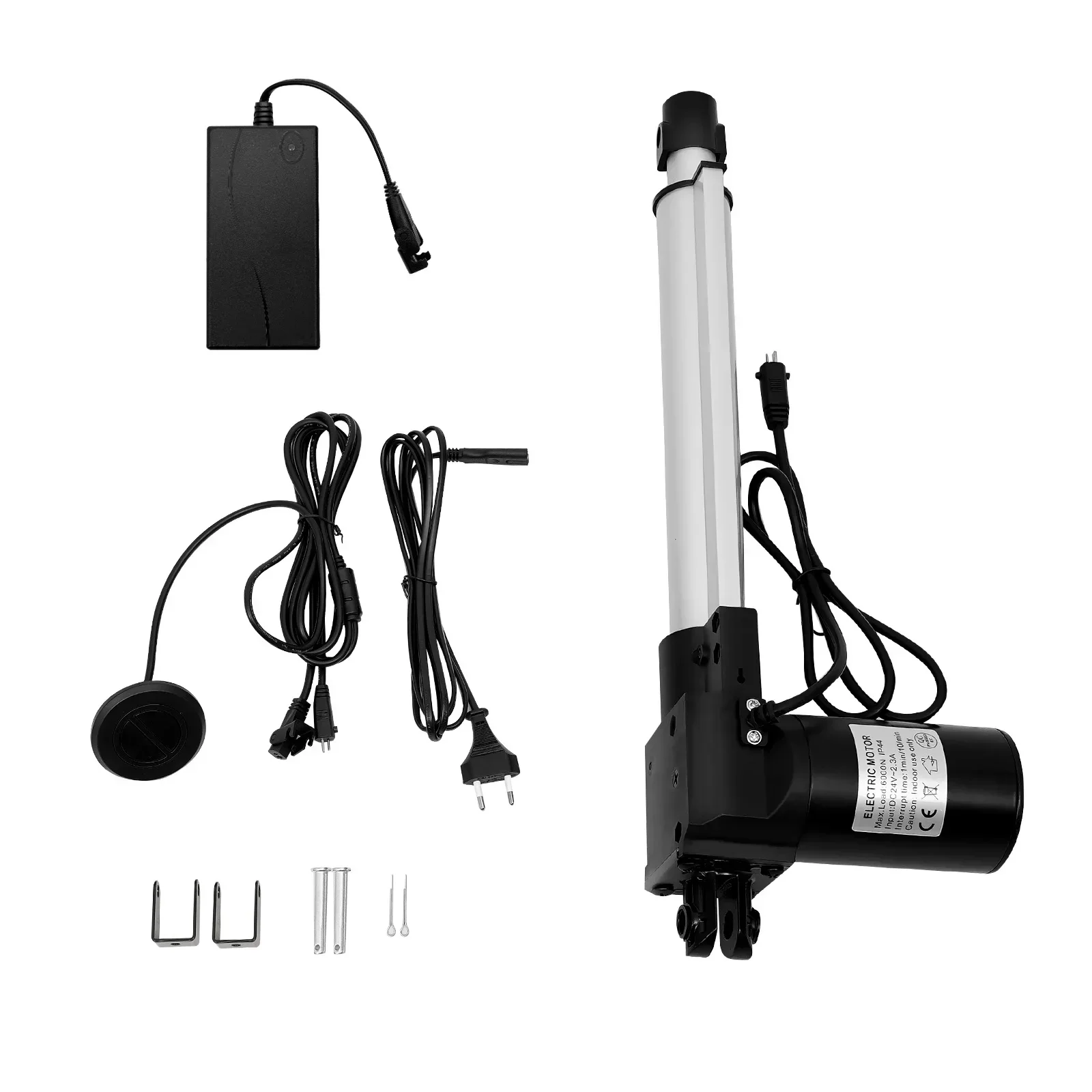

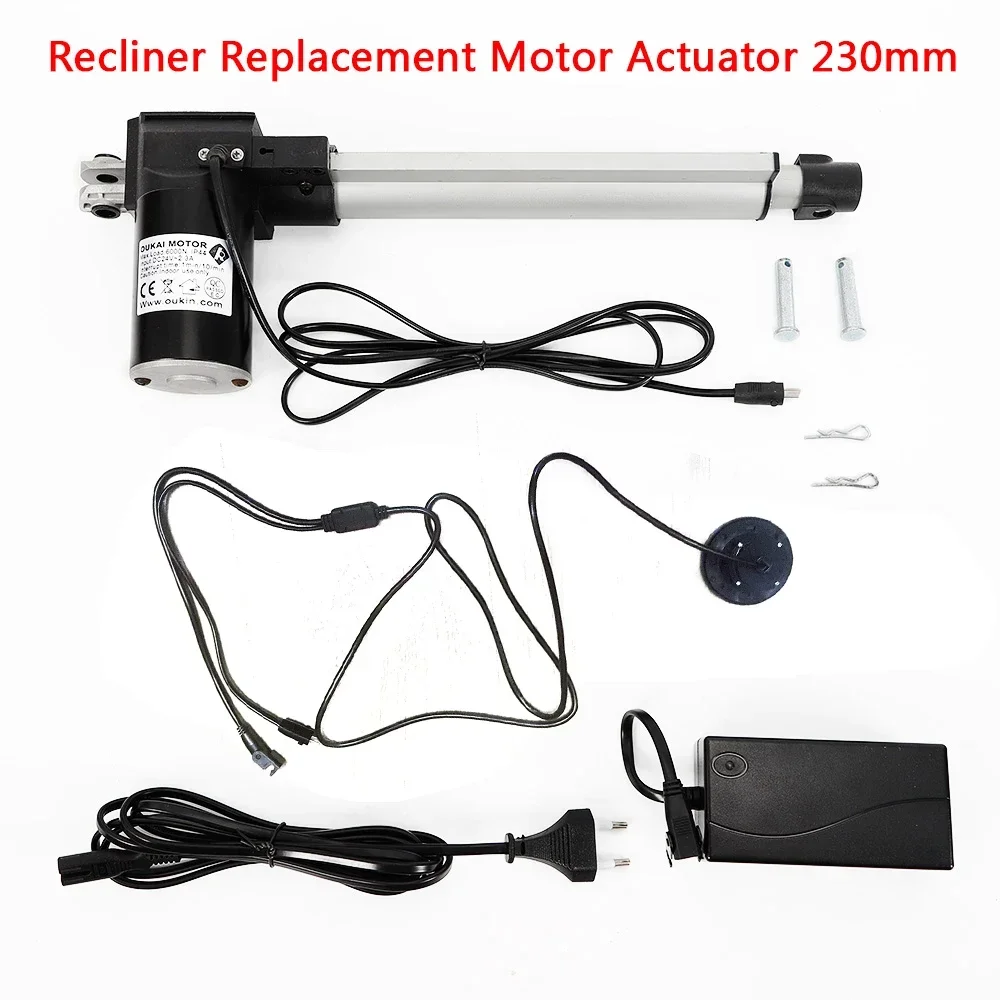

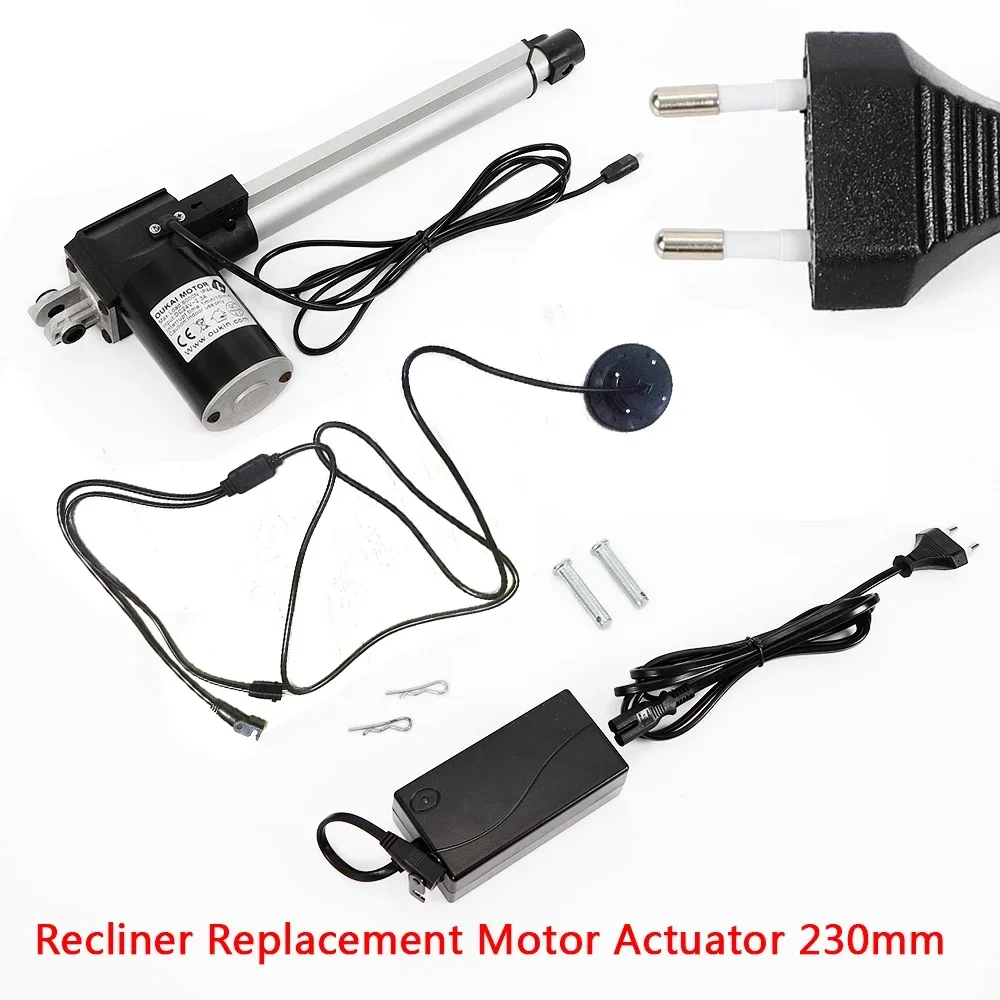

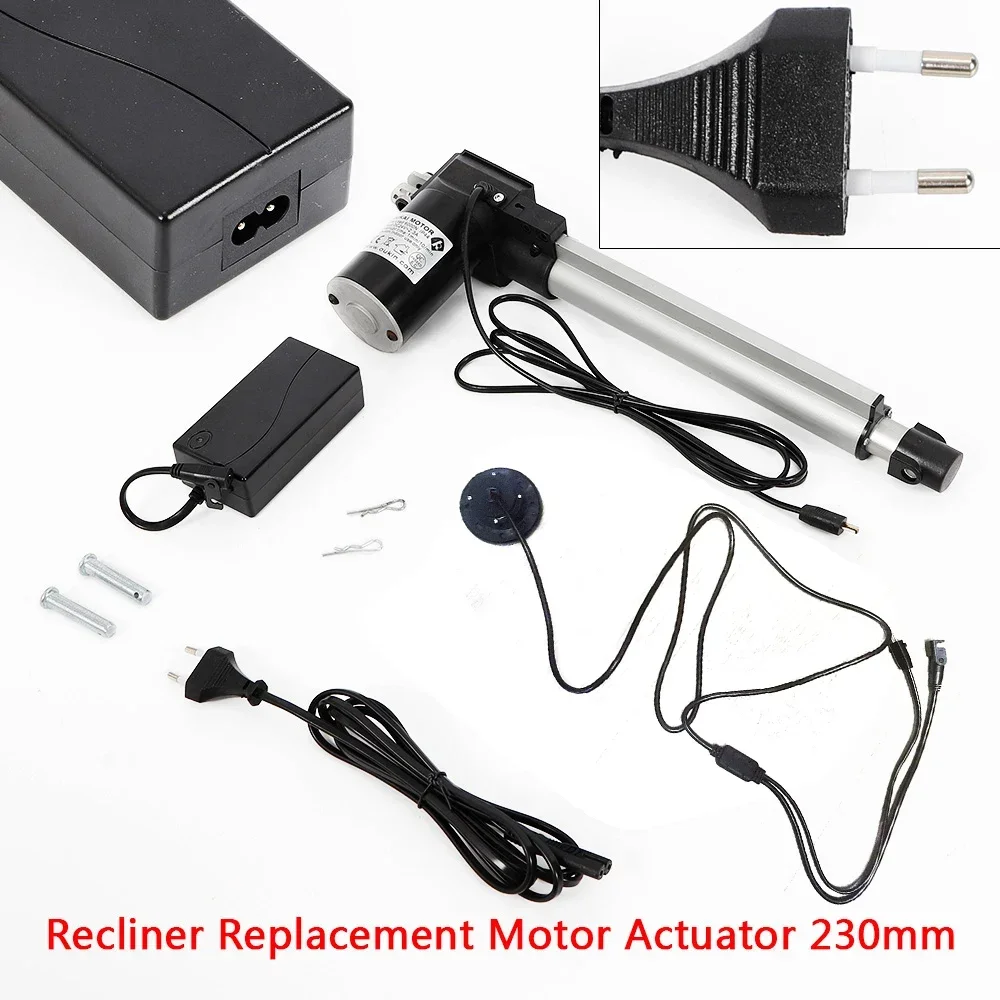

Package Included

1 x Linear Actuator
1 x Power Adapter
1 x English Manual

Notes

Please do not exceed the rated load.
Please note that the product needs to rest for 10 minutes for every minute of work, if it works for a long time, it is easy to burn out the motor.
Please check the cable, power supply, etc. carefully before use and take proper protective measures to avoid potential safety hazards.
Please do not install the product at an inclined angle as much as possible, otherwise the strength will be greatly affected.
Please read the English manual carefully before use and pay particular attention to the safety instructions contained therein.
Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.

Application

It is suitable for TV lifting tables, massage beds, electric beds, medical chairs, electrical appliances, micro-electrical appliances, electric sofas, camera frames, cameras, etc. It can be used for automation in medical, agriculture, and other fields, as well as window openers, automatic door openers, industrial electric lift systems, solar trackers, and so on.

Key Features：

Build to Last: Our product is made of high-quality aluminum alloy and POM and adopts an electrophoresis treatment, so it is sturdy and rust-resistant, and has a long service life.

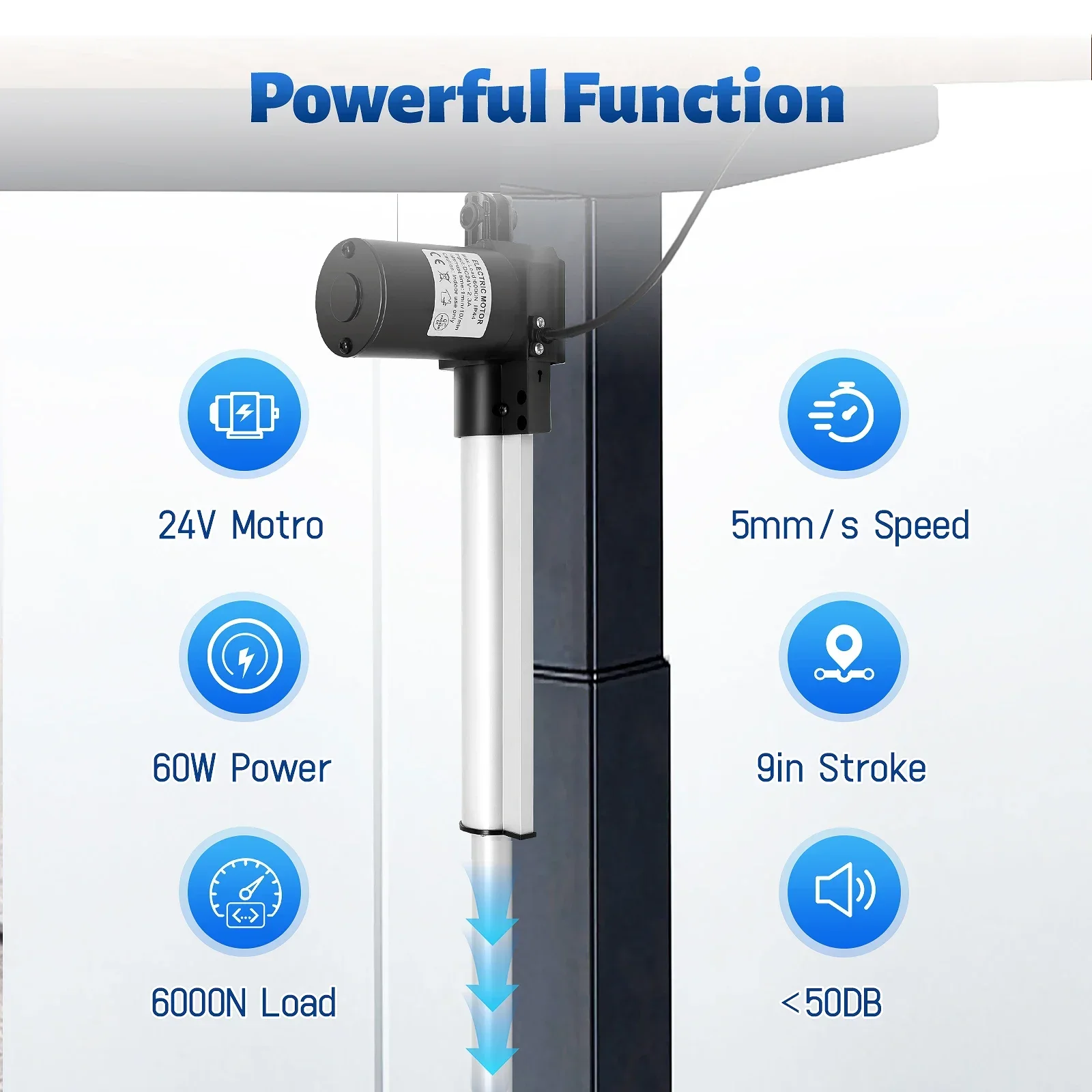

Powerful Function: It has a 24V permanent magnet motor and 60W of power, a load capacity of 6000N, a free load speed of 5mm/s, a stroke of 9 inches, and a low noise(below 50db) level that ensures efficient and quiet use.
Safety First: It has built-in front and rear limit switches and IP44 protection with a self-locking force of up to 6000N, providing you with a safe use experience.
Easy to Clean: Thanks to its smooth surface and simple construction, you can wipe the surface clean of stains with a rag.
Compact and Lightweight: With its compact size and light weight (5.5 lbs), you can install it without taking up too much space.
Ready to Go: The product is almost assembled, you just need to simply wire it to your power supply unit, which is very convenient and time-saving!
Ideal Gift: Because of its powerful functions and practicality, you can give it to your friends or colleagues as a Christmas, Thanksgiving, or housewarming gift.
Customer Service: We aim to provide quality products and services. If you have problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.
