Tool Post Holder Quick Change Toolpost Lathe Tool Holder Lathe Accessary for 250-000/250-001/250-002/250-007/250-010

Description:
Machifit 250-000 mini-cuniform GIB type quick change tool post and tool holders fit for woodworking lathe tools.
The quick change tool post is a main accessory of the machine tool, it is consist of tool post and many kinds of tool holders, according to the processing requirements of the workpieces, correspording tool holders are selected to finish cylindrical facing, end facing.cutting, drilling, reaming, boring as well as other processing. It realizes to mount tool outside the machine tool, it has exchange tool quickly, high accuracy , rigidity strong etc. It is satisfactory accessories in place of square turrets.
Specification:
Model
Tool post: 250-000-000
Tool holder: 250-001,250-002, 250-007, 250-010
Type
cuniform type
Material
Steel
Black
Black
Lathe Swing
6-9"
Article

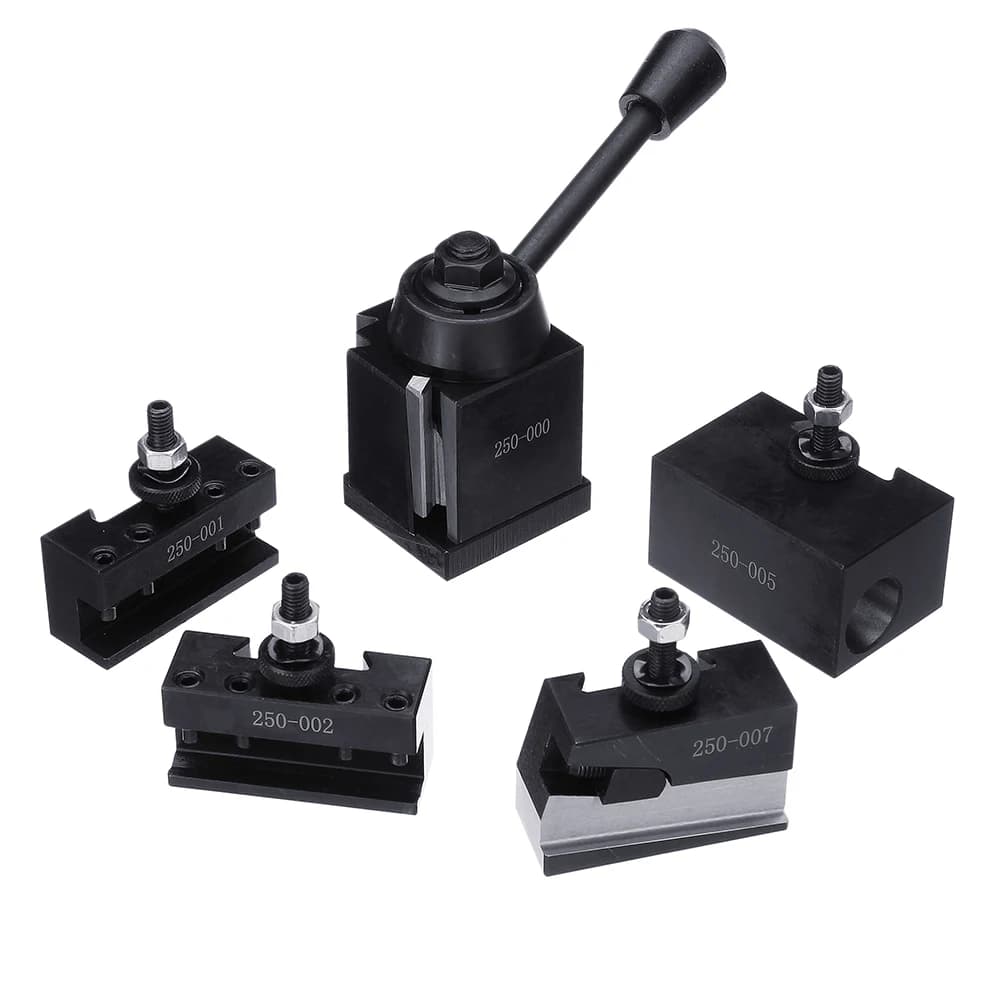

250-000 GIB cuniform type Quick Change Tool Kits
Application
Turning Tool
Usage
CNC Machine Tool Accessories
Capacity of the tool

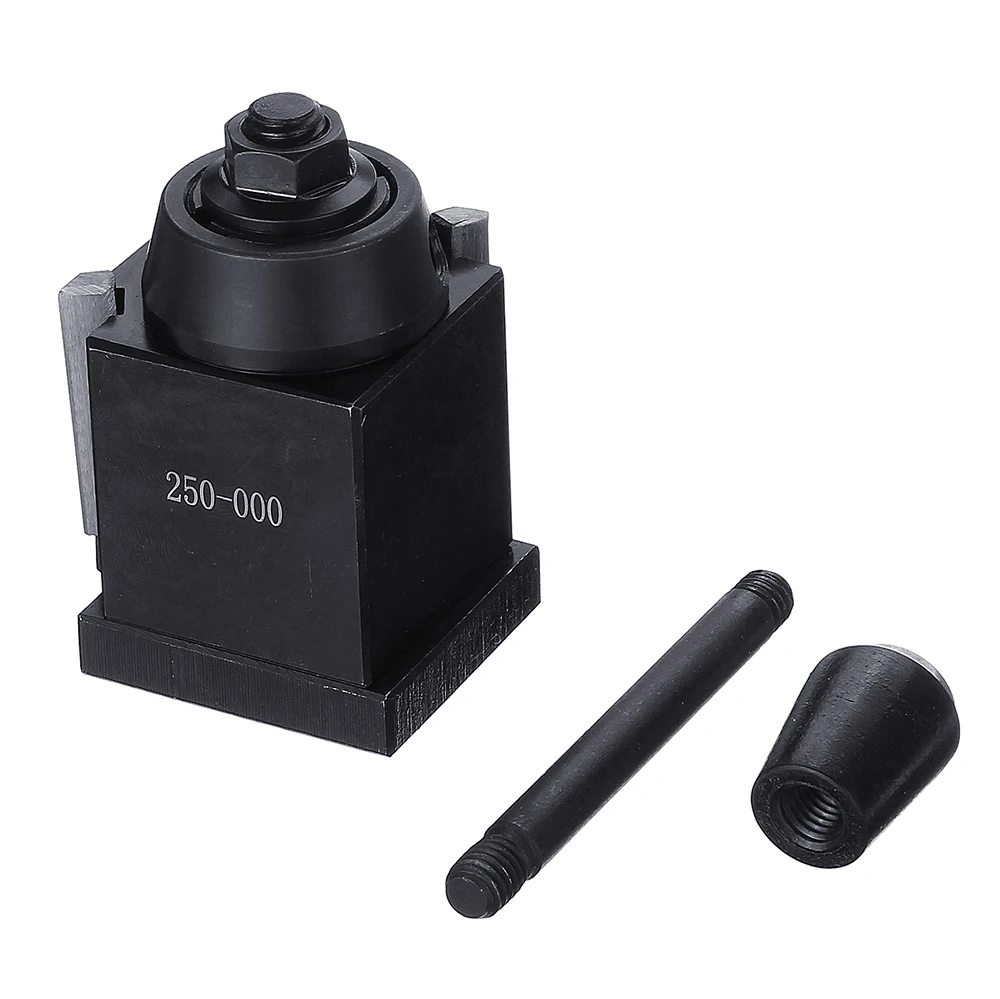

250-000: 1/2 " cuniform Type Tool Post
250-001: 1/2 " Turning Tool Holder
250-002: 1/2 " Boring, Turning Tool Holder
250-007: 1/2 " Parting Blade Tool Holder
250-010: 1/2 " Knurling and Turning Tool Holder
Features:
1. Accuracy -designed to ensure repetitive accuracy.
2. Quickly and easily installed on a lathe engine, bench or tower for a wide range of operations.
3. Size M10 and ideal for most mini machines, although modifications may be necessary for some machines
(sleeve or a new center rod for a smaller hole may be necessary.)
4. Reduce installation time — instant change from one operation to another.
5. Fully interchangeable with Aloris, Dorian, Phase II, Yuasa and most of the other components of the manufacturer.
6. All working parts are accuracy and hardened.
7. Completely sealed for maintenance-free work.
8. Rotate: The unequaled rigidity of this pillar of tools and holders ensures smoother turning without chatter or vibration.
9. Drilling: the set allows you to drill with the power of your carriage, instead of manual work or tailstock.
10. Hard cuniform Tool post design, easily centered.
Usages:

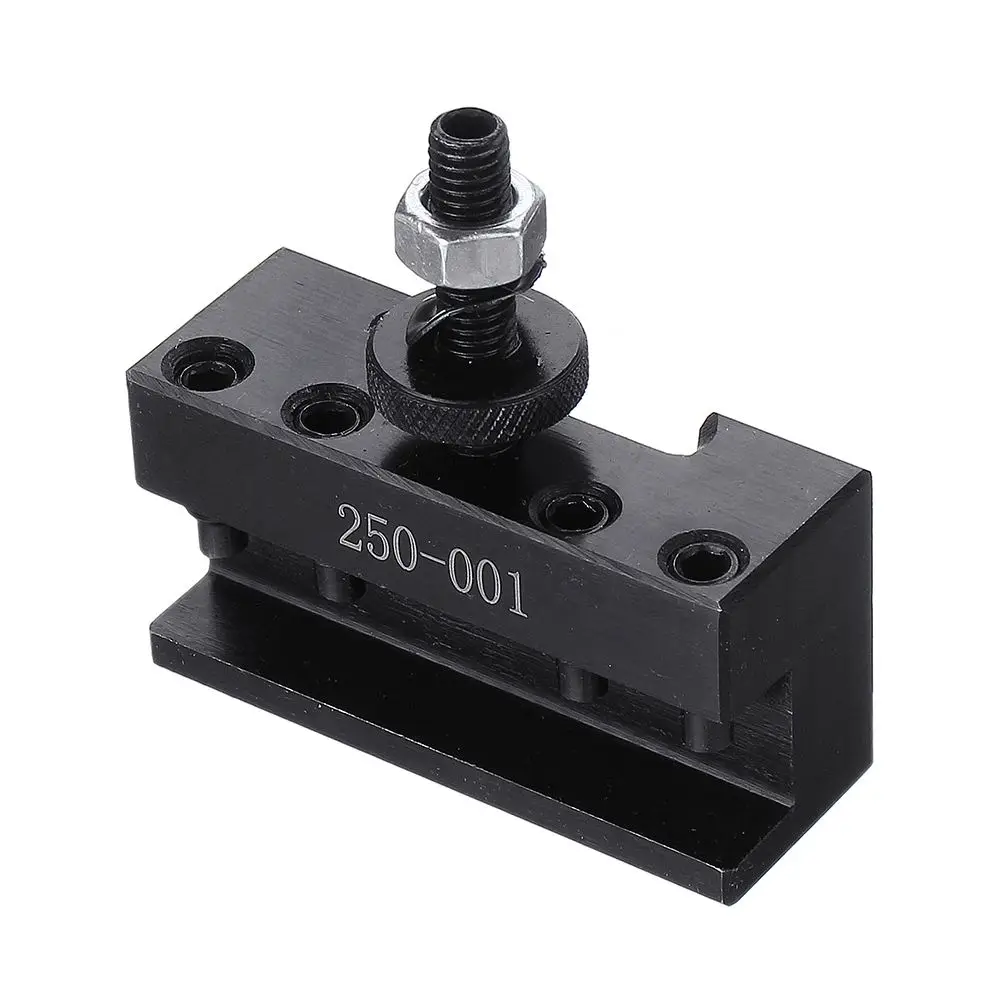

- 250-001 quick tool change holder for lathe cutting tool bits range up to 1/2 inch
This holder is suitable for working with cuniform type 250-000.

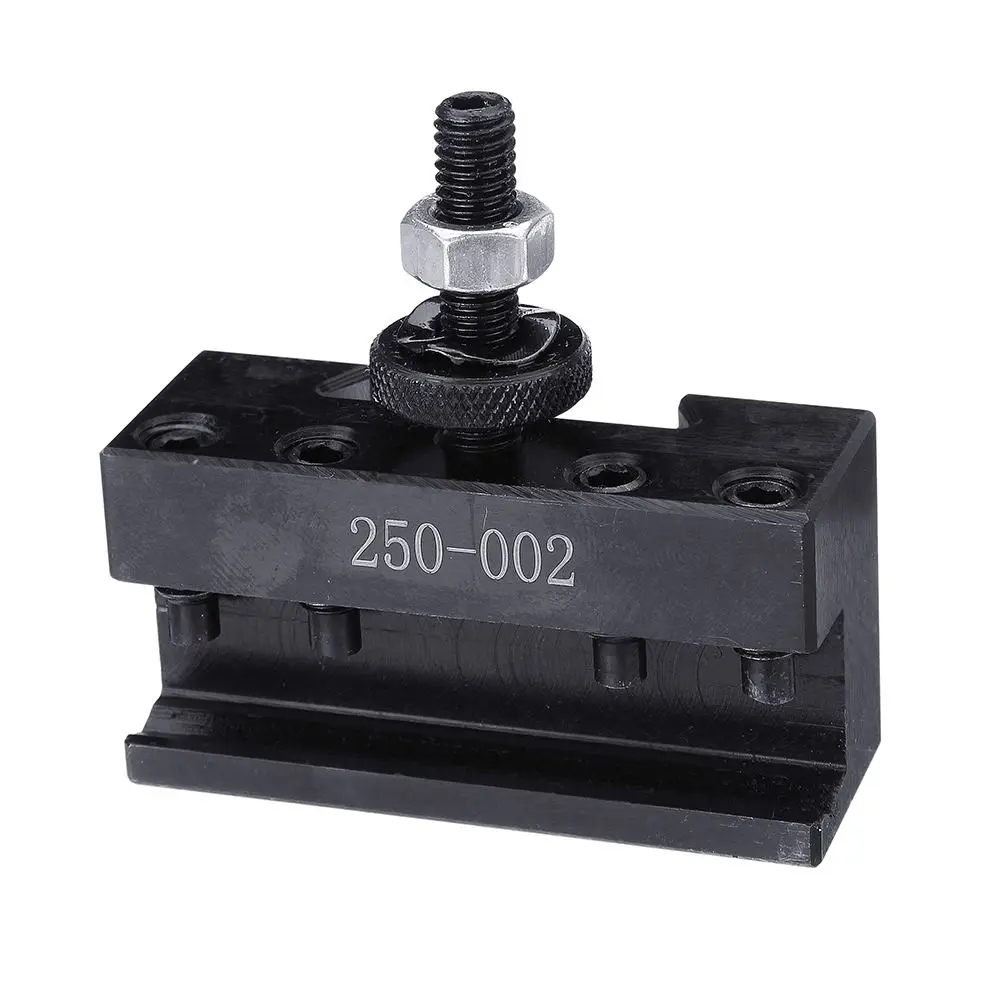

- 250-002 V hold round shank boring bars and tools as well as square tool bits to machine end face ,external, cutting, boring etc.
- 250-007 Use square tool to make slot cut off etc.
- 250-010 lt may be used for knuring, if square tool is used, it may process end face, extered cutting, boring etc.
Note:
Please note that the package included one type only.

Package Included:
1 X Tool post / Tool holder (optional: 1pc only)
Type
Item
#0
250-000
01
250-001
02
250-002
07
250-007
10
250-010
Detail Pictures:
