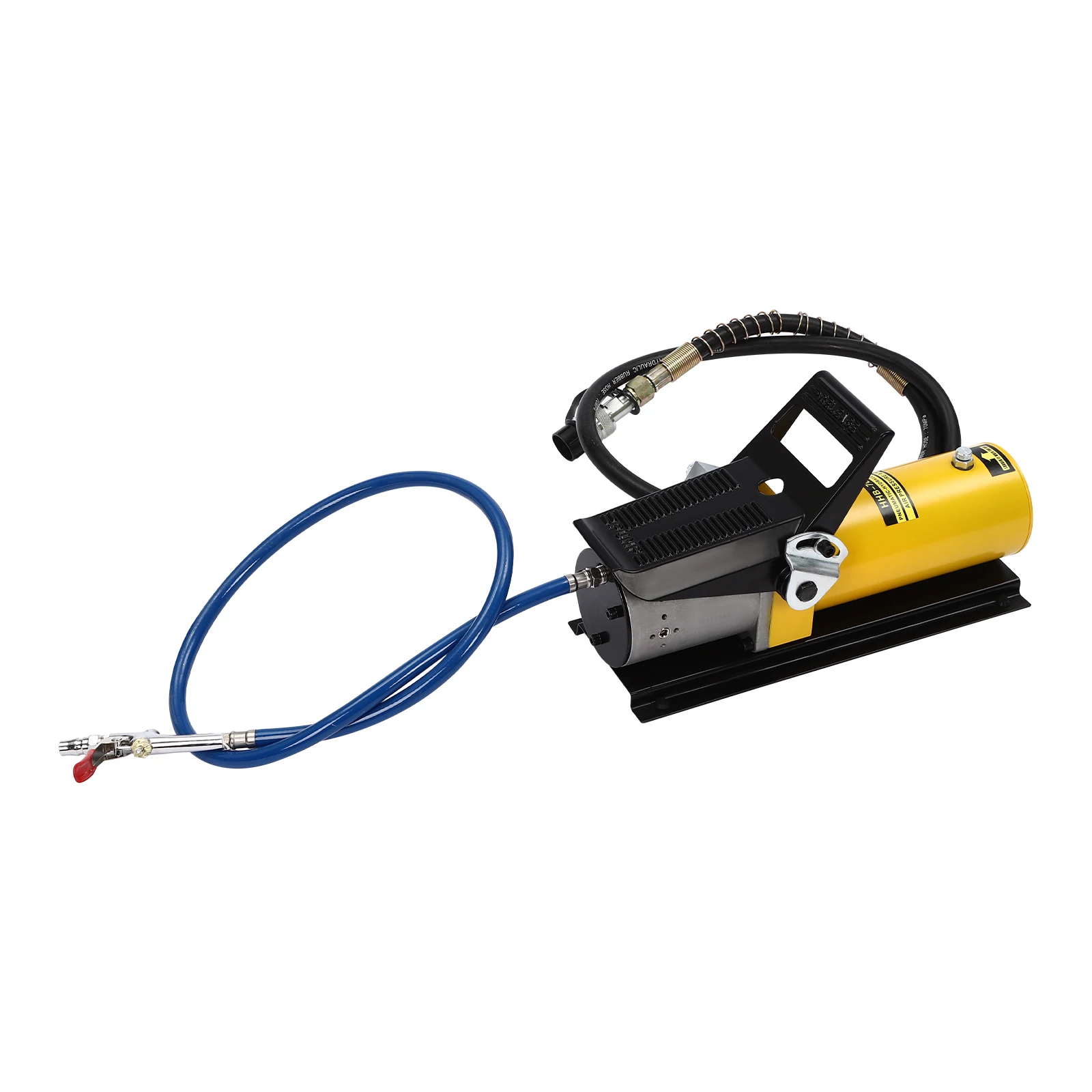

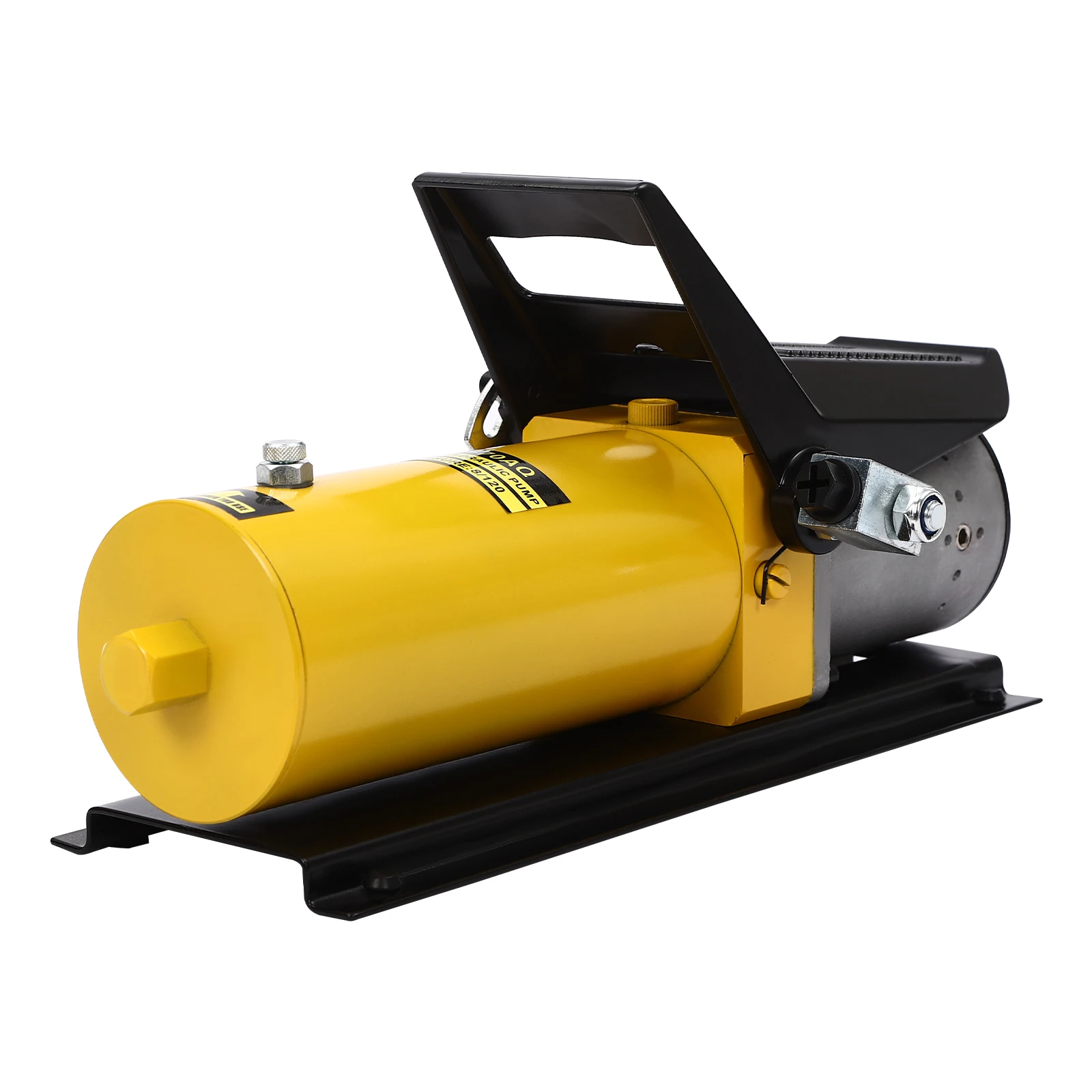

Air Hydraulic Pump| 10000PSI Foot Operated Pump| Auto Body Frame Machines and Pulling Post Air Treadle

Air Hydraulic Pump| 10000PSI Foot Operated Pump| Auto Body Frame Machines and Pulling Post Air Treadle

Description

This quality air hydraulic pump, meticulously crafted, significantly boosts your working efficiency and delivers convenience. Constructed from premium materials, it is robust, featuring power output pressure with low air consumption to greatly enhance productivity. Equipped with standard threaded connections and a complete set of accessories, it offers easy usability.

Specifications

Model: HHB-70AQ

Material: Steel

Process: Spray Molding

Shape: Column

Color: Yellow

Assembly Required: Yes

Pneumatic Output Pressure: 10000PSI

Starting Pressure: 120PSI

Fuel Tank Capacity: 690cm³/42cu.in

Interface Type: R23/8

Hydraulic Oil Type: 15#

Oil Outlet Thread: ZG3/8

Air Inlet Thread: G1/4

Package Size: 40*19.2*22cm/15.75*7.56*8.66in

Product Size: 38.6*17.8*19cm/15.2*7*7.5in

Black Fuel Hose Length: 1.5m/4.9ft

Blue Air Hose Length: 1m/3.3ft

Gross Weight: 8.9kg/19.62lbs

Key Features

Build to Last: Our product is mainly made of high-quality steel with a spray molding process, so it is resistant to deformation, oxidation, corrosion, and high temperatures, and has a long service life.

High-Performance: This product delivers a robust pneumatic output pressure of 10000 PSI, low air consumption, and a 42-cubic-inch fuel tank capacity, significantly boosting work efficiency.

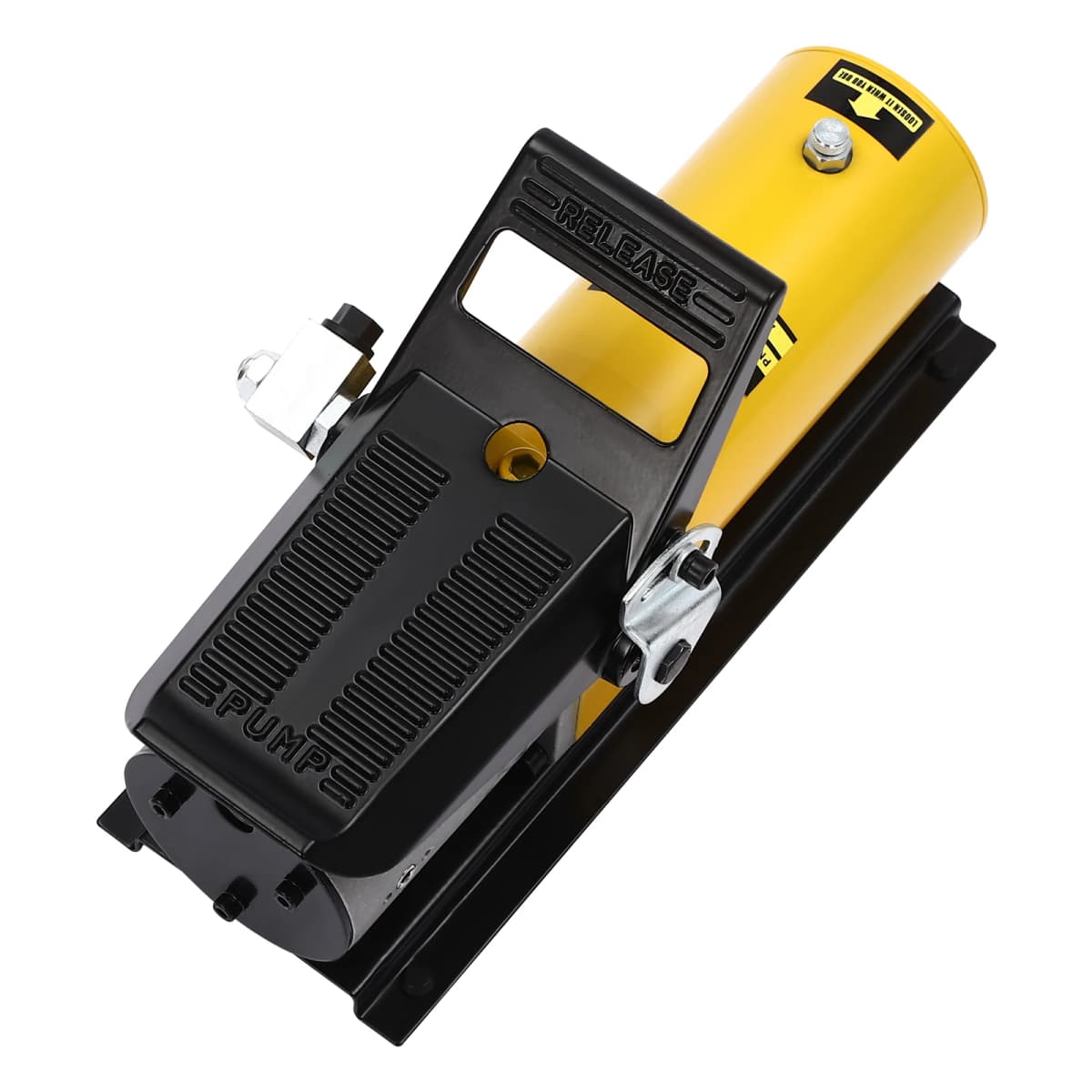

Well-thought-out Design: Textured foot pedal and cut-out handle facilitate manual or foot work, while the built-in intake muffler provides a quieter working experience.

High Safety: It is equipped with an integrated safety valve to prevent overloading, protecting hydraulic components from high-pressure damage and ensuring product stability.

Easy Installation: The product ships 90% pre-assembled, requiring only simple connections for immediate use—extremely convenient.

Space Saving: With its compact size (15.2*7*7.5 inches), it is space-saving for convenient use and storage in the trunk of a car.

Easy to Clean: Thanks to its smooth surface and simple construction, you can wipe it clean with a damp rag.

Customer Service: We aim to provide quality products and services. If you have problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Application

It can be used in conjunction with an air compressor and is widely used for lifting, pressurizing, bending, straightening, cutting, assembling, and disassembling in automotive manufacturing, maintenance, machinery, and equipment industries.

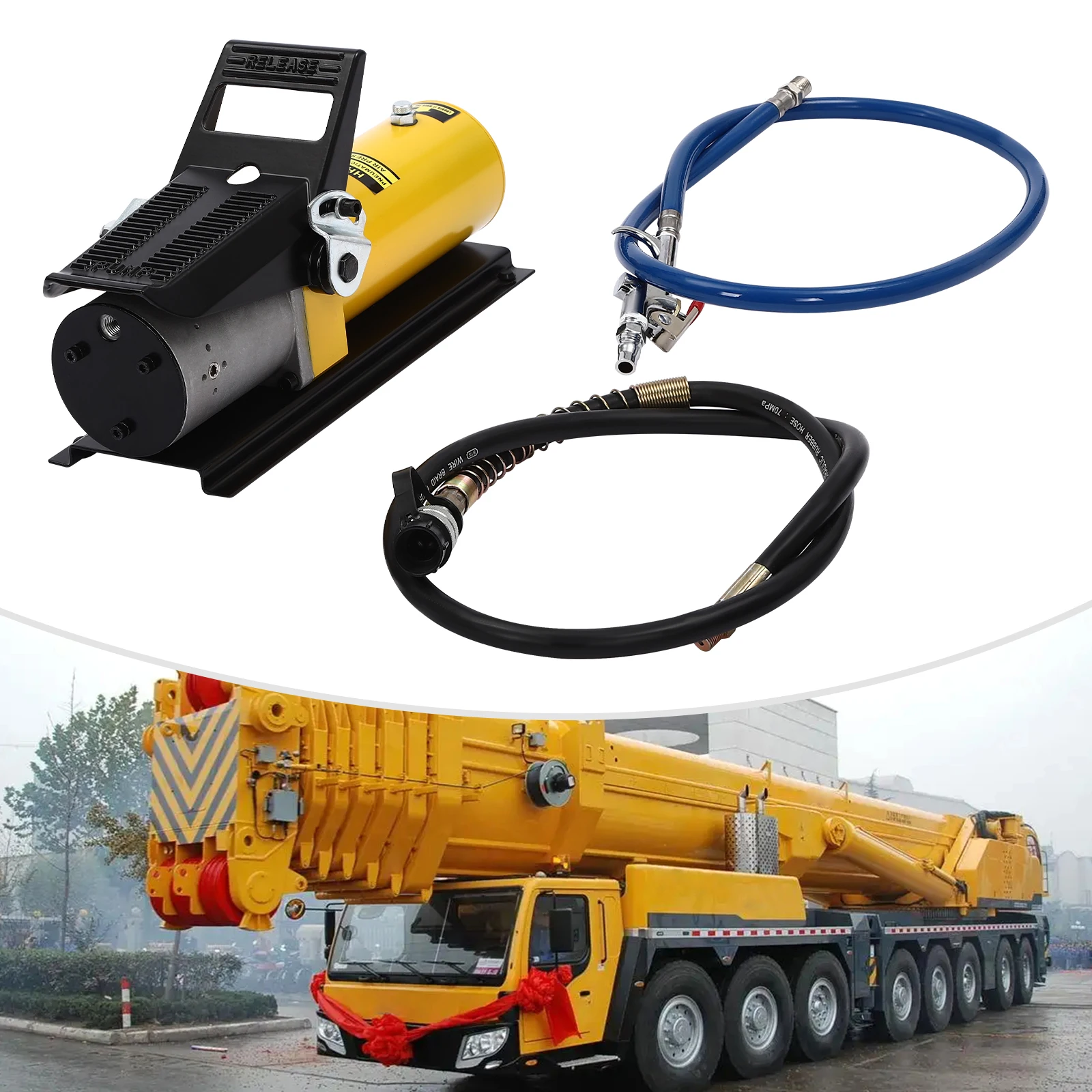

Package Included

1* Air Hydraulic Pump

1* Black Fuel Hose

1* Blue Air Hose

Details

Long Hose Design: A 4.9-foot fuel hose and a 3.3-foot air hose enhance working convenience and safety.

Dust Cap: It effectively prevents dust ingress, ensuring a cleaner working environment.

Notes

1.Please check air pressure before operation and normal operating pressure is 120 PSI.

2.Please loosen the air vent/fuel hole when using.

3.Please use 15# hydraulic oil (not included) with the product.

4.Please note that this product does not include an air compressor.

5.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
