15HP/8KW Petrol Powerful Engine 4 Stroke 420cc Horizontal Recoil/Electric Start

Specification

---------------------------------------------------------------------------

Model: MXR420E

Engine Type: Single Cylinder,4 Stroke,Forced Cooling,OHV

Rated Power(kW):8

Bore x Stroke(mm): 90x66

Displacement: 420cc

Compression: 8.0 : 1

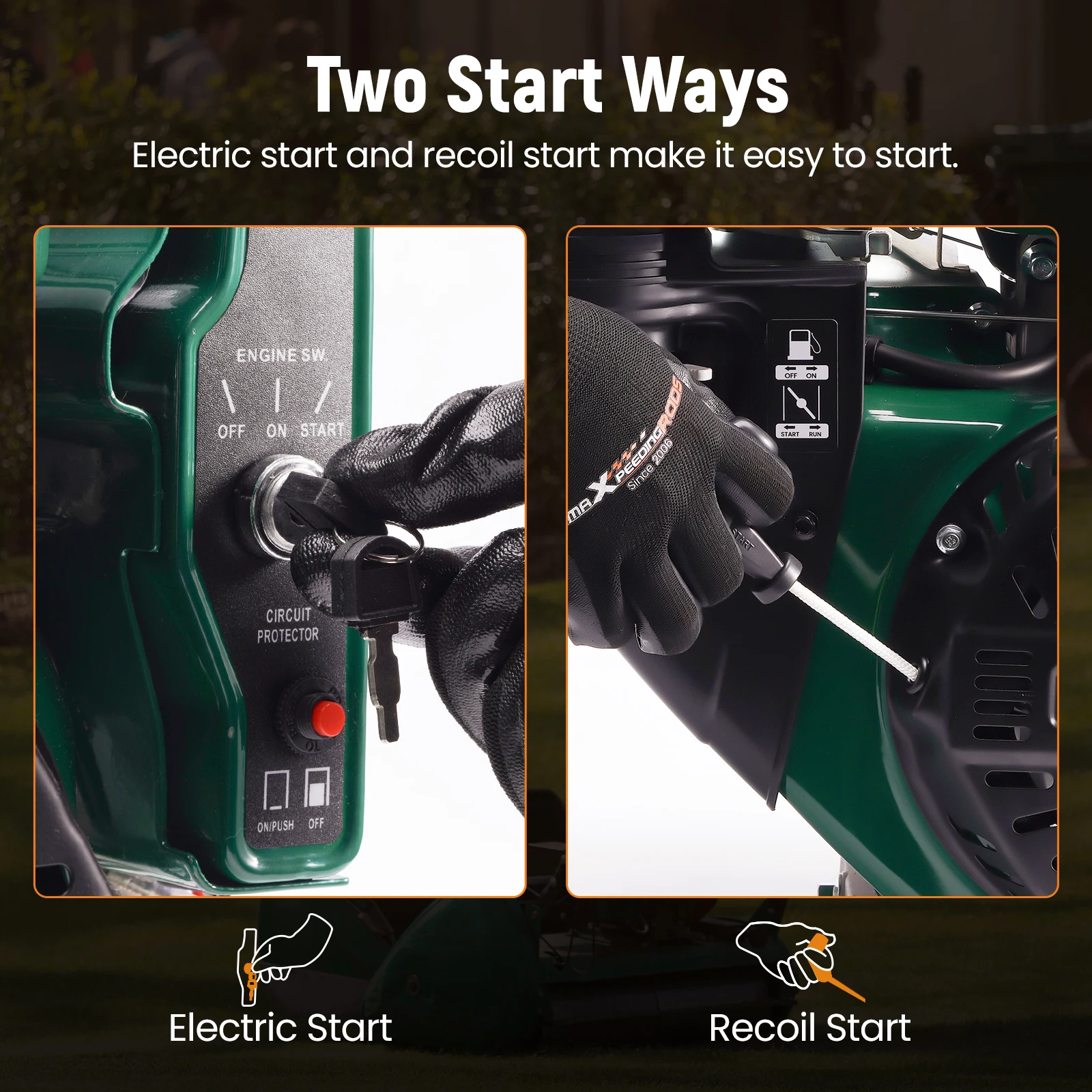

Starting Method: Recoil/Electric(Battery not included)

Ignition Method: Transistorized ignition

Horse Power(HP):15

Fuel Type: Gasoline

Oil Type: SAE 10W-30

Fuel Tank Capacity(L): 6

Oil Capacity(L): 1.1

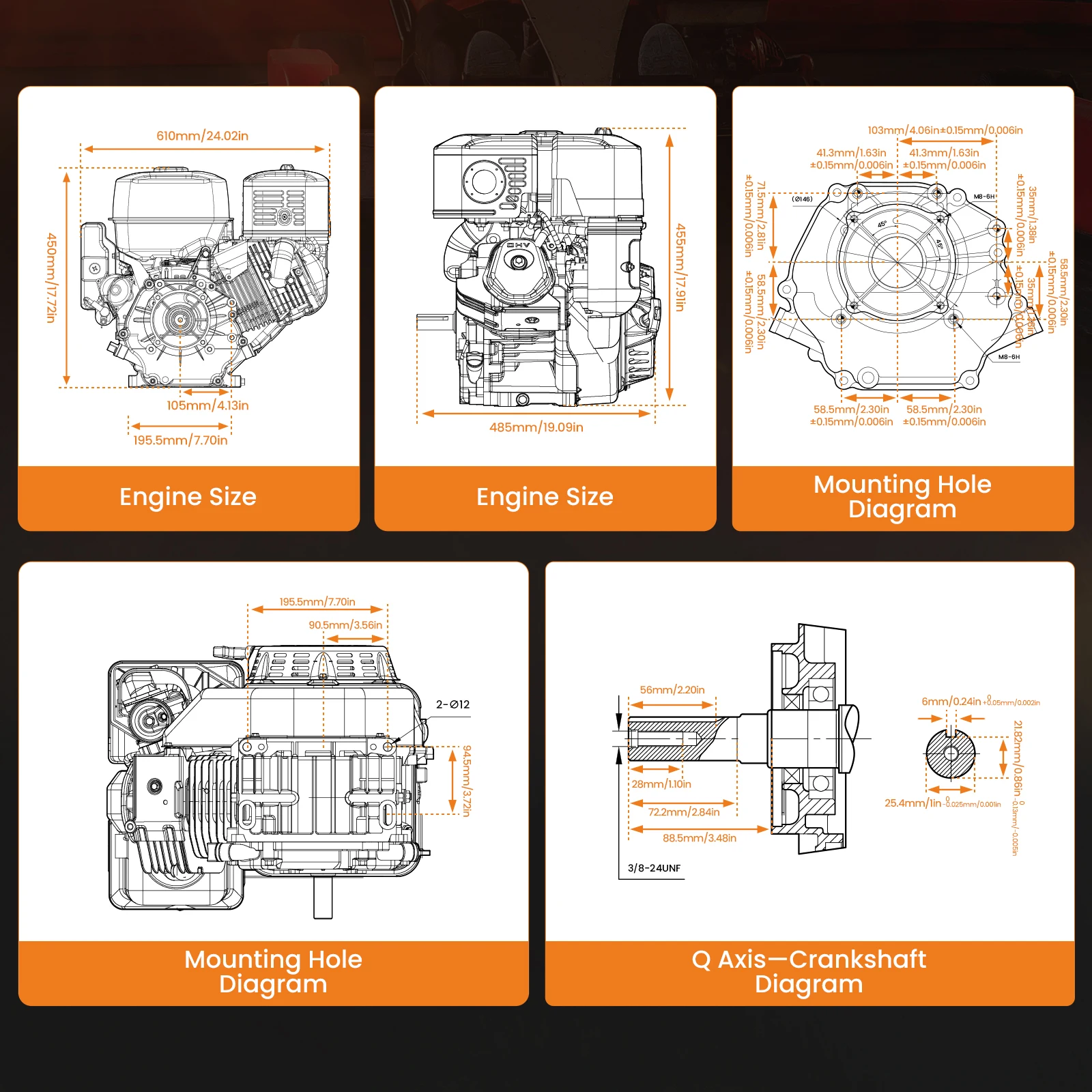

Dimensions L*W*H (mm): 500*445*500

Net Weight (kgs): 32.5

Gross Weight(kgs): 36

Shaft Orientation: Horizontal

Shaft Diameter(mm): 25.4

Shaft Keyway(mm): 6

Shaft length(mm): 88.5

Shaft End: 3/8" Size 24 UNF - Drilled and Tapped

CE Certified: Yes

Euro-V Certified: Yes

Feature：

---------------------------------------------------------------------------

Powerful Engine: Our gasoline engine is a 4-stroke 420cc OHV engine, which provides you with strong power and ensures that your work can be completed quickly and easily.

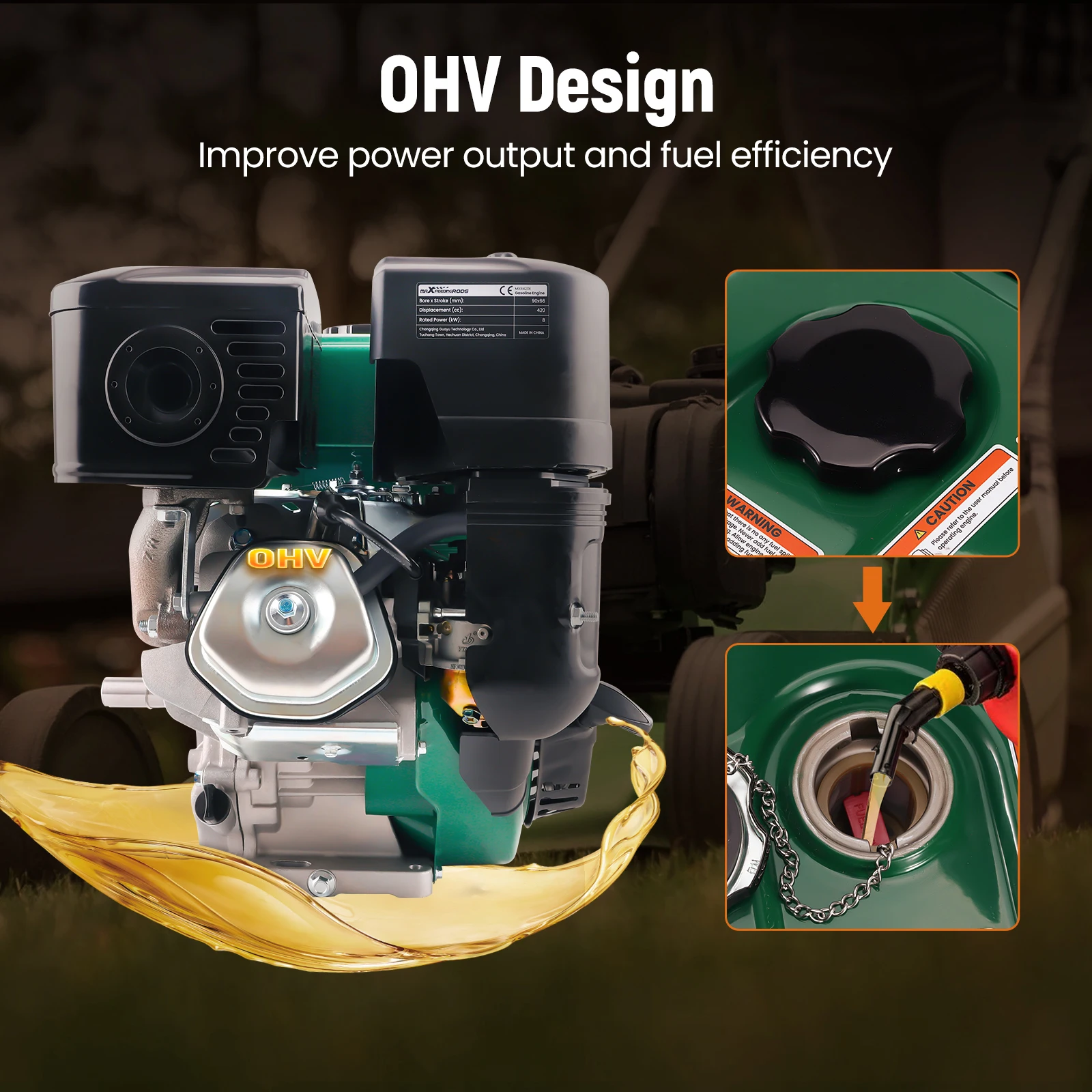

High Fuel Efficiency: OHV design for improved power output and fuel efficiency.

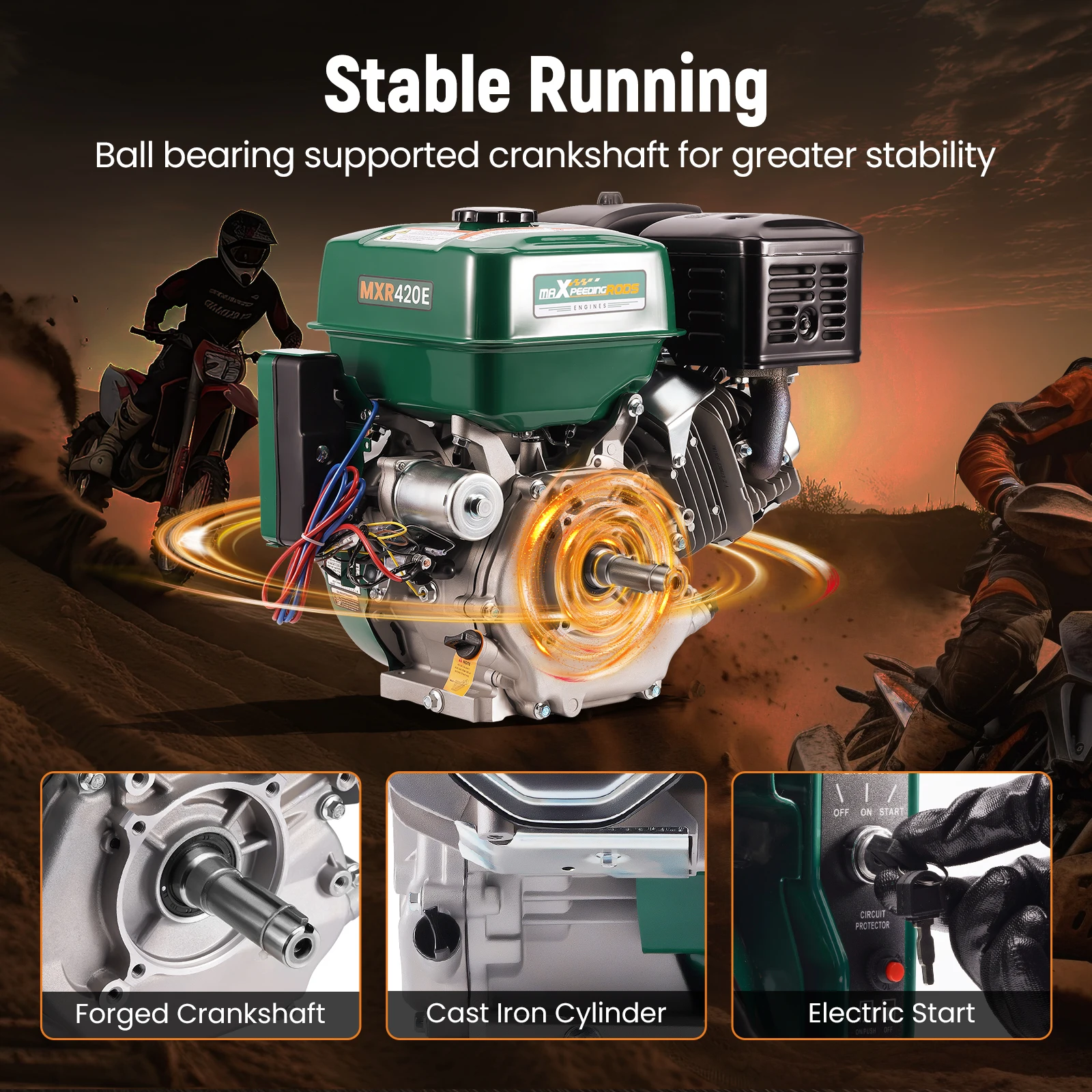

Smooth Performance: Ball bearing supported crankshaft for greater stability and precision engineered components result in lower vibration.
