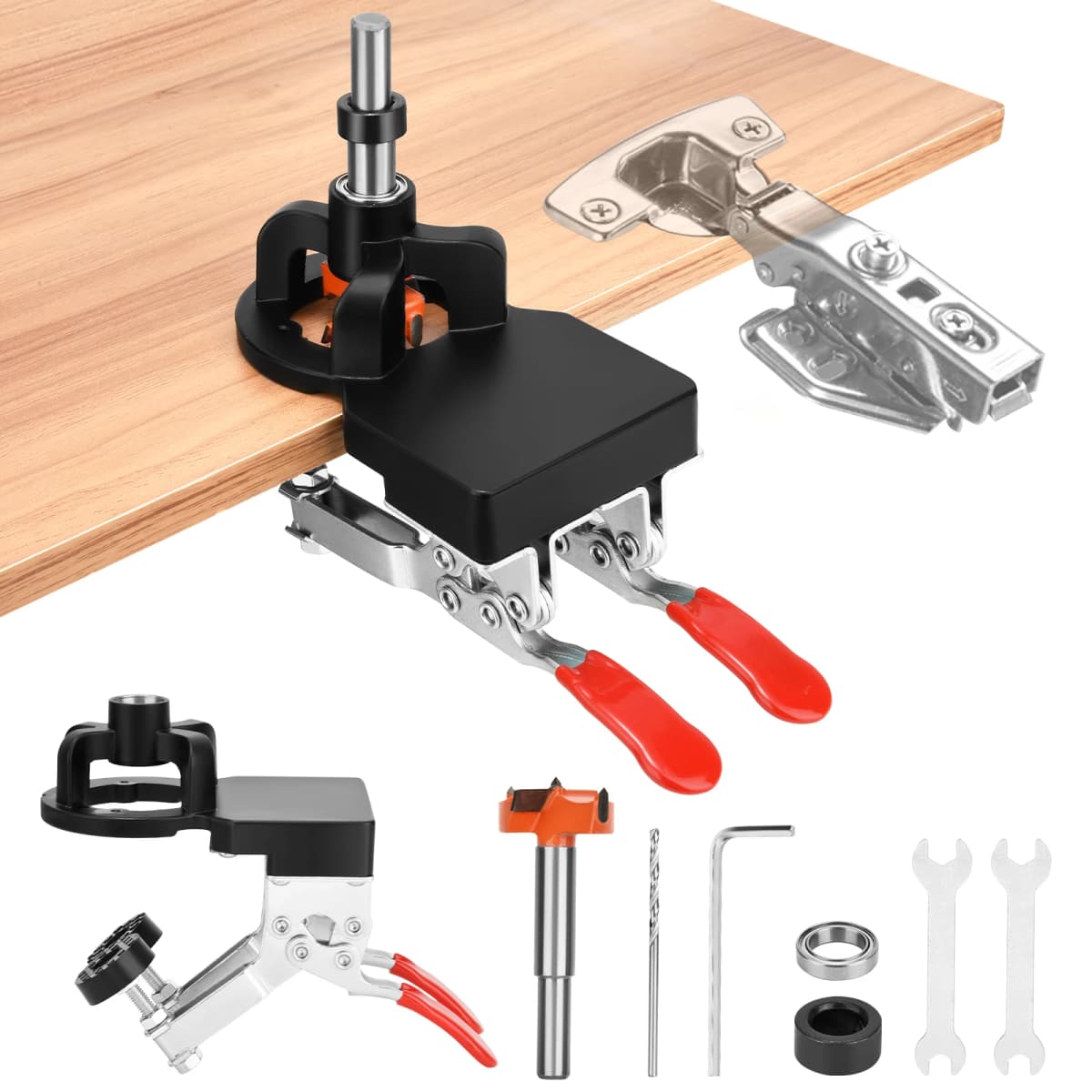

Concealed Hinge Jig, 35MM Cabinet Hinge Jig Drilling Hole Puncher with Quick Clamp,Accurate Hinge Drill Jig Woodworking Tool

Feature:

1、Double Clamp:The clip has two clips that are more stable than the old one, and the material is aluminum alloy, which is more resistant to high temperature and stronger.

2、Drill Sleeve for three-layer Bearing：The drill sleeve for the upper, middle and lower bearings has a total height of 2cm. The higher the height, the smaller the drill bit swings and the more accurate the drilling. Drilling with higher precision than the old model.

3、The hole depth is 10-15mm, and the thickness of the board that can be clamped is 15-25mm

4、The margin of the hole can be adjusted: the adjustable range of the margin is 3-7mm. Method: Loosen the screw, refer to the positioning scale on the machine, and then cover the stainless steel positioning adjustment plate.

5、【Package Included】 1 x hinge drilling locator, 1 x 35mm hole saw drill bit, 1 x top linkage bearing，1 x depth positioning ring，2 x wrenches, 1 x 2mm drill bit, 1 x allen key.
