12V/230V High Flow Rate Diesel Transfer Pump, 45/50/60L/Min Diesel Fuel Oil Pump, Adjustable Self Priming Electric Oil Pump Kit

Description

This diesel transfer pump is a versatile solution for efficiently pumping diesel to vehicles, construction sites, farms and other outdoor fuel equipment. It features an intuitive display that accurately shows the amount of diesel delivered per operation. The powerful pump realizes the fast power recovery of the machine, and the high-quality materials make it waterproof, windproof, sunproof, and snowproof, so it will be an indispensable fuel delivery tool.

Item 1——12V 200W 50L/min Self-Suction Diesel Pump

Specifications:
Condition: New
Color: Red
Applicable Models: Universal
Material: Copper, Cast Iron, PVC, Rubber
Process: Electroplating, Oxidation
Type: Self-Suction Diesel Pump
Voltage: 12V
Power: 200W
Speed: 3600RPM
Max. Lift: 10m/32.8ft
Max. Suction: 5m/16.4ft
Max. Flow Rate: 45L/11.88Gal/min
Max. Continuous Use Time: 30min
Oil Inlet Pipe Length: 2m/6.56ft
Oil Outlet Pipe Length: 4m/13.12ft
Oil Pipe Inner Diameter: 2.5cm/0.98in

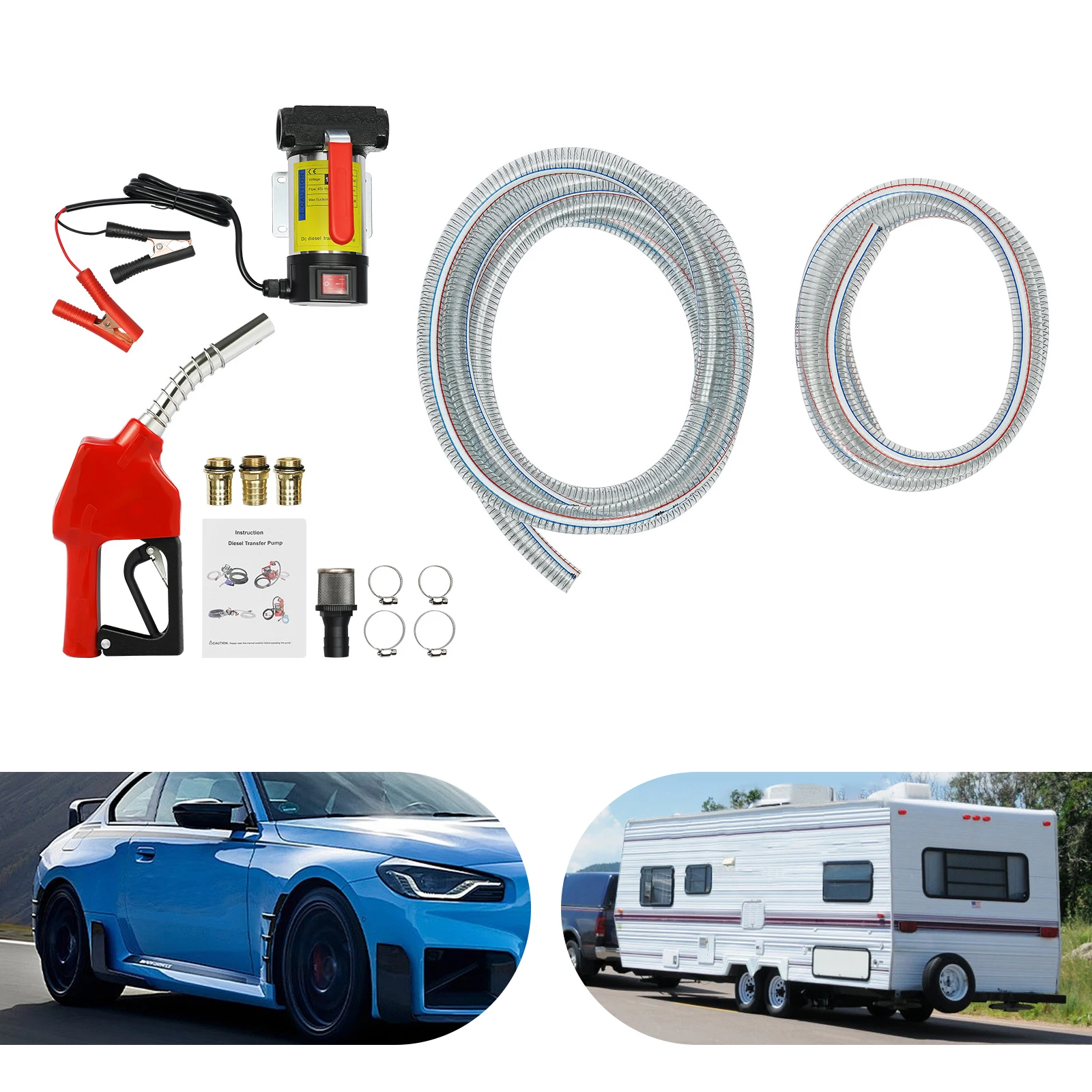

Package Included
‌1* Diesel Pump
1* Self-sealing Oil Gun
1* Oil Inlet Pipe
1* Oil Outlet Pipe
1* English Manual
Other Accessories for Assembly

Key Features

High-quality Materials: It is made of high-quality copper, cast iron, PVC, and rubber with electroplating and oxidation processes, which are not easy to crack and can ensure a long service life.

High Efficiency: The diesel pump has a maximum flow rate of 11.88Gal/min and a rotating speed of 3600RPM, which provides you with strong power and ensures that your work can be completed quickly.

High Safety: A built-in bypass valve helps prevent overheating or overloading.

Powerful Function: This kit can be used as a fuel supply for operator-driven vehicles such as construction machinery, excavators, bulldozers, cement mixers, lifts, trucks, mining equipment, and agricultural machinery. It is also ideal for filling or emptying diesel fuel and oil storage tanks.

Item 2——12V 175W 45L/minSelf-priming Diesel Pump

Specifications
Material: Cast Iron
Color: Black, Red
Process: Spray Molding
Condition: New
Product Type: Self-priming Diesel Pump
Applicable Models: Universal Diesel Vehicle Models
Way of Use: Direct Replacement
Power: 175W
Max Lift: 10m/32.8ft
Max Suction: 5m/16.4ft
Maximum Flow Capacity: 45 L/9.9Gal/min
Speed: 3600 R/M
Voltage: DC 12V
Noise Level: <70 dB
Maximum Pressure: 0.29 MPa, 3 bar, 42 PSI
Inlet and Outlet: 3/4
Inlet Hose Length: 2m/6.56ft
Outlet Hose Length: 4m/13.12ft
Package Size: 25*18*11cm/9.84*7.09*4.33in
Gross Weight: 2.8kg/6.17lbs
Net Weight: 2kg/4.41lbs

Package Included
‌1*Diesel Pump
1*PVC Inlet Hose
1*PVC Drain Hose
1*Pump Gun
1*Fuel Filter
2*Inlet Hose Mounting Circuits
1*English Manual
Other Accessories for Assembly

Key Features

High-class Materials: This product is mainly made of high-class cast iron with a spray molding treatment, which is impact-resistant, strong, durable, and not easy to deform.

High Safety: A built-in bypass valve helps prevent overheating or overloading.

Peak Efficiency: This pump delivers 175W of power and 3600rpm speed, so you can finish your work sooner and move on to the next task. It’s reliable, powerful, and built for efficiency.

User-Centric: It can be used on mobile or permanently mounted, which is ideal for homes, small businesses, and commercial spaces. No more buying separate pumps for different jobs!

Potent Function: It supplies fuel to kinds of operator-driven machines like construction machinery, excavators, bulldozers, cement mixers, lifts, trucks, mining equipment, and agricultural machinery, keeping them running strong. It also makes filling or emptying fuel storage tanks easy.

Item 3——230V 550W 60L/min Self-priming Diesel Pump

Specifications
Material:  Aluminium Alloy, Copper, Cast Iron, PVC, Rubber
Color: Black, Silver
Model: LG-1008
Process: Electroplating, Oxidation
Product Type: Self-priming Diesel Pump
Pump Type: Diesel Pump
Inlet and Outlet: 25mm/1inch
Pvc Inlet Hose: 2m/6.56ft
Rubber Outlet Hose: 4m/13.12ft
Delivery Head: 10-15m/32.81-49.21ft
Power: 550W
Voltage: 230V±10(Dc), 50Hz
Noise Level: <70 dB
Speed: 2800 Rpm
Max. Sucton: 5m/16.4ft
Maximum Pressure: 0.29 Mpa, 3 Bar, 42 Psi
Maximum Flow Capacity: 60 L/15.85Gal/min
Installation Position: Engine Compartment
Way of Use: Direct Replacement

Fits (As a Reference)：For Universal Car Models

Package Included
1*Diesel Pump
1*Pvc Inlet Hose
1*Rubber Drain Hose
2*Inlet Hose Fastening Circuits
1*Fuel Filter
1*Inlet Hose Fitting
1*Self-sealing Oil Gun

Key Features

High-quality Materials: This product is mainly made of high-quality aluminium alloy, copper, cast iron, which is strong, durable, and not easy to deform.

High Efficiency: The diesel pump has a power of 550w and a rotating speed of 2800r/min, which provides you with strong power and ensures that your work can be completed quickly.

High Safety: Built-in bypass valve helps prevent overheating or overloading.

User-friendly Design: This product can be used mobile or stationary, ideal for home, business and commercial use.

Powerful Function: This kit can be used as a fuel supply for operator-driven vehicles such as construction machinery, excavators, bulldozers, cement mixers, lifts, trucks, mining equipment and agricultural machinery. It is also ideal for filling or emptying diesel fuel and oil storage tanks.

Item 4——230V 200W 50L/min

Specifications
Material: Cast Iron, Steel, Aluminum Alloy, PVC, Rubber
Motor Type: Copper Wire Motor
Surface Treatment: Electroplating, Oxidation
Color: Red, Black
Instrument Unit: Liter
Readout: 4-digit Subtotal and 8-digit Total
Motor Power: 200W
Voltage: 230V
Max. Lift: 10m/32.8ft
Max. Suction: 5m/16.4ft
Accuracy: ± 1%
Speed: 3600rpm
Max. Flow Rate of Pump: 50L/min (1690.9oz/min)
Max. Operating Pressure: 50psi/3.5bar
Working Cycle Time: Max. 30 minutes
Inlet Pipe Diameter: 3/4''
Outlet Pipe Diameter: 1''
Flow Meter Size: 13.6*14*8cm/5.4*5.5*3.1inch
Oil Gun Size: 37*12.5cm/14.6*5inch
Inlet Pipe Length: 2.06m/6.8ft
Outlet Pipe Length: 4.07m/13.4ft
Power Cord Length: 1.33m/4.4ft
Bracket Size: 34*30.5*20.5cm/13.4*12*8inch
Package Size: 35.5*31.5*39cm/14*12.4*15.4inch
Gross Weight: 12.45kg/27.4lbs
Net Weight: 11.6kg/25.6lbs

Package Included
1*Diesel Transfer Pump
1*Oil Inlet Pipe
1*Oil Outlet Pipe
1*Oil Gun
1*English Manual
All Accessories for Assembly

Key Features

High Flow Rate: A copper coil motor with a power of 200W provides an ultra-strong maximum speed of 3600 rpm and a maximum flow rate of 50L/min, helping you quickly complete the task of pumping or delivering diesel.

Accurate Measurement: The 4-digit subtotal and 8-digit total flowmeter with a mechanical gear structure can ensure a measurement accuracy of up to ± 1%. It also supports manual zeroing via a knob on one side for the next accurate measurement display.

Durable and Sturdy: The cast iron pump head provides strong suction. The aluminum alloy flowmeter and steel bracket ensure strong toughness and strength, and perform well over a long period of time. PVC inlet hose has strong flexibility and tensile resistance and rubber-covered outlet hose provides excellent durability and insulation for maximum safety.

Convenient&Quick Operation: The oil gun and pump will stop automatically when filled, and the self-priming function allows for automatic suction of the oil by simply placing the suction port into the oil, saving you valuable time and energy.

Adjustable Speed: Three gear locks near the oil gun trigger enable continuous diesel delivery at three different speed gears without having to hold the trigger with one hand, saving your energy and relieving hand fatigue.

Rest Assured: The mesh suction port effectively purifies diesel to prevent blockage and the check valve in the suction port prevents the risk of backflow. The switch cover can protect the pump from water or foreign objects.

Long Distance Transfer: With an inlet pipe (6.8ft), an outlet pipe (13.4ft), and a power cord (4.4ft), it can easily realize long-distance diesel delivery without frequent movement.

Compact and Portable: It is small in size (13.4*12*8inch) and comes with an installation bracket that allows you to take it to the place you need and fix it to start pumping diesel.



Details
Gun-hanging Mouth: It allows you to safely and easily place the oil gun during use, ensuring your safety and maintaining its lifespan.

Fuel Gun Nozzle: The aluminum alloy nozzle is corrosion and rust-resistant, and the spring on the nozzle achieves stable fueling when placed in the car's fuel filler.

Convenient Handle: The sturdy long handle on the pump makes it easy to move the pump steadily to wherever refueling is needed for flexible use.

Application
It can be used to pump diesel for automobiles, farms, cargo ships, tractors, excavators, bulldozers, rollers, cement mixers, elevators, trucks, fuel compressors, or other engineering machinery, mining machinery, and agricultural machinery. It is suitable for pumping diesel and kerosene.

Notes

1.Please note that this product is not suitable for pumping water, gasoline and alcohol.
2.Please carefully read the manual and strictly follow the precautions to have a better experience.
3.When it is first used, a small amount of diesel should be added to the pump head to increase suction. The oil inlet pipe should not leak in order to ensure suction lift.
4.Please protect the power socket of this product from water, rain, atmospheric media, and all other liquid sprays.
5.We recommend using this product between -30-40 °C, otherwise, it may cause serious damage to the components. It is recommended to fix this product in a well-ventilated area and avoid direct sunlight.
6.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
