16 Lines Laser Level 3° Self-leveling Machine Rechargeable Lithium Battery Leveling Tool with 1.2m Adjustable Tripod Stand

The laser level meter can emit 16 visible lase horizontal, vertical and oblique lines for the automatic leveling separately or simultaneously. Equipped with self-test calibration function, ≤3° automatic leveling, but if the angle is over 3°, the laser light will keep blinking and the laser level will make a beep sound to remind you to reset them on a flat ground. Comes with one extension bar, which is made of thicken aluminum alloy material, 3-heights adjustable, suitable to most of laser level with 5/8" interface. It provides accurate horizontal and vertical data for indoor construction stakeout and calibration, easy to operate and versatile. Suitable for flooring tile layout, paneling, wallpapering, stenciling, wainscoting, finish carpentry, wall stud layout and partition installation.

Features:

Laser Level:

Compact size, lightweight and portable, long-lasting ABS housing make this laser level perfectly shock resistant, wear resistant and impact resistant. IP54 waterproof and dustproof.

Using 4 high precise millimeter-level green laser line laser sources, with higher brightness, strong penetrability, thickness adjustable and brightness adjustable, and the light is clearly visible both indoors and outdoors.

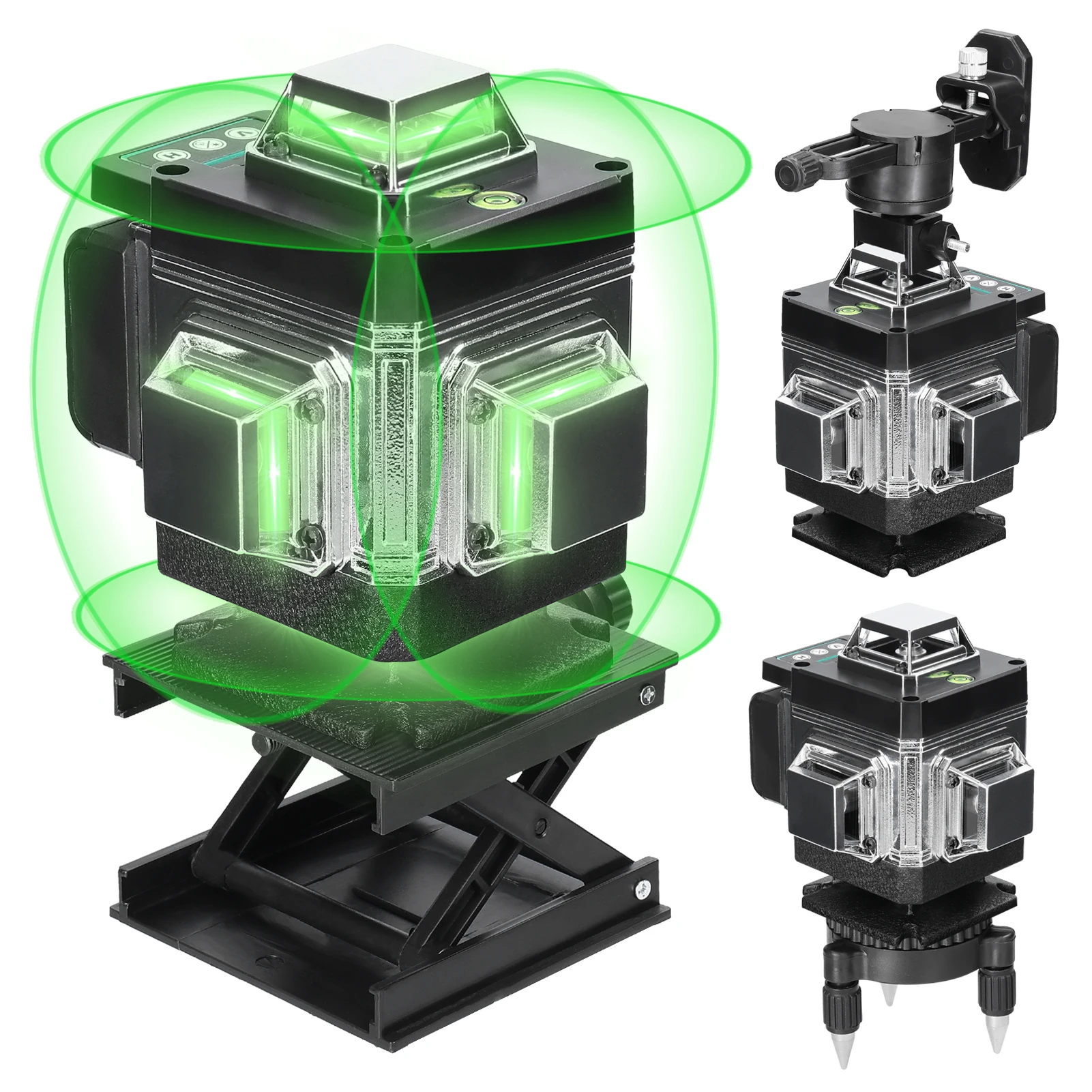

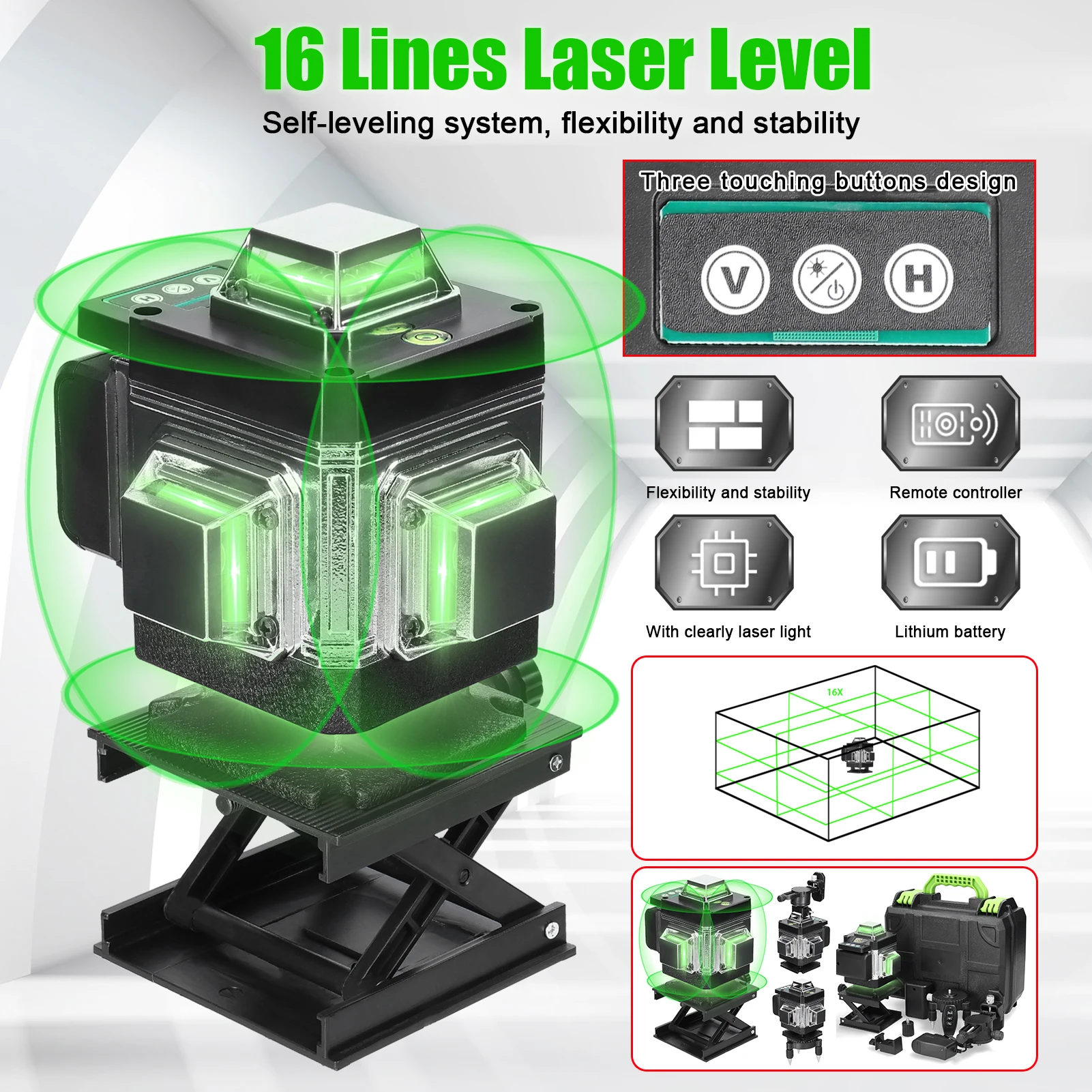

One button to switch on/off. It can output 16 visible laser horizontal and vertical lines separately or simultaneously for finer positioning, with 3° self-leveling system, high flexibility and stability.

Equipped with self-test calibration function, ≤3° automatic leveling, but if the angle is over 3°, the laser light will keep blinking and the laser level will make a beep sound to remind you to reset them on a flat ground.

It features a tilt mode, you can place the laser tool at arbitrary angle to make tilt lines, will not flash the line and will not promote beeping sound.

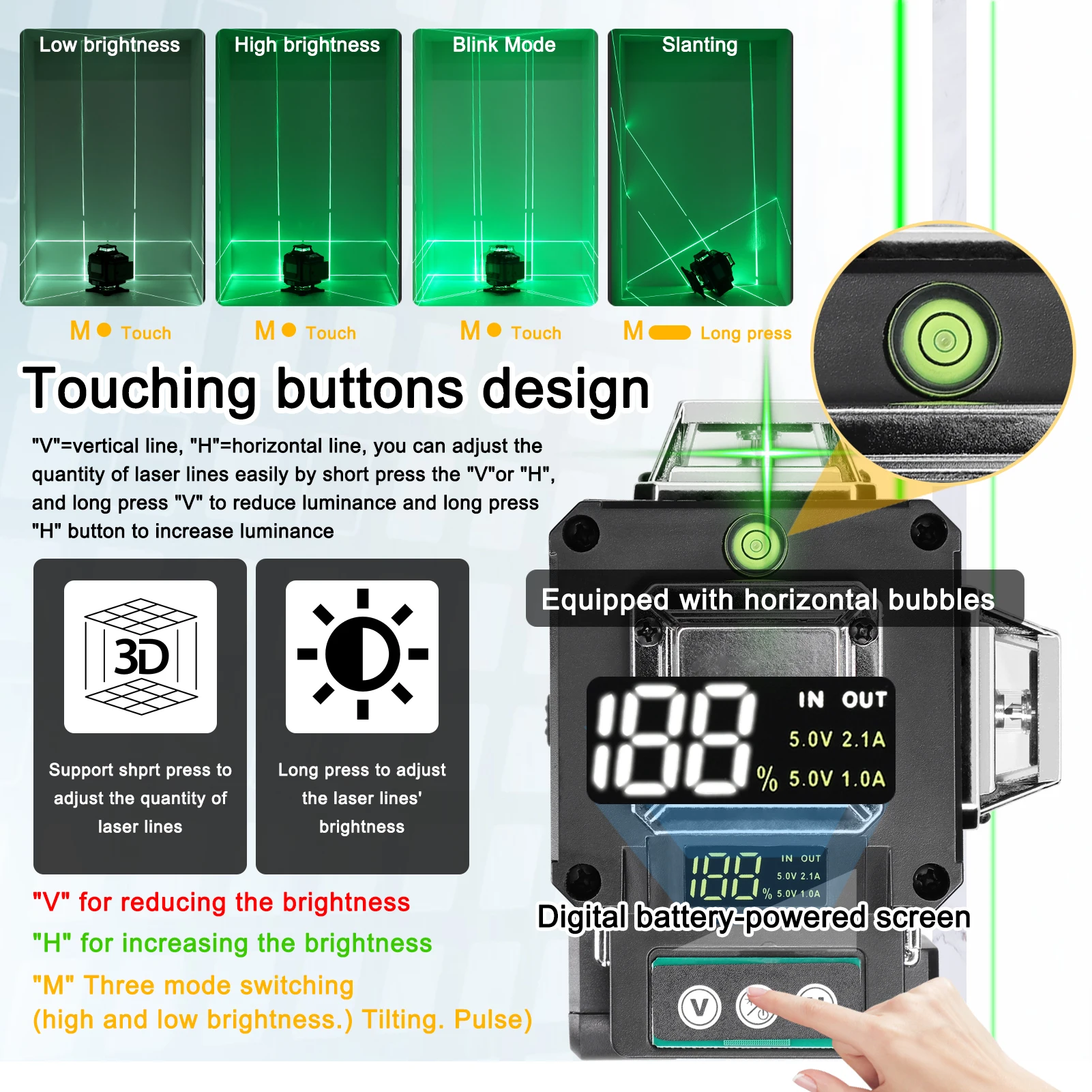

Touching panel with clear-definition digital battery power screen, convenient for you to control the laser quantity and laser brightness, and you can replace the battery and recharge it intime.

Support adjust the quantity of laser lines, and adjust the laser lines' brightness, which makes it suitable for both indoor and outdoor use, with continuous laser and pulse laser. And also support pulse laser under tilt mode.

"V"=vertical line, "H"=horizontal line, you can adjust the quantity of laser lines easily by short press the "V"or "H", and long press "*" to reduce luminance and long press "H" button to increase luminance.

The bottom of the laser level reserved with 1/4inch screw thread for easy connection, it also can be used with tripod (not included) by 1/4inch to 5/8inch thread base (not included) or 1/4inch to 5/8inch adapter (included) to adjust the working height of the machine.

Stylish remote controller design, ergonomic buttons designed on the remote controller, wear-resistant, with high sensitivity line mode switchment and line brightness adjustment, and with a comfortable grip feel.

The T-shape bracket with 7mm wall mounted distance, which has 360° rotatable fine adjustment mechanism, up and down angle regulation and 50mm fore-and-aft regulation distance, all the structures can make the machine quickly find the target (1/4 inch screw size).

The laser level lift bracket is height adjustable design, max 65mm adjustment ranges, anti-slip texture design for increasing friction, more stable placement.

There is a window clip holder for works with wall-mounted bracket, with wide clamping ranges, suitable for a variety of laser levels.

Comes with a plastics box, wear resistant and impact resistant, easy to carry, providing quick and convenient mobility and storage in a complex environment.

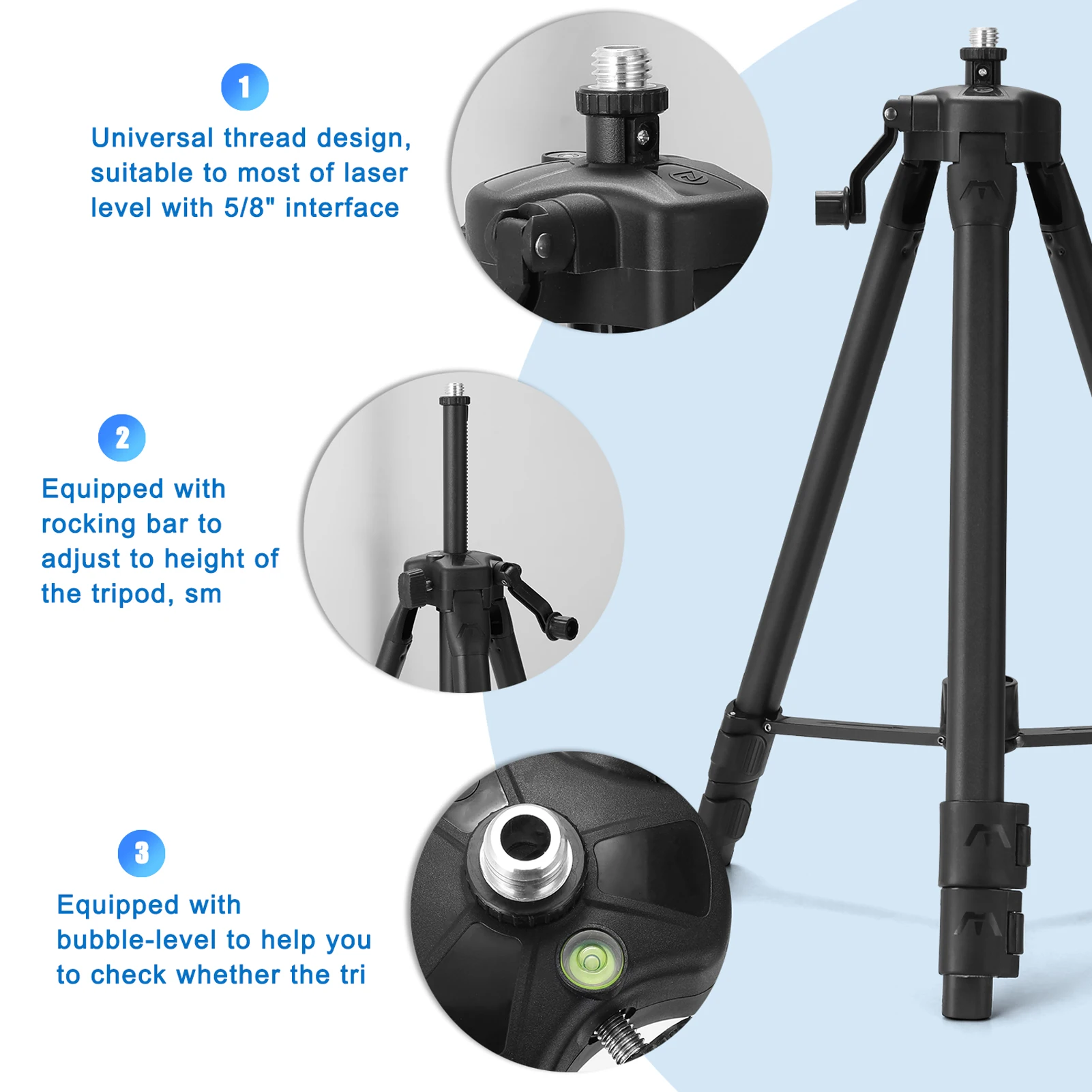

Tripod Stand:

Made of thicken aluminium alloy material, firm with fine load-bearing, not easy to deformed and not easy to break.

Three heights adjustable, max 1.2m, you can adjust according to your demands easily.

Equipped with bubble-level to help you to check whether the tripod is horizontal or not.

Equipped with rocking bar to adjust the height of the tripod, smooth and effort saving.

With fixed plectrum to control to extend length to lock it tightly.

Suitable to most of laser level with 5/8" interface.

Note:

Please do not let the laser line shoots your eyes directly.

The laser output maker is located at the output hole.

Do not stare directly at the laser light.

Do not disassemble the instrument and perform your own internal repairs.

The instrument meets laser radiation safety rating standards.

Specifications:

Name: Laser Level

Main material: plastics+metal

Battery: 2 * rechargeable lithium batteries, 3.7V, 2400mAh (included)

Line type: 4 * 360°, 16 lines

Wavelength: 532nm (Green)

Self-leveling angle: ±3°

Wall mounted distance: 7mm

Operating temperature: -5℃ to 50℃

Working ranges: about 20m in diameter

Waterproof: IP54

Level machine size (assemble with battery): 114 * 135 * 135mm / 4.49 * 5.31 * 5.31in

Rotation base: 97 * 83 * 75mm / 3.82 * 3.27 * 2.95in

Lifting platform size: 113 * 92 * 30mm / 4.45 * 3.62 * 1.18in

Wall mounted bracket size: 160 * 83 * 75mm / 6.30 * 3.27 * 2.95in

1/4inch to 5/8inch adapter size: 23 * 23 * 34mm / 0.91 * 0.91 * 1.34in

Clip holder: 63 * 25 * 27mm / 2.48 * 0.98 * 1.06in

Plastics box size: 235 * 135 * 273mm / 9.25 * 5.31 * 10.75in

Tripod stand size: 470 * 91 * 86mm / 18.50 * 3.58 * 3.39in

Item weight: 2626g / 5.79lb

Package size: 440 * 255 * 240mm / 17.32 * 10.04 * 9.45in

Package weight: 3000g / 6.61lb

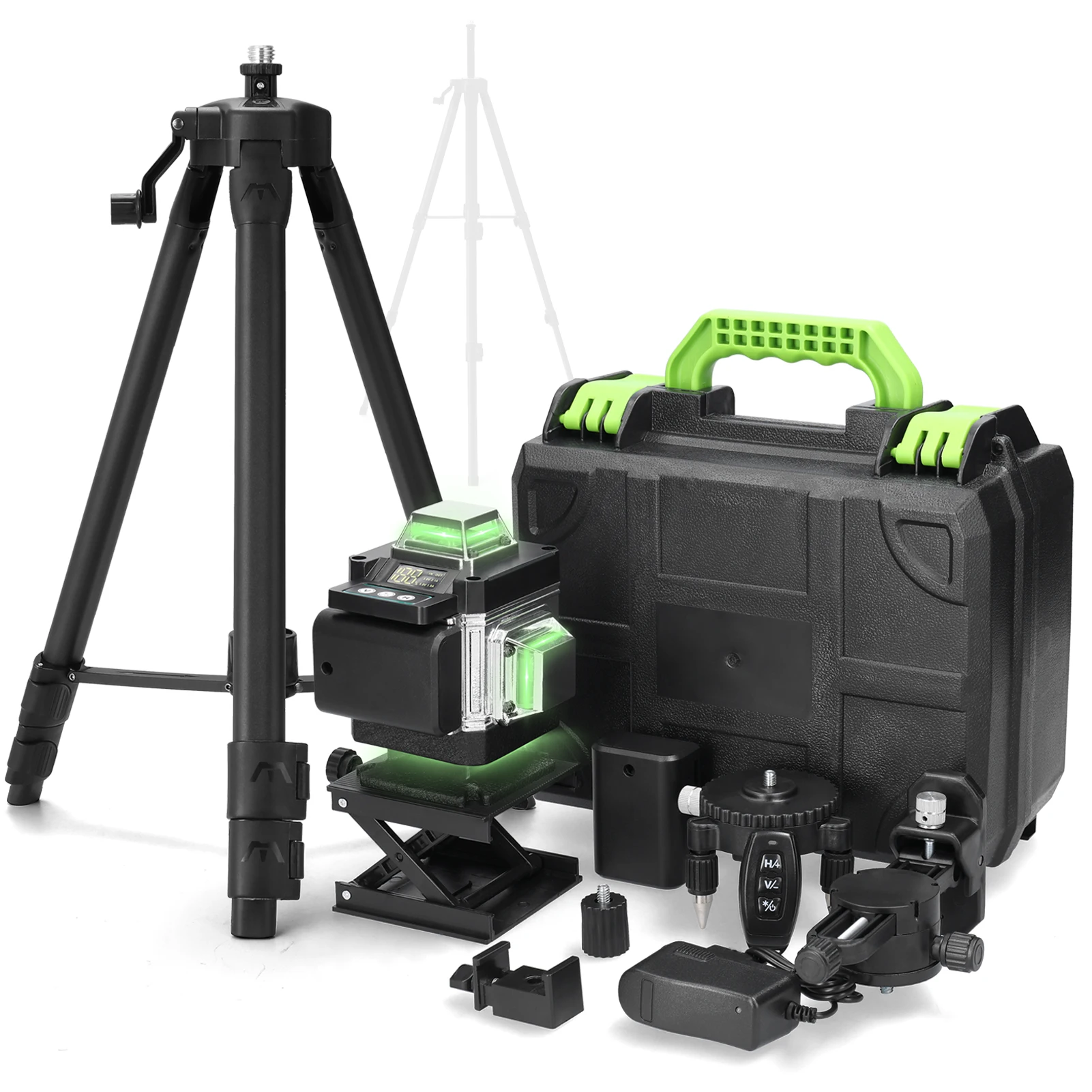

Packing List:

1 * Level Machine

2 * Battery

1 * Battery Adapter

1 * Rotation Base

1 * Wall Mounted Bracket

1 * Lifting Platform

1 * 1/4inch to 5/8inch Adapter

1 * Clip Holder

1 * Remote Controller

1 * Guideline

1 * Plastics Box

1 * Tripod Stand
