480VDC 24-192V MPPT 60A 100A 120A Solar Charge Controller Built In WIFI Monitor Funtion Solar Battery Regulator For Lifepo4 GEL

Why Choose our built in wifi MPPT Controller?

【The Advanced MPPT Charging Mode 】

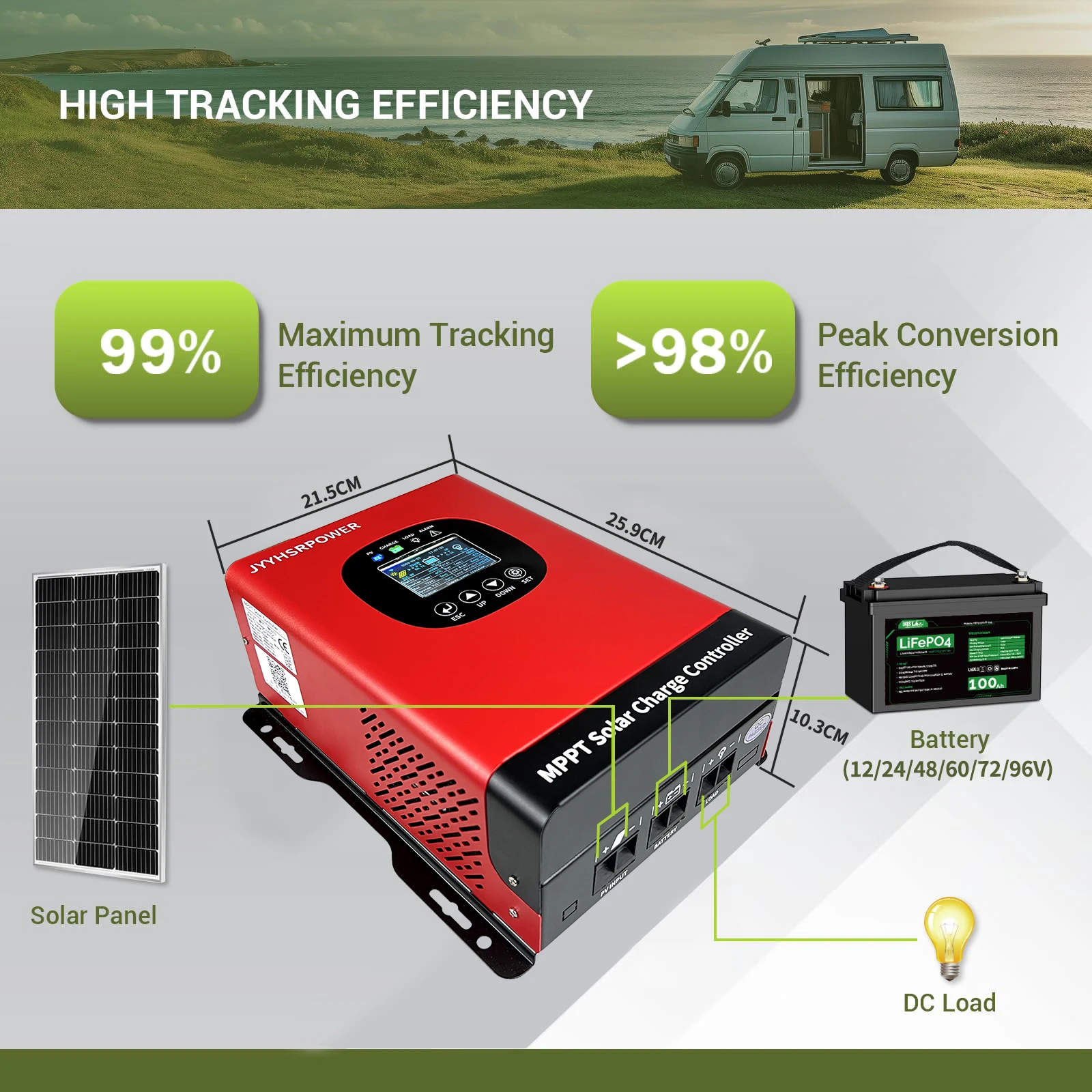

100% MPPT 60A-120A solar charge controller Intelligent, Max efficiency ≥98.1%, PV utilization ≥99%. Built-in DSP controller with high performance Automatic battery voltage detection 24V/36V/48V/60V/72V/84V/96V/108V/120V/132V/144V/156V/168V/180V/192V, When activating the machine for the first time, please make sure that the battery has enough voltage to avoid the controller being unable to power on due to low voltage.

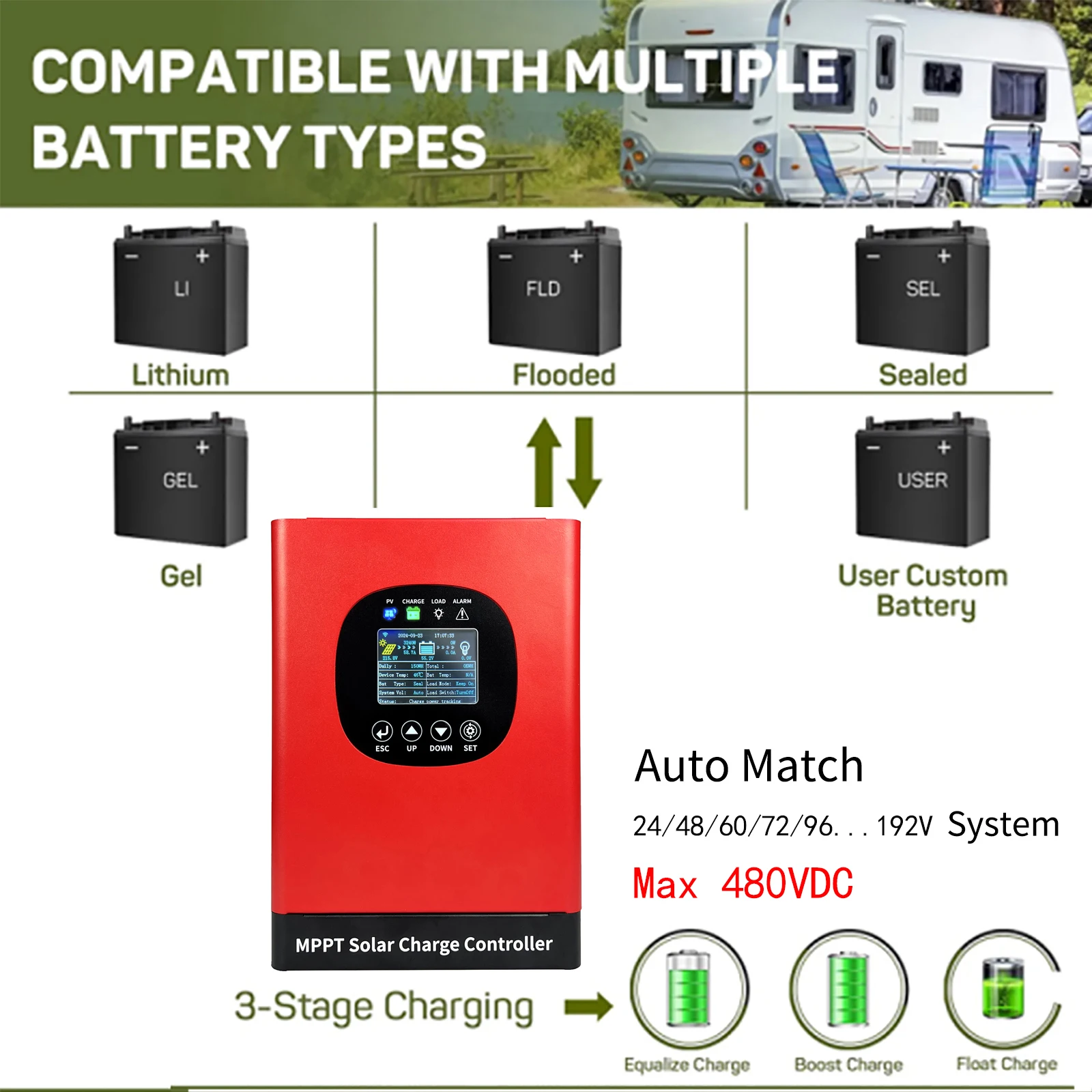

【Multiple Battery Adaptation】

Fit for USER(can be set Lithium, Lifepo4, Li(NiCoMn)O2)/Vented/Flooded/Sealed/Gel/NiCd battery. User programmable for absorption voltage/Floating voltage/Low voltage disconnect./Load Timer, if you want to user programmable, please using our advanced setting. Real-time energy recording.

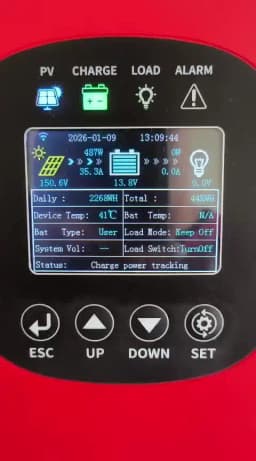

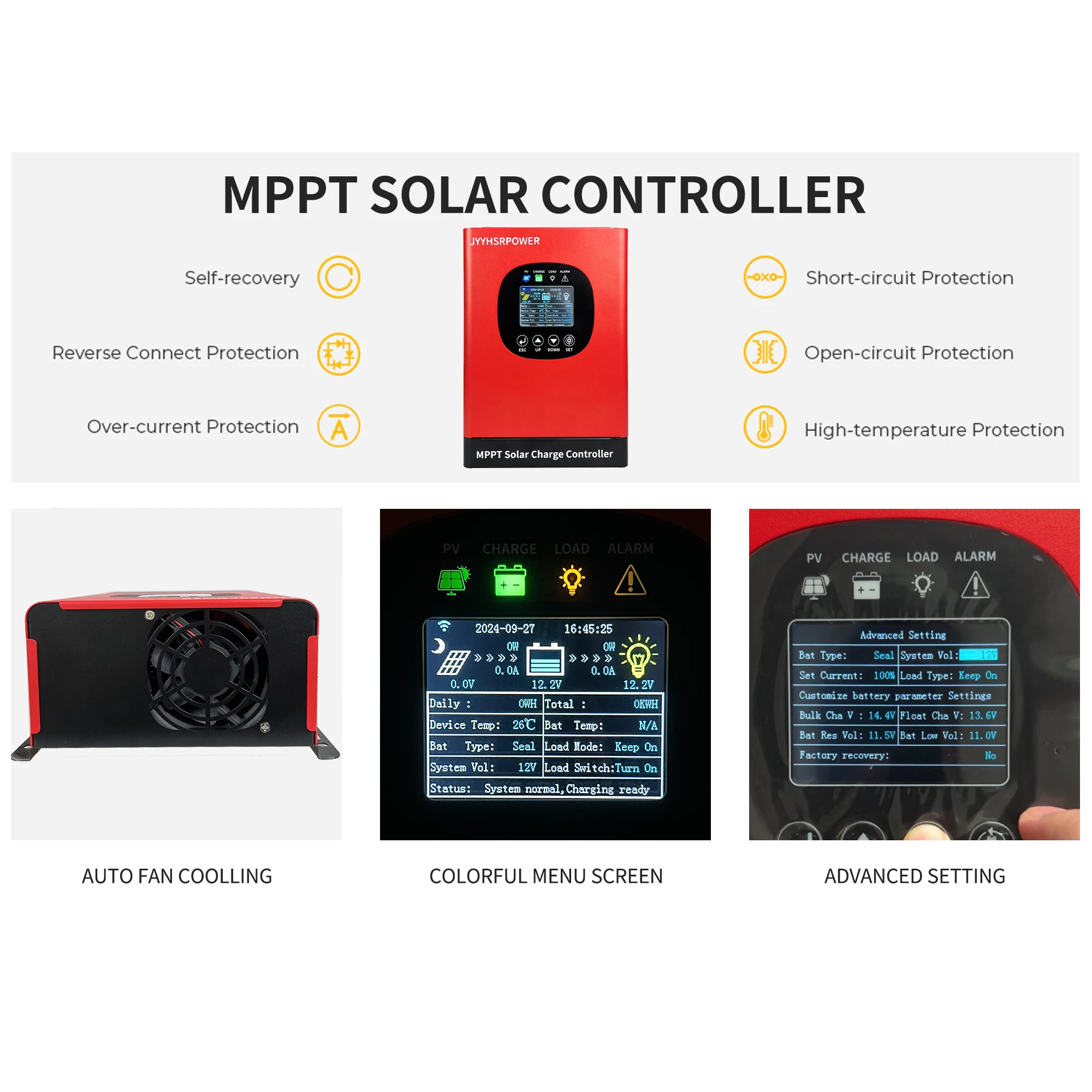

Color multi-function display screen: Most controllers on the market use black and white display screens, while our controller uses a more expensive color screen, which is convenient for consumers to browse the screen more clearly. Solar panel voltage, battery voltage, charging current, daily cumulative power generation, total cumulative power generation, equipment temperature, battery type, battery voltage and other parameters are listed on the display screen for consumers to view. At the same time, through the key menu adjustment, you can also view the controller power generation line chart at different times of the day.

【Built-in wifi device, APP monitoring】

In order to facilitate consumers to check the working status of the controller anytime and anywhere, we have built-in wifi devices inside the controller. Consumers do not need to purchase additional devices to monitor the working status of the controller on their mobile phones. Both IOS and Android systems can be used. However, due to signal problems, please install the controller in a place with good wifi signal, otherwise the controller cannot transmit data to the cloud. Our suggestion is that the controller is 5-10m away from the router. Please also make sure that your wifi signal is a 2.4g network. The 5g network wifi signal does not support connection for the time being.

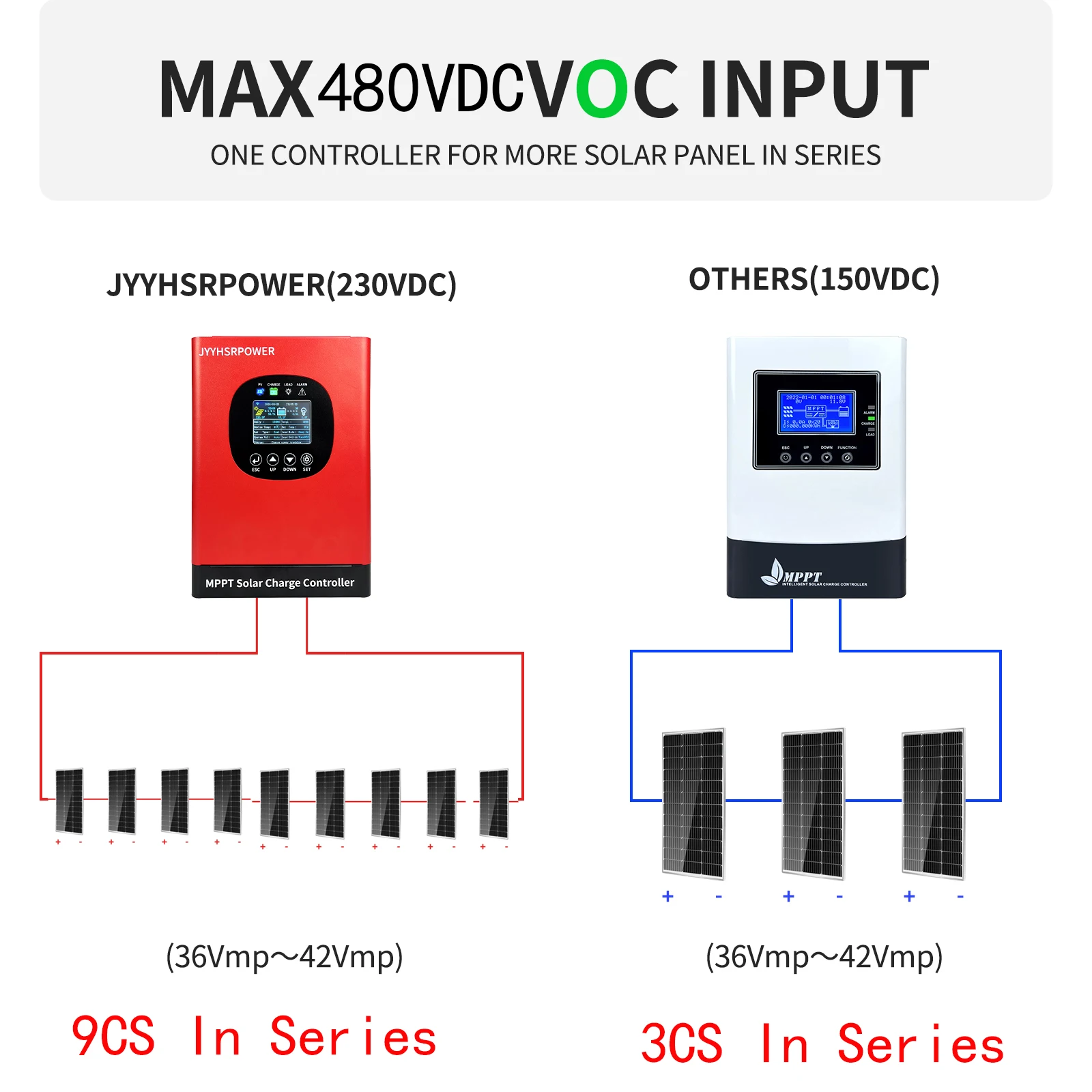

【Max input 480v solar panel voltage】

In order to allow consumers to connect more solar panels, we design the controller to have a maximum input open circuit voltage of 480v. If the solar panel Vmp voltage is about 38-42v, then it can support up to 9-10 solar panels in series. Please note that your total solar panel open circuit voltage should not exceed the range allowed by the controller, otherwise it is easy to damage the controller. Even if your battery is a 24v system, you can also use 480v photovoltaic voltage to charge a 24v battery.

【Fan Heat Dissipation】

Intelligence Fan-on temperature >45℃ and off < 40℃,Porous heat dissipation.and fan use BEARING technologies increase life UP TO 5000hrs in normal use. Suitable for RVs, Commercial Vehicles, Boats, Yachts, and Solar system.
