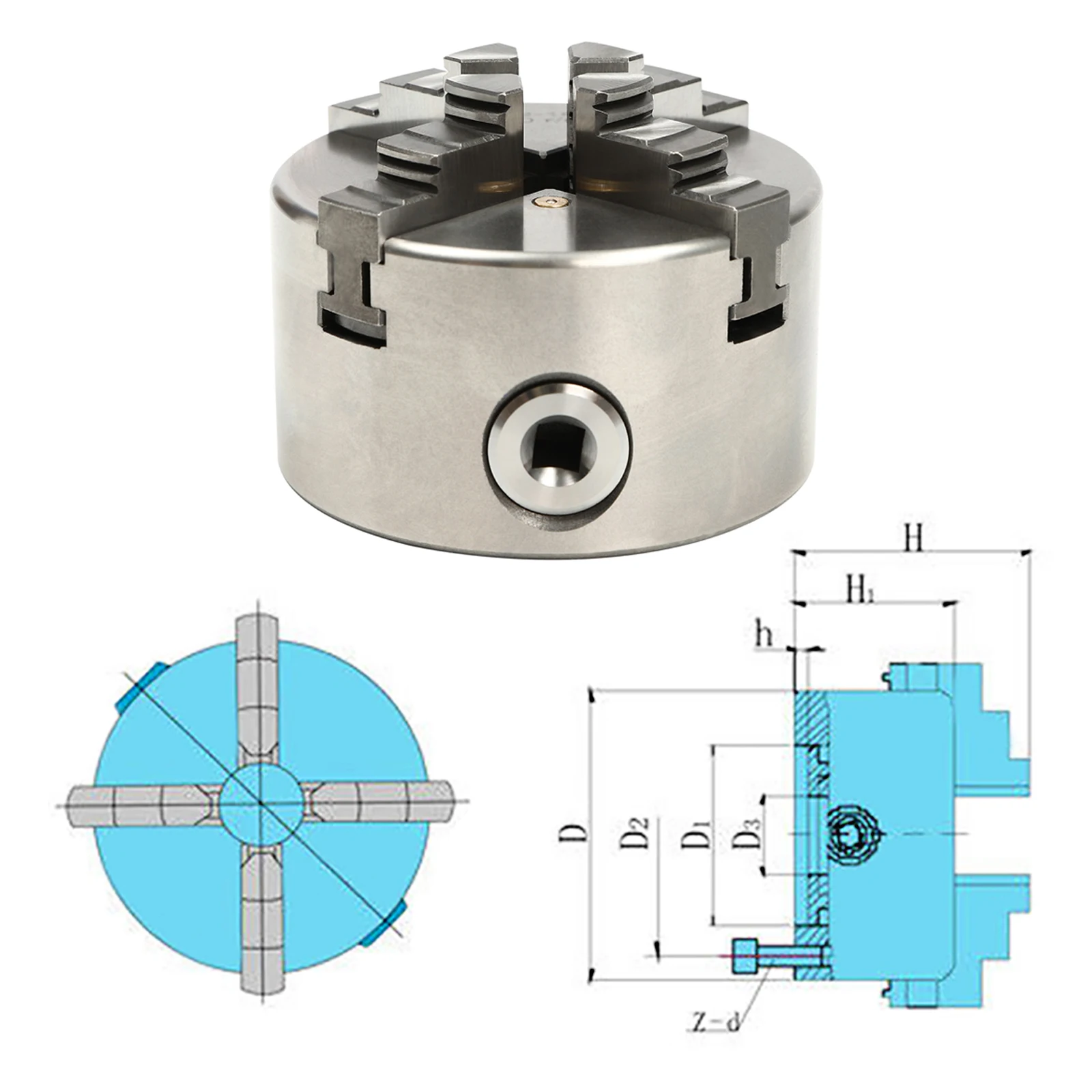

4 Jaw 100mm 3.94ft Independent Self-Centering Lathe Manual Scroll Chuck for Mini Mechanical Lathe Wood Process

You'll get better concentricity and more consistent clamping force with this 4-jaw self-centering lathe chuck. It is made of cast iron and steel with high strength and toughness and is available in both internal and external jaws, giving better control over the chuck to improve the machining accuracy of the chuck. It is an ideal accessory for machine tool machining!

Key Features

Built to Last: Made of cast iron and steel, this product is rust-resistant, wear-resistant, and durable, ensuring your long-term use.

Self-centering Function: The auto-centering mechanism can automatically adjust according to the geometric center of the workpiece without complex measurement and adjustment, reducing human error and making it easy to operate.

HighPrecision:Four-jaw self-centering chuck design ensures high-precision positioning of the workpiece in axial and radial directions, reduces machining errors and ensures machining accuracy and finished product quality.

Multiple Adaptability: Both external and internal jaws can be used. The product can be adjusted according to the required size, making it easy and efficient to operate, and meet your various needs while saving time and effort.

User-friendly Design: It does not require discs or pads to hold the jaws, allowing through-hole machining of the jaws. The product has a clamping range of 1.18-3.54in and can be used on most machine tools.

Easy to Clean: Thanks to the smooth surface and simple construction, you can clean it with a damp cloth (not included).

Protective Package: To prevent damage to the product due to bumps in transit, we place foam to protect the product as much as possible.

Customer Service: We stand behind all our guests and look forward to assisting you with your purchase. It is our pleasure to answer your confusion and questions. The end of the story between us is definitely not "we sell and you buy".

Details

Smooth Surface: The smooth surface not only improves the fit of components but also makes the operation on the lathe more smooth and fluid, thus significantly enhancing the precision and efficiency of the process.

Precise Size: Every part of its size can precisely match the lathe, so you can install it smoothly.

Application

It is suitable for machine tools and accessories such as ordinary lathes, economical CNC lathes, grinding machines, milling machines, drilling machines, and machine tool accessories.

Specifications

Color: Silver

Compatible Devices: Lathe(Not Included)

Style: Modern

Material: Cast Iron, Steel

Chuck External Diameter: 100mm/3.94in

Clamping Range: 30-90mm/1.18-3.54in

Net Weight: 3.8kg/8.38lbs

Package Included

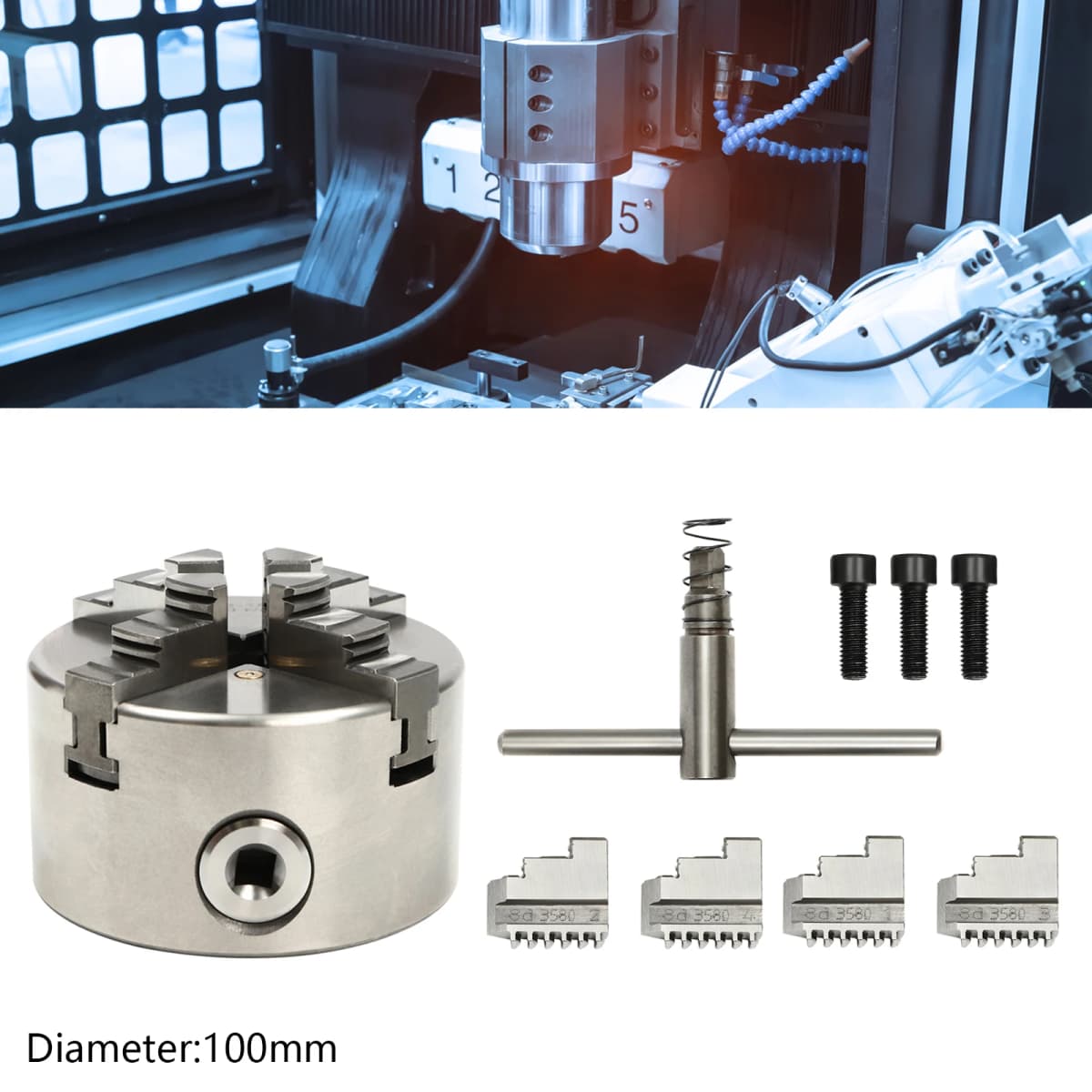

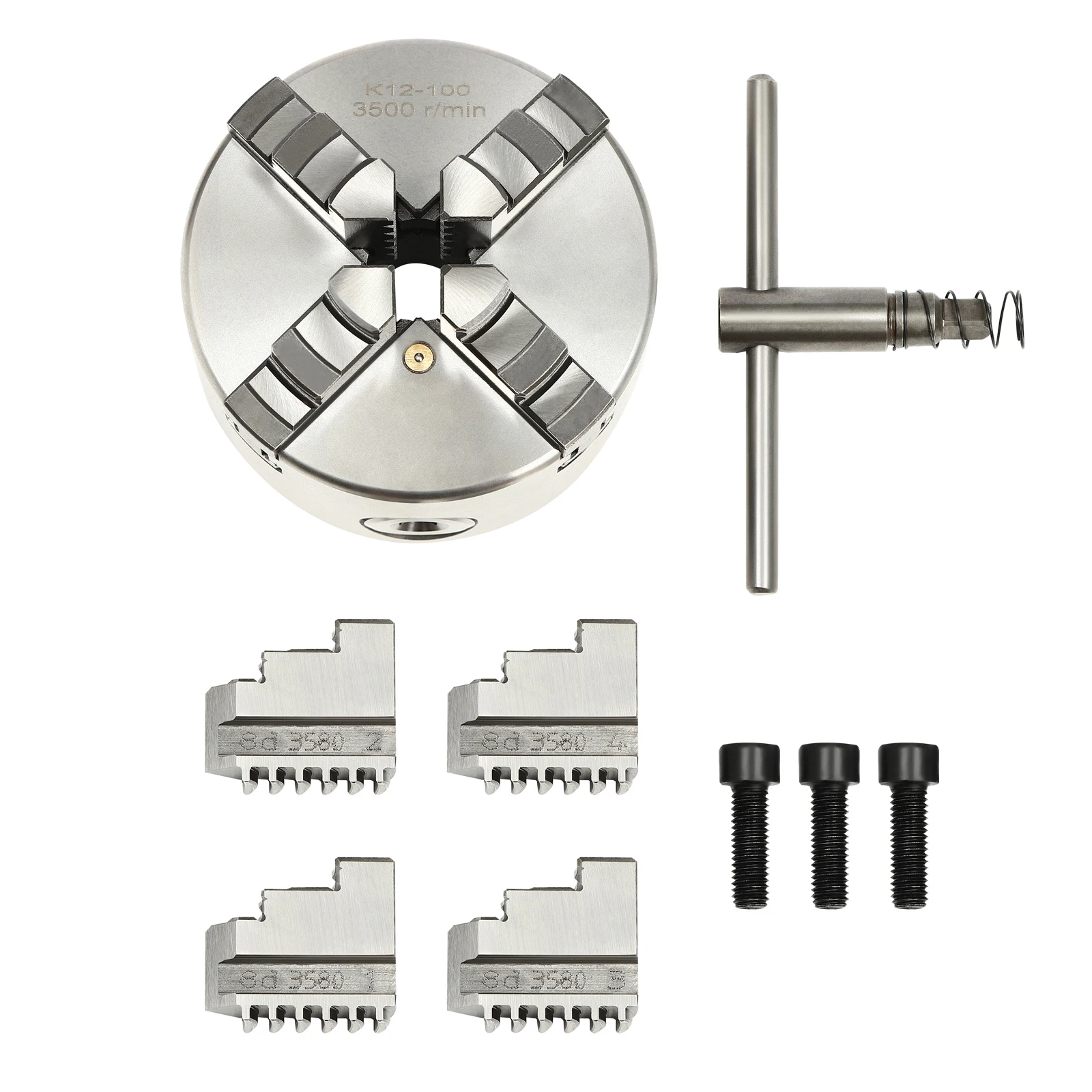

1* 4-jaw Self-centering Lathe Chuck

Other Accessories for Use

Notes

1. Please be sure to check the size before ordering.

2. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
