Hydraulic Pliers Crimping Set| Hydraulic Plier With V12/15/18/22/28MM Dies

Hydraulic Pliers Crimping Set| Hydraulic Plier With V12/15/18/22/28MM Dies

Description

On the hunt for a long-lasting hydraulic plier? This tool is crafted from premium materials to tackle heavy-duty tasks with ease. Its 360° rotatable head adapts to diverse working environments, while the ergonomic handle enables one-handed use for added convenience. It stands as a reliable solution for various kinds of crimping requirements.

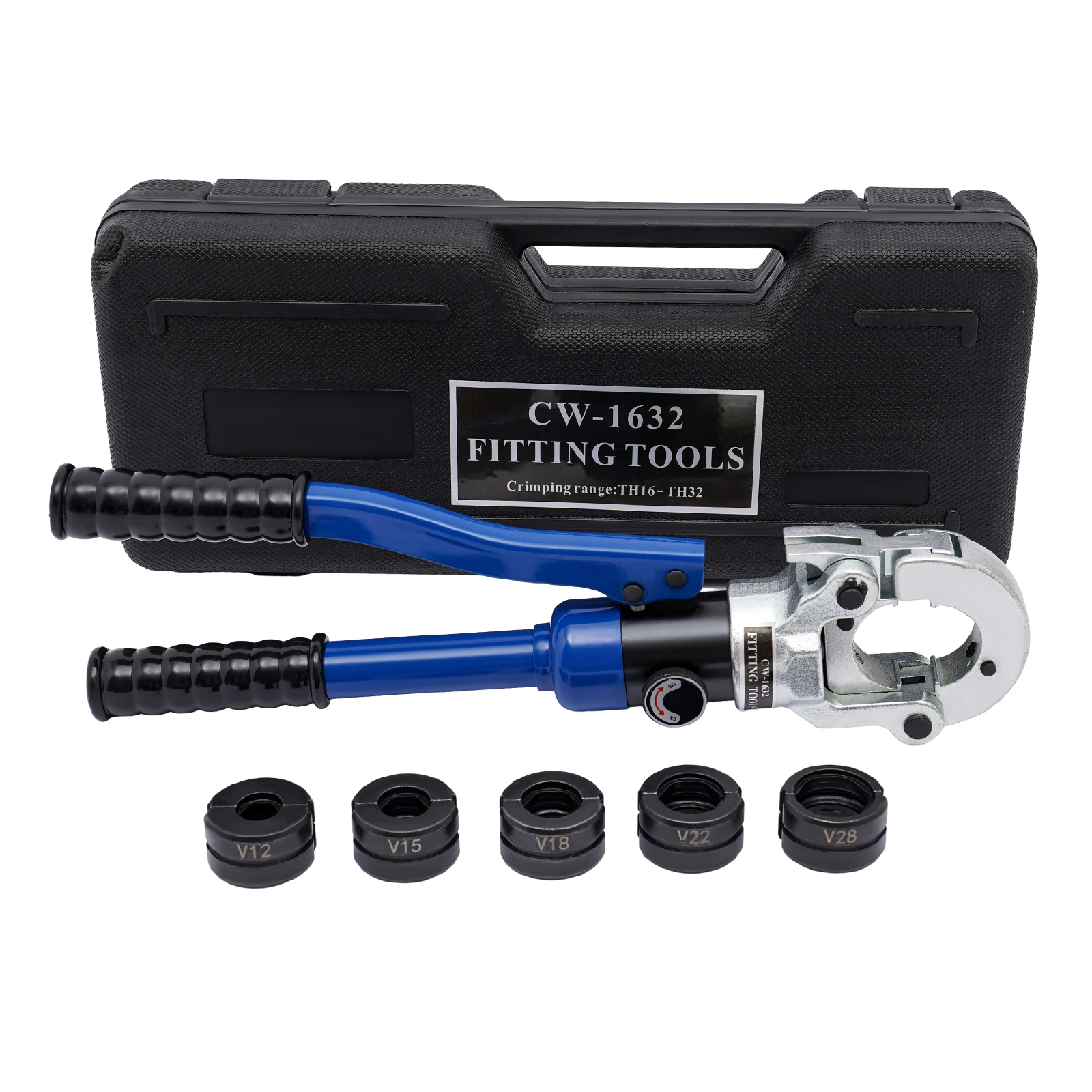

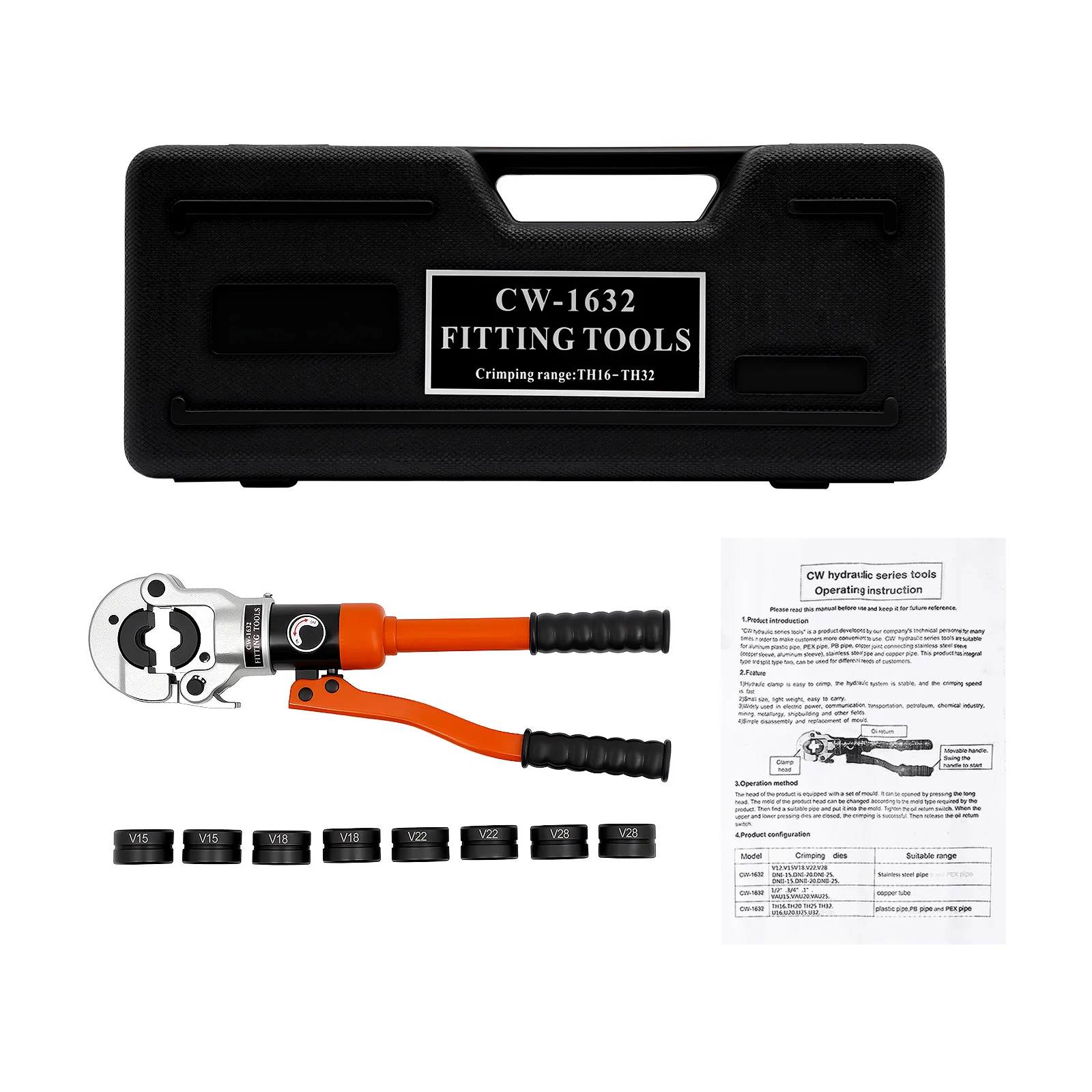

Package Included

1* Hydraulic Plier

5 Set* Dies(One is Installed)

1* Toolbox

1* English Manual

Key Features

Made to Last: It is mainly made of 41Cr4 and adopts polishing, electroplating, oxidation, and spraying processes, which makes the product strong, high-hardness, and durable.

Saving Labor &Time: This product uses hydraulic pressure, with a maximum pressure of 80KN, which can help you complete crimping more effortlessly.

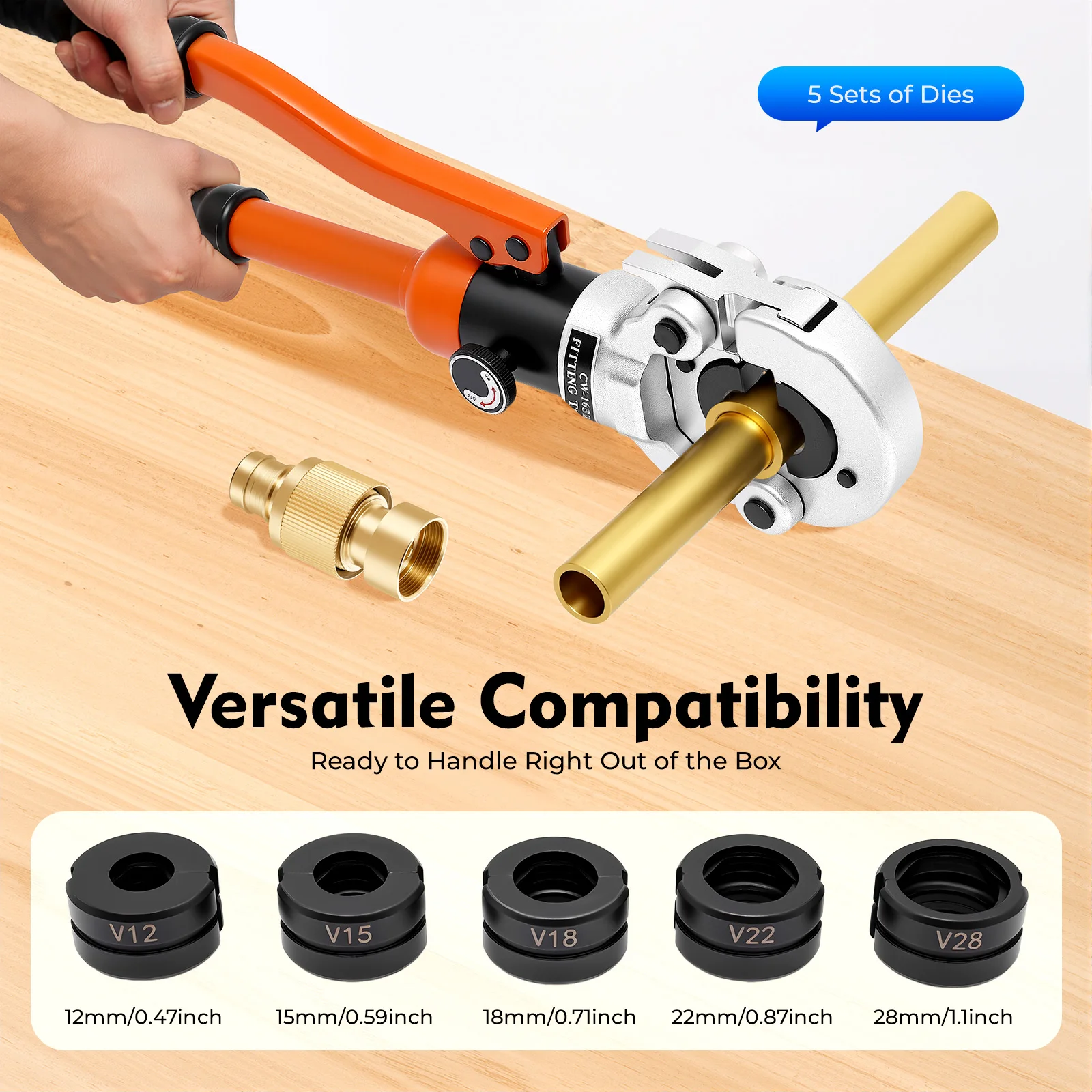

Versatile Compatibility: The tool comes with five sets of dies in distinct specifications. It works with copper pipes measuring 12mm, 15mm, 18mm, 22mm, and 28mm in diameter.

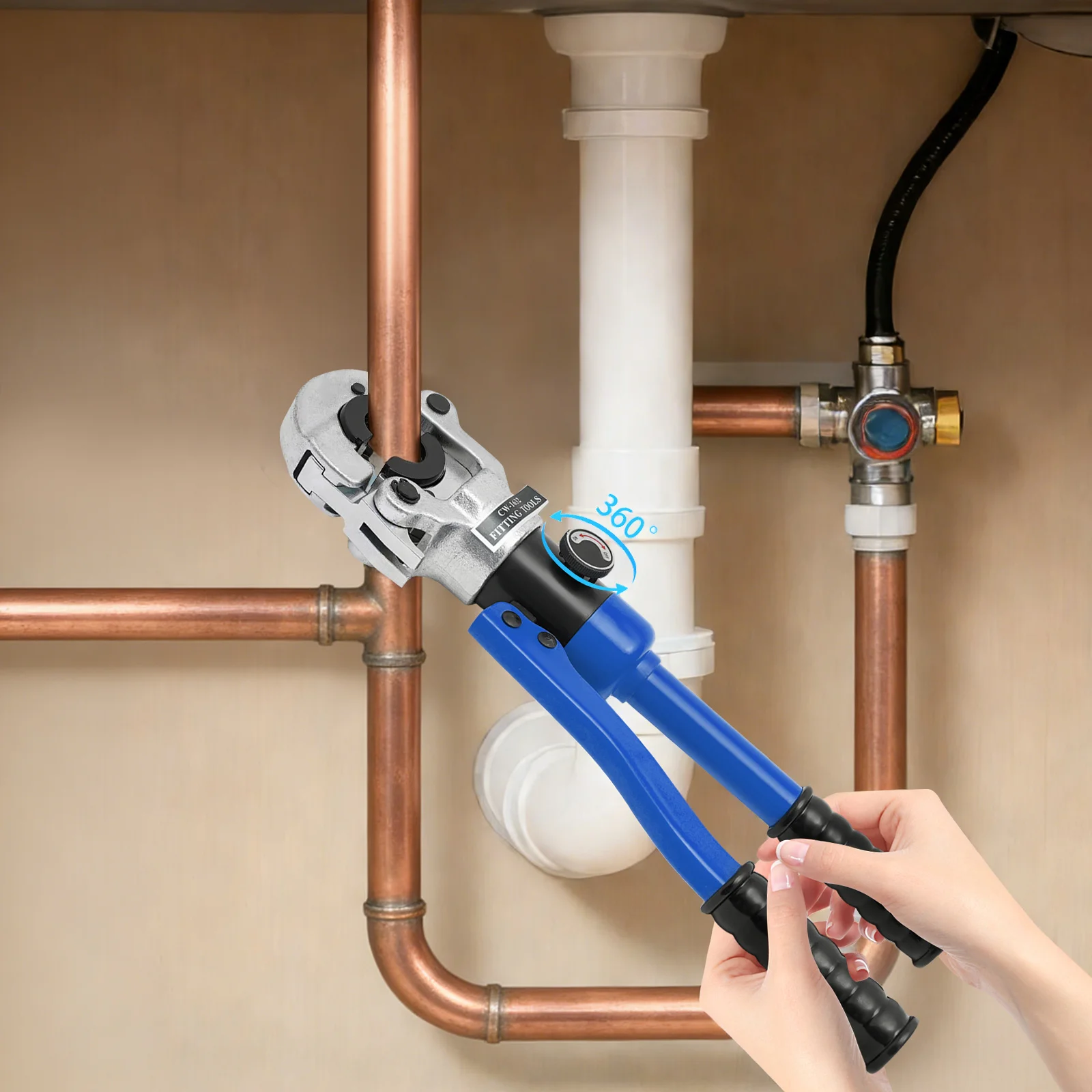

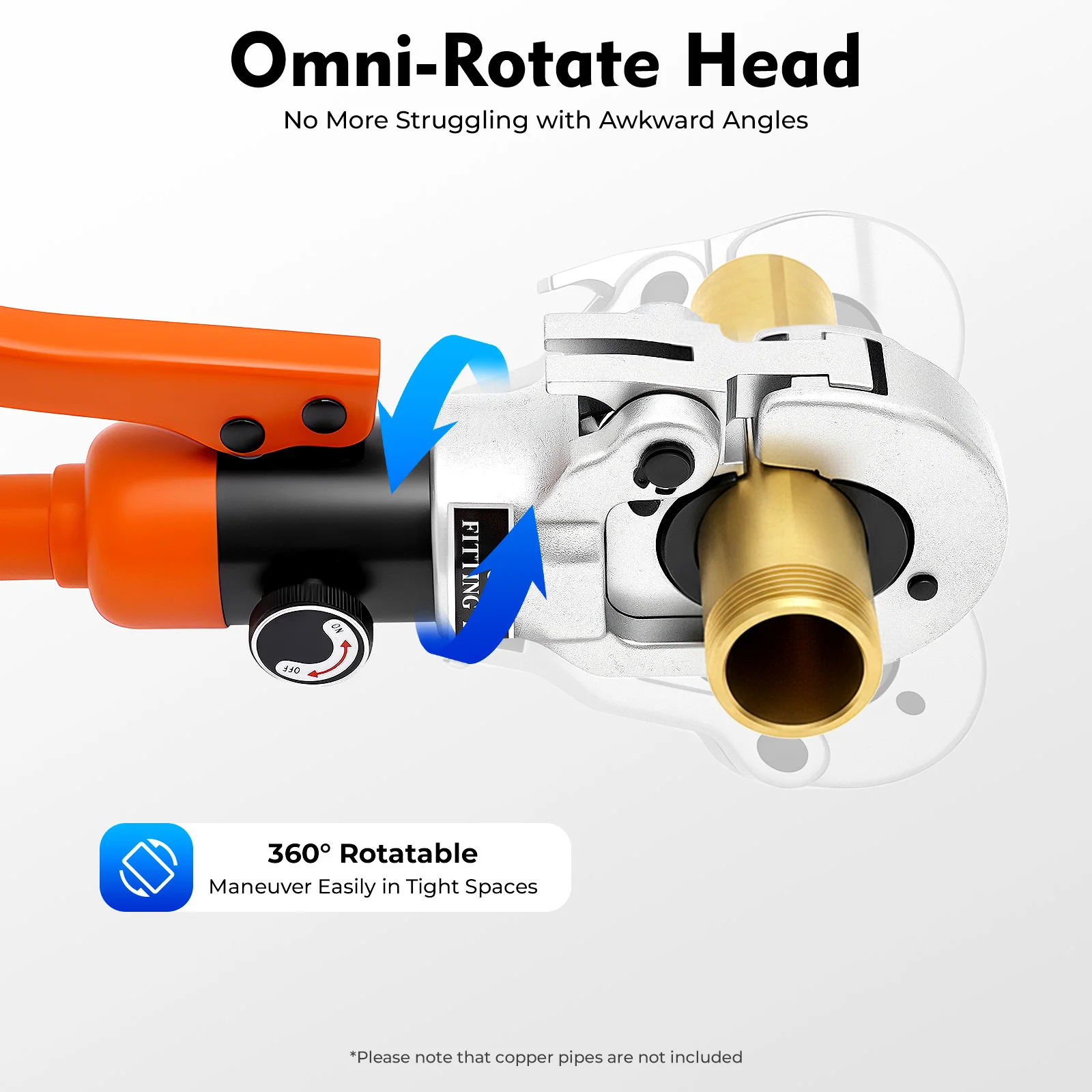

Agile Maneuverability: The crimping head rotates a full 360°, enabling smooth use in tight spaces or hard-to-reach areas.

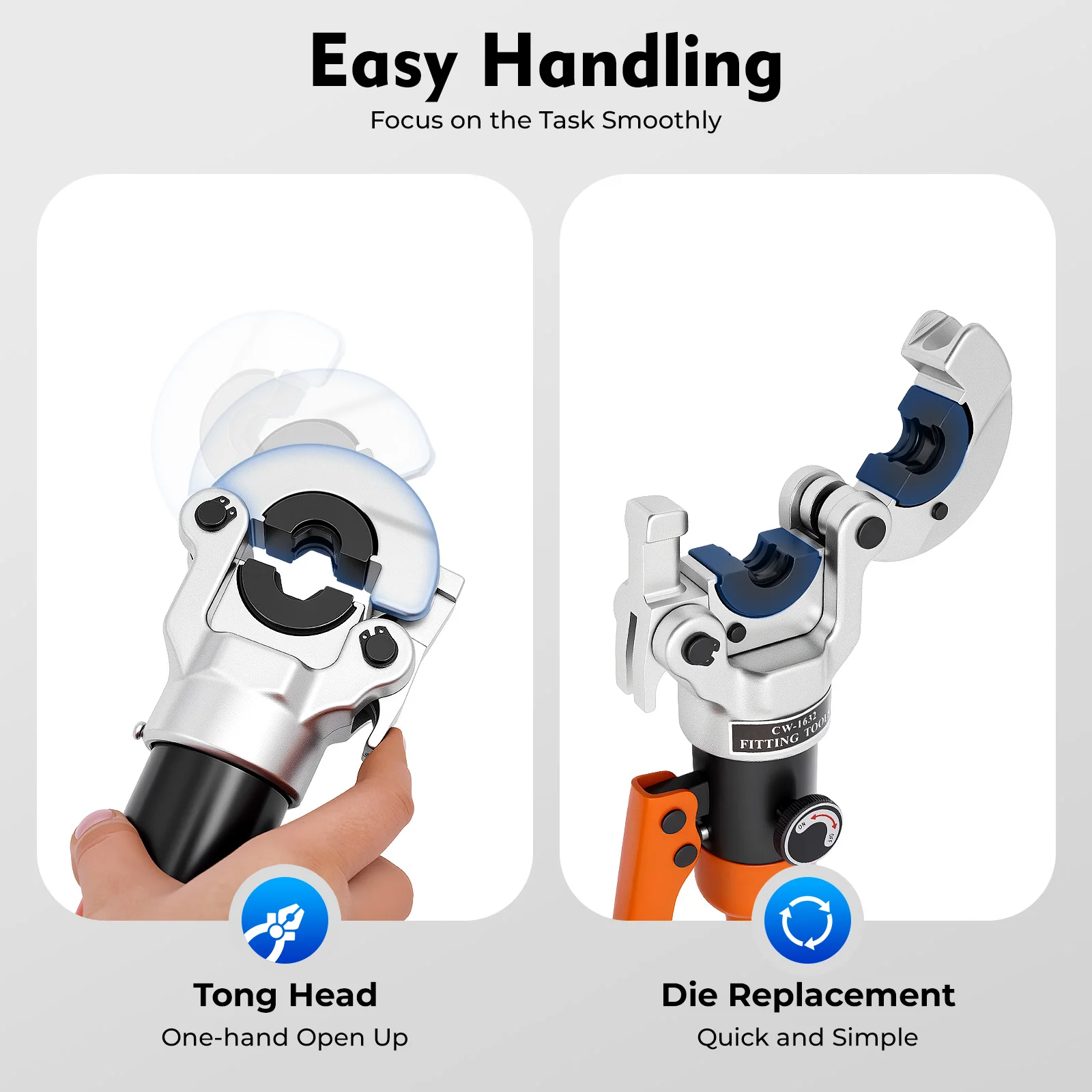

Easy to Use: The tong heads wide to allow quick, easy die changes. An oil return valve also helps keep oil leakage at bay during use.

User-Centric: The ergonomic handle offers a secure grip. It eases hand fatigue even during long stretches of continuous work.

Convenient to Carry: Equipped with a toolbox that can hold this product and its accessories, it is convenient for you to carry it to different work sites.

Easy to Maintain: With a simple structure, smooth surface, and open structure, you can easily wipe away surface stains using a rag.

Application

It is widely used in electrical power, communication, transportation, petroleum, chemical industry, mining, metallurgy, shipbuilding, and other fields.

Specification

Color: Blue/Orange

Model: CW-1632

Grip Type: Ergonomic

Material: 41Cr4, Rubber

Process: Polishing, Electroplating, Oxidation, Spraying

Maximum Pressure: 80KN

Applicable Pipe: Copper Pipe (Not Included)

Die Specifications: V12, V15, V18, V22, V28

Applicable Pipe Outer Diameter: 12mm/0.47in, 15mm/0.59in, 18mm/0.71in, 22mm/0.87in, 28mm/1.1in

Stroke: 15mm/0.59in

Package Size: 44 * 19 * 9cm/17.32 * 7.48 * 3.54in

Gross Weight: 4.8kg/10.58lbs

Details

Helpful Marks: Every die features prominent specification markings. These let users quickly identify and use the right die for the task at hand.

Secure Storage Slots: Integrated slots hold both the pliers and dies firmly in their storage case. They prevent loss or damage from regular jostling during transport.

Notes

1.Please read the operating manual completely before use. And pay particular attention to the safety instructions included.

2.It is strictly prohibited to start crimping without installing the die.

3.Please observe if there is enough space for the pliers to enter during use to avoid situations where the pliers cannot enter or get stuck.

4.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
