J2534 Protocol 2014D Control Module Maintenance OBD2 Car Diagnostic Scanner 2014D Code Reader Scanner

Please Note:

This product requires the installation of a third-party driver. The installation video on the CD shows the

steps. If you encounter any problems, follow the installation steps to install the driver and then check if

this is still the case

Reinstall the driver software, connect the device to the car, and test again

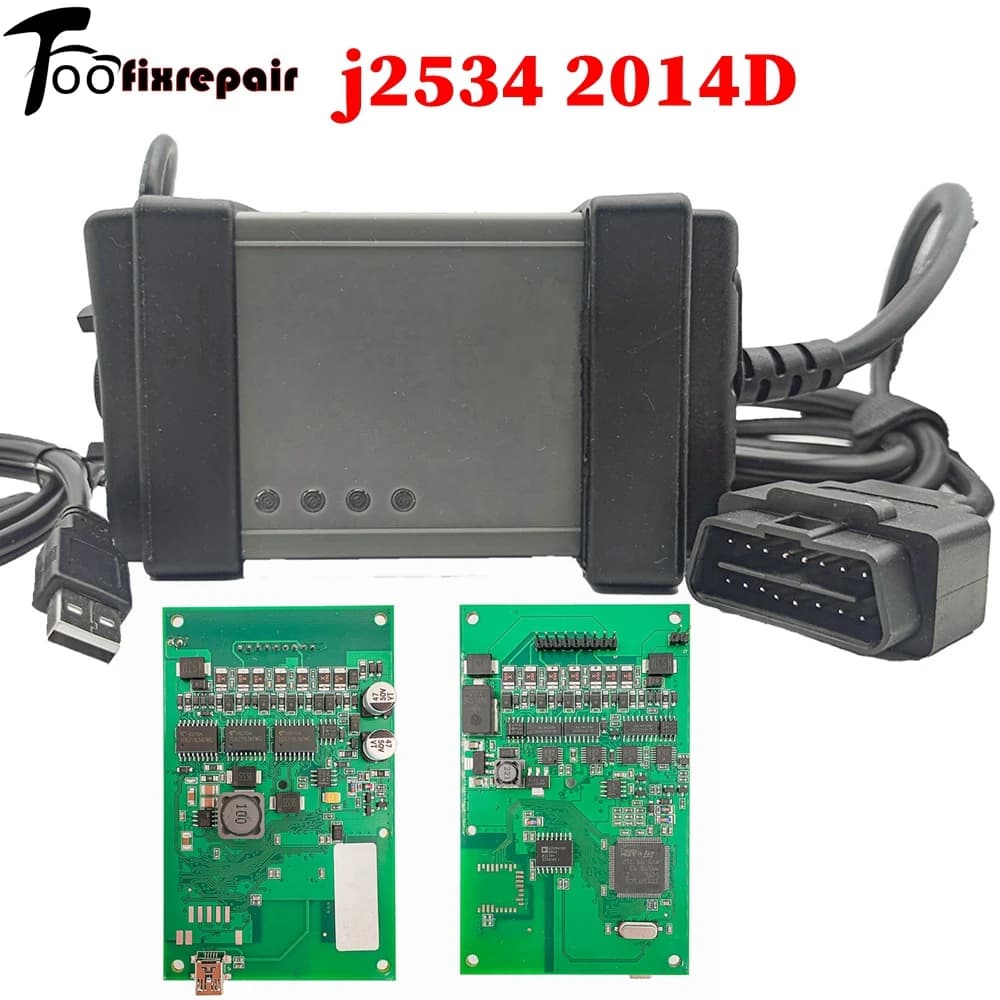

This is J2534 Protocols ,not full chip type model .For details difference,please check the PCB Board and you will understand clearly.

Green PCB Board with J2534 Protocols:

Features：

1. Software Version: 2014d

2. Language: English, Chinese

3.need use in Win 7

Function：

1) Administration - General information, design and function.

2) Standard components, service materials and consumables. General information (among other things, control modules,SRS, general safety)

3) service and maintenance

4) Engine with mounting and equipment

5) Electrical system

6) Power transmission

7) Brakes

8) Suspension and steering

9) Springs, shock absorbers and wheels

10) Body and interior - among other things, diagnostics, design and function, repair and spare part information

11) Other - special vehicles, e.g., ambulances, police cars. Components that deviate from standard.

Requirement of computer：

1. It must be windows 7 Professional operating system

2. It need to be Internet Explorer9 Or above

3. Valid Computer memory ( RAM ) need over 3GRAM

4. C:// must have 40GB space

5. must install on C://

6. It must be NTFS format.

FAQ

Q: If "Cummunication tool " shows " X "

A: Just run the file EnableIEHostingx86.reg for 32bit systems or EnableIEHostingx64.reg for 64 bit system. The files can be found in the folder INSTALL->Utils. Just run these file as administrator and everything works fine now!

Q:When I install ,it has anerror”Security OK but not OK”. How to solve the problem?

A:You need install it on Win7 32bit computer.

Q:Does have the function of coding programming ?Is it possible to change the language in instrument cluster?

A:No, it is a full scanner for old and new car, but it cannot do program or change language.

Q:I’m using 2014 with , and I’m curious about in which module I can change the “Automatic locking by speed” feature?

A:You need to be able to read/write both DIM and ICM flash memories.You have two options. Either make the reload at local dealer or someone who has an autologic interface. You could also buy some interface that is able to read/write DIM but not ICM.

Q: When I use , I have problem to communicate with all modules in car.Some modules like ECU,TCUare not in networks, but I have connection with climate control, CEM and front doors etc.In network screen I have ECU and TCU red and a text no communication.

A:We know that is a J2534-2compatible, whereas Avdi is only a J2534 1 compatible, which causes no communication with all modules. I’m using a clone and my clone is full chip 1:1 as genuine one. I started with 2008 versions and I was upgraded one by one to the 2014d version now.
