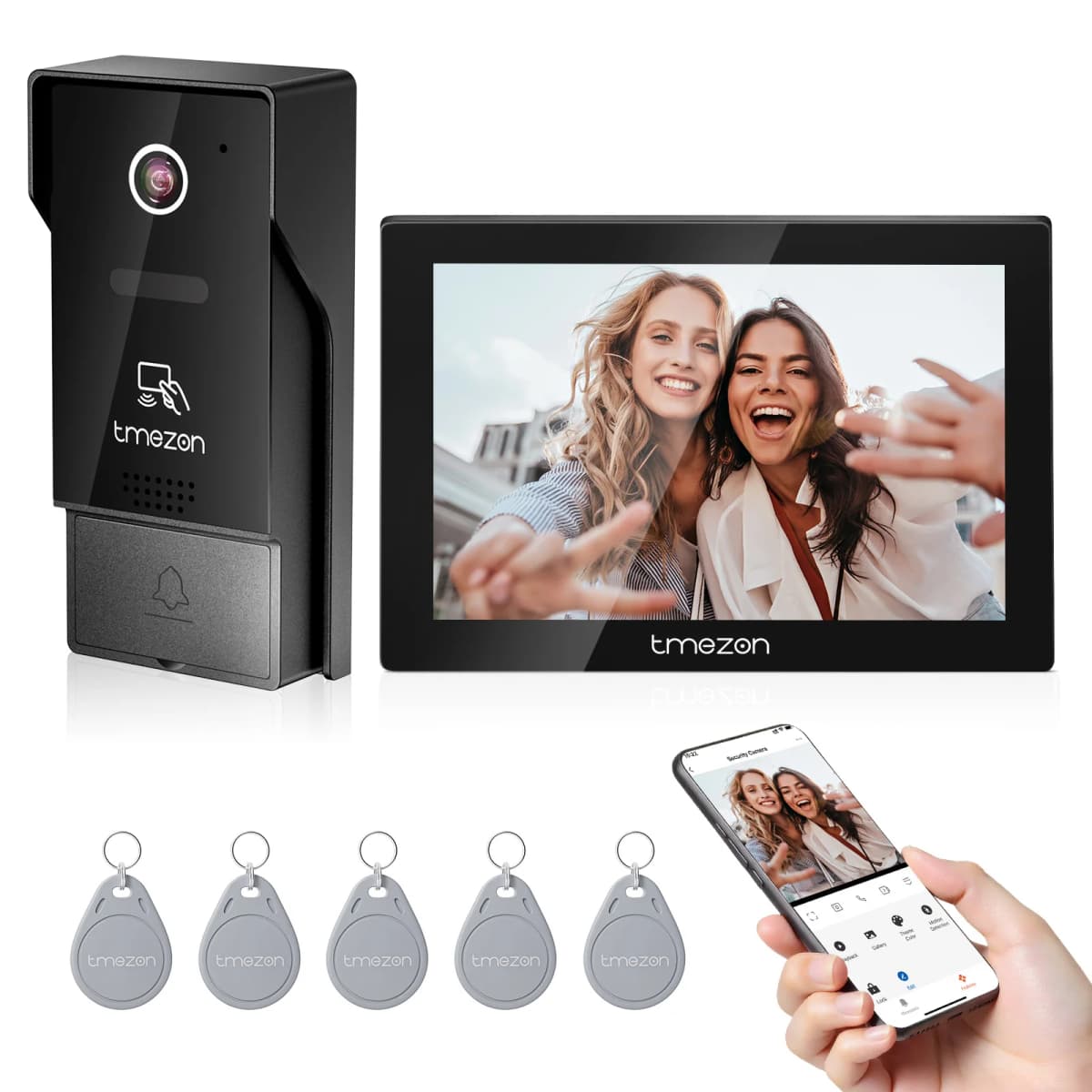

TMEZON Digital Video Intercom System for Home 7 Inch Wireless WIFI Monitor 1080P Doorphone Camera Video Doorbell Card Tuya Unlock

4-wire TMEZON 7 Inch Tuya APP 1080P Wifi Smart Video DoorPhone Intercom System with Wired Doorbell Password/Card Swipe TouchScreen

【4-Wire Video Doorphone with APP】With the latest IP technology, when visitors press the doorbell, your phone will receive the APP notification, you can see, hear and talk to someone at your door, even remotely unlock via your smartphone in anywhere. You can answer the door in your hand!Can be used in apartments, villas, hotels, offices, public buildings.The app is "TuyaSmart".

【7 Inch IP Touch Screen Monitor and 1080P Doorbell】This Set is doorbell with camera and monitor.7 Inch TFT display monitor with slim design, touch key operation, hand-free, support Wifi to connect to the Internet. 1080P doorbell with camera with waterproof cover, built-in infrared sensor, 125º wide angle, night vision, rainproof, dustproof and anti-vandal. It can connect all 12V electronic locks.

【Multiple Intercom】 Connect up to 6 monitors(The slave monitor is MZ-Y10), 2 doorbells, and 2 CCTV cameras. Dual-way communication between monitor and camera, monitor and monitor. Call forwarding between all monitors. Open and unlock the door from any indoor monitor.; Call Transfer among monitors.You don't always go downstairs open the door after install the multiple intercom.

【Automatic Snapshot or Recording】When visitors press the doorbell or trigger motion detection, wireless doorbell automatically takes a snapshot or video recording and stores it on the Micro SD card (support up to 128GB, not included). You can check the recording at any time by smartphone.

【2.4G Wifi and Wired Connection】 This intercom set is equipped with IP monitor and only supports 2.4Wifi, not 5G. You can connect it via wifi and use the APP for live review and remote unlock. This set is equipped with 4-wire technology, the maximum distance between the bell panel and the last monitor can be up to 100 meters.

Please note that the Y10 screen is not available for individual purchase. It must be used together with the kit provided in this listing. You can connect up to 6 units at the same time.

4-wire video intercom for a family

1080P wifi and 4 wire IP Video Intercom

TuyaSmart application, WIFI network connected to the smartphone, chat/view/ unlock via the application

Open the door by the badges or number

Two-way communication between Doorbell and Monitor

Automatic registration

The technical e-mail address can be found in the manual in the package for more information

2 Way Audio

The control panel of the monitoring host allows for straightforward activation of the two-way intercom function. A single click initiates a call, and the interface is designed to be intuitive and uncluttered, eliminating any complex operational procedures. Consequently, this design ensures that elderly individuals, children, and those without a technical background can readily learn and swiftly fulfill their communication requirements.

Smart smart video door phone with mobile app

App remote control: Download TuyaSmart from the app store or Google Play. After adding the screen to the mobile application and connecting the electronic lock correctly, you can open the door via the TuyaSmart application. You can open the door with your smartphone when you are upstairs, in the garden or even when you are not at home. For a delivery person, for example.

Taking into account security and privacy, we have defined a default password that you can find in the manual and modify it in the app.

2.4Ghz Wifi: add the monitor with 2.4Ghz Wifi. The screen only supports 2.4Ghz wifi, check that your WiFi is 2.4G before setting up.

Motion detection

Receive a notification on your phone when there is movement

Wide-angle bell

The outer bell is equipped with a wide angle of 110 ° and does not allow a blind spot

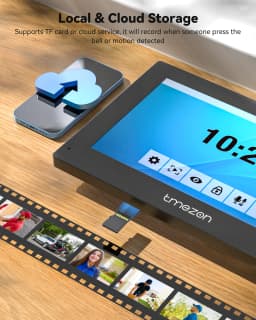

Video recording: When visitors press the doorbell, the doorbell camera will automatically record videos or instant photos and save them to the additional Micro SD card to protect your home every day. You can check the recording at any time from a monitor or a smartphone.

SD Card: This video intercom supports SD cards up to 128G, which you need to buy separately and which are not included in the box.

This video intercom system support 3 ways to open the door : APP / RFID Card / Monitor unlock, meet your multiple needs.

Do not hesitate to contact a tmezon technician, you will find it in the manual.

Monitor size: 185mm*118mm.

7 inch 1080P touch screen with simple intelligent system and with 3 menu styles.

The WiFi connection is suitable for connecting to the Tuya Smart app.

Independent power supply in the 4-cable package for the monitor. (the power supply must be plugged into an outlet.)

Video intercom kit with cable, connection of 4 cables from the screen to the doorbell.

Through this application, you can perform intelligent operations such as monitoring, communication and unlocking.

Wifi Smart video door phone, which uses a 2.4 GHz home WiFi network to add the screen to the Tuya Smart Mobile app.

16 ringtones

The 16 chord ringtones can be switched freely, elegantly and fair-sounding. Both of the ringtones and volume can be adjustable, can meet the original needs of your time. Don't need to worry about can't hear voice or hear it too loud any more.

Sharing a device with the family

Go to "Household Management" in the APP and share this device, all family members can receive notifications and open the door.

Outdoor doorbell size: 139mm*68mm.

The doorbell works with an internal monitor.

sonette camera 125 degree wide angle, 1080P resolution, which will give you a wide and clear view.

3 ways to open the door: Tuya Smart remote app/RFID card/Monitor/numbers.

The outdoor wired doorbell can connect most types of electric locks.

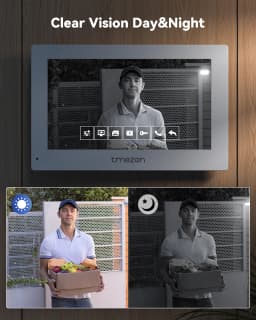

Clear Vision Day&Night

This product employs cutting-edge 1080P HD image sensor technology, staying in optimal shooting condition even in the dark, and providing you with stable and reliable night vision monitoring.

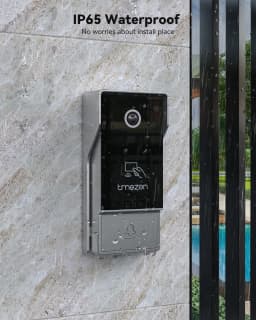

IP65 weather resistant

IP65 waterproof design, stable in rain, cloudy, cold and snow. Do not worry about the place of installation.

Exhibition of Products and Accessories

Overview

Wiring Diagram

Wiring Diagram For Lock

Network menu

Upon receiving your order, we'll prepare the products and hand them to the logistics firm asap. Plus, we'll safeguard the items to ensure they reach you in perfect condition.

————————————————————————————————————————————————————————————————————————————————

Frequently Asked Questions Q&A:

Q: Can the doorbell camera be installed at the bottom?

A: The doorbell can be installed on the stairs or outside the gate of the fence. They are connected via cable, so there's no need to worry about network signal.

Q: Does the doorbell camera require batteries?

A: No, it operates with the monitor, and the doorbell is connected to the monitor.

Q: What is the connection between Doobell and the Monitor?

A: Only a normal 4-core cable or a CAT5/6 cable is needed, depending on the connection distance.

Q: How far does this Doobell and Monitor work?

A: It depends on the diameter and quality of the cable used. Generally, within 100 meters.

Q: Can the doorbell use the TUYA APP and Smart Life APP?

A: Yes, it is compatible with the Tuya Smart/Smart Life app.

Q: Can the doorbell system store videos? Are there membership fees?

A: The system needs a 128G Micro SD card. It is free, no subscription is required.

Q: Does the doorbell system come with motion detection?

A: Yes. It will save the video to the SD card.

Q: Does the doorbell use different ringtones?

A: Yes, we offer 16 different ringtones, and you can also customize your own ringtones with the SD card.

Q: Can the doorbell see the door at night?

A: Yes, the doorbell system supports infrared night vision for nighttime use.

Q: Does the doorbell system support electronic locks?

A: Yes, it supports all electronic locks, NO or NC. (The lock and power supply need to be purchased separately.)

Q: Does the doorbell system support remote unlocking via mobile phone?

A: Yes, you can remotely unlock the door through the Tuya app on your mobile phone.

Q: Is the doorbell system compatible with the multiple language?

A: Yes, you can choose different languages on the screen.

Q:How many screens and outdoor doorbells can be connected simultaneously?

A:It can connect 6 screens and 2 outdoor doorbells simultaneously.
