DMX 512 Controller Transmitter Kit-7* DMX512 Receivers 8* Power Adapters, 2.4 GHz Wireless Transmissie

Adopting the 2.4G ISM working frequency section, it has dual functions of receiving and transmitting. Through efficient GFSK modulation, its 126 channels can automatically select an interference-free frequency section, which is not affected by Bluetooth and WiFi. It has 7 sets of ID codes. You can use 7 independent wireless networks to connect multiple devices in the same place. Due to its light weight (1.8lbs) and small size (Transmitter: 4.9*3.7*0.8in; Receiver: 3.4*0.6in). It has a 1312.3ft long communication distance covering a wide range. A 32-bit ARM processor and DMA transfer method can transmit DMX512 console data and lamps' online data at high speed, ensuring real-time signal data transmission.

Application

It is suitable for controlling stage lighting, cultural performances, sports hall lighting, urban lighting systems, and bar lighting.

Specification

Material: Zn-alloy
​Color: Black, Silver
​Processor Type: 32-bit ARM Processor
​Connector Type: 3-pin DMX Interface
​Light Source Type: LED
​Working Frequency Section: 2.4G ISM, 126 Channels
​Power Source: Corded Electric
​Plug: EU Standard
​Voltage: 5V (DC)
​Transmitting Power: Max. 20dBm
​Receiver Sensitivity: -94dBm
​Number of Transmitter: 1
​Number of Receivers: 7
​Communication Distance: 400m/1312.3ft (Open Ground)
​Transmitter Size: 12.5*9.5*2cm/4.9*3.7*0.8in
​Each Receiver Size: 8.5*1.5cm/3.4*0.6in
​Package Size: 23.2*13.5*16cm/9.1*5.3*6.3in
​Net Weight: 0.8kg/1.8lbs
​Gross Weight: 1kg/2.2lbs

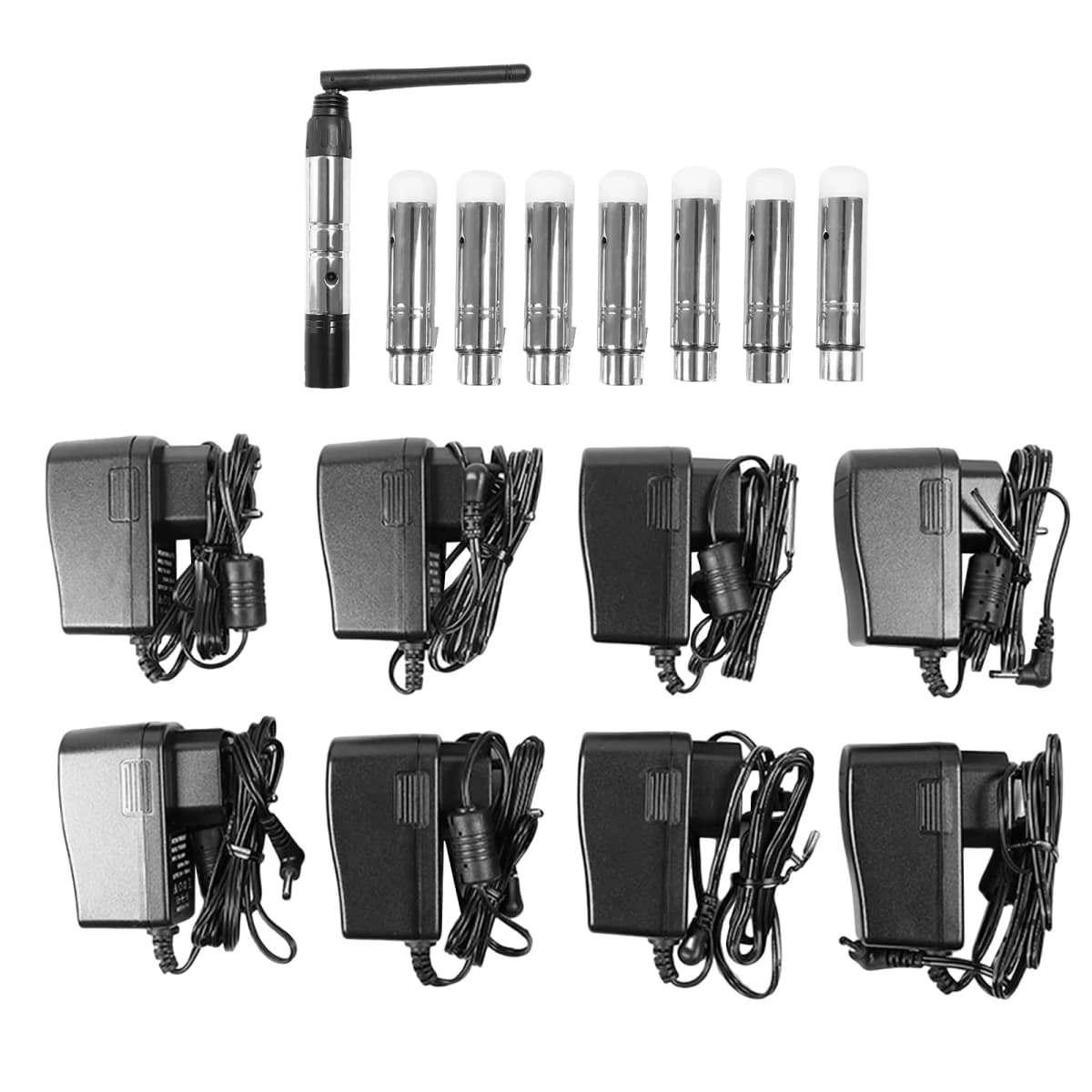

Package Included

1* DMX512 Transmitter
​7* DMX512 Receivers
​8* Power Adapters
​1* English Manual

Notes

1.Please note that this product can only be used for equipment with a DMX512 signal.
​2.Please note that the transmitter and receivers do not have built-in batteries, so the power adapters are required to work.
​3.Please note that this product is not waterproof, so waterproofing work should be done well on rainy days.
​4.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
