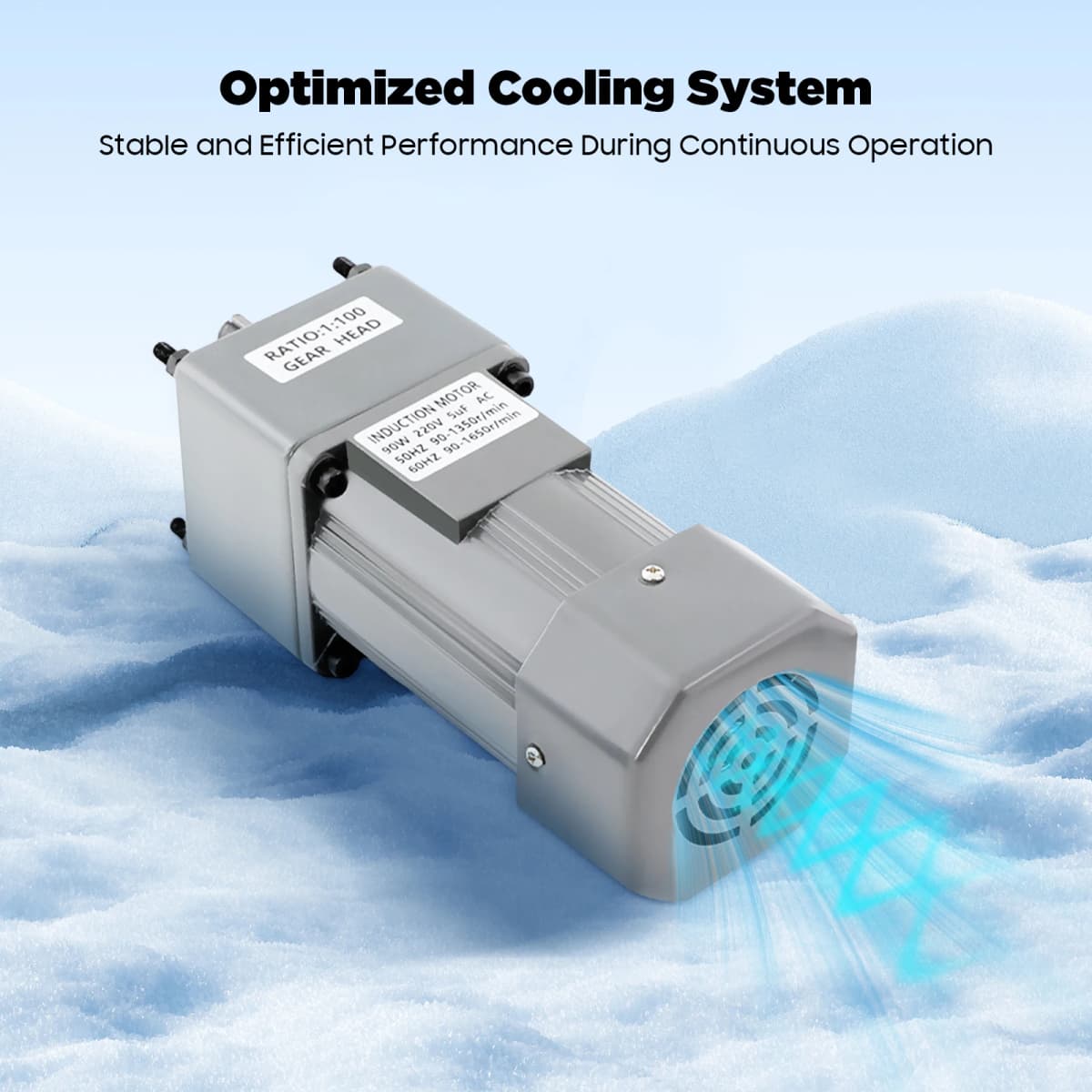

220V Gear Reduction Motor, Speed Controller Adjustable 0-90r/min, Torque for CNC Machine Packaging Production Line

Application
It is suitable for various industries such as packaging, printing, food, textile, and engineering machinery, and different machines and production lines such as CNC equipment, mechanical equipment, grinding machines, milling machines, printing machines, production workshops, and assembly lines.

Specification
Material: Aluminum Alloy, 40cr Alloy Steel
Process: Thermal Refining, Fine Finish, Nitrogen Treatment
Reduction Ratio: 1: 100(100K)
Speed Controller Speed: 0-90r/min
Motor Speed: 50Hz 90-1350r/min 60Hz 90-1650r/min
Torque: About 3.8nm
Power: 90W
Voltage: 220V
Motor Type: Gear Motor
Protection Class: IP54
Noise: Around 60dB
Base Width:90mm/3.54in
Motor Height:164mm/6.46in
Reducer Height:61mm/2.4in
Mounting Hole Distance: 74mm/2.91in
Disk Size(D*H):34*4mm/1.34*0.16in
Shaft Thickness: 12mm/0.47in
Shaft Height: 29mm/1.14in
Gross Weight: 5.25kg/11.57in
Net Weight: 4.75kg/10.47lbs
Package Size: 28.5*24.3*12.5cm/9.84*9.84*5.12in

Package Included
1* Gear Motor
1* Reducer
1* Speed Controller

Notes

1.Please check the size carefully before ordering.
2.Please connect each wire correctly to ensure that the machine can operate normally.
3.Based on industry standards, to meet the different needs of customers, please note that our motors do not include power cords. You need to purchase a power cord to connect.
4.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.

Description
This gear reducer motor, equipped with a speed controller, offers an efficient and precise motor control solution. Featuring excellent high-speed stability and dynamic response, it enables real-time speed adjustment based on varying load conditions, ensuring optimal power factor, energy efficiency, and performance. With its reliable design and versatile functionality, this motor is ideal for use across a wide range of industrial applications and machinery types.
