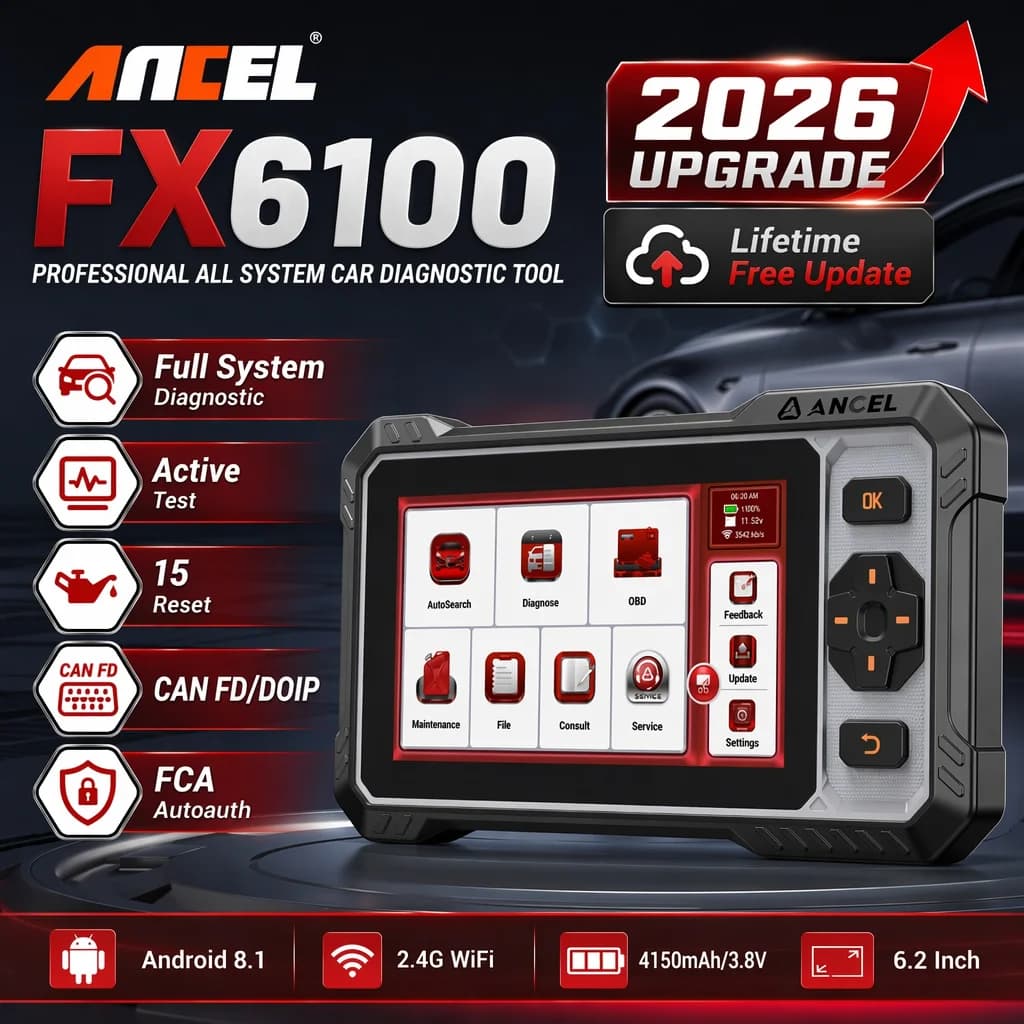

ANCEL FX6100 OBD2 Scanner Bi-directional Control Car Diagnostic Tools All System Scanner 15 Reset OBD Tool VS CRP129i V2.0

Portocol supported

SAE J1850 PWM，SAE J1850 VPW，ISO 9141-2 ISO，ISO 14230-4 KWP，ISO 15765-4 CAN，CAN-FD

2026 ANCEL FX6100 OBD2 Scanner Car Diagnostic Tools Bi-directional Control All System Scanner 15 Reset OBD Tool VS CRP129i V2.0

FX6100 is an intelligent automotive fault diagnosis instrument that is compatible with both touch and button operations. It has the functions of reading fault codes, clearing fault codes, reading data streams, reading ID information, and action testing.

ANCEL FX6100 Characteristic:

1. Supports full system diagnosis+ Bi-directional Control
functions+15 common maintenance functions

2. Lifetime free upgrade and use, no additional cost required

3. Equipped with a 1.2-meter pluggable DB15 diagnostic cable, the diagnosis is stable and reliable;

4. Supports up to 100+brands and 100000+vehicle models

5. Support the system languages of 20 countries (English, German, Spanish, French, Italian, Portuguese, Japanese, Russian, Polish, Turkish, Dutch, Hungarian, Chinese Traditional, Korean, Greek, Slovakia, Arabic, Czech, Indonesian, Swedish)

6. Dual directional control of Android touch operating system and buttons

7.6.2-inch high-definition LCD screen

8. Equipped with 32GB storage capacity, expandable up to 128GB

ANCEL FX6100 Support Diagnose Car Full System

The Full Systems of the car mainly including Drive System, Chassis System, Body System, Electrical system :

1.PCM(Drive System): Engine, Transmission, Transfer case, Electrical Machine Electronics, Fuel Pump, Gear, and more...

2. Chassis System: Accumulator Management Electronics, Steering, Integrated Chassis Management, Tyre Pressure Control, Active Cruise Control, Braking System, Suspension, TPMS and more...

3.BCM(Body System): SRS Airbag, Camera, Audio Radio, Gateway, Cluster Dashboard, Rain Sensors, Charging Interface Module, Parking Assistance, Power Control Unit, Touch box, Light, Battery Charging System, Head up Display, Wipe Control System, Roof, Seat & Door Motor system, Immobilizer, ABS ESP system, Air Condition.Electric Windows, Telephone, and more...

4.Electrical System: Including Centralized control system for engine and power transmission, Chassis integrated control and safety system, Intelligent body electronic system, Communication and information / entertainment system.

It supports the detailed Function :

--read fault codes: read and decode the DTCs to identify where the fault location is;
--clear fault codes: erase the DTCs to turn off the MIL after repairs;
--retrieve ecu information: allows you to retrieve vehicle information;
--Graph live data stream: view the dynamic data stream to determine vehicle condition

ANCEL FX6100 Support 15 Reset Service to help you in car diagnostic

✅RESET ADBLUE（Diesel Engine Exhaust Gas Filter）
After the diesel exhaust treatment fluid (car urea) is replaced or filled up, ureareset operation is required.

✅RESET EGR（EGR Adaption）
This function is used to learn the EGR (Exhaust Gas Recirculation ) valve after it is clean or replaced.

✅RESET AIRFUEL（AF Reset）
This function is applied to set or learn airlfuel rate parameters.

✅RESET BLEED（ABS Bleeding）
This function allows you to perform various bi-directional tests to check theoperating conditions of Anti-lock Braking System(ABS).
lt needs to be performed in the following cases:
1. When the ABS contains air.
2. When the ABS computer, ABS pump, brake master cylinder, brake cylinder,brake line, or brake fluid is replaced.

✅RESE TBMS（Battery Maintenance System Reset）
This function enables you to perform a resetting operation on the monitoringunit of vehicle battery, in which the original low battery fault information will becleared and battery matching will be done.
lt needs to be performed in the following cases:1. The main battery is replaced.
2. The battery monitoring sensor is replaced.

✅RESET BOX（Gearbox Reset）
This function enables you to complete the gearbox self-learning to improve gear shifting quality

✅RESET BRAKE（Electronic Parking Brake Reset）
This function enables you to reset the brake pad after replacing the brake pad.lt needs to be performed in the following cases:
1.The brake pad and brake pad wear sensor are replaced.
2.The brake pad indicator lamp is on.
3.The brake pad sensor circuit is short, which is recovered.
4.The servo motor is replaced.

✅RESET D.PF（Diesel Particulate Filter (D.PF) Regeneration）
This function enables you to clear PM(Particulate Matter) from the D.PF filterthrough continuous combustion oxidation mode (such as high temperatureheating combustion,fuel additive or catalyst reduce PM ignition combustion)to stabilize the filter performance.
lt needs to be performed in the following cases:
1. The exhaust back pressure sensor is replaced.
2. The PM trap is removed or replaced.
3. The fuel additive nozzle is removed or replaced.
4. The catalytic oxidizer is removed or replaced.
5. The D.PF regeneration MlL is on and maintenance is performed.
6. The D.PF regeneration control module is replaced.

✅RESET ETS（Electronic Throttle Position Reset）
This function enables you to make initial settings to throttle actuators andreturns the learned values stored on ECU to the default state. Doing so canaccurately control the actions of regulating throttle (or idle engine) to adjust theamount of air intake.

✅RESET GEAR（Gear Learning）
Perform gear learning for the car when the engine ECU, the crankshaft position sensor, or the crankshaft flywheel is replaced.

✅RESET INJEC（ Injector Coding）
This function enables you to write injector actual code or rewrite code inthe ECU to the injector code of the corresponding cylinder，so as to moreaccurately control or correct cylinder injection quantity.
lt needs to be performed in the following cases:
After the ECu or injector is replaced.

✅RESET NOXSENSOR（NOx Sensor Reset）
NOx sensor is a sensor used to detect the content of nitrogen oxides (NOx) inengine exhaust. lf the NOx fault is re-initialized and the NOx catalytic converteris replaced, it is necessary to reset the catalytic converter learned value storedin the engine ECU.

✅RESET OIL(Oil Reset Service）
This function enables you to reset the oil service for the engine oil life system,which calculates an optimal oil life change interval depending on the vehicle driving conditions and weather events.
lt needs to be performed in the following cases:
1. lf the service lamp is on, run car diagnostics first for troubleshooting.Afterthat, reset the driving mileage or driving time, so as to turn off the servicelamp and enable a new driving cycle.
2. lf the service lamp is not on, but you have changed the engine oil or electric
appliances that monitor oil life, you need to reset the service lamp.

✅RESET SAS（Steering Angle Calibration）
This function enables you to reset the steering angle,after replacing thesteering angle position sensor,replacing steering mechanical parts (such assteering gearbox,steering column, end tie rod, steering knuckie), performingfour-wheel alignment, or recovering car body.
To reset the steering angle, first find the relative zero point position for thecar to drive in straight line. Taking this position as reference,the ECU cancalculate the accurate angle for left and right steering.

✅RESET TPMS（Tyre Reset）
This function is used to set the size parameters of the modified or replaced tire.

Bi-directional/ Active Test

1. Coolant pump
2. Open/close the window
3. Light control
4. Rearview mirror control
5. Windshield adjustment
6. Adjust the wiper
7. Fuel injector test
8. Starting fuel pump
9. Open and close the clutch
10. Turn the speaker on/off

Car support list

Lifetime Free Update

The version of diagnostic software and app software is permanently updated for free at no additional cost, and can be updated to the latest version anytime, anywhere to receive the latest car support

Auto VIN

Automatically read the vehicle VIN code, analyze the vehicle brand, model, year and other information, and then perform the next diagnostic action to directly diagnose the car, which is convenient and fast

Product parameters

CPU: MT8167/Cortex-A53 4-core 1.8GHz
Memory: 2GB
Storage: 32GB
Screen: 6.2-inch touch 1024 * 600
Battery: 4150mAh/3.8V
Diagnostic interface: DB15 (adapter OBD16)
Android：10.0
Bluetooth: 4.0
WiFi: 2.4G/support 802.11b/g/n
USB: Type C
Working voltage: 9-18V
Working temperature: 0~50 ℃

Package list

Host FX 6100 * 1
·Main Diagnosis Cabal * 1
·Type C Line * 1
·Quick Start * 1
Paper Box * 1
Cloth Bag * 1
