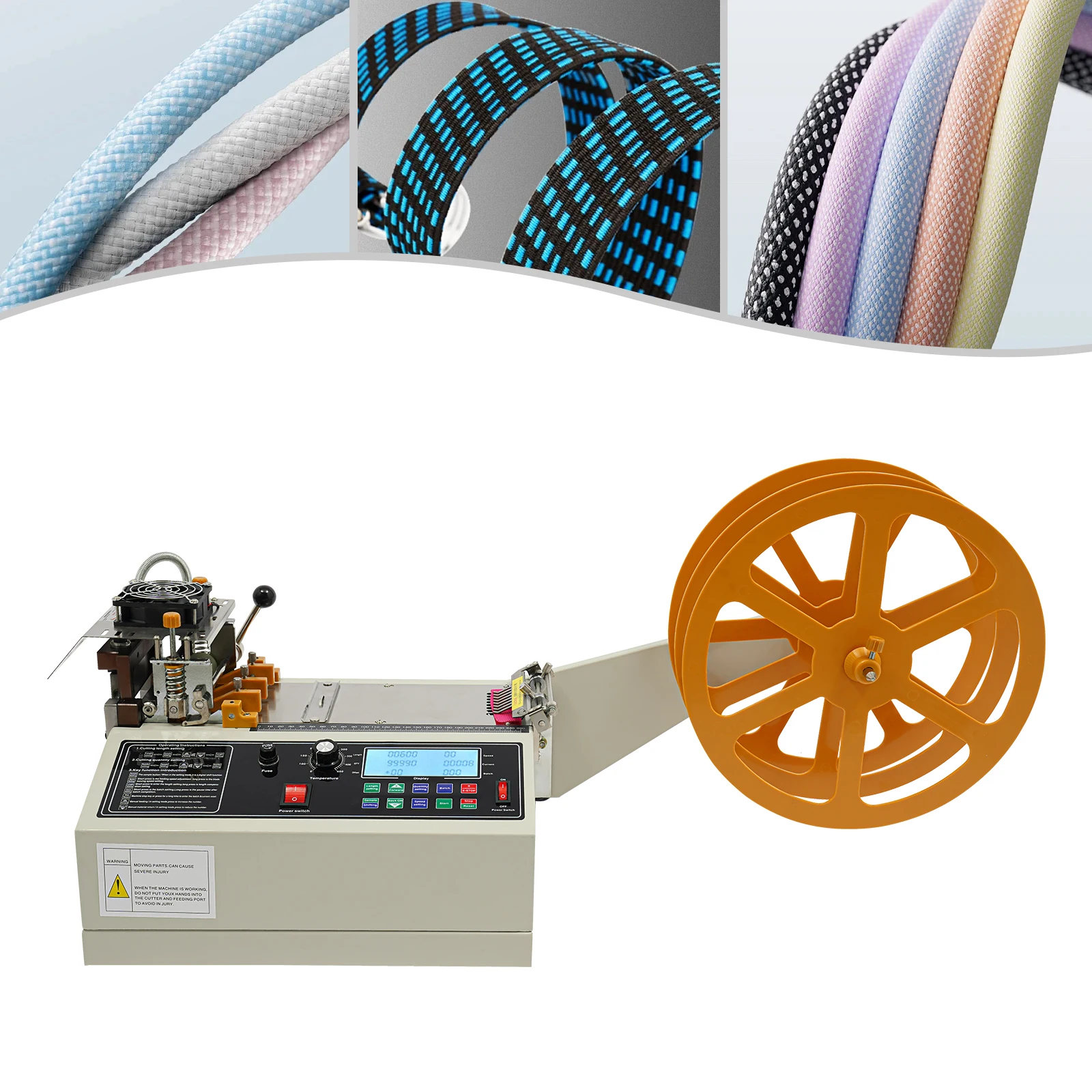

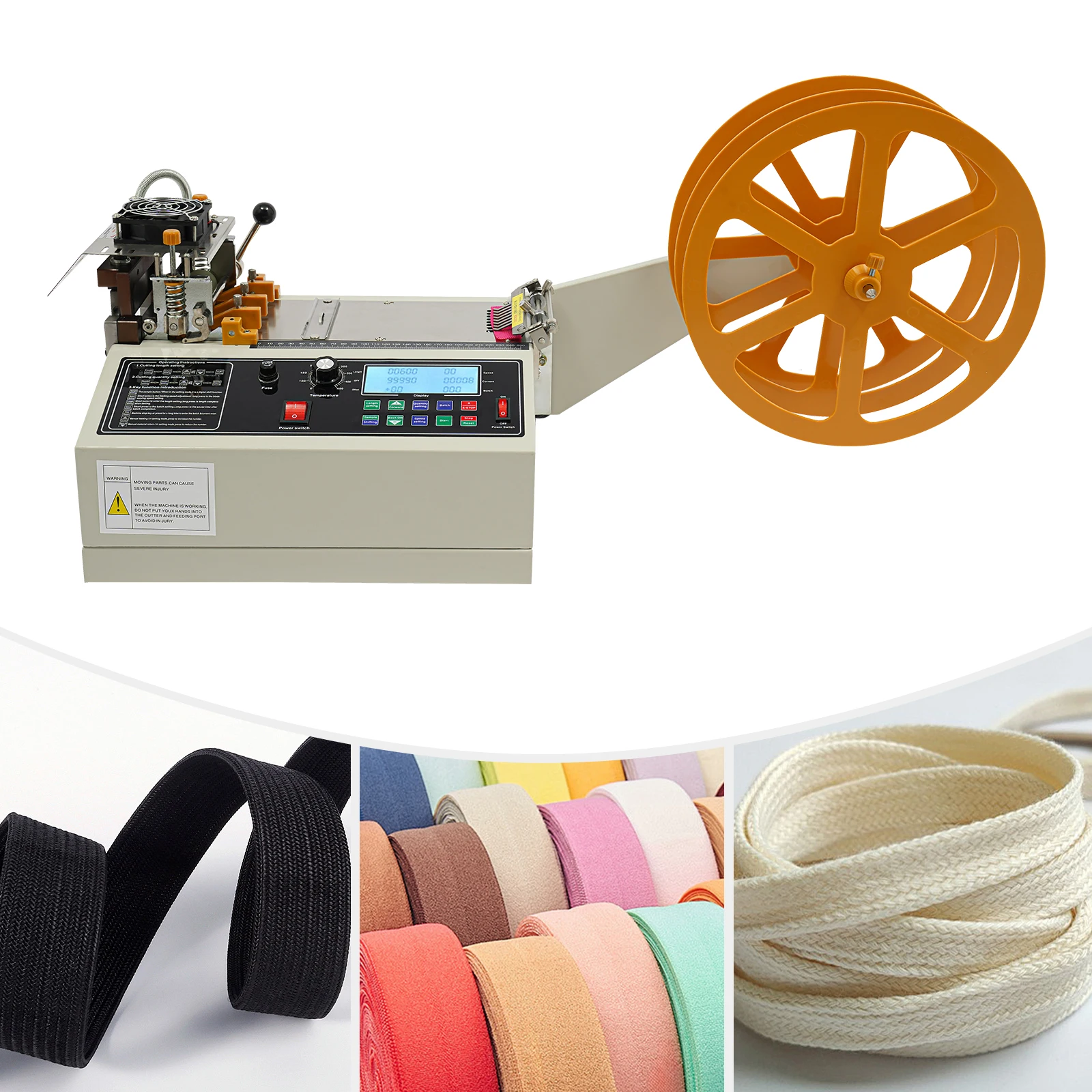

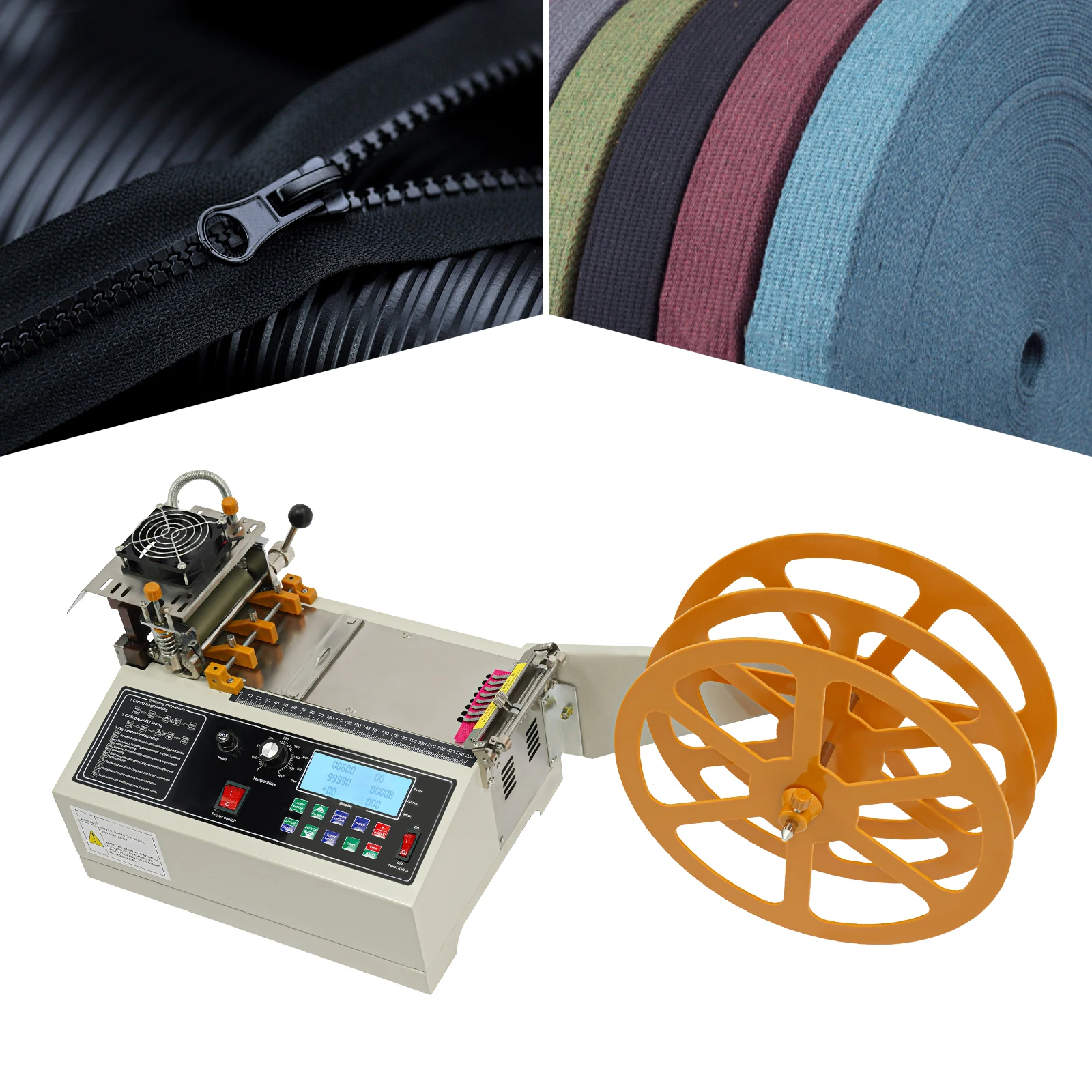

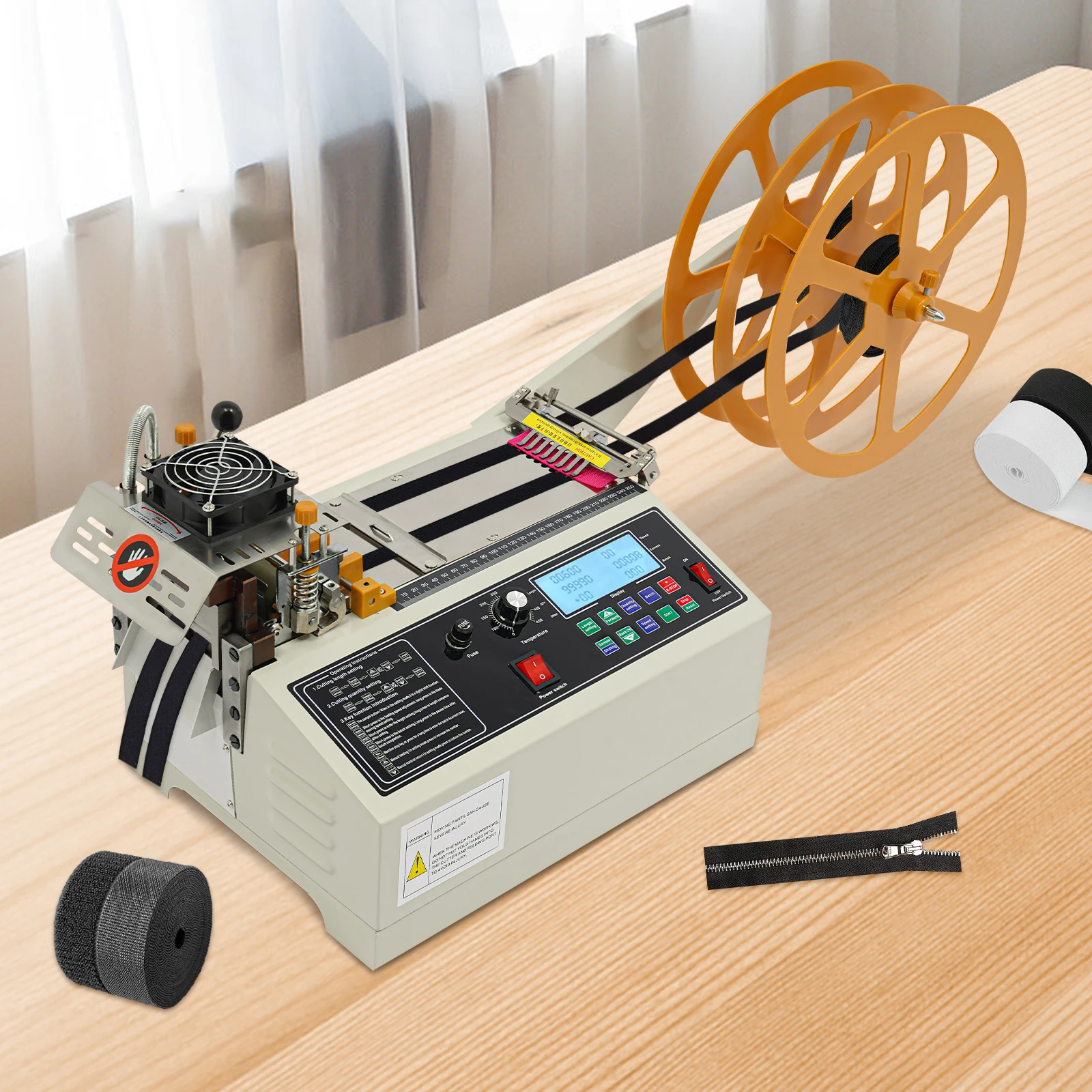

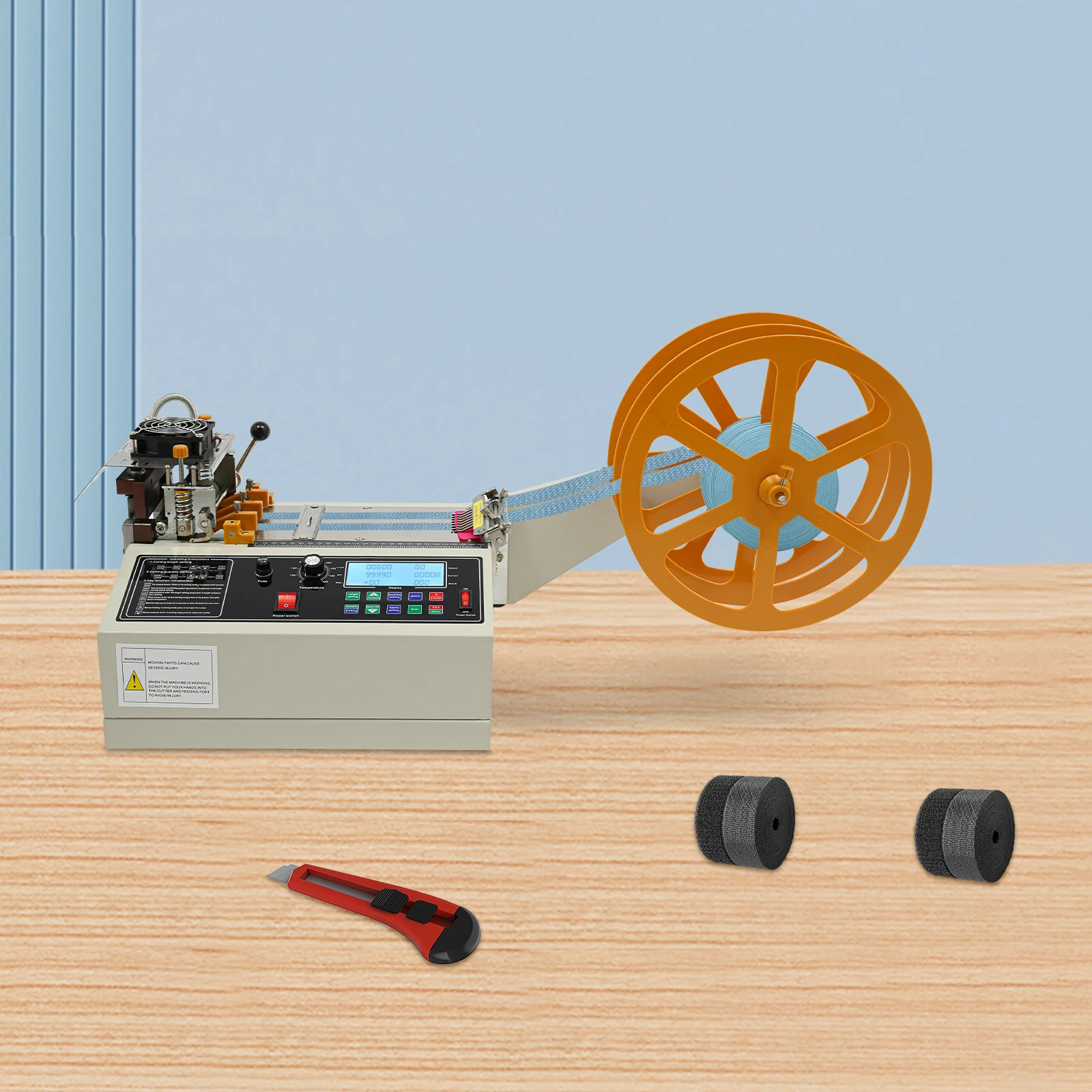

Webbing Cutting Machine Wear-Resistant High Safety Automatic Ribbon Belt Fabric Cutter for Cutting Braided Belts/Nylon Belts

Description

A quality tape cutter is an indispensable and efficient cutting tool for modern industrial production. Our automatic hot and cold tape-cutting machine is made of high-quality materials and fine craftsmanship, which is sturdy and durable. It features high precision, high speed, high productivity, and easy operation, so it has a wide range of applications. If you also have material-cutting needs, it will be a good choice for you!

Specification

Color: White
Material: Steel, Stainless Steel, Iron, Rubber
Process: Welding, Spray Painting
Screen Type: LCD
Blade Type: Hot and Cold Cutter
Power: 400W
Voltage: 220V
Plug: EU Standard
Cutting Width: 1-98mm/0.04-3.86in
Cutting Length: 1-99999mm/0.04-3937in
Cutting Thickness: 6mm/0.24in
Cutting Accuracy: ± 0.1mm(Inelastic Materials)
Blade Maximum Temperature: 0-450℃/32-842℉
Cutting Speed: About 110 Pieces/min (Taking 50mm/1.97in Length as An Example)
Power Cord Length: 1.2m/3.94ft
Clamping Tray Diameter: 38cm/14.96in
Clamping Tray Thickness: 10mm/0.39in
Product Size: 40*30*20cm/15.75*11.8*7.87in
Package Size: 56*42.5*42cm/22.05*16.73*16.54in
Gross Weight: 23kg/50.71 lbs
Net Weight: 21kg/46.3 lbs

Key Features

Sturdy and Durable: It is made of high-quality steel, stainless steel, iron, and rubber, treated with welding and spray painting process, which is strong, wear-resistant, and impact-resistant to ensure a long service life.

Powerful and Efficient: The high-power motor(400W) and sharp steel knife can achieve high-speed(110 pieces/min) and high-precision(± 0.1mm) cutting. The rubber wheel works synchronously up and down to cut multiple pieces of material simultaneously, ensuring flat, precise cuts in a shorter time and improving work efficiency.

High Safety: The power fuse and emergency stop button give you more peace of mind, and the handguard baffle can protect your hands from being cut by the blade.

Convenient to Use: You can set the temperature adjustment, length, speed, and quantity through the adjustment knob and operation panel. The out-of-material alarm device makes this machine automatically alarm and stop cutting when it senses there is a lack of materials, saving you more labor and bringing more convenience during operation.

Good Heat Dissipation: The large cooling fan and dense cooling holes can help the machine dissipate heat promptly and effectively, avoiding machine damage caused by high temperatures and prolonging the machine's service life.

Cold and Hot Cutting: You can turn on the temperature control switch to adjust the temperature and preheat for 2-3 minutes to achieve hot cutting without fuzzing, burning, or edge scattering, as well as turn it off for cold cutting without the need to replace the blade mold, meeting the cutting needs of different materials.

Simple Operation: The intuitive English control panel, display screens, sensitive buttons, power switches, temperature control knob, and detailed operating instructions allow you to use this machine simply and conveniently.

Customer Service: We aim to provide quality products and services. If you have any questions, please feel free to contact us. We will reply as soon as possible and solve the problem for you.

Details

Clamping Tray: It is large(14.96in diameter) and thick(10mm), ensuring stable support for the belts, preventing the belt from rolling up during the cutting process, and making your operation more convenient.

Guide Bracket: The high-quality guide bracket can withstand multiple belts at the same time, and make the feeding and discharging of materials smoother, achieving efficient work.

Long Power Cord: The 3.94ft power cord reduces usage distance limitation and provides more flexibility.

Application

It is widely used for cutting braided belts, nylon belts, zip ties, nylon bags, elasticated belts, shoelaces, belts, cotton belts, non-woven fabrics, and all kinds of ropes and belts that need heat sealing.

How to Install

1. Tighten the discharge bracket with screws.
2. Attach the clamping tray to the bracket.
3. Put on the material belt, then fix the other clamping tray with screws.
4. Connect the power cable and start to use this machine.

Package Included

1* Automatic Hot and Cold Tape Cutting Machine
3* Clamping Trays
1* Power Cord
1* Chinese and English Manual
All Accessories for Assembly

Notes

1.Please note that moving parts may cause serious harm, so do not disassemble parts privately.
2.Please be careful not to put your hand into the cutter part and feeder wheel part when the machine is working to avoid injury.
3.Please beware of electrical safety hazards, use these tools according to the product instructions, take the necessary personal protection measures, and keep them out of the reach of children daily.
4.Please allow the slight color difference caused by the shooting light and the 1-3cm error due to manual measurement. Please make sure you do not mind before you order.

If you are interested in the product or have any questions, please feel free to contact us, we will reply to you within 24 hours.
