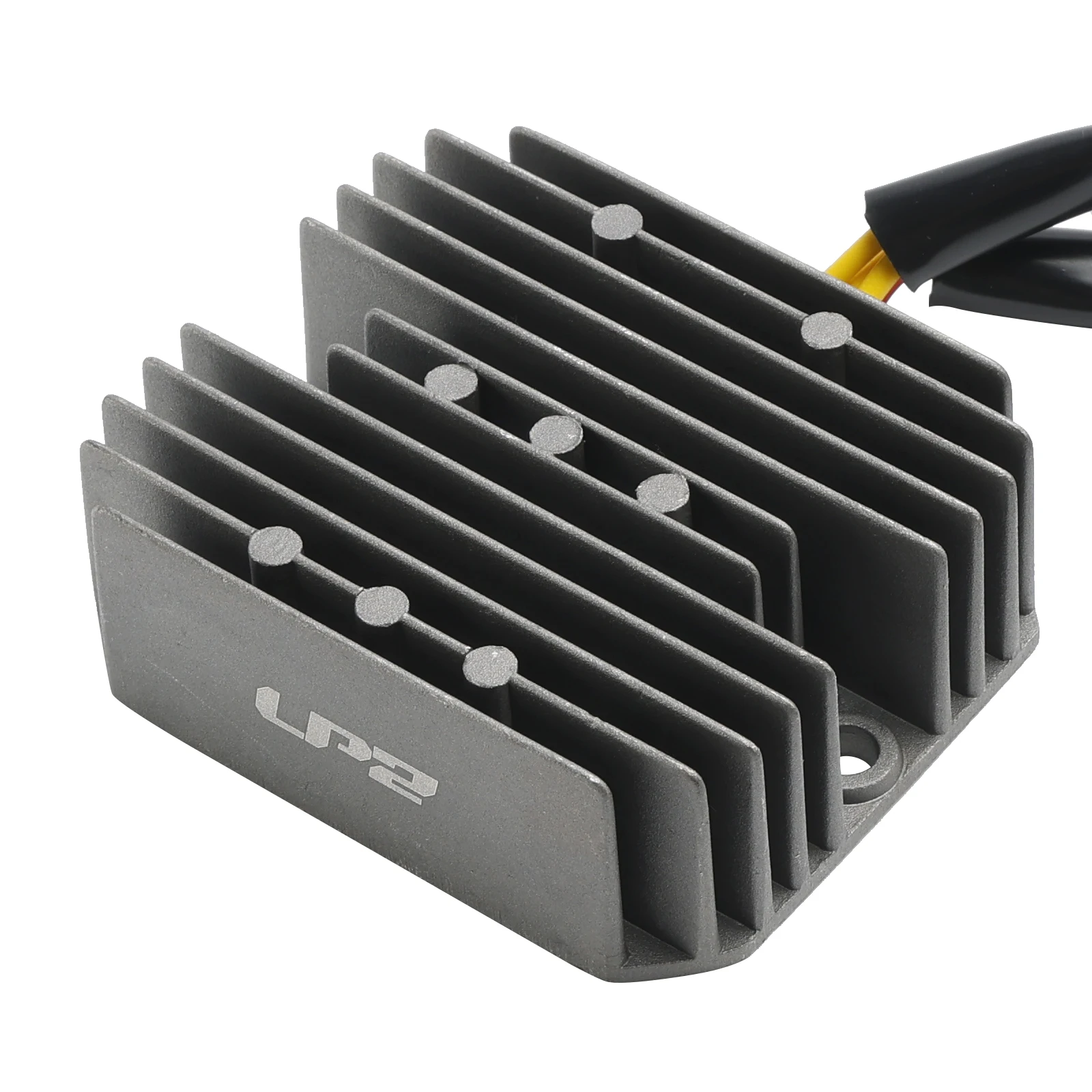

Artudatech 5-Wire Regulator For AEON 400 419 420 Crossland 400 Cobra 400 AEO-31600215-000

5-Wire Charging Regulator Rectifier Fit for Aeon 400 419 420 Crossland 400 Cobra 400 - AEO-31600215-000

Features:
OEM quality, direct replacement to your original unit.
Perfect fit and ready to install.
Always use a sealant to mount the cable gland joint.
All products shipped are tested.
Instruction is NOT included.

Attention:
This regulator is not suitable for lithium-ion batteries! The battery or other electric parts can be damaged!

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1 PC
Type: Regulator / Rectifier

Other specifications:

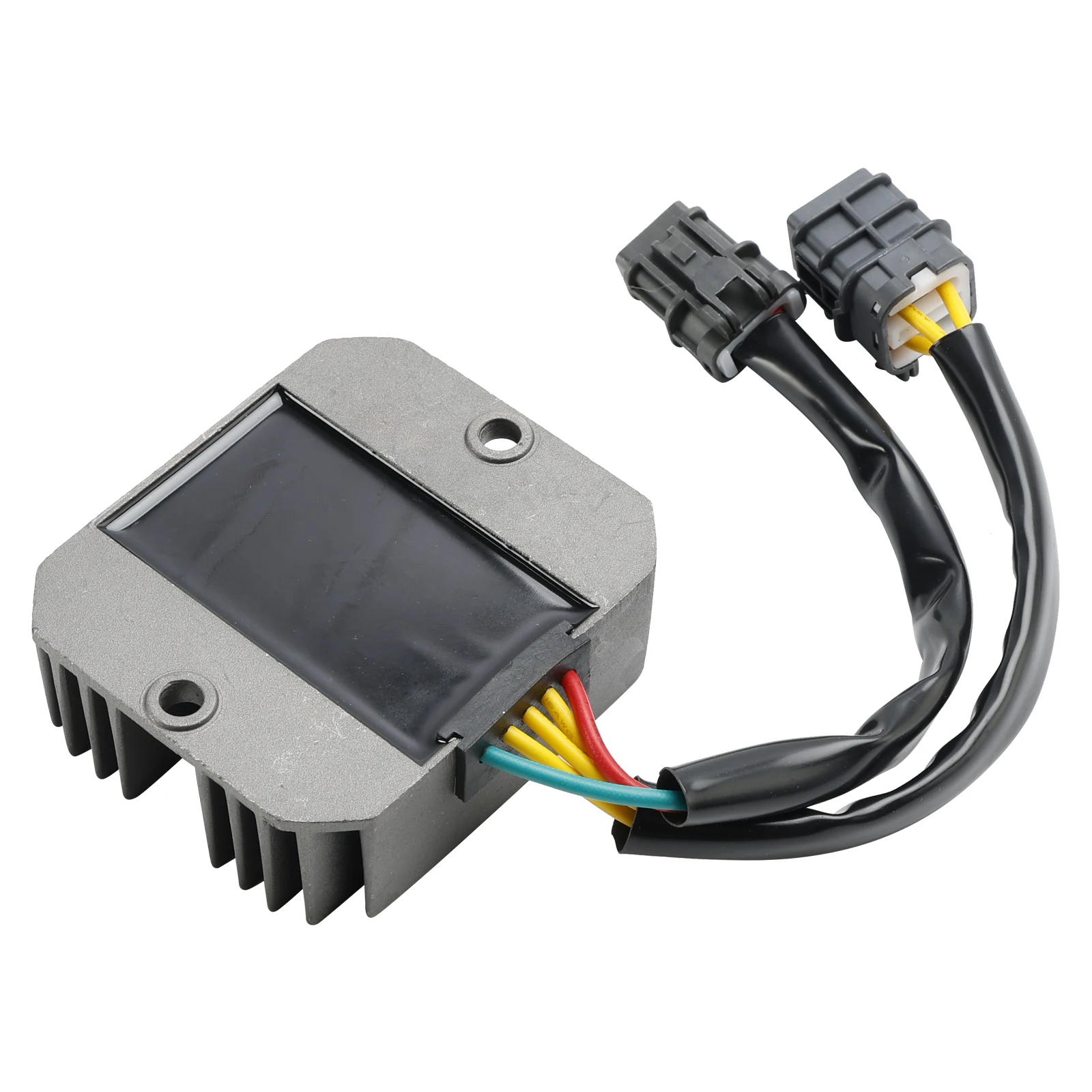

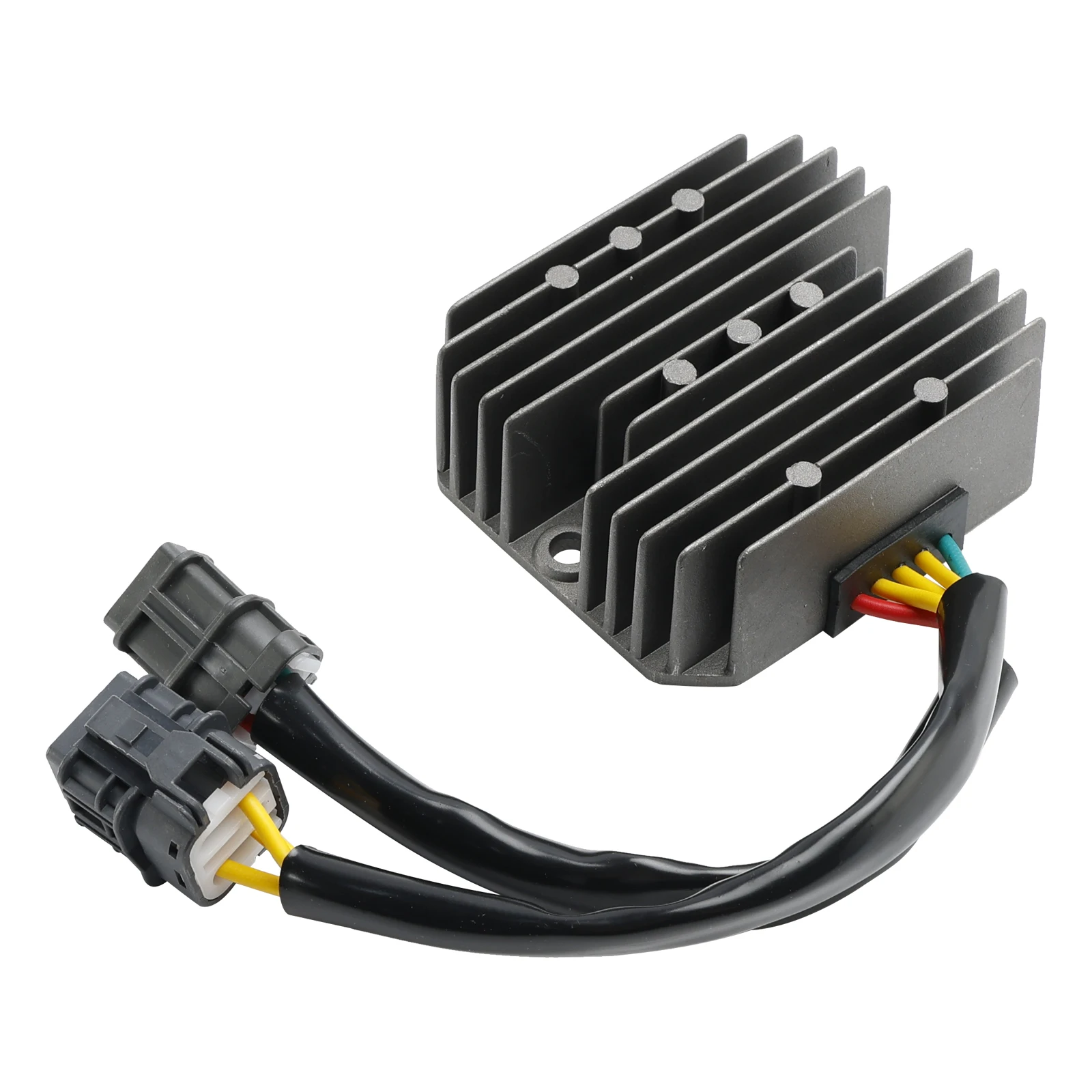

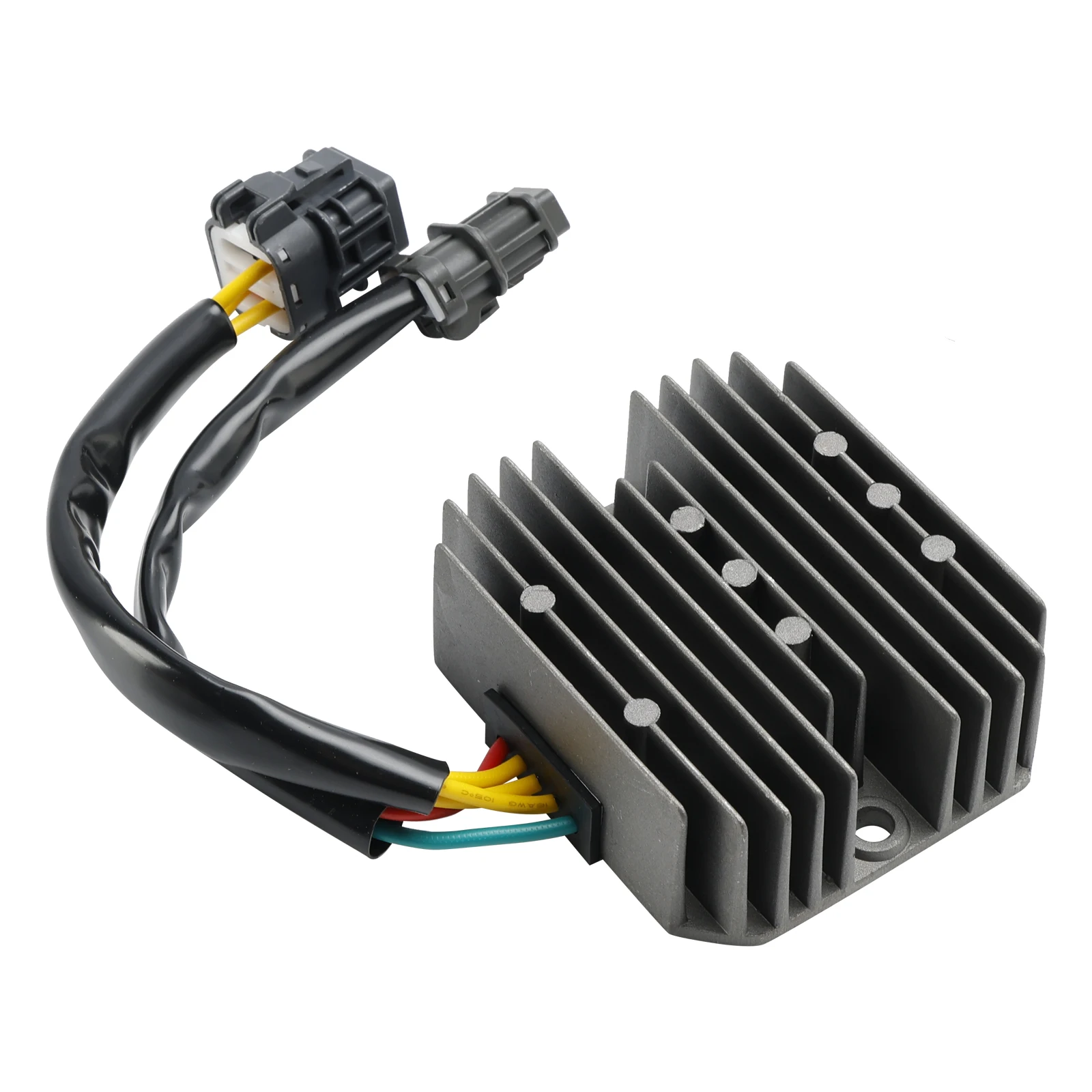

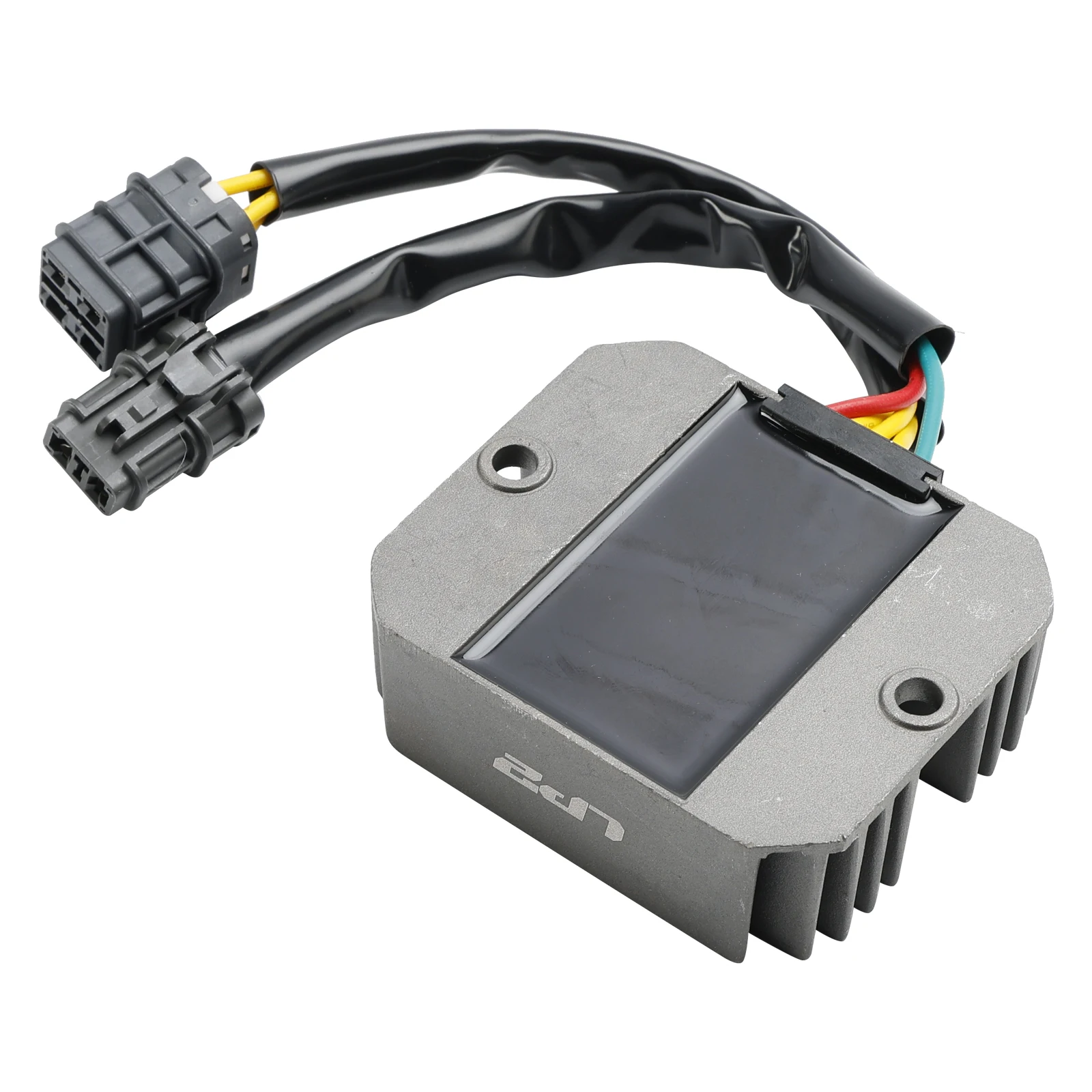

Number of wires: 5

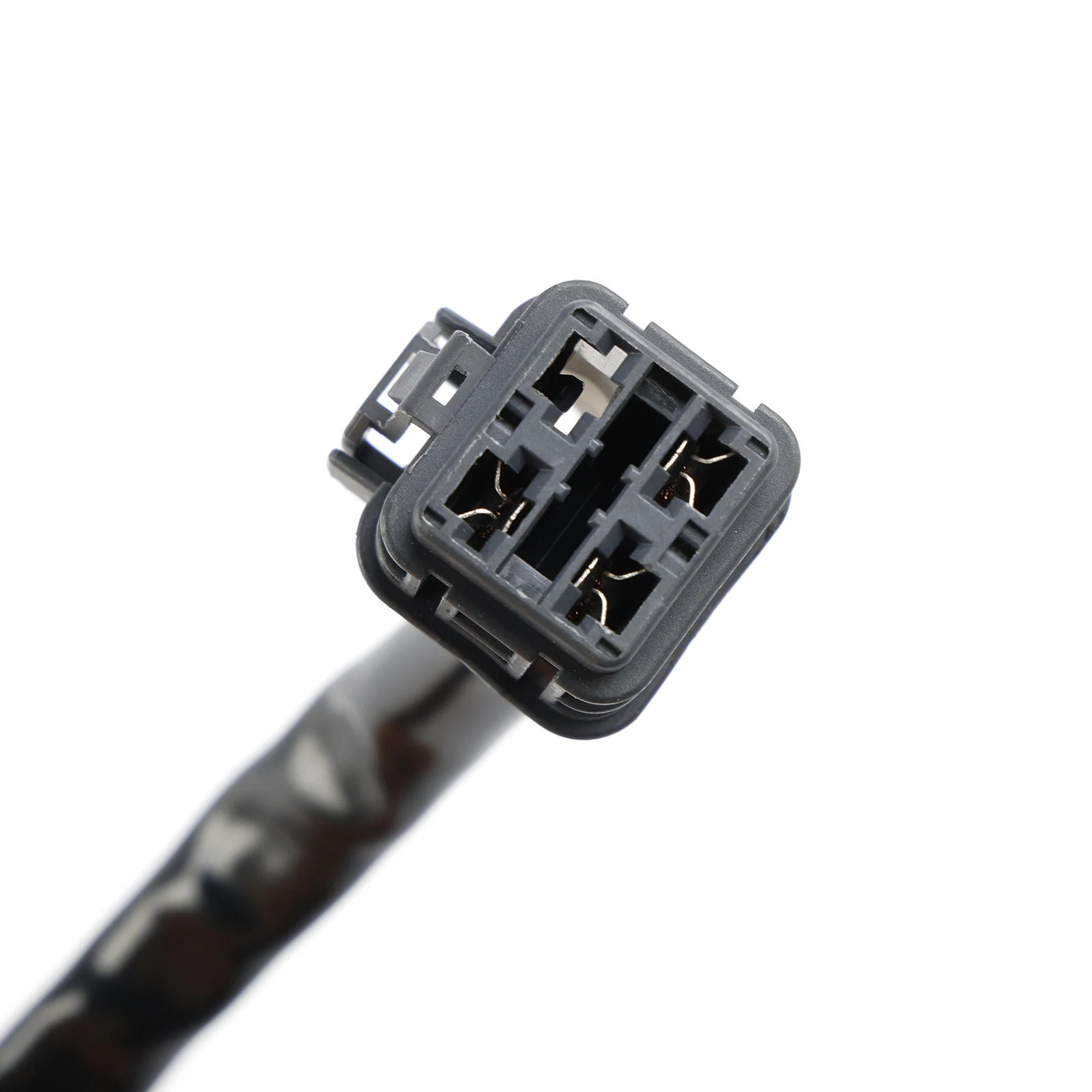

Number of plugs: 2
Number of pins: 2 + 3

Please compare the number of pins and plugs with the old part before purchasing.

Wiring Diagram:
Yellow - Alternator Coil
Yellow - Alternator Coil
Yellow - Alternator Coil
Red - Battery (+)
Green - Ground

Replacement Part Number:
31600215-000
AEO-31600215-000

Fits Make/Model:
Fit for Aeon ATV Cobra 300 S
Fit for Aeon ATV Cobra 400 (Vergaser)
Fit for Aeon ATV Crossland 350RX ab 2010
Fit for Aeon ATV Crossland 350X4 4x4
Fit for Aeon ATV Crossland 400 4x4 ab 2012
Fit for Aeon ATV Crossland 400 RX ab 2012
Fit for Aeon ATV Cobra 419 LOF SX / SM
Fit for CYR ATV Route 451
Fit for GOES ATV 360 Max 4x2 (Aeon)
Fit for GOES ATV 360 Max 4x4 (Aeon)
Fit for GOES ATV G400s (Aeon)

(Compatibility Chart is for reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

Package includes:
1x 5-Wire Regulator Rectifier

Note:
Signs that your regulator needs replacing:
Depending on the location of the regulator rectifier, the part can easily overheat. Other causes for a dead regulator rectifier center on the battery. Ground connections are important for good voltage, and if there is a faulty voltage, the regulator rectifier can run hot. Bad grounding, corroded battery connection and poor or loose battery connections will cause faulty voltage too.

There are generally two ways for the regulator rectifier to fail:
The first deals with diode burnout, resulting in battery drain. It is easy to assume that the issue is a bad battery because of symptoms such as dimming headlights and poor starts. Checking the voltage with a voltmeter versus relying on symptoms alone will prove highly beneficial. If the voltage drops below 13 volts, the motorcycle will begin to drain the battery and eventually the engine will stop. Check for bad connections and corrosion; these can also cause voltage issues.
The other failure type is shunt regulator burnout, where the regulator rectifier fails to control the voltage, resulting in battery overcharge. Again, a voltmeter will be useful for diagnosis. Though generally, readings above 17 volts mean the regulator rectifier is not converting the excess power correctly and all of that excess voltage may cause the headlights to become extremely bright and then blow.
