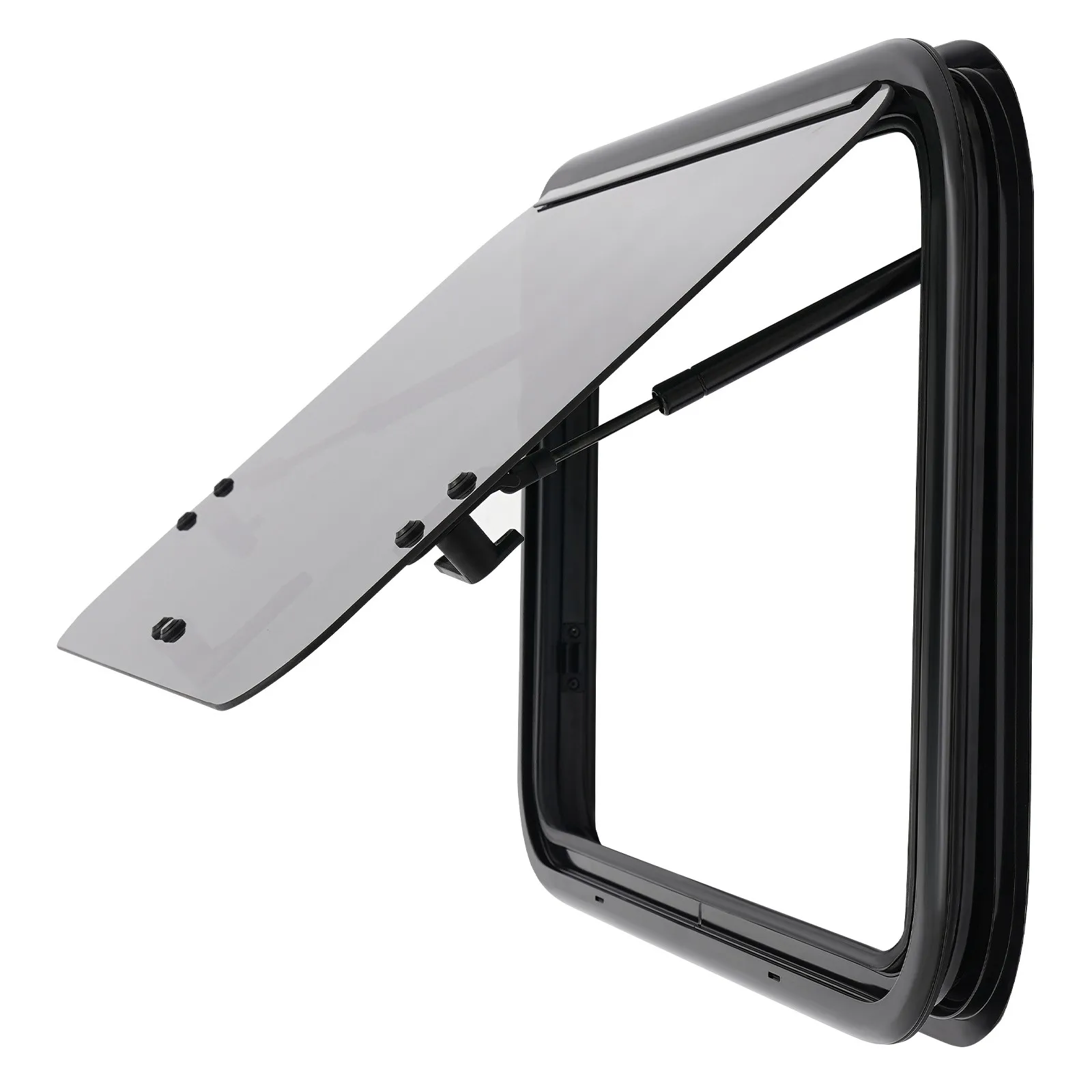

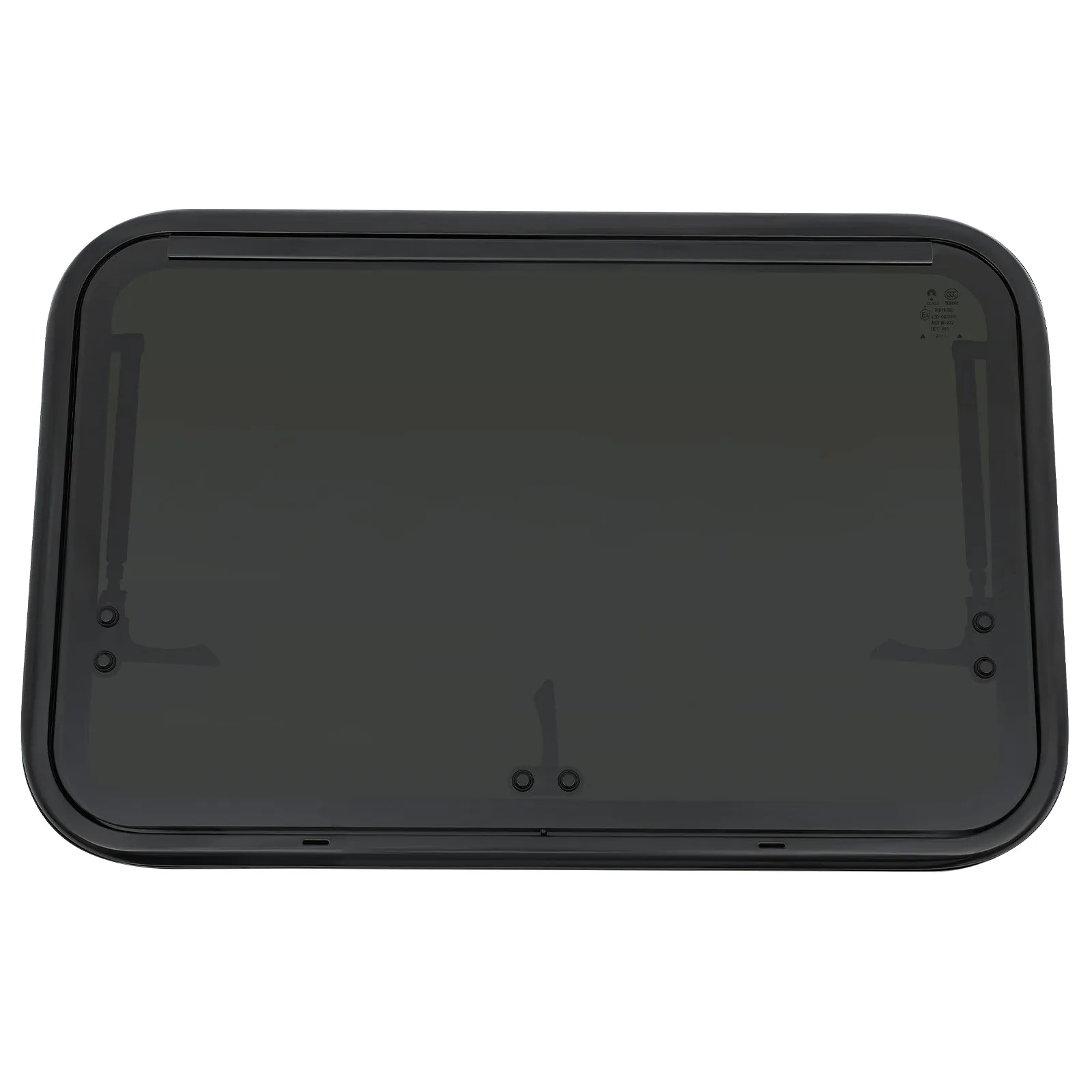

RV Push Out Window 70x45cm Tempered Glass with Built-in Sunshade Screen for Camper Van Trailer Motorhome Replacement

Description

This RV push-out window not only has an elegant design but also incorporates the infinite imagination of the journey. The fine screens allow the wind to pass freely while skillfully isolating tiny insects, keeping the air inside the car fresh and natural. There is also a sunshade to create a comfortable resting environment for you.

Key Features

High-quality and Sturdy:

Adopting premium aluminum alloy, ABS, and tempered glass materials, and bending, cutting, welding, grinding, and plastic spraying multi-processes, it has good corrosion resistance and wind pressure resistance, ensuring high reliability.

Comfortable and Breathable:

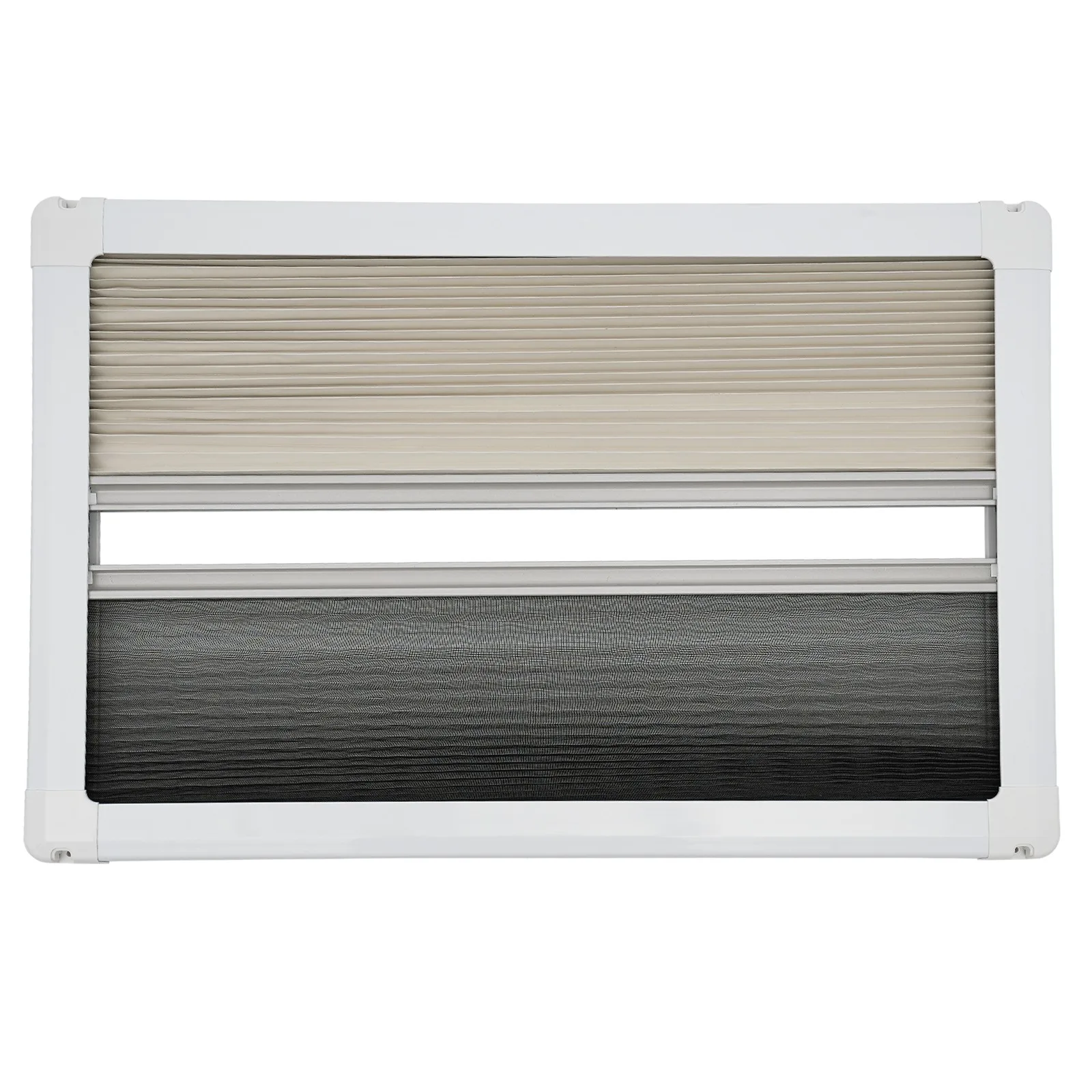

Hidden pleated screens can effectively block outdoor mosquitoes and insects from entering, while also effectively promoting air circulation, providing you with driving comfort.

Create a Private Environment:

Black tempered glass with about 18% light transmission and sunshade can block strong sunlight, creating a pleasant light environment and private space inside the car.

Aesthetically Pleasing:

The combination of white and black colors, and rounded corners blend in with the exterior of the caravan and enhance the overall design of the caravan.

Secure Locking:

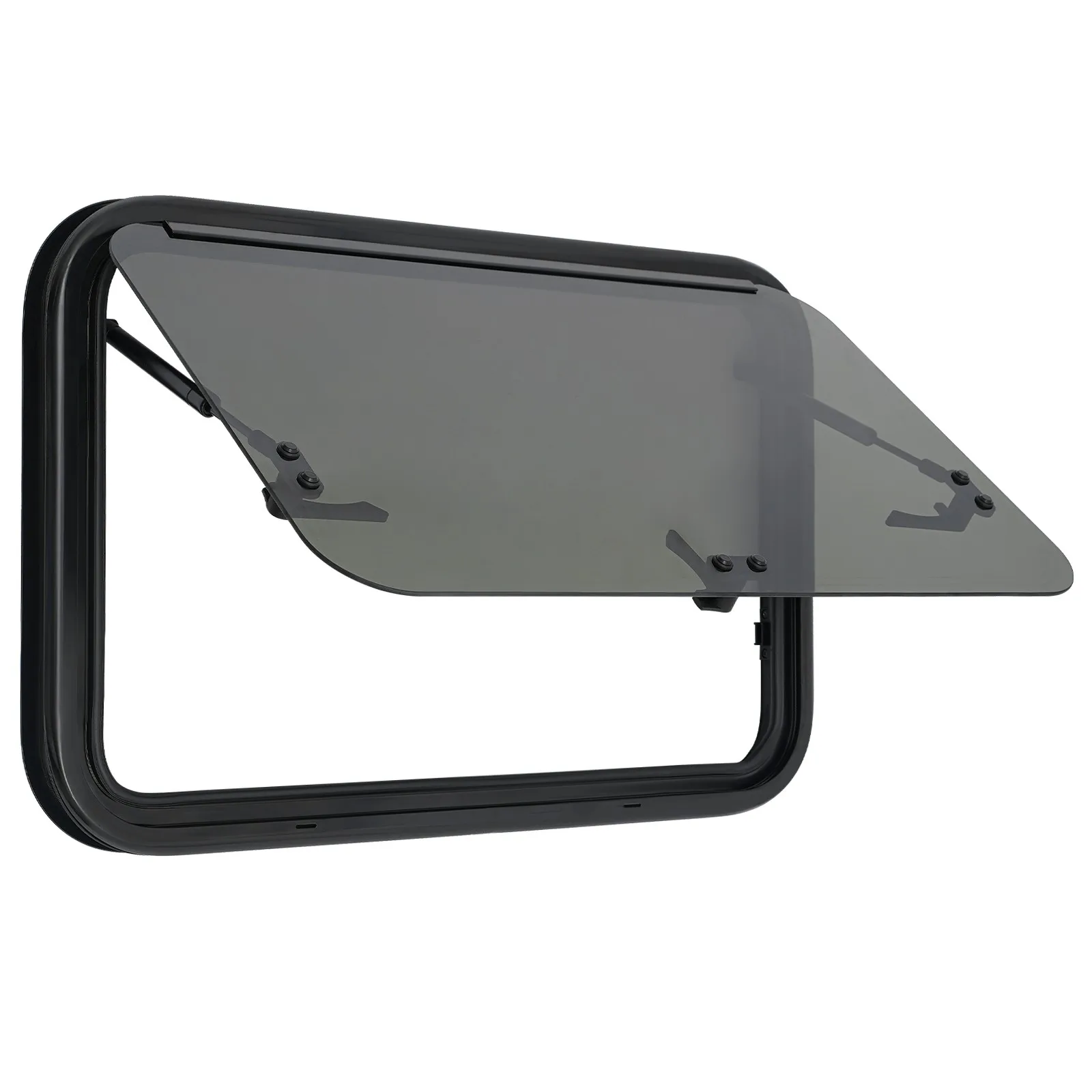

Equipped with reliable switch latches and sturdy support bars, you can slide and lock the window into multiple positions to maintain multiple opening angles (0-85°).

Space Optimization:

The appropriate size and push-out design can maximize the use of limited space, ensuring a good view without taking up too much space.

Easy Installation:

 Sandwich mounting method, simple structure, and complete installation accessories can help you finish the installation quickly.

Simple Cleaning:

 Thanks to its smooth surface and simple structure, you can easily clean it with a damp rag(not included).

Details

Rounded Corners:

The corners are rounded, which not only improves the aesthetics of the product but also increases the safety of use.

Thoughtful Buckles:

 We are additionally equipped with white buckles to cover the mounting screws and optimize the overall aesthetics.

Application

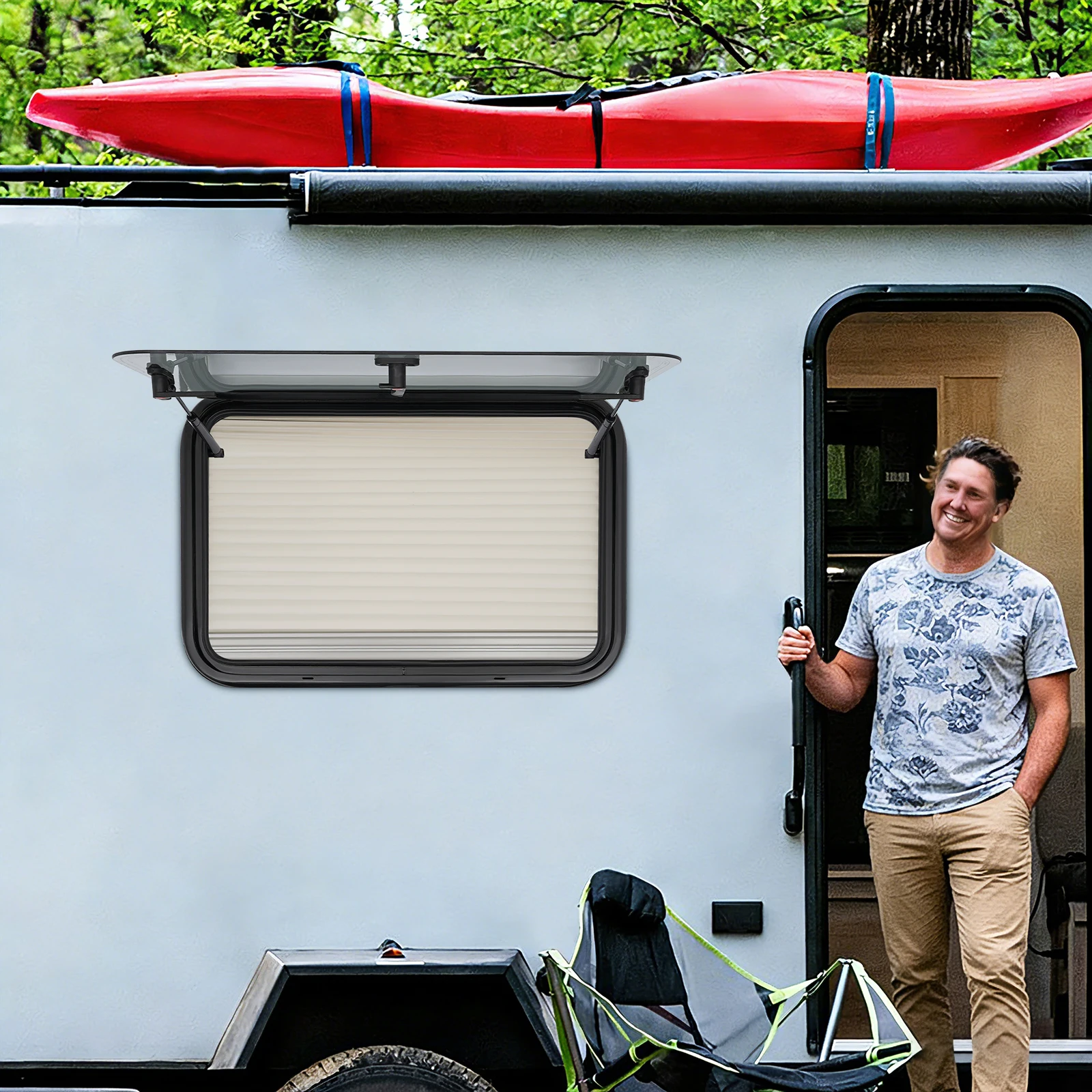

It is suitable for RVs, caravans, campers, vertical trailers, technical vehicles, converted vehicles, etc.

Specification

Material: Aluminum Alloy, ABS, Tempered Glass, Plastic

Process: Bending, Cutting, Welding, Polishing, Spraying

Color: White+ Black

Shape: Rectangular

Style: Modern

Assembly Required: Yes

Mounting Type: Sandwich Mount

Installation Type: Direct Replacement

Light Transmission: Approx. 18%

Max. Opening Angle: 85°

Tempered Glass & Applicable RV Body Thickness: 30-40mm/1.18-1.57in

Main Frame Thickness: 40.7mm/1.6in

Screen Thickness: 33mm/1.3in

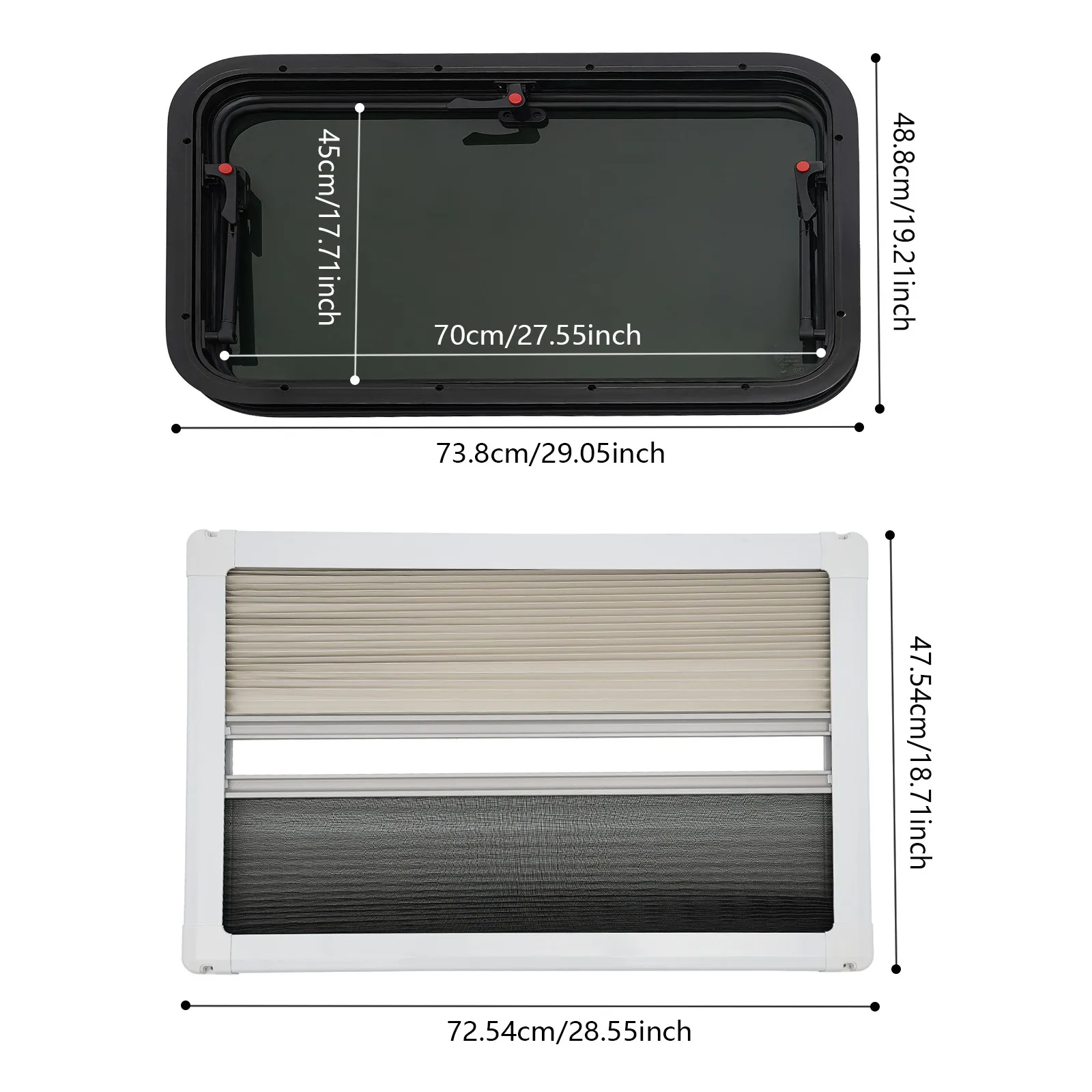

Main Frame Outer Size: 72.54*47.54cm/28.56*18.72in

Screen Outer Size: 73.8*48.8cm/29.05*19.21in

Installation Size: 70*45cm/27.56*17.72inch

Package Size: 80*55*13cm/31.50*21.65*5.12in

Gross Weight: 7kg/15.43lbs

Net Weight: 6.5kg/14.33lbs

Package Included

1* RV Push-out Window

1* Window Screen

All Accessories for Installation

Notes

Please check the style and size before purchasing.

We recommend professional installation.

Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement and make sure you do not mind before ordering.
